Lower Transaxle Assembly

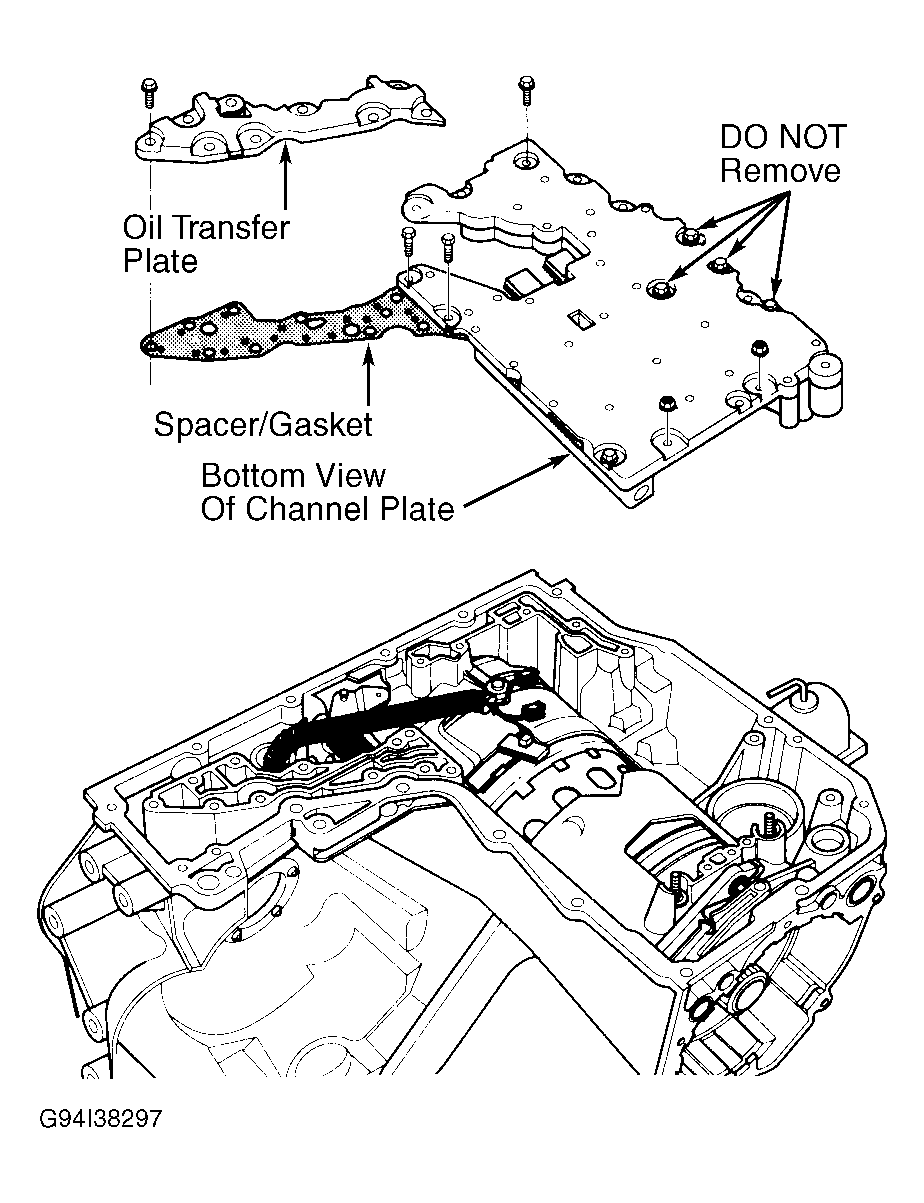

Remove lower oil pan and oil scavenge screens. Disconnect manual valve link and wiring harness connectors. Remove oil transfer plate. Leave specified bolts in assembly to hold lower control valve and accumulator assembly together. See Fig 1 . Remove control valve and accumulator cover assembly.
