Connector Identification

NOTE: For connector identification, see Fig 1 -Fig 4 .

Fig 1: Identifying Multifunction Relay Connector Terminals

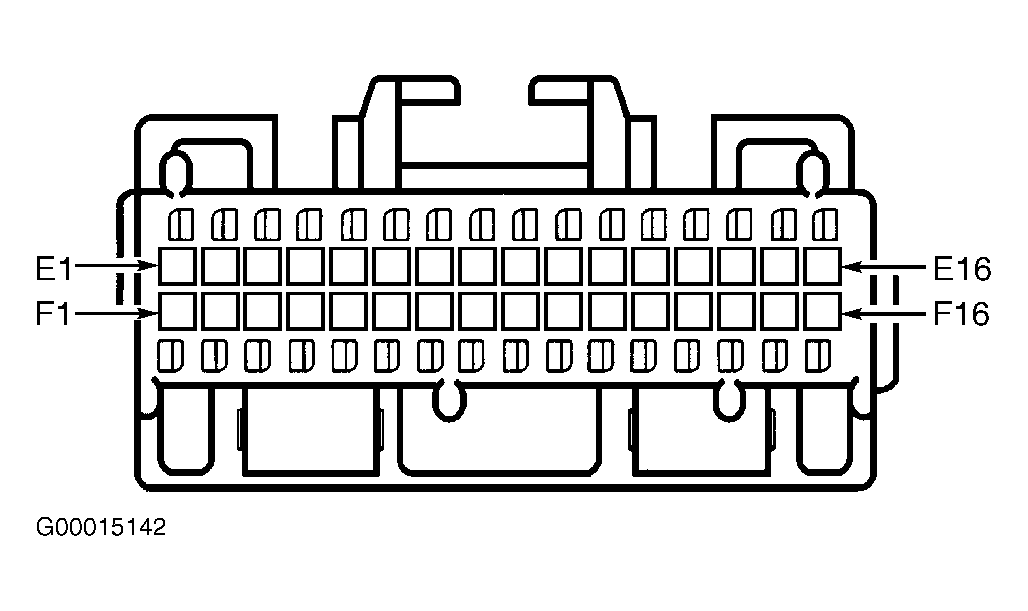

Fig 2: Identifying Body Control Module Connectors

Fig 3: Identifying Vehicle Integration Unit Blue Connector C2 Terminals

Fig 4: Identifying Data Link Connector Terminals
