Mode 6 - CATERA: 1999-2001

Fig 1: Mode $06 Data Definitions For 1999-2001 Catera (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Mode $06 Data Definitions For 1999-2001 Catera (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

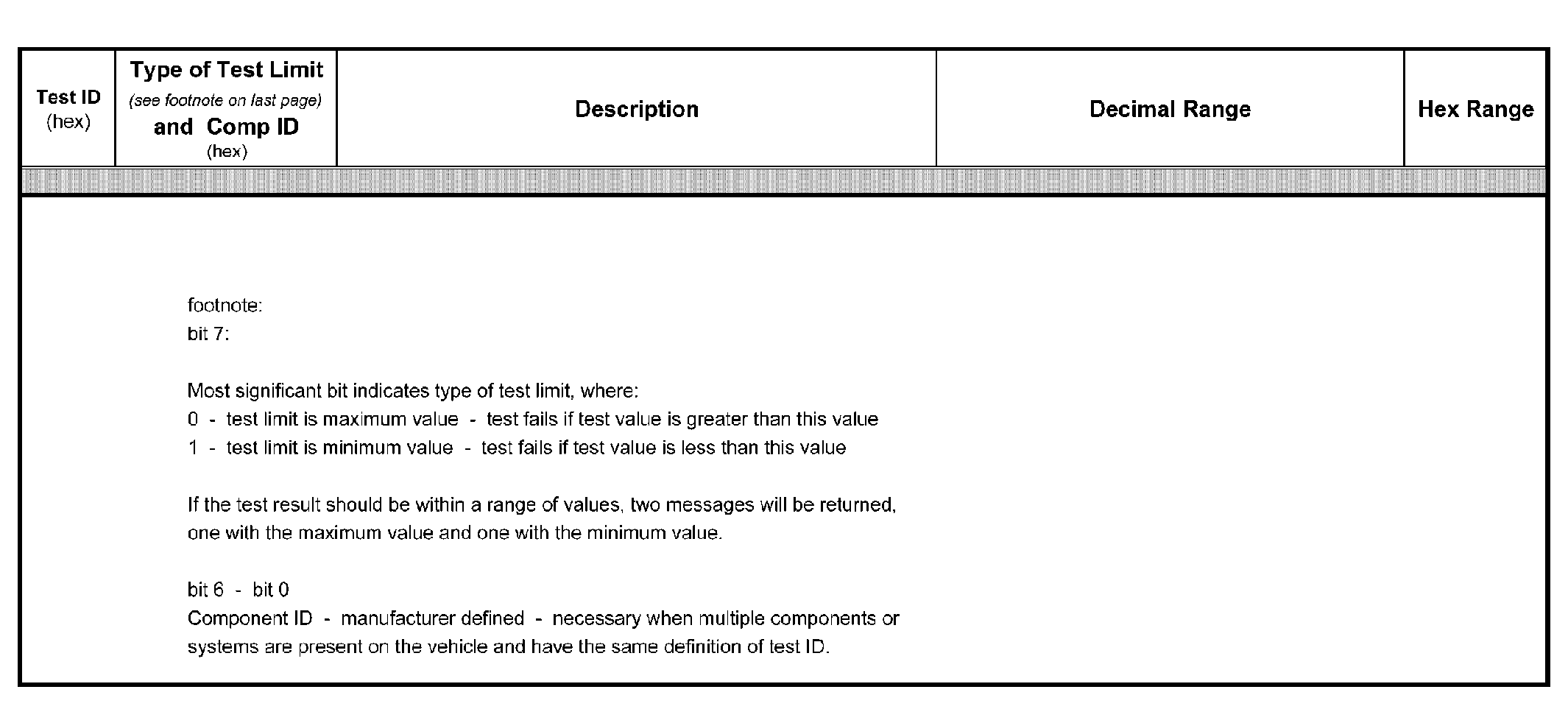

Fig 3: Mode $06 Data Definitions For 1999-2001 Catera (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
