Remote Transmitter Battery: Installation

1. Install battery (2) with positive (+) side up. See Fig 1 .
2. Align both halves (1, 3) of transmitter.
3. Ensure that seal is positioned correctly.
4. Close transmitter case.
5. Synchronize transmitter(s). See TRANSMITTER PROGRAMMING  under PROGRAMMING.

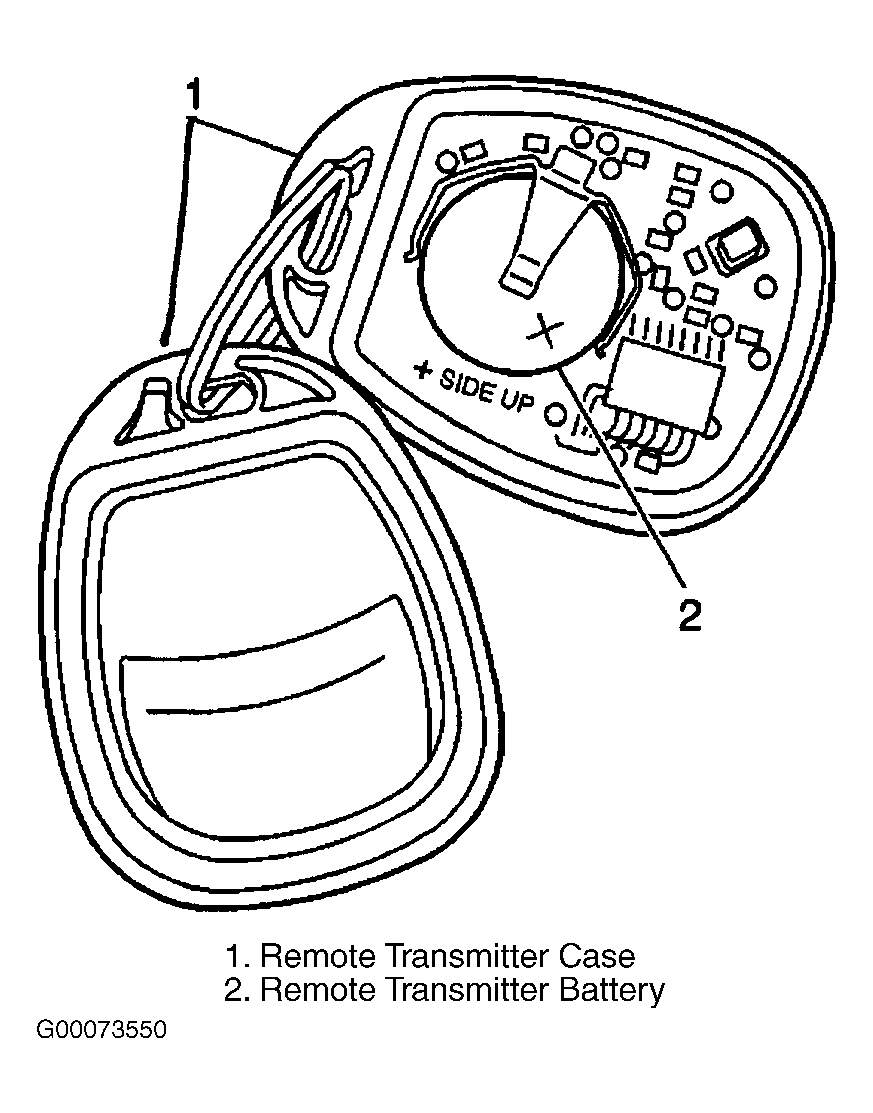

Fig 1: Identifying Remote Transmitter Components

Courtesy of GENERAL MOTORS CORP.
