Installation Procedure

Connect the electrical connectors.
CAUTION: Care should be taken not to damage the flat wire harness.
Install the overhead console into the opening in the headliner.
Push in on the overhead console to engage the 4 retainer clips.

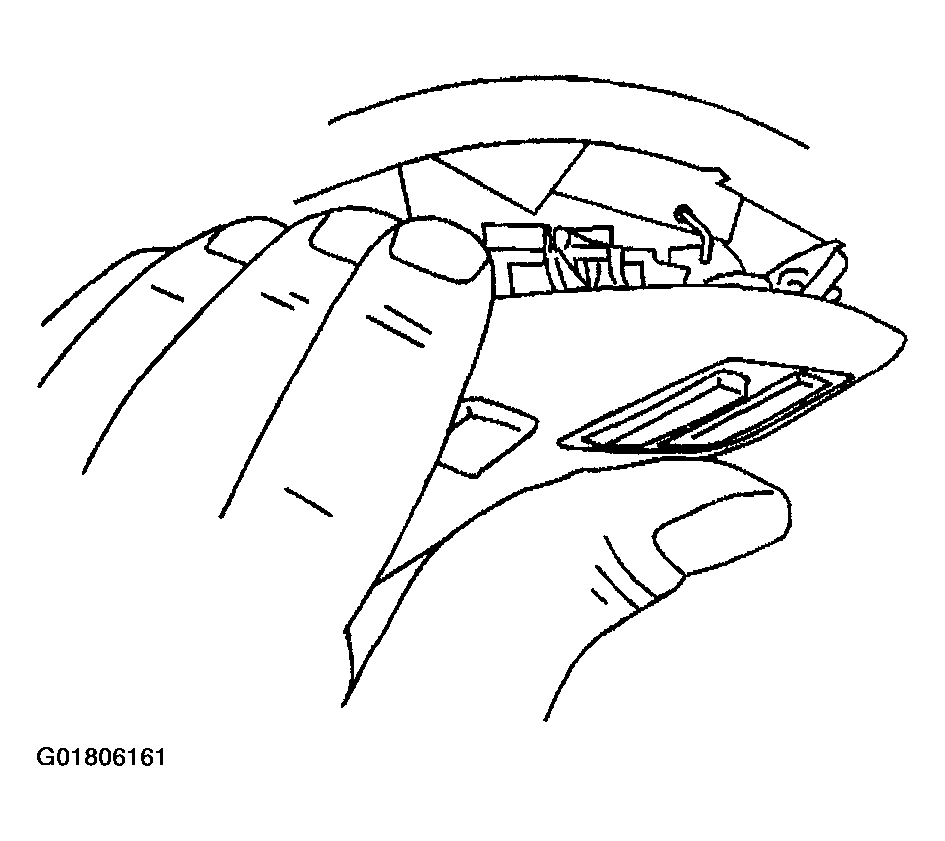

Fig 1: Installing Overhead Console
Courtesy of GENERAL MOTORS CORP.
