Memory Function Switch: Installation

1. Snap memory function switch (1) to door trim panel. See Fig 2 .
2. Connect memory function switch electrical connector (3).
3. Reinstall door panel sound deadener material (2).
4. Install door trim panel.

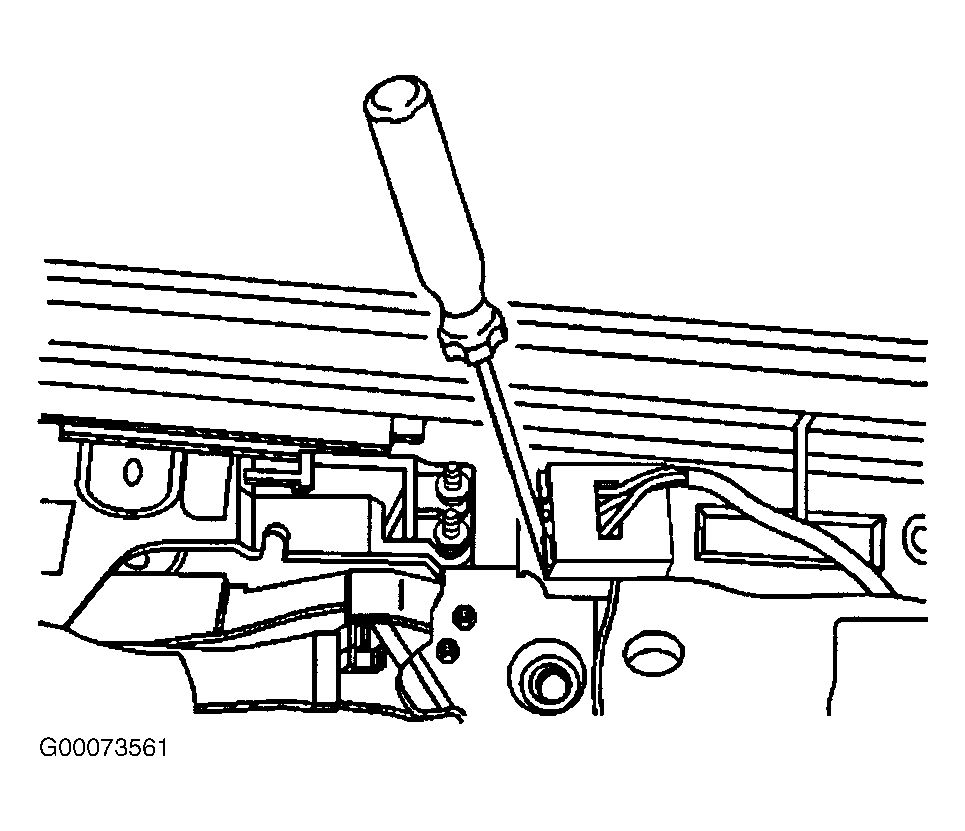

Fig 1: Locating Memory Function Switch Release Tabs

Courtesy of GENERAL MOTORS CORP.

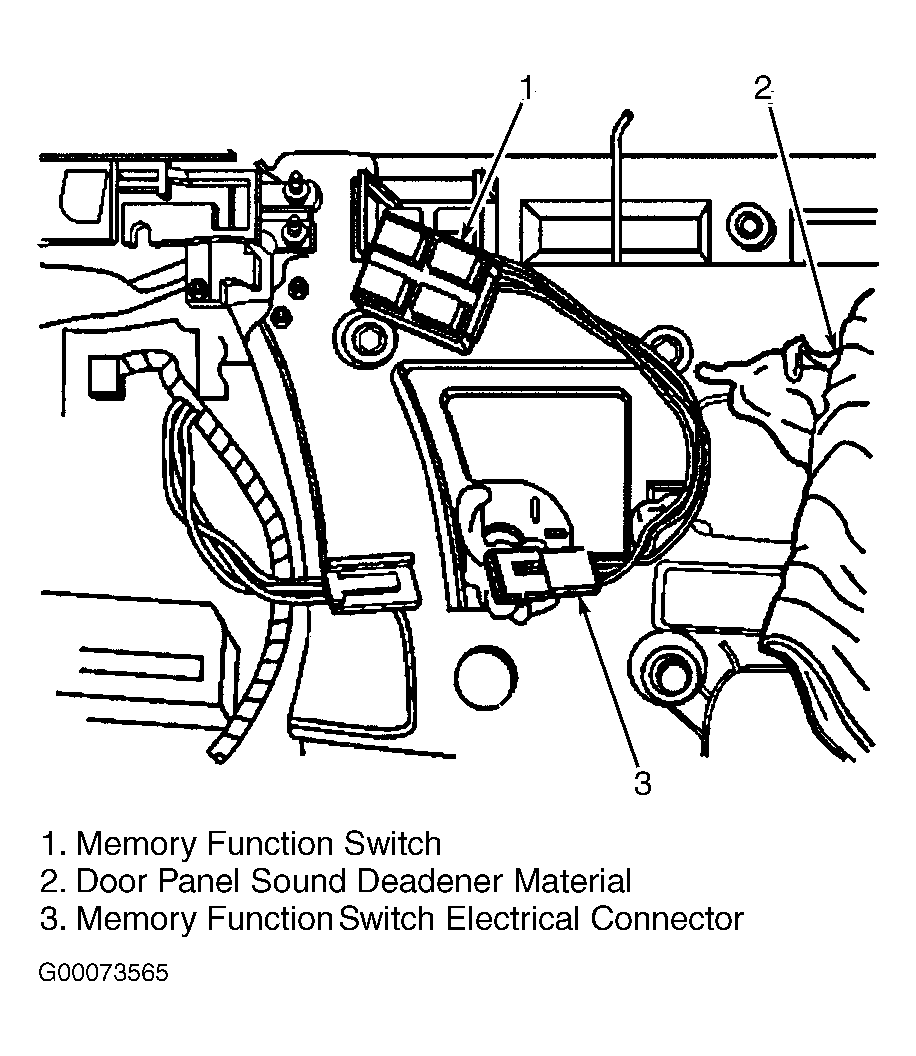

Fig 2: Removing & Installing Memory Function Switch

Courtesy of GENERAL MOTORS CORP.
