Wiring Diagrams
Fig 1: Charging System Wiring Diagram (DeVille - Primary Generator)

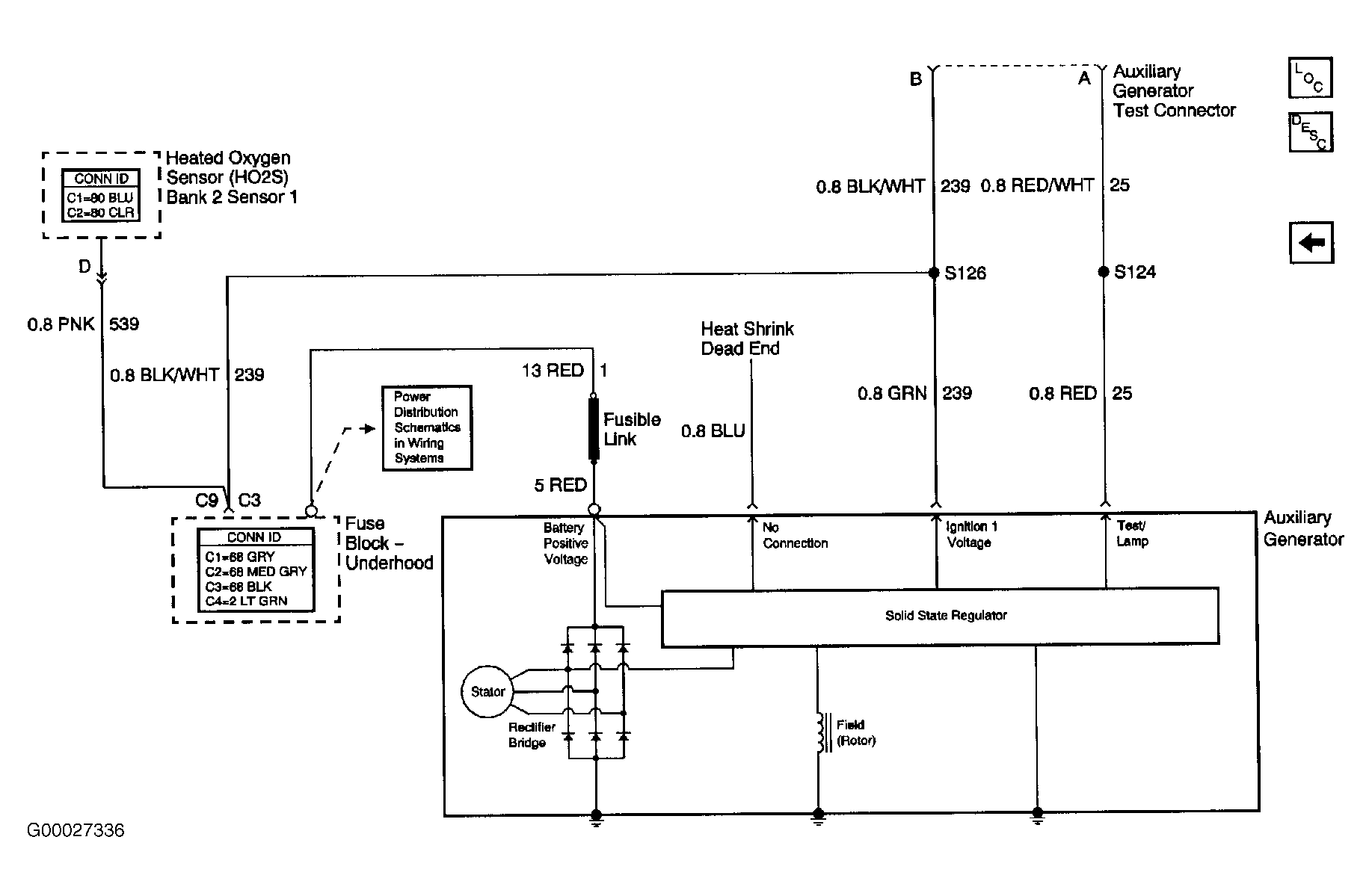

Fig 2: Charging System Wiring Diagram (DeVille - Secondary Generator - Limousine)
