Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

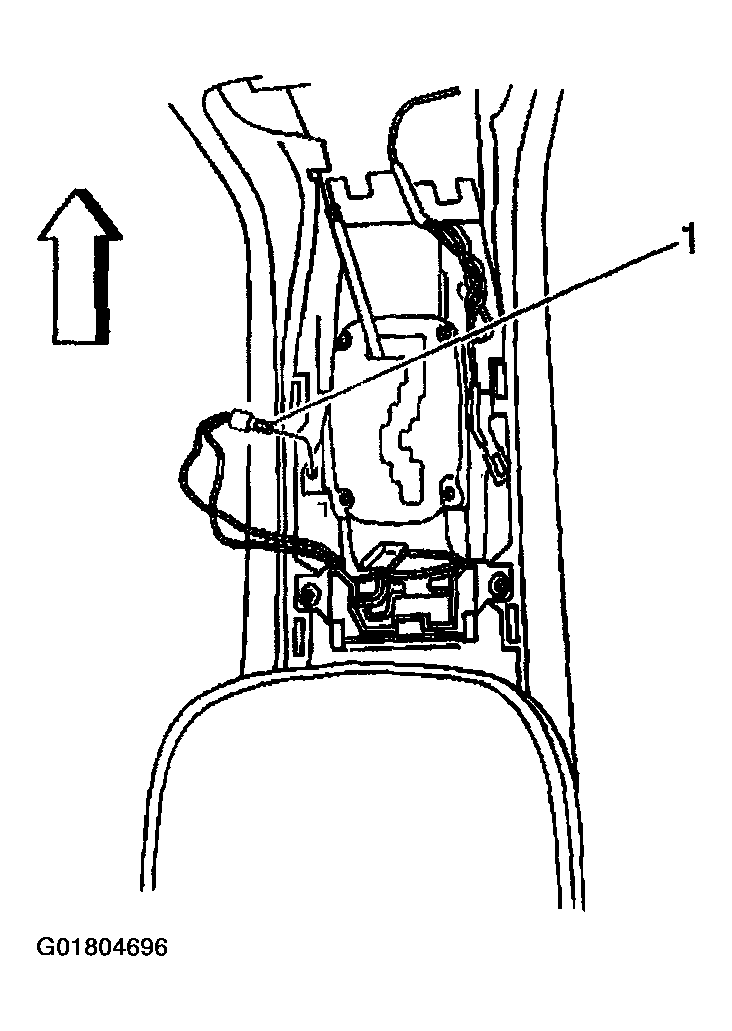

- Install the shift indicator lamp (1) to the lamp socket.
- Install the lamp and socket to the shifter assembly.
- Rotate the shift indicator lamp socket clockwise.
- Install the console center trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (DTS) in Instrument Panel, Gages and Console.
