Electronic Brake Control Module (EBCM)

WARNING: This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

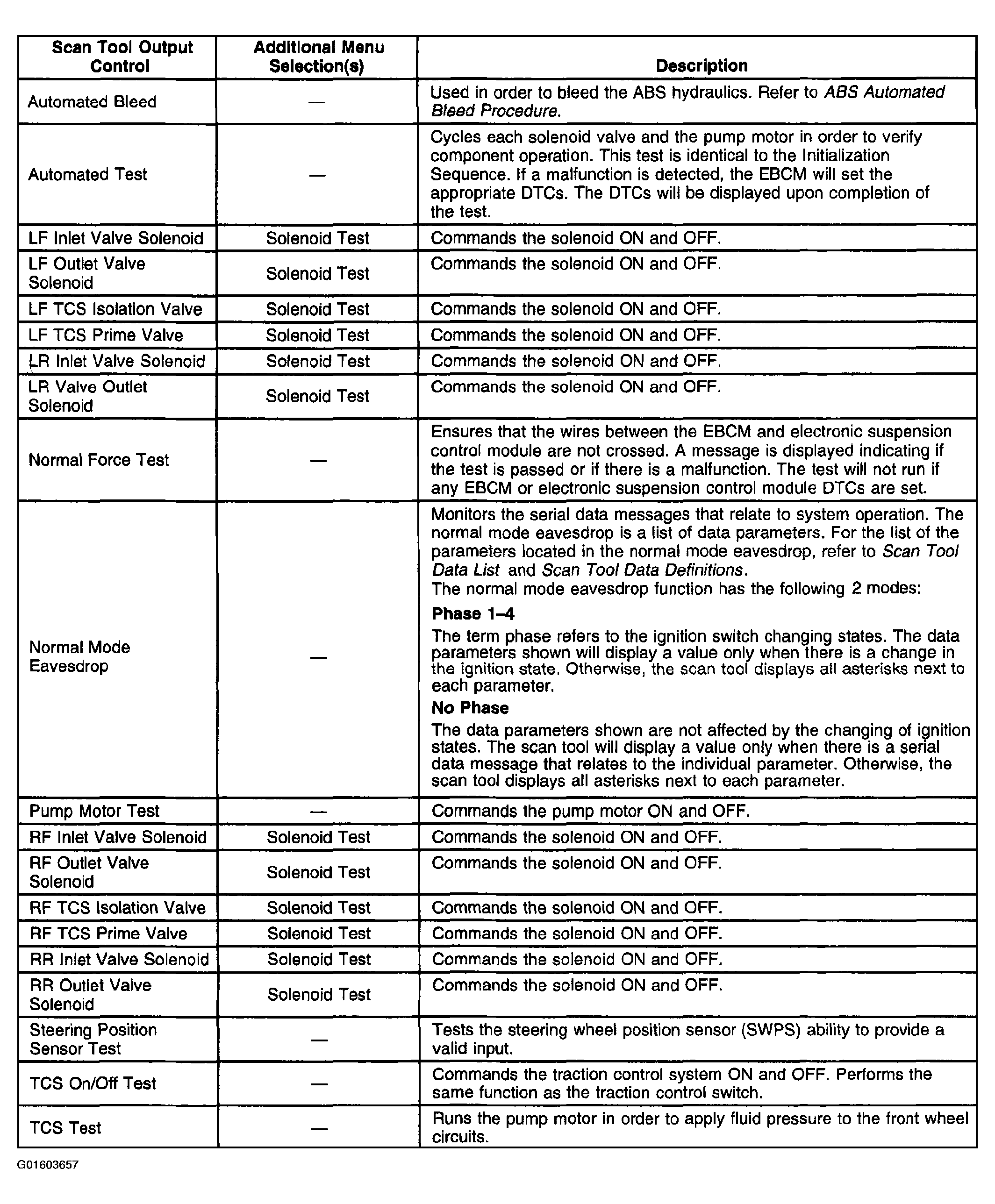

Fig 1: Electronic Brake Control Module (EBCM) Scan Tool Output Control

Courtesy of GENERAL MOTORS CORP.
