Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Slide the Cellular telephone module (3) into the mounting bracket (1), until an audible click is heard, indicating the Cellular telephone module (3) is secured in the mounting bracket (2).

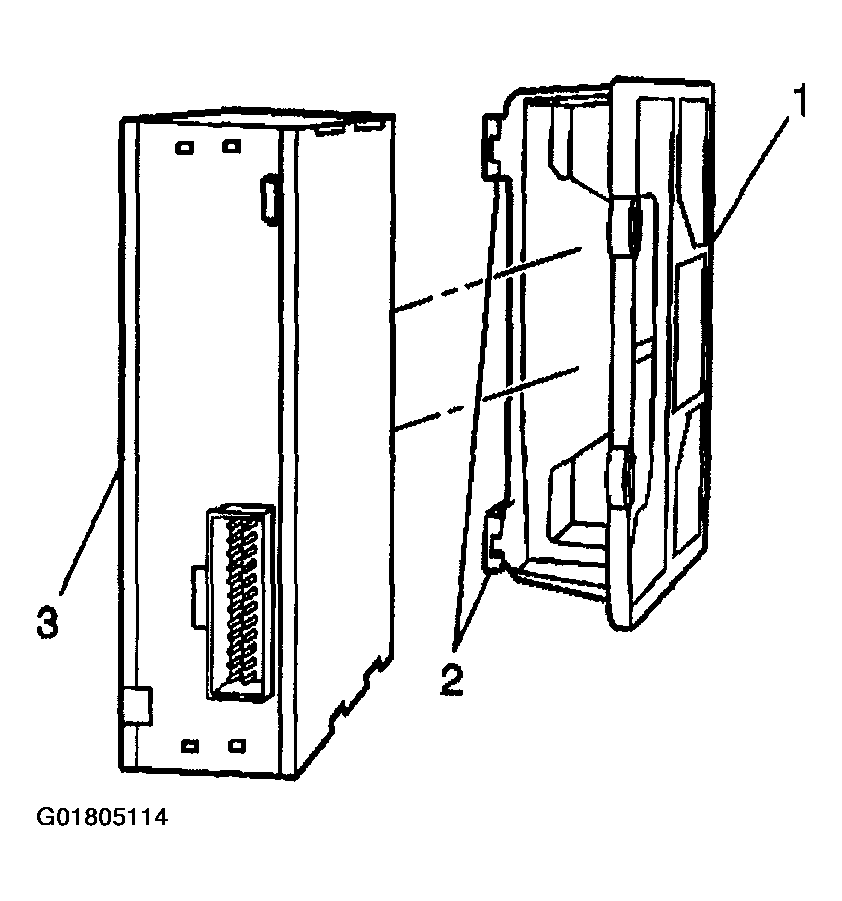

Fig 1: Sliding Telephone Module Into Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Install the Cellular telephone module and mounting bracket assembly (2) to the rear shelf carrier (1).
Install the Cellular telephone module mounting bracket fasteners (3).
Connect the electrical connector.
Install the rear compartment trim. Refer to COMPARTMENT FRONT TRIM PANEL REPLACEMENT - REAR .

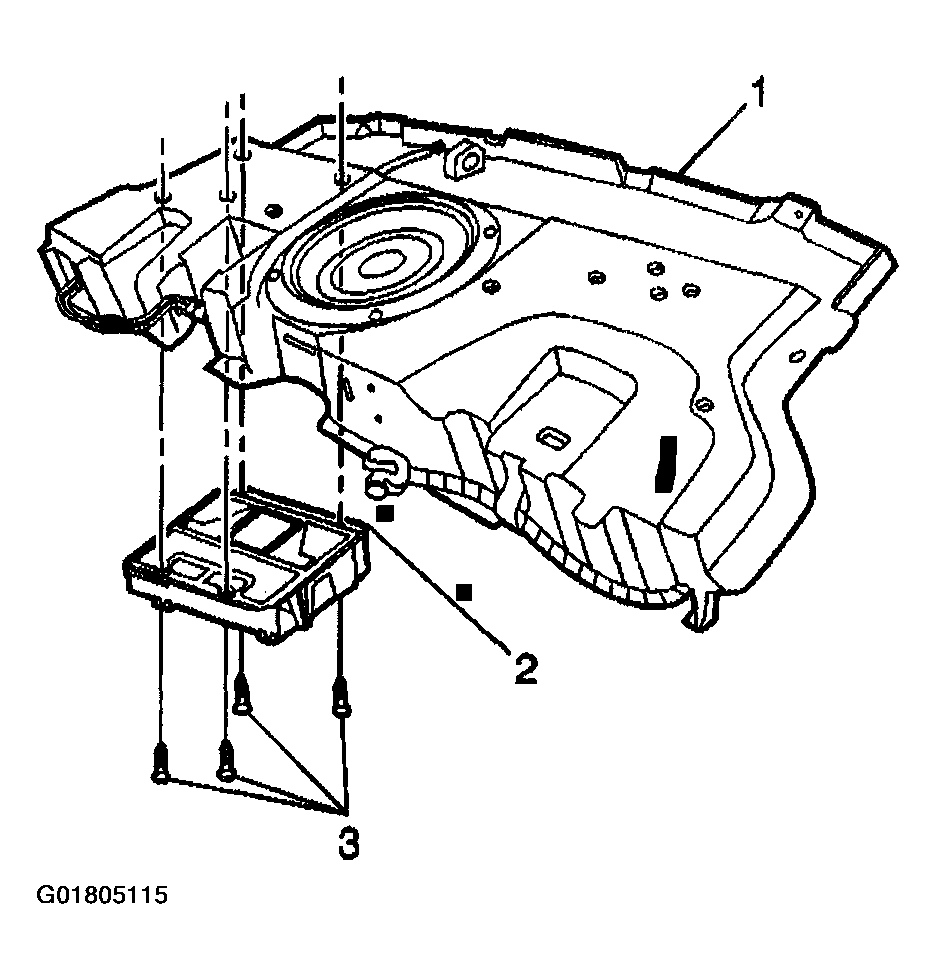

Fig 2: Installing Module & Mounting Bracket Assembly & Fasteners
Courtesy of GENERAL MOTORS CORP.
