Memory Seat Module: Removal

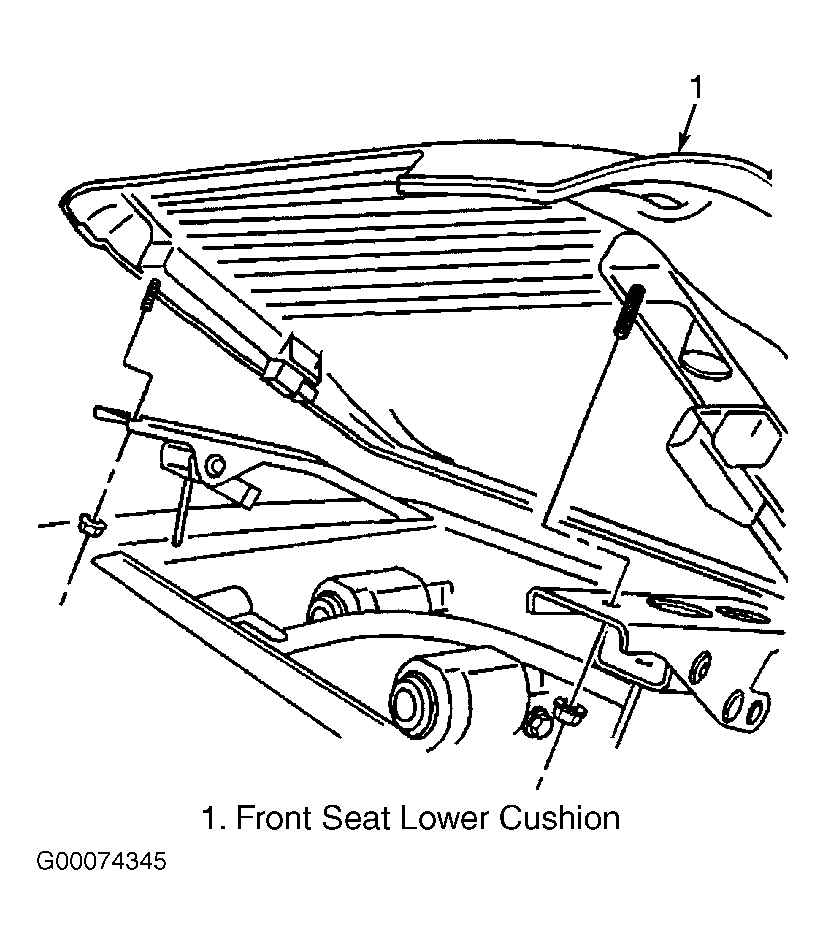

  1. Disable air bag system. See AIR BAG RESTRAINT SYSTEMS - DEVILLE, ELDORADO & SEVILLE article. Adjust the front seat to the up position until maximum travel is reached. See Figure. Angle the front of the seat cushion up in order to access the seat cushion fasteners.
  2. Remove the fasteners retaining the cushion to the seat adjuster. Disconnect the heated seat cushion harness connectors and the lumbar air lines, if equipped. Disconnect the heated seat module and the memory seat module harness connectors if equipped. See Figure.

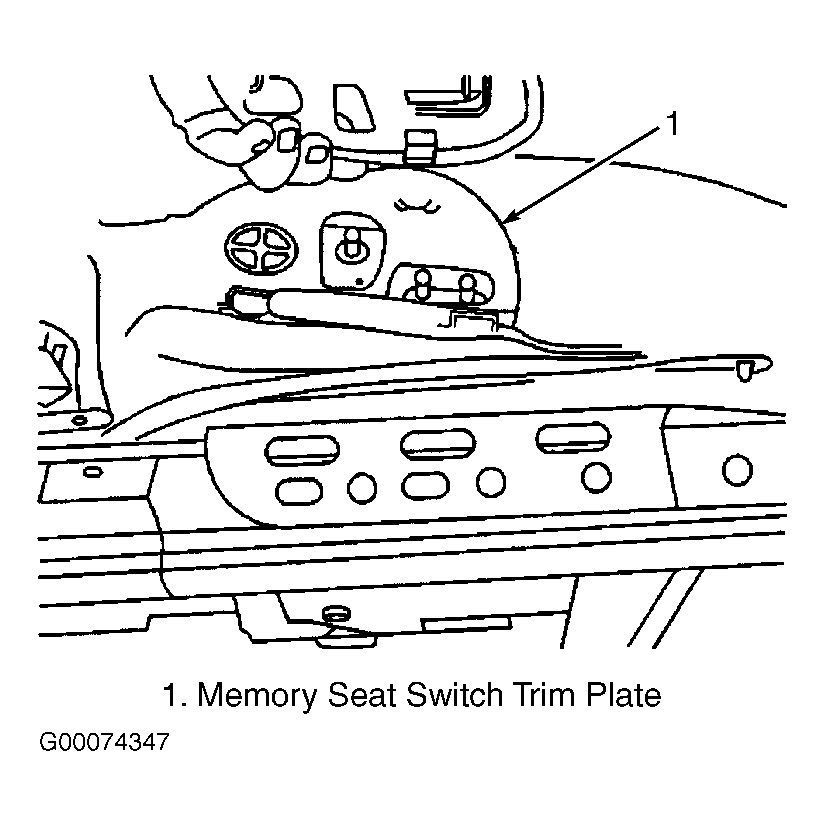

  3. Remove the knobs from memory seat switch. See Figure. Remove the 2 push pins from the inside of the switch trim plate, on the bottom edge of the trim plate. See Figure. Release the tabs at the bottom of the switch plate. Remove the switch trim plate.

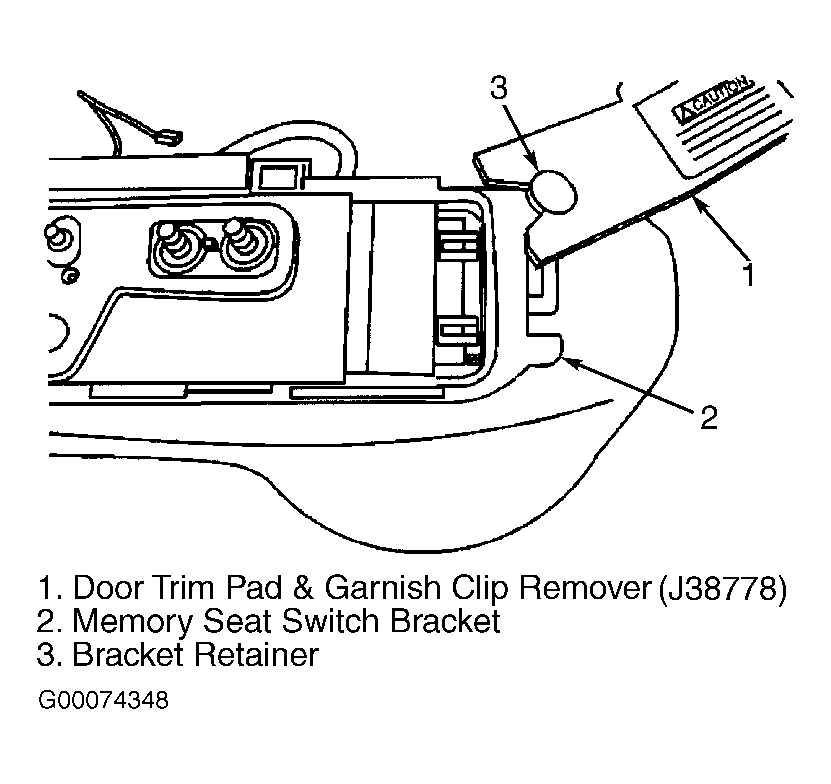

  4. Remove the "J" channels from the seat cushion. Pull the front seat cushion cover up in order to expose the seat switch. Using Door Trim Pad and Garnish Clip Remover (J 38778), remove the switch bracket retainers. See Figure. Release the locking tabs on the switch bracket, and slide the seat switch from the seat bottom. Disconnect harness connectors from the switch.
