Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

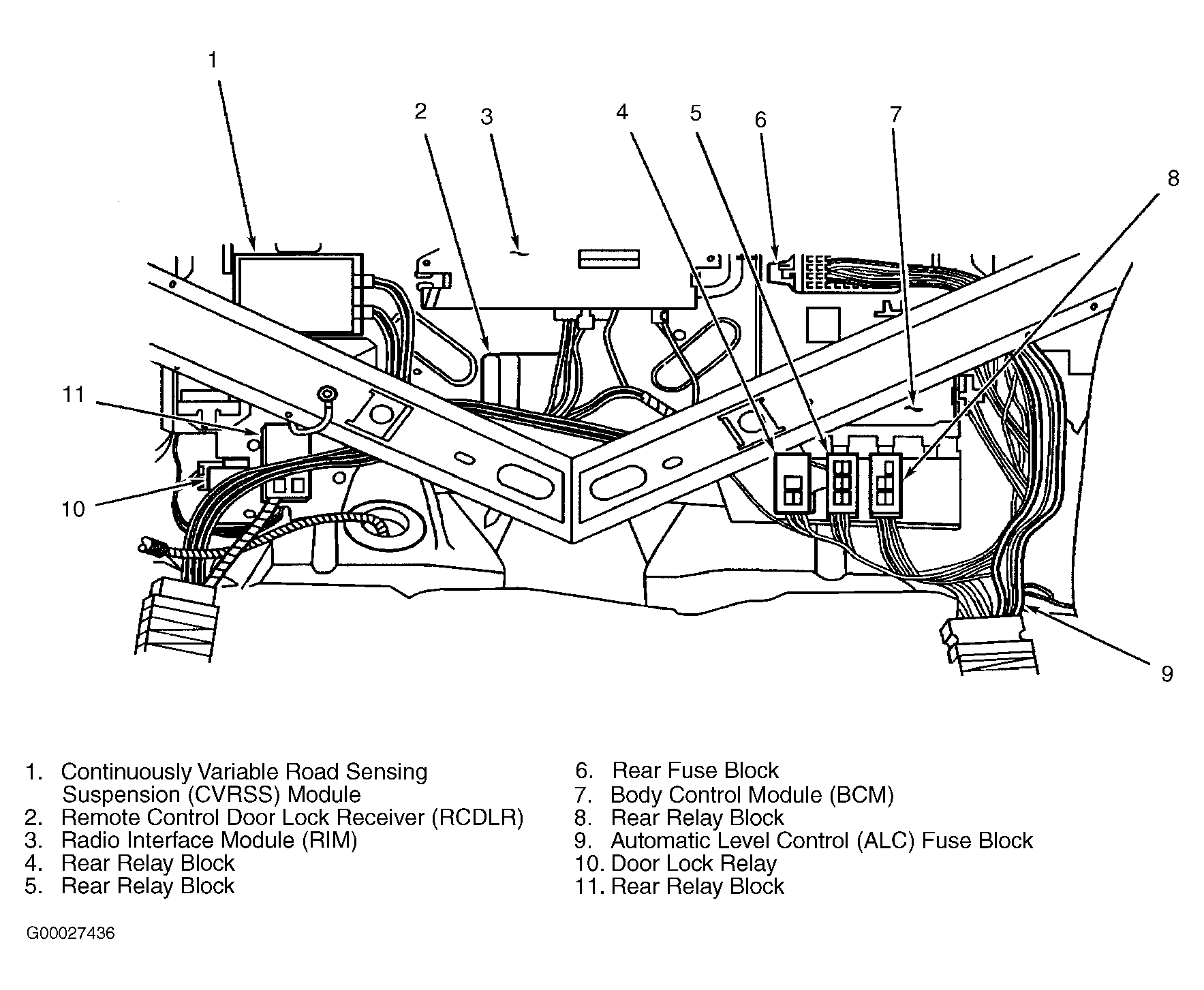

| Automatic Level Control (ALC) Fuse Block | Behind lower left side of rear seat back. See Figure . |

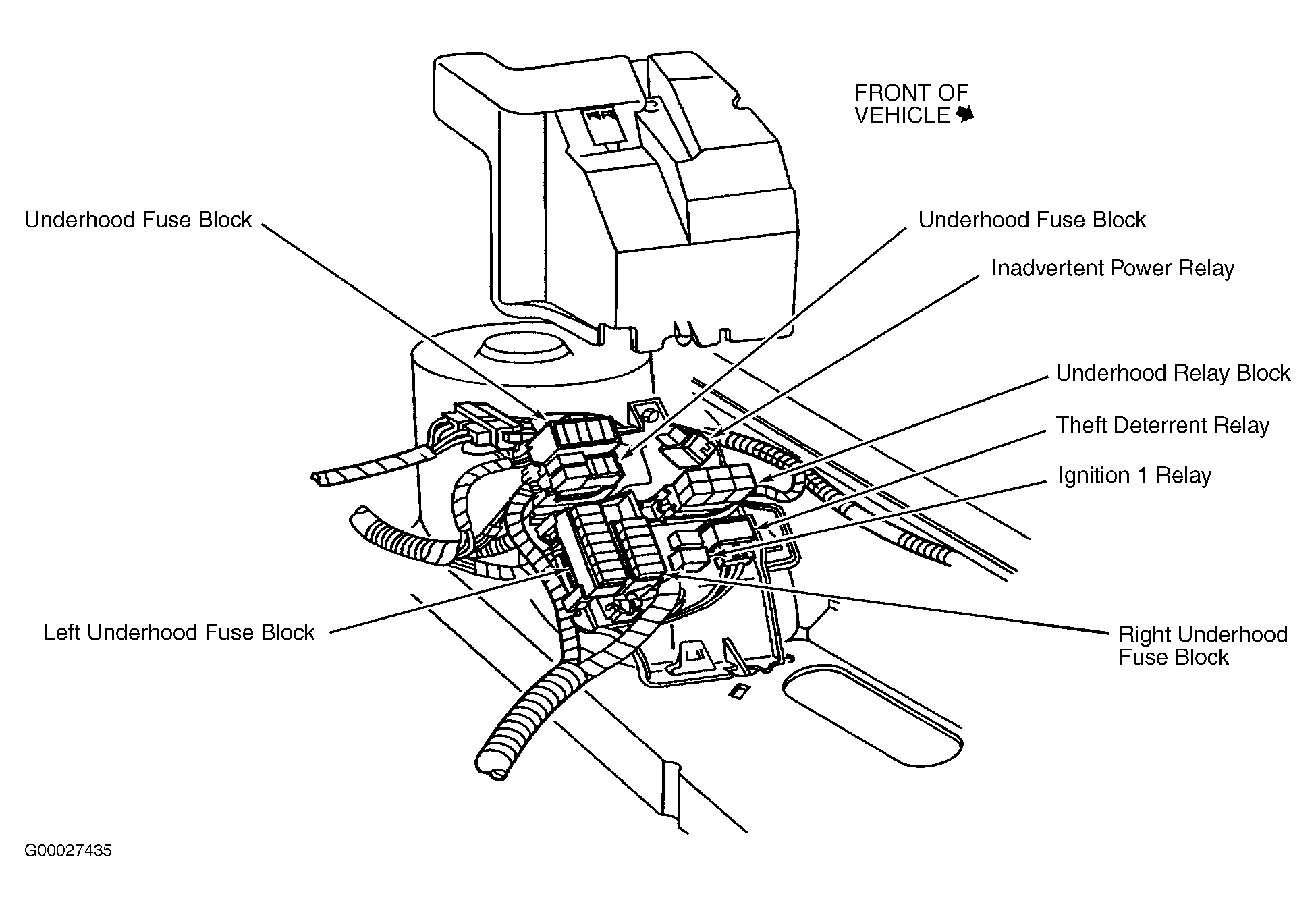

| Left Underhood Fuse Block | Left side of engine compartment, forward of left front strut tower. See Figure . |
| Rear Fuse Block | Behind upper left side of rear seat back. See Figure . |
| Rear Relay Block | Behind rear seat back. See Figure . |
| Right Underhood Fuse Block | Left side of engine compartment, forward of left front strut tower. See Figure . |
| Steering Column Fuse Holder | Near base of steering column. |
| Underhood Fuse Block | Left side of engine compartment, forward of left front strut tower. See Figure . |
| Underhood Relay Block | Left side of engine compartment, forward of left front strut tower. See Figure . |
