Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 3 .

COMPONENT LOCATIONS

Component	Location
Dash Integration Module	Behind Right Side Of Instrument Panel, Near Blower Motor
Door Module	Behind Respective Door Panel
Front Heated Seat Module	Below Respective Front Seat
Front Heated Seat Switch	In Center Console, Next To Shifter
Headrest Motor	In Respective Front Seat Back
In/Out Lumbar Motor	In Respective Front Seat Back
In/Out Lumbar Position Sensor	In Respective Front Seat Back
Memory Function Switch	On Left Front Door Panel
Memory Seat Module	Below Left Front Seat
Rear Fuse Block	Left Side, Below Rear Seat
Rear Heated Seat Switch	On Respective Rear Door Panel
Rear Heated Seat Module	Behind Rear Seat Back
Rear Integration Module	Behind Rear Seat Back
Recline Position Sensor	Below Left Front Seat
Up/Down Lumbar Motor	In Respective Front Seat Back
Up/Down Lumbar Position Sensor	In Left Front Seat Back

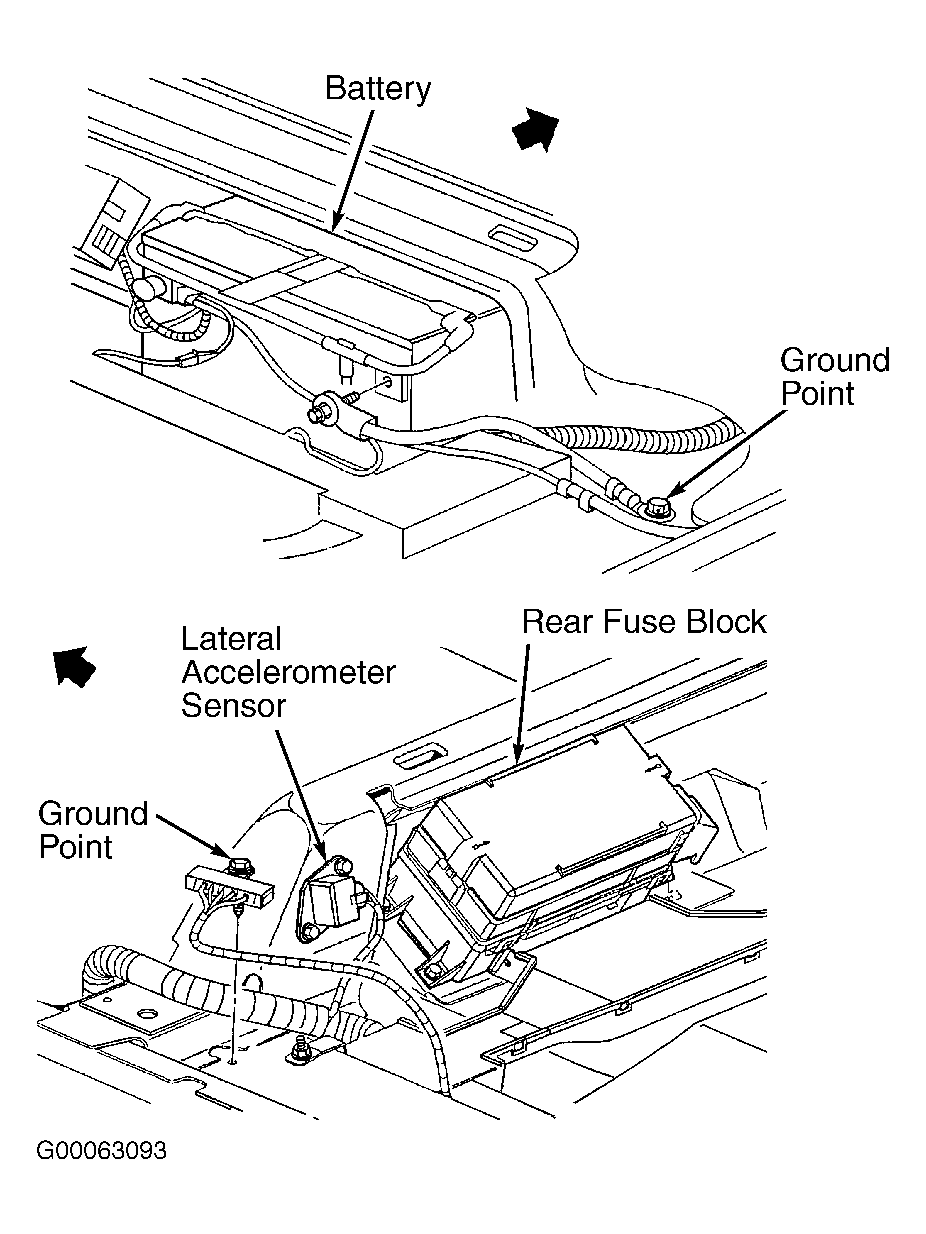

Fig 1: Locating Components Below Rear Seat

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating Rear Integration Module

Courtesy of GENERAL MOTORS CORP.

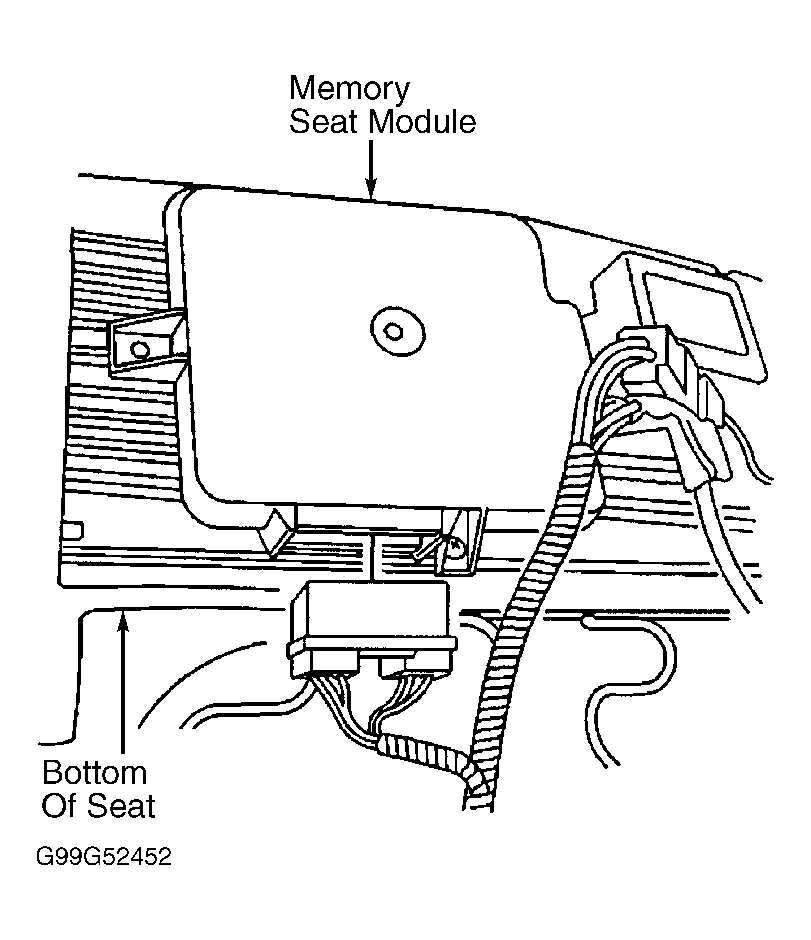

Fig 3: Locating Memory Seat Module

Courtesy of GENERAL MOTORS CORP.
