Connector Identification

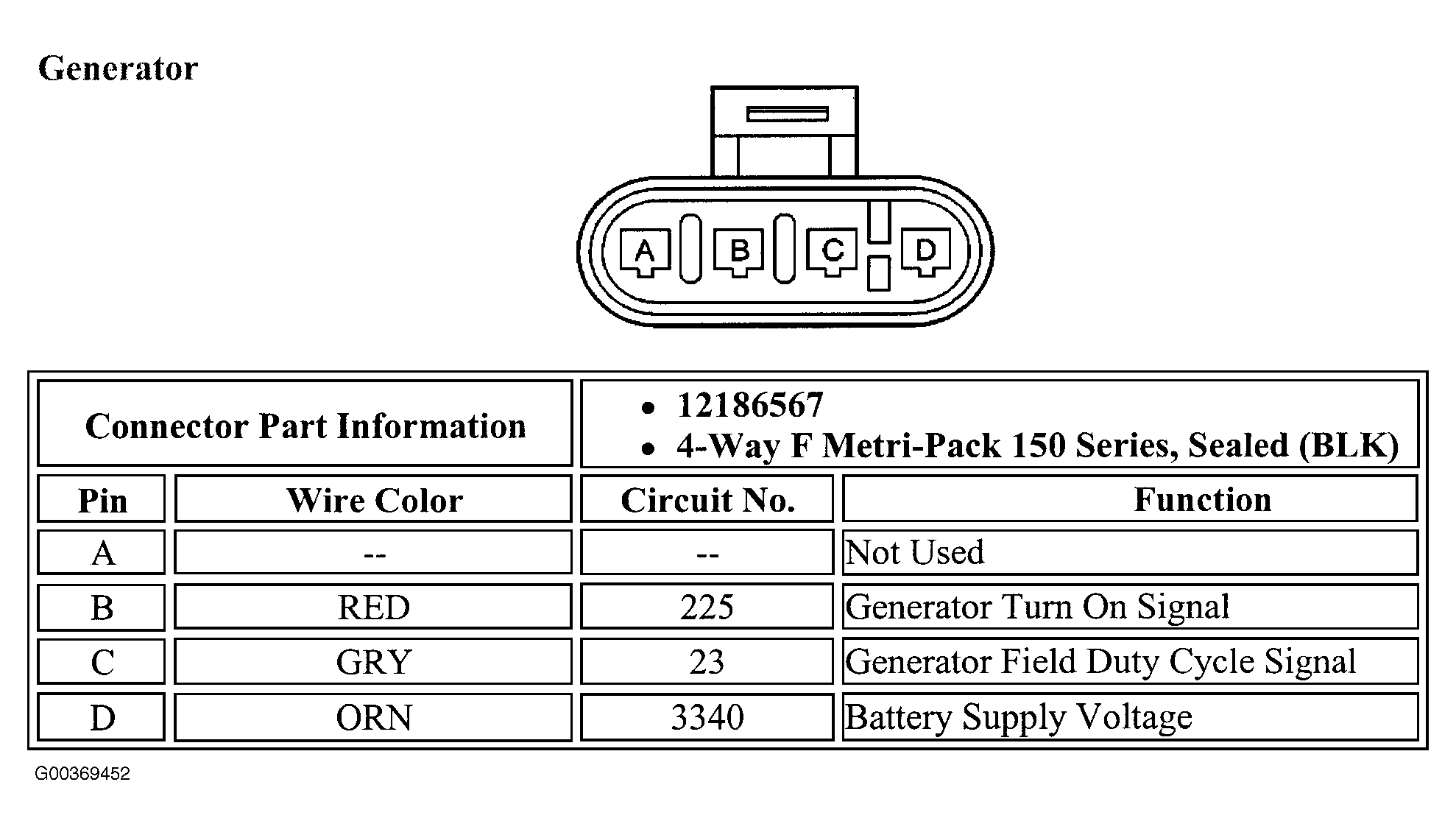

Fig 1: Identifying Generator Connector
G00369452Courtesy of GENERAL MOTORS CORP.
