Removal & Installation

Disconnect battery. Remove trunk trim panel at rear of trunk. See Fig 1 . Disconnect RIM connectors. Remove electronics bay board nuts and board. Remove RIM from electronics bay board by depreesing locking tabs. See Fig 2 . To install, reverse removal procedure.

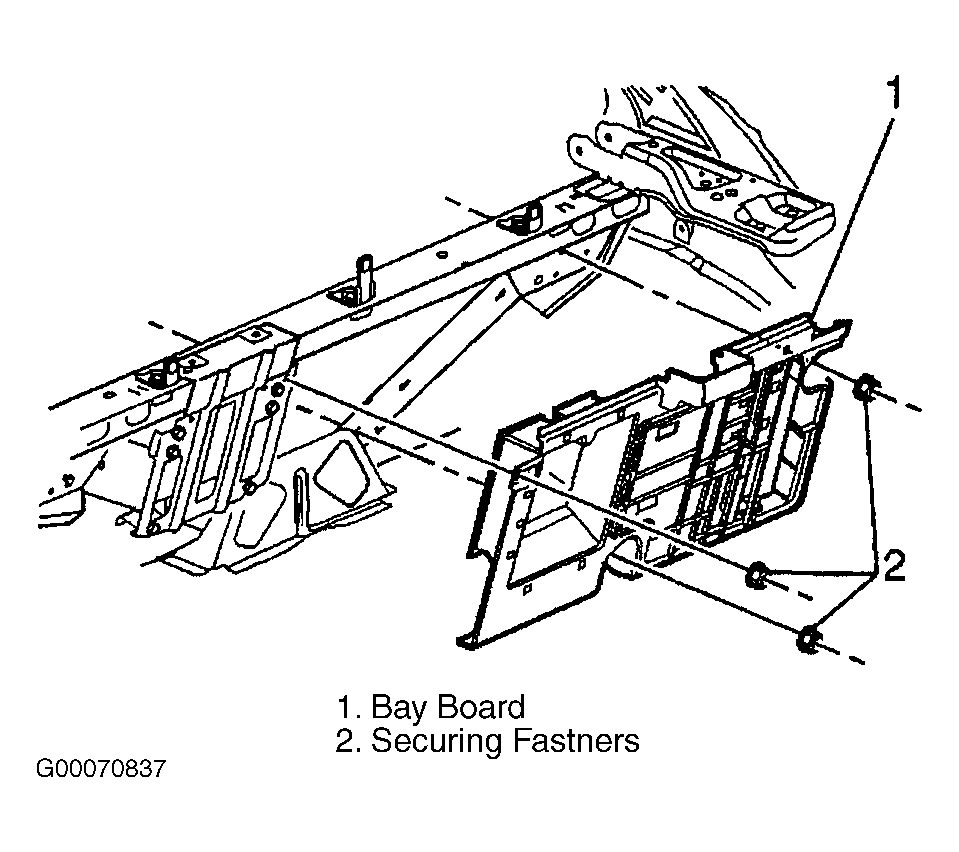

Fig 1: Locating Bay Board In Trunk Against Back Of Rear Seat

Courtesy of GENERAL MOTORS CORP.

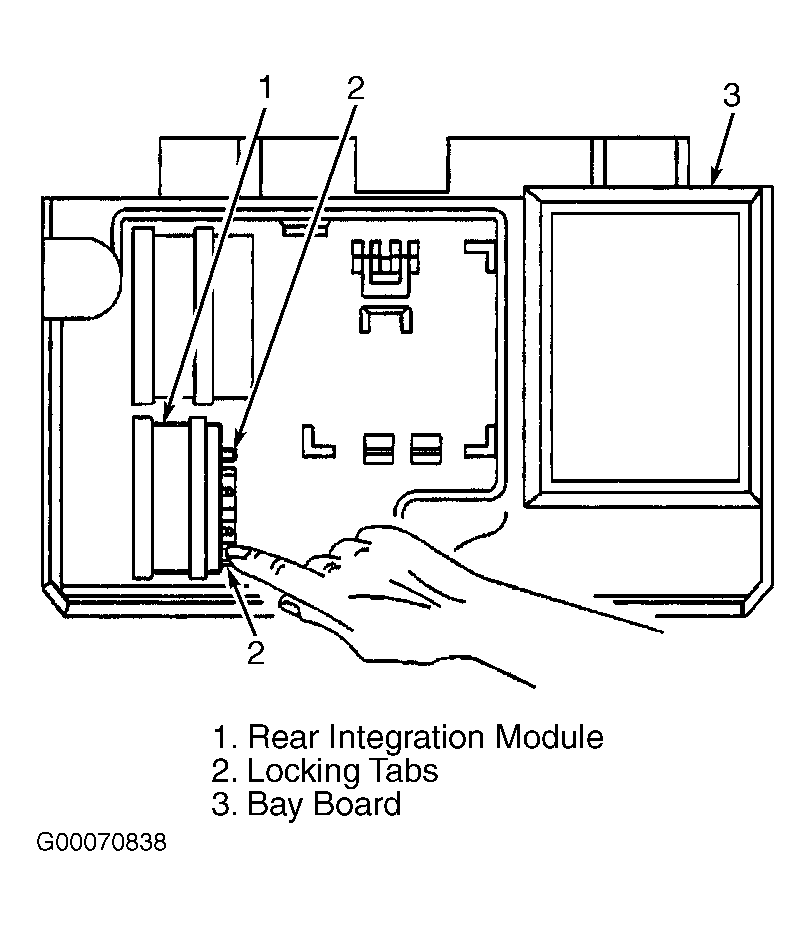

Fig 2: Locating Rear Intergration Module On Bay Board

Courtesy of GENERAL MOTORS CORP.
