Rear Fuse Block

NOTE: Rear fuse block is located under rear seat. See Fig 1 .

Fig 1: Locating Rear Fuse Block

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Rear Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

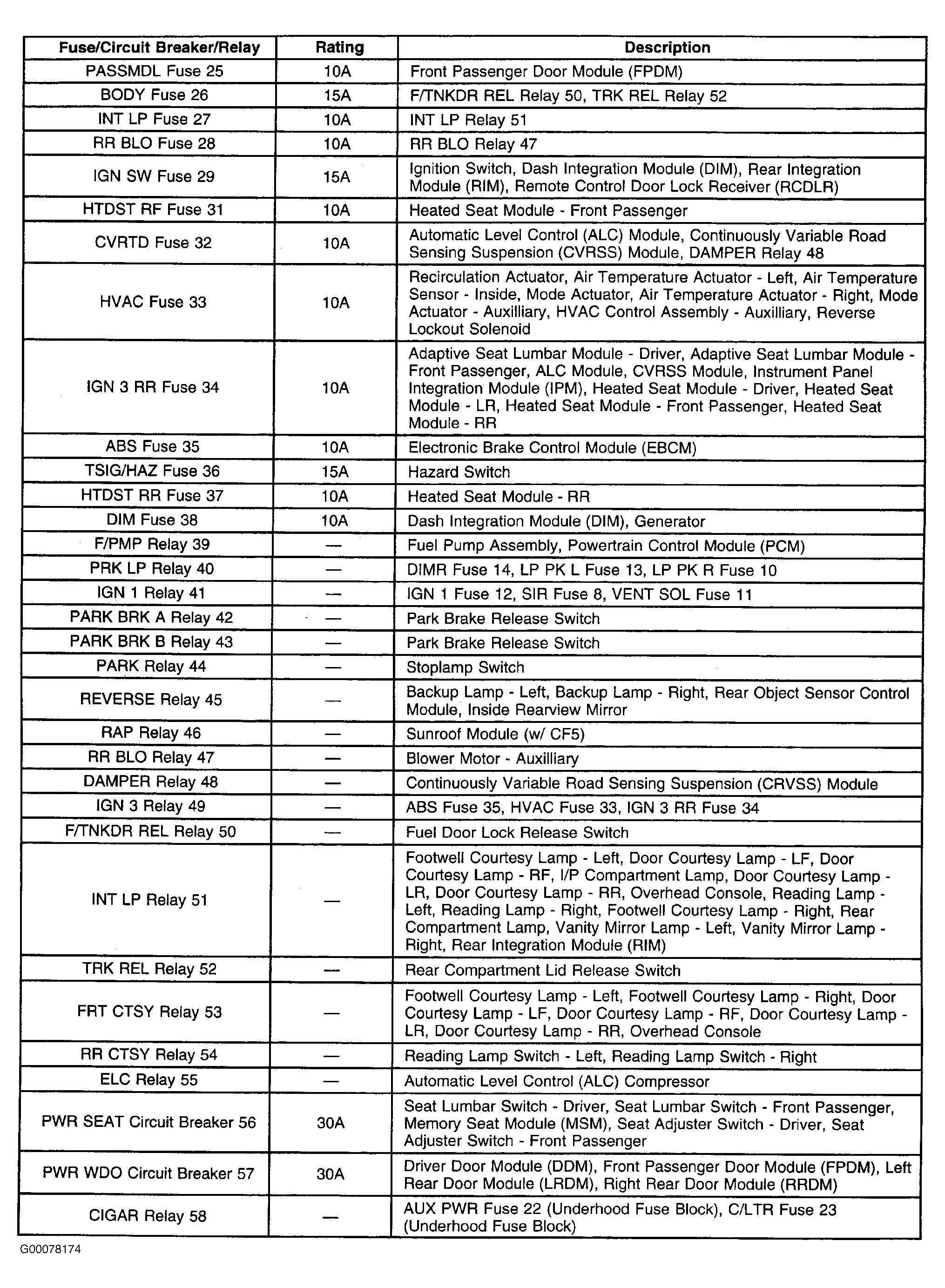

Fig 3: Rear Fuse Block Legend (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

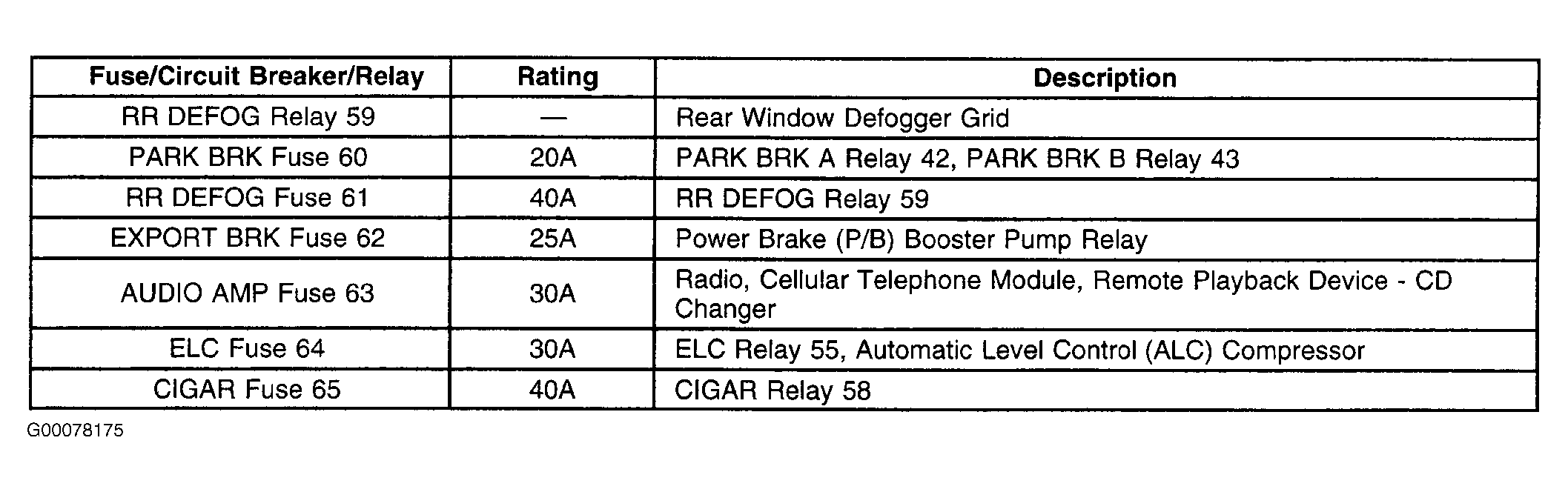

Fig 4: Rear Fuse Block Legend (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

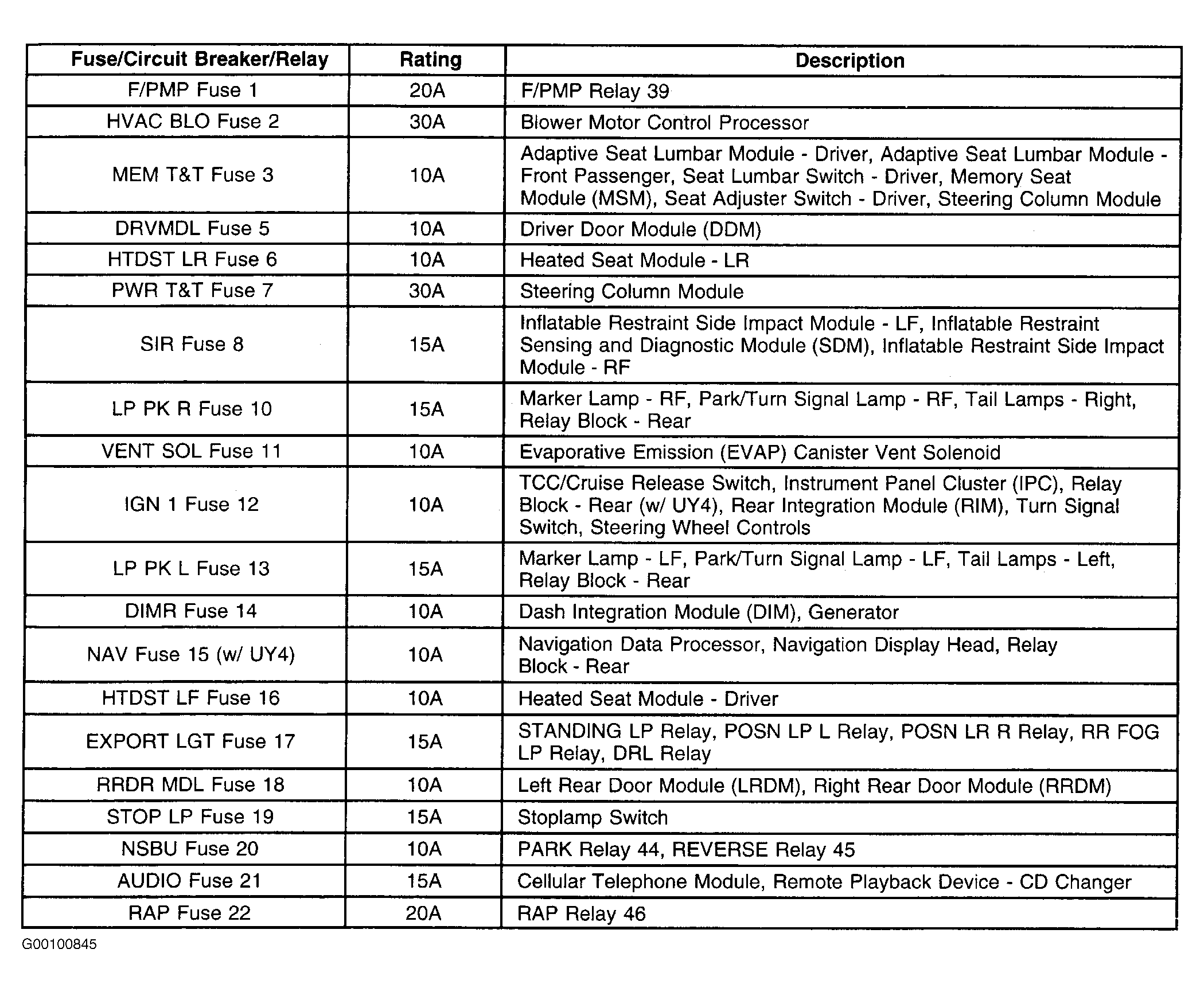

Fig 5: Rear Fuse Block Legend (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
