Data Link Communications Connector End Views

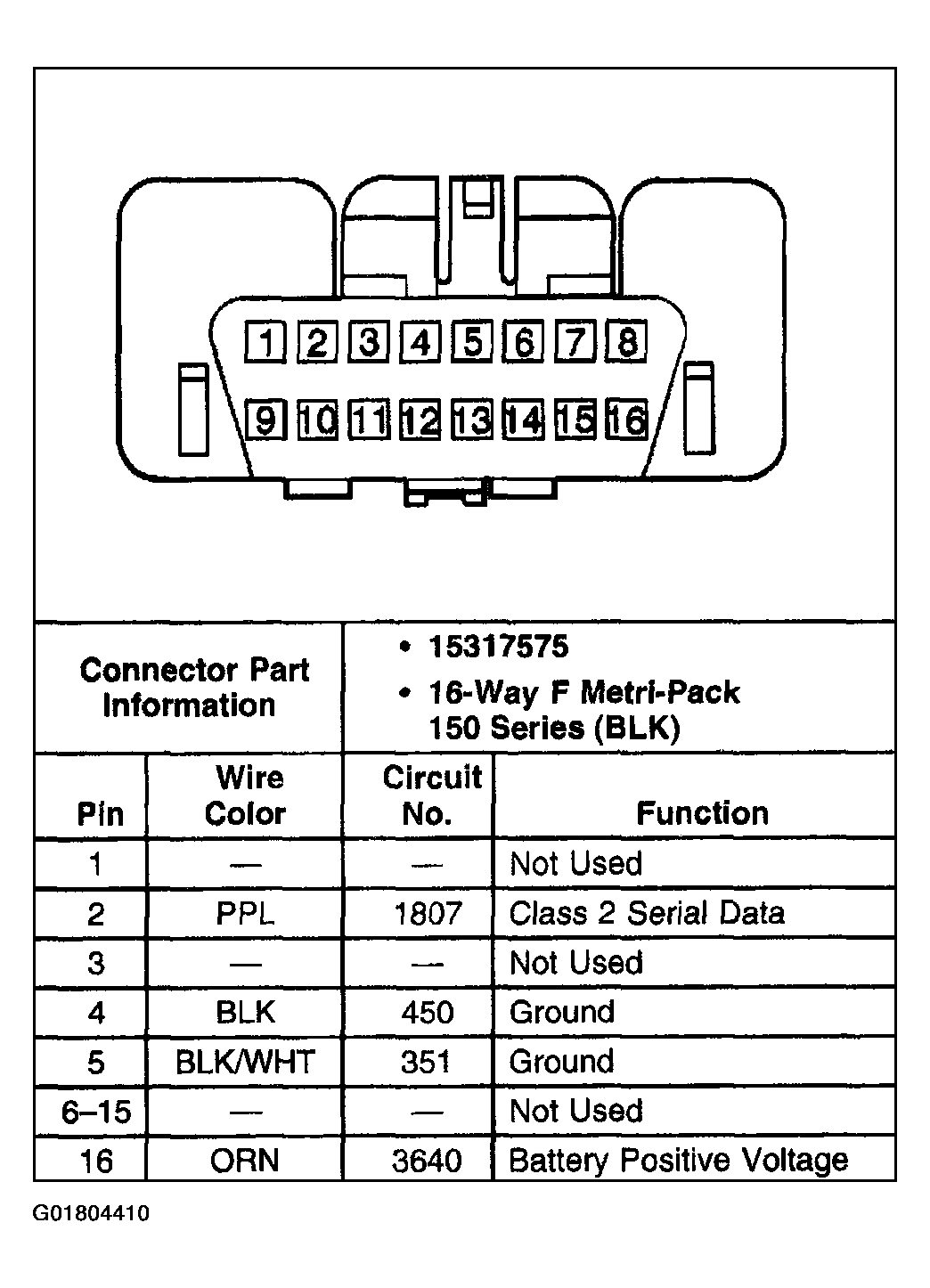

Fig 1: Data Link Connector (DLC)
G01804410Courtesy of GENERAL MOTORS CORP.
