Entertainment Component Views

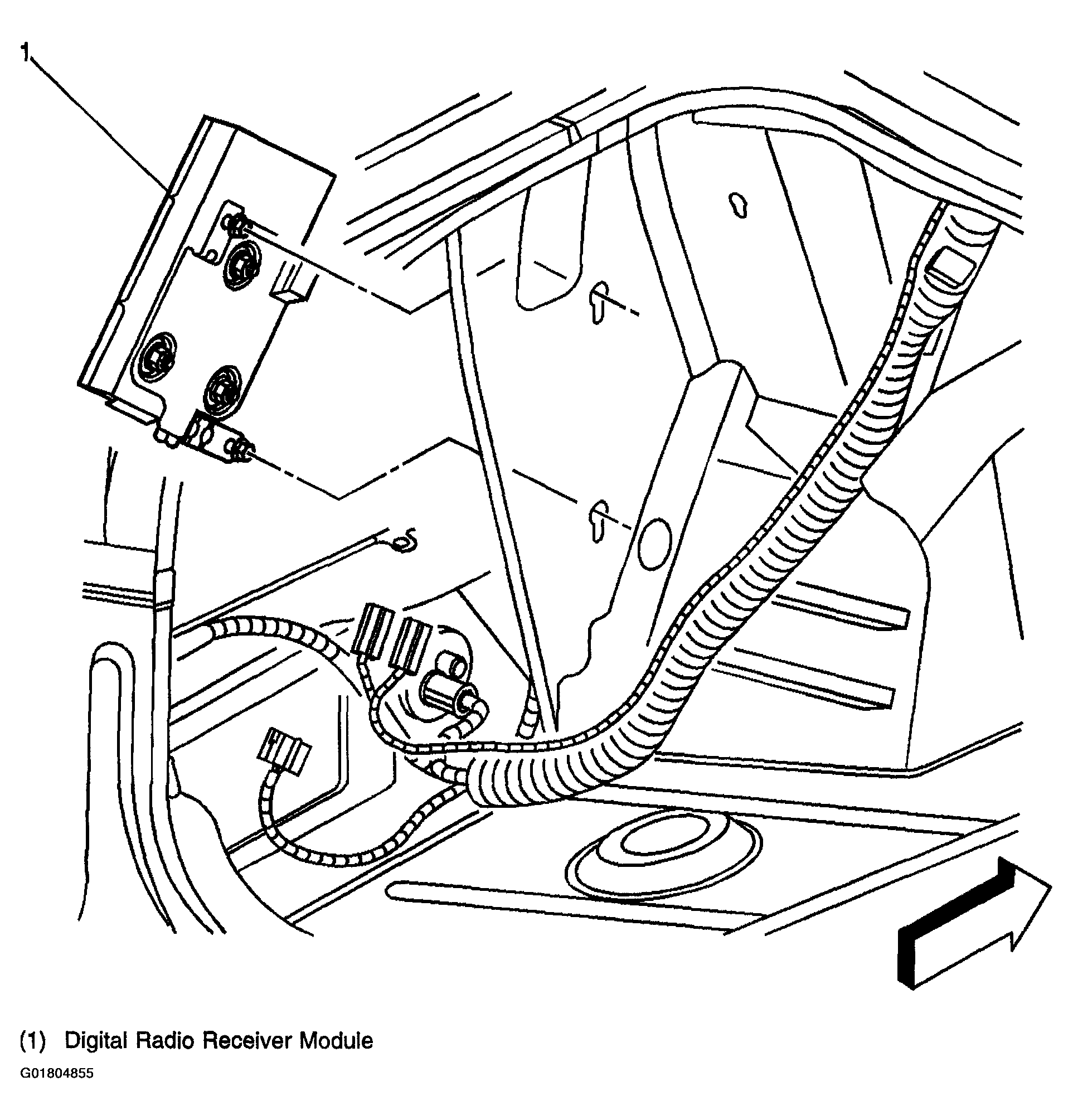

Fig 1: Digital Radio Receiver Module

Courtesy of GENERAL MOTORS CORP.

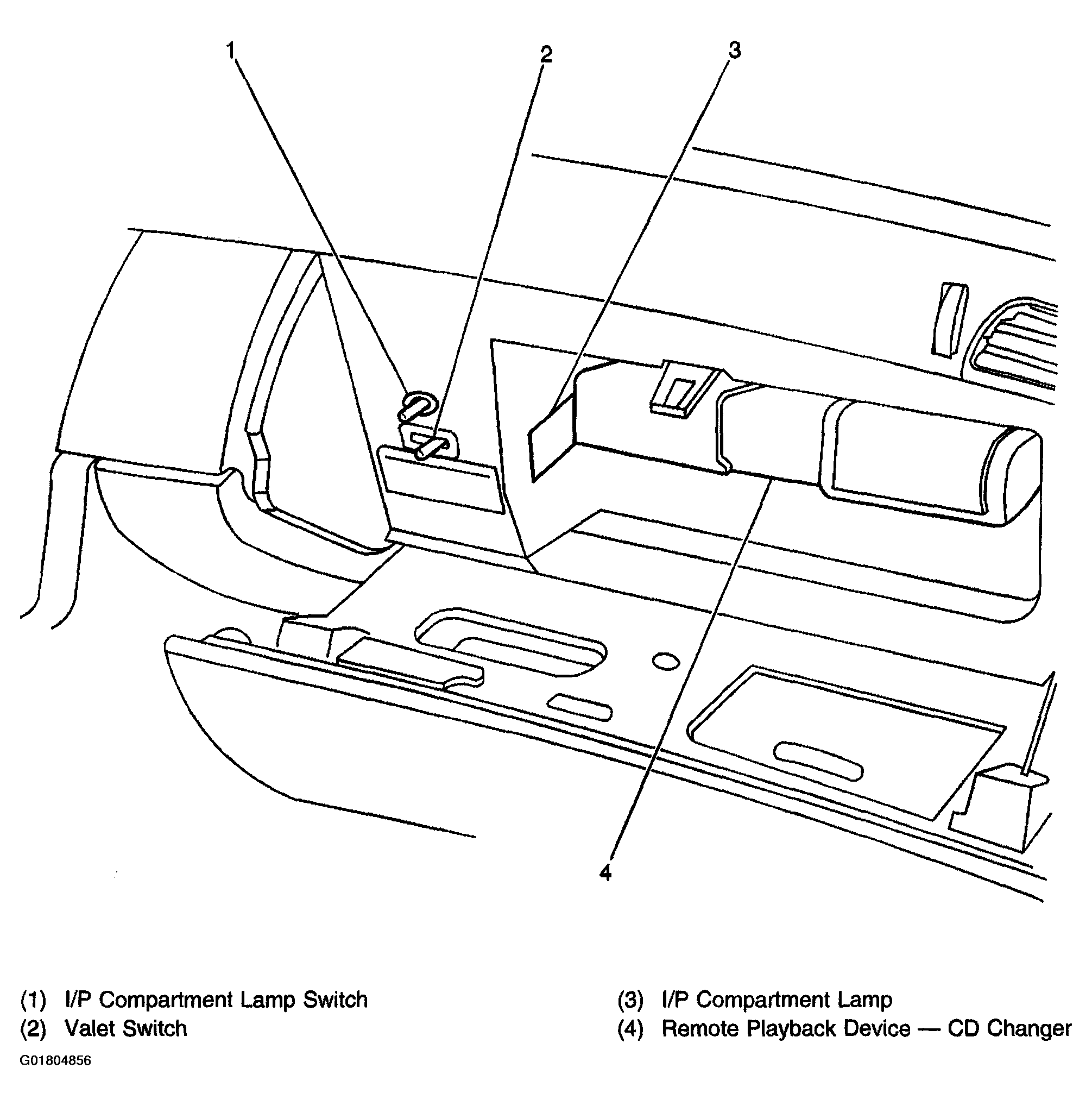

Fig 2: Right Side of the Instrument Panel, in the Instrument Panel Compartment

Courtesy of GENERAL MOTORS CORP.

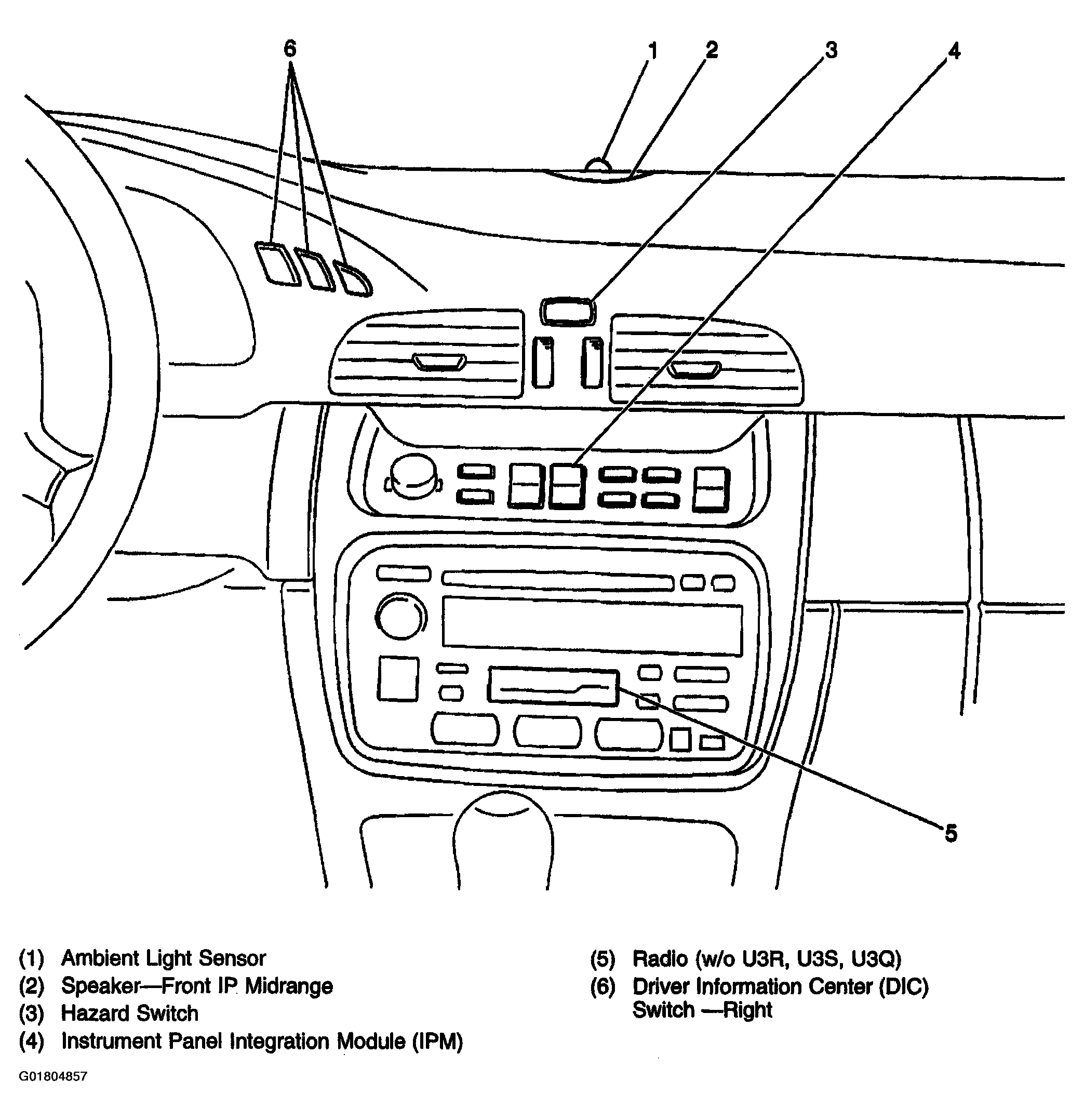

Fig 3: Passenger Compartment, Center of the Instrument Panel

Courtesy of GENERAL MOTORS CORP.

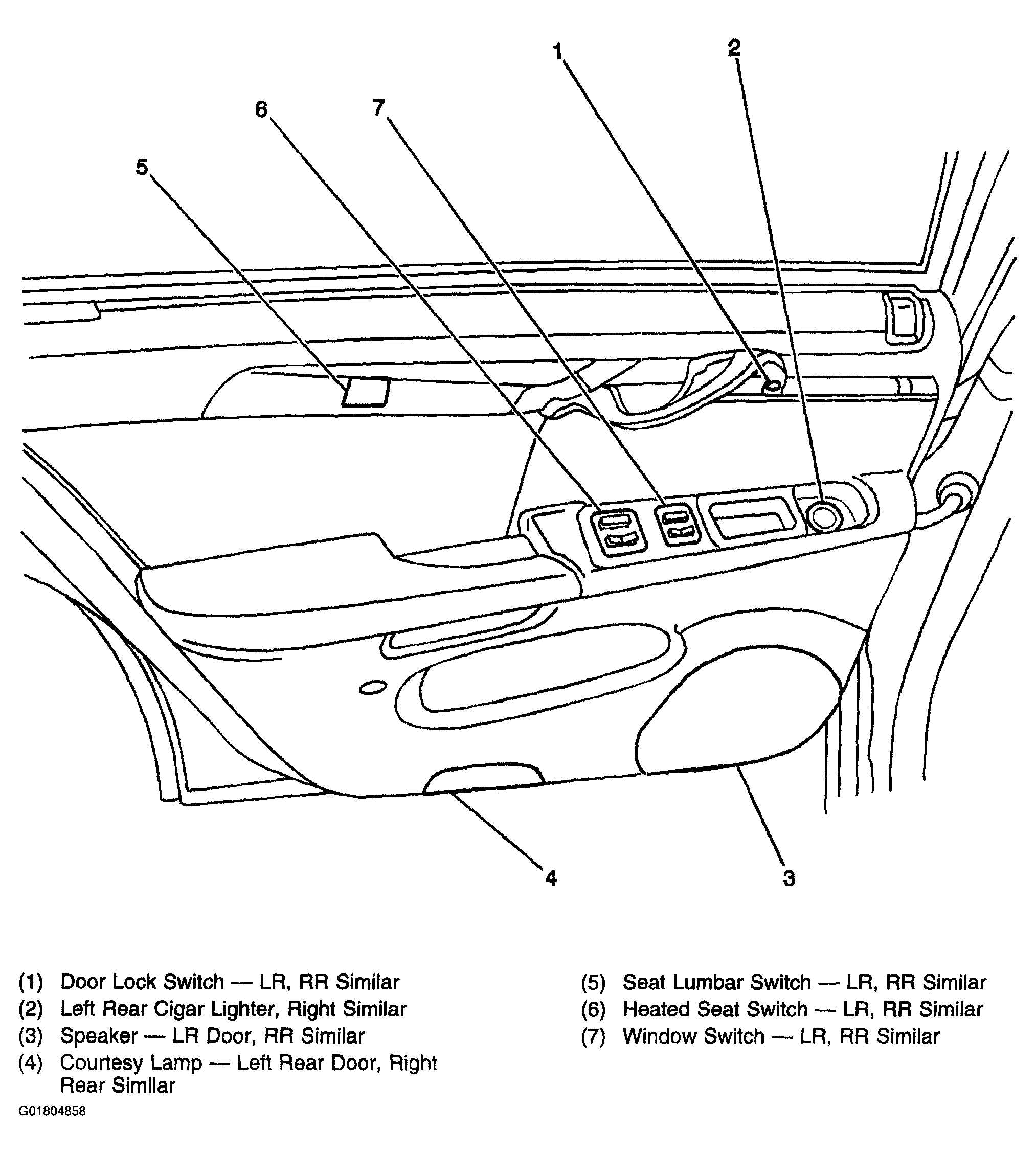

Fig 4: Front of the Left Rear Door

Courtesy of GENERAL MOTORS CORP.

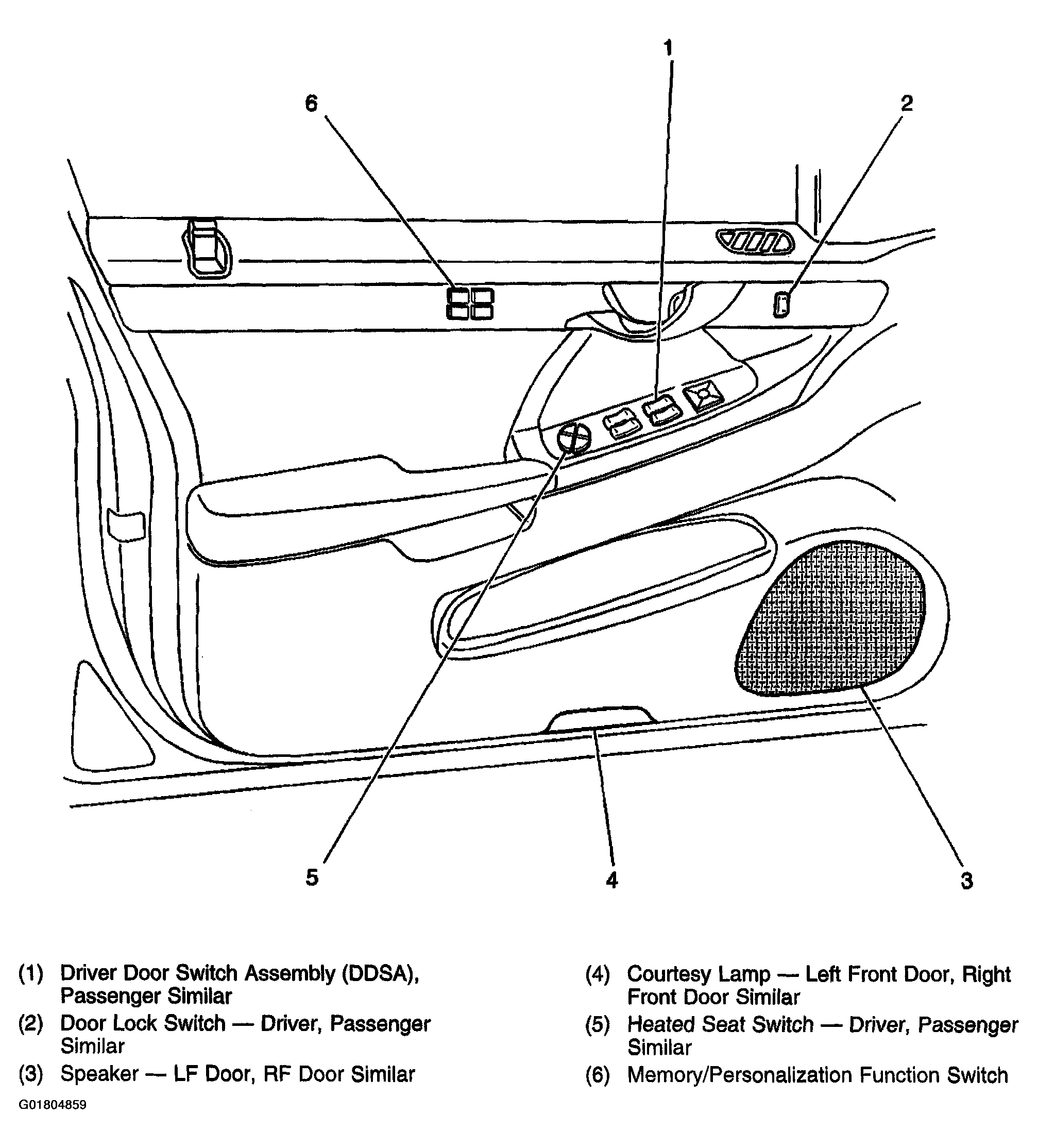

Fig 5: Left Front Door, on the Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

Fig 6: Left Rear of the Passenger Compartment, Behind the Rear Seat Back

Courtesy of GENERAL MOTORS CORP.

Fig 7: Passenger Compartment, Left Side of the Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Fig 8: Left Rear Corner of the Passenger Compartment, Above the Rear Seat

Courtesy of GENERAL MOTORS CORP.

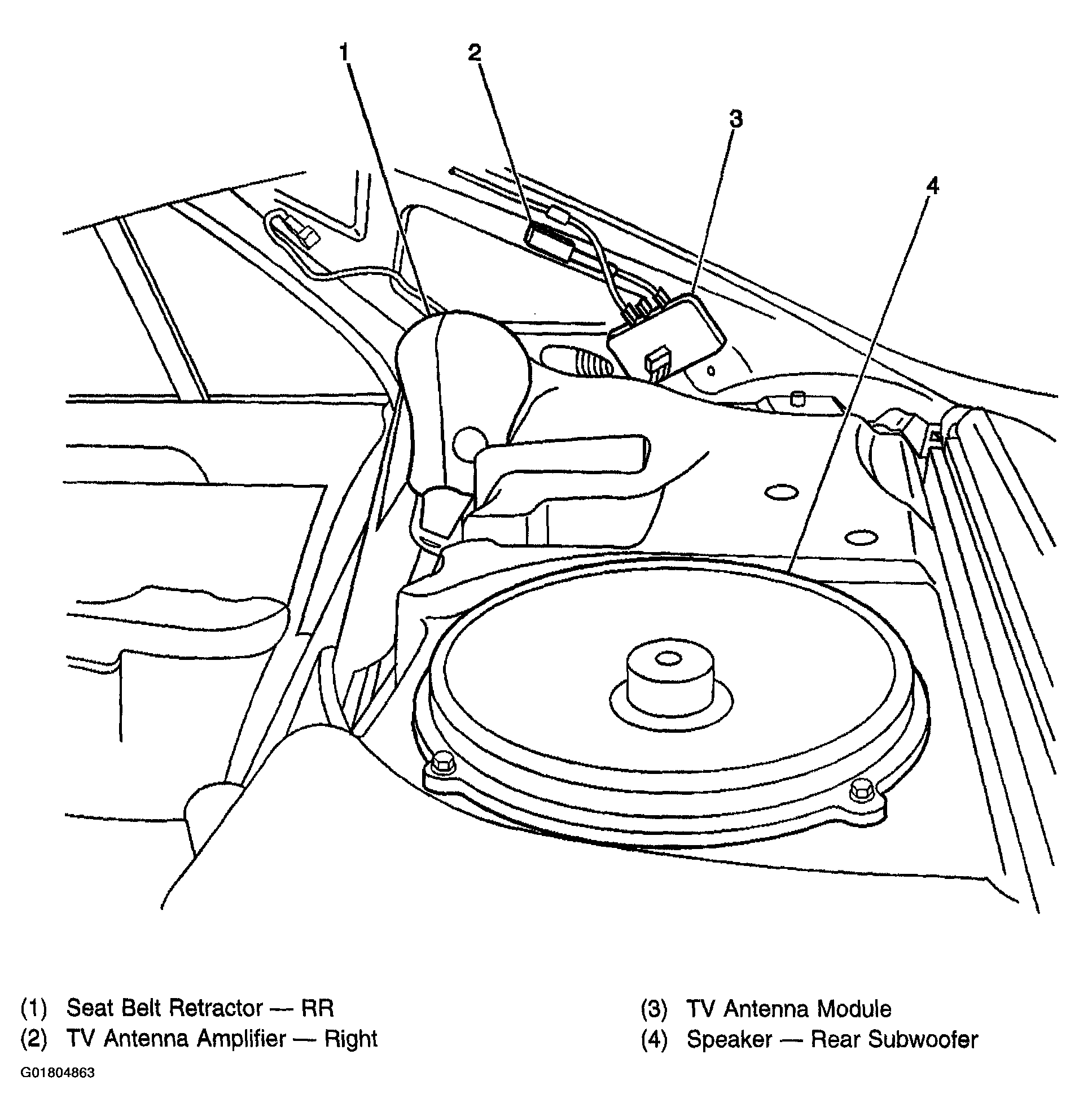

Fig 9: Right Corner of the Passenger Compartment, Above the Rear Seat

Courtesy of GENERAL MOTORS CORP.
