Entertainment Connector End Views

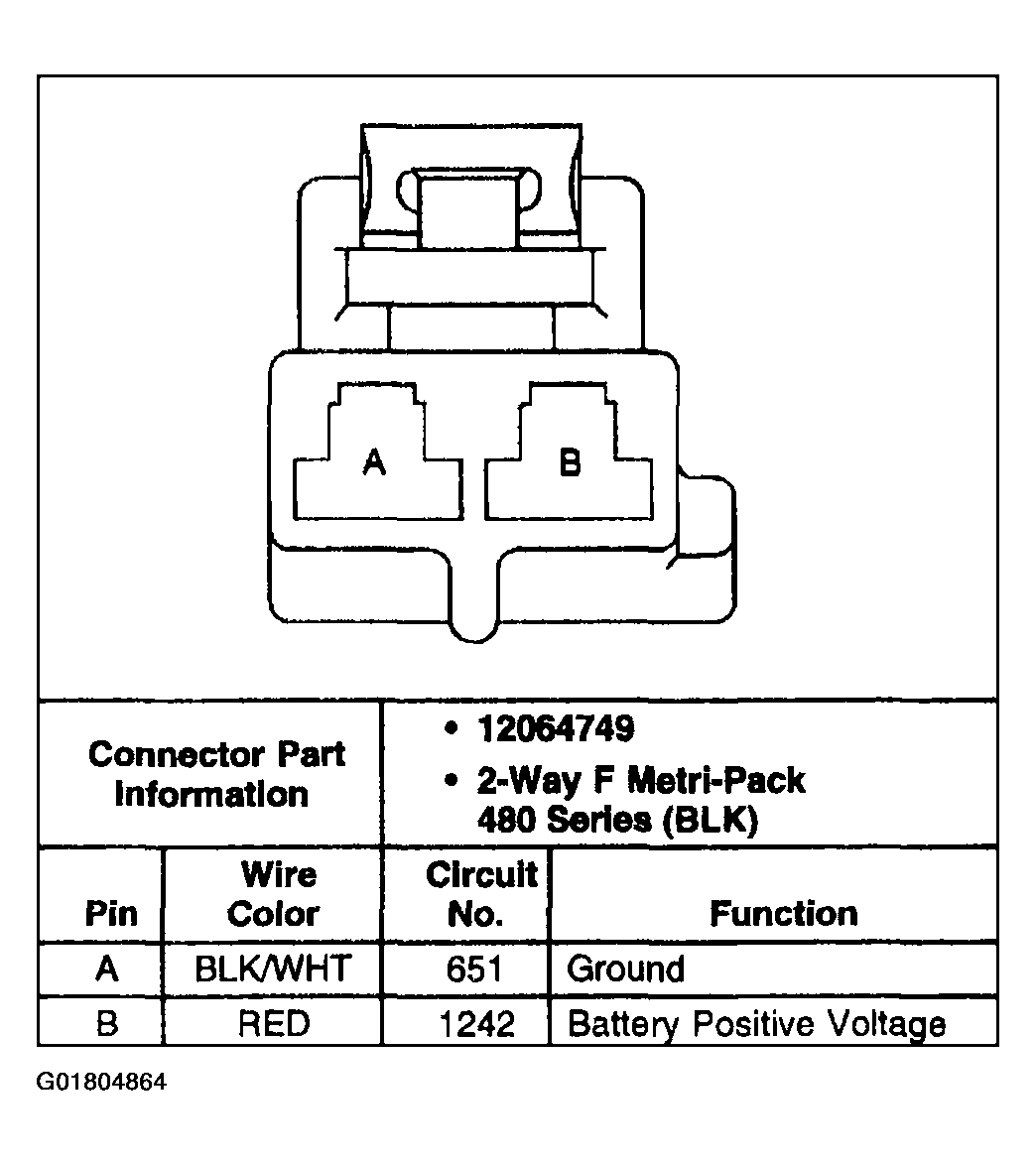

Fig 1: Audio Amplifier (w/UX8) C1

G01804864

Courtesy of GENERAL MOTORS CORP.

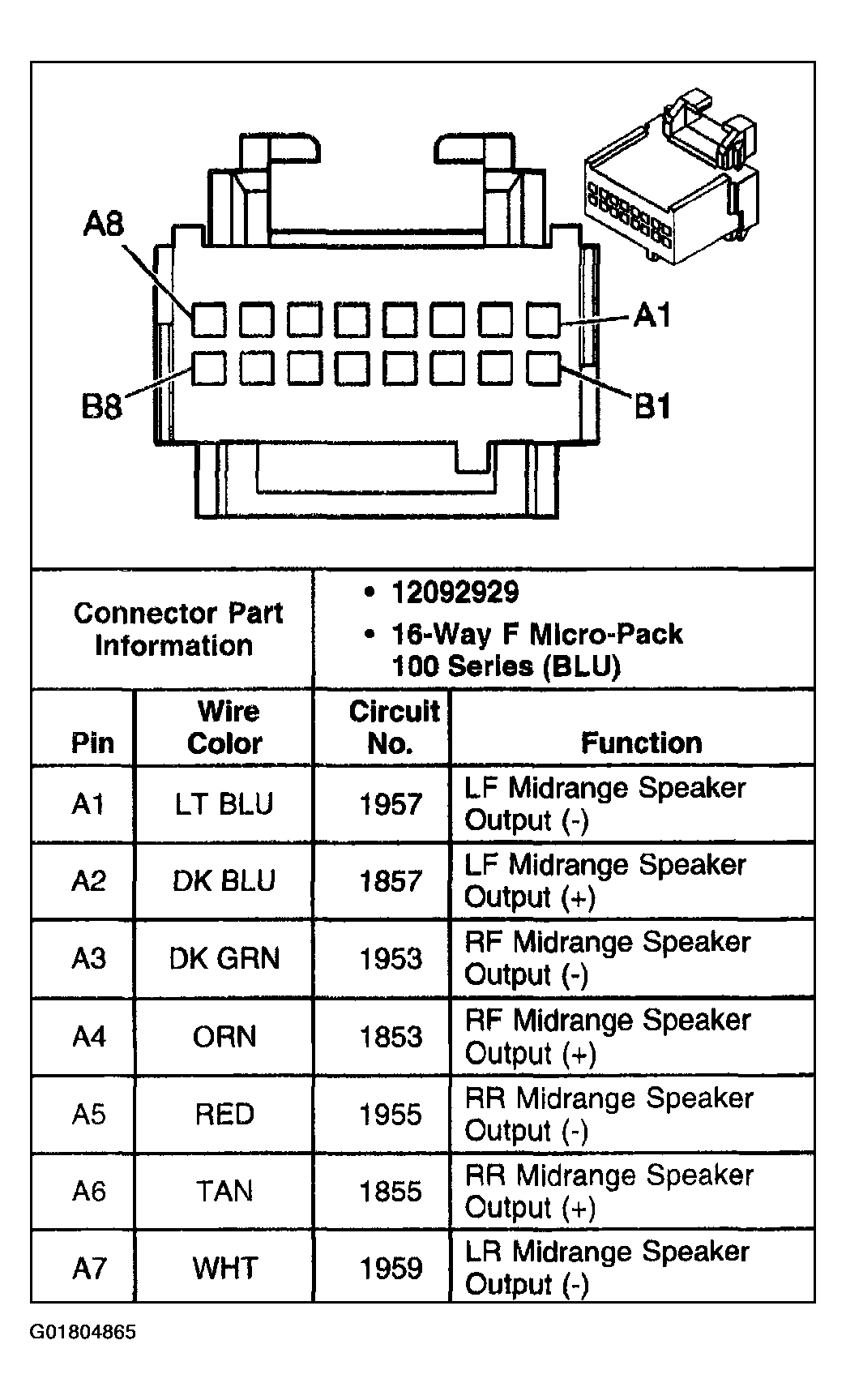

Fig 2: Audio Amplifier (w/UX8) C2 (1 Of 2)

G01804865

Courtesy of GENERAL MOTORS CORP.

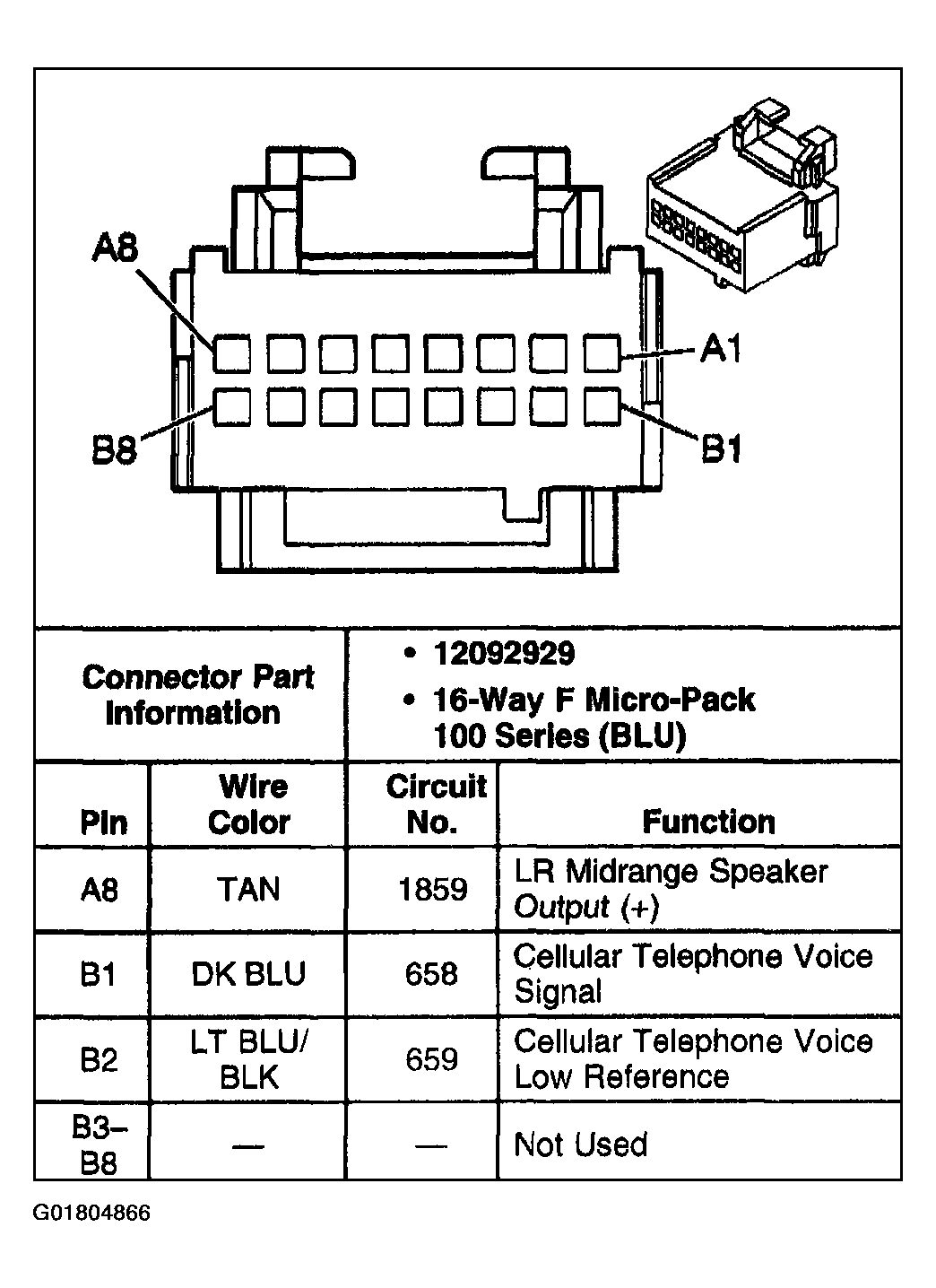

Fig 3: Audio Amplifier (w/UX8) C2 (2 Of 2)

G01804866

Courtesy of GENERAL MOTORS CORP.

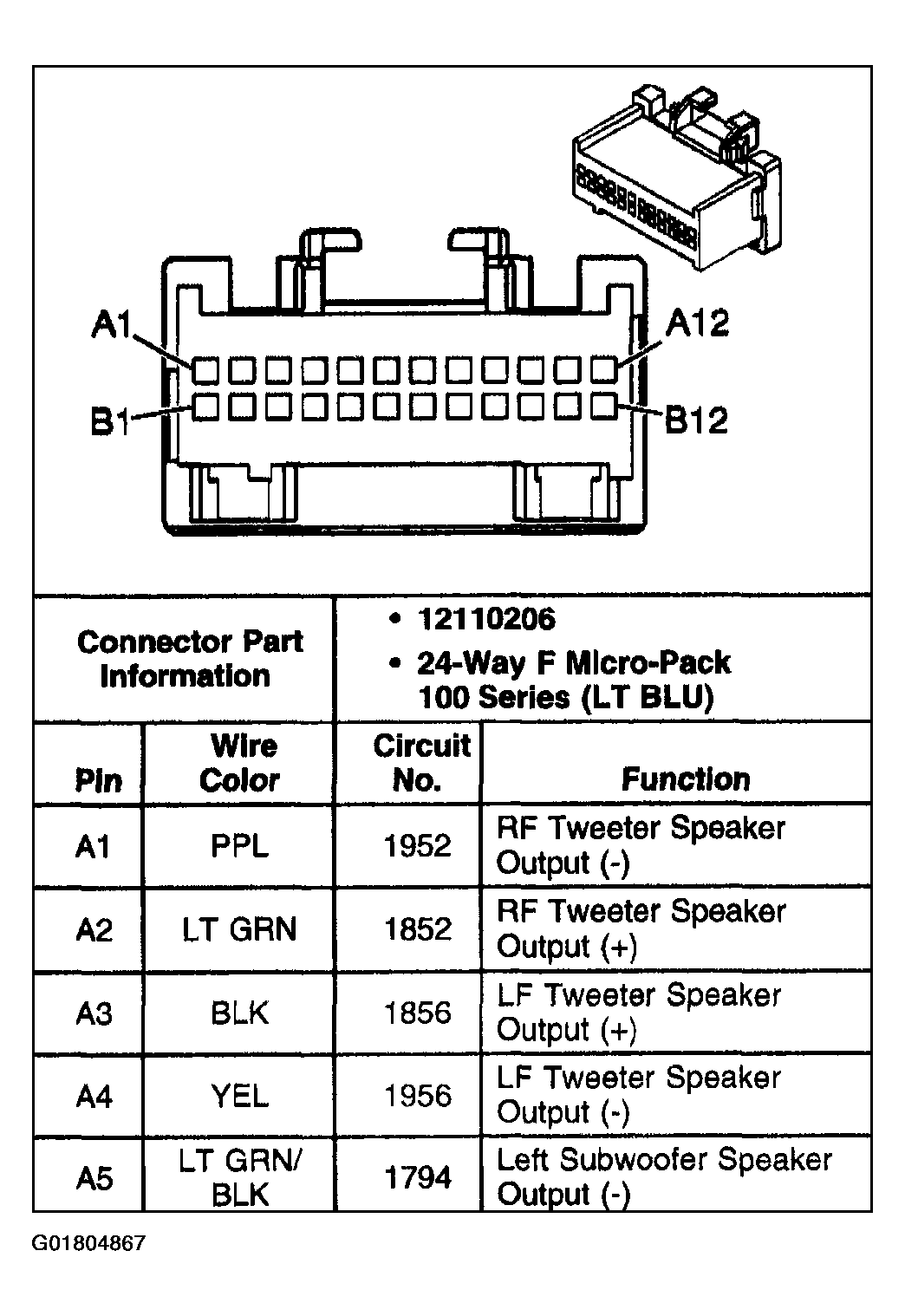

Fig 4: Audio Amplifier (w/UX8) C3 (1 Of 2)

G01804867

Courtesy of GENERAL MOTORS CORP.

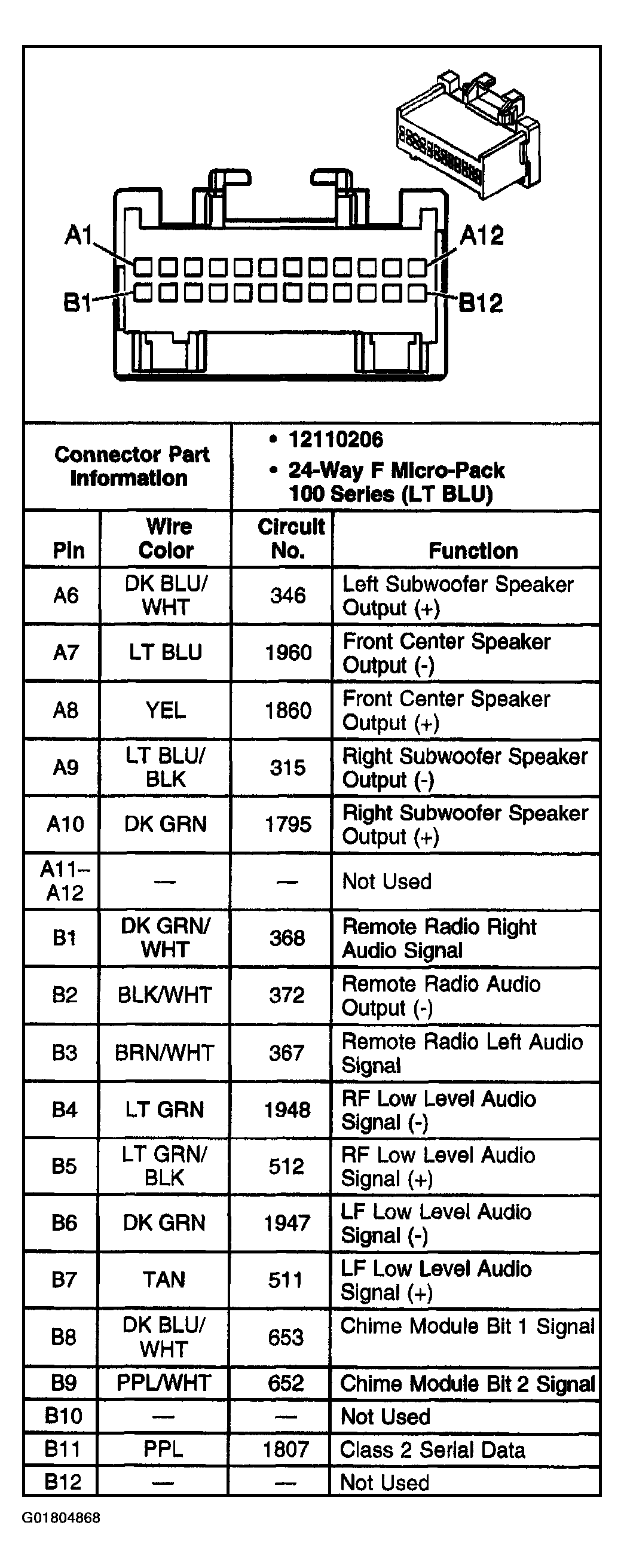

Fig 5: Audio Amplifier (w/UX8) C3 (2 Of 2)

G01804868

Courtesy of GENERAL MOTORS CORP.

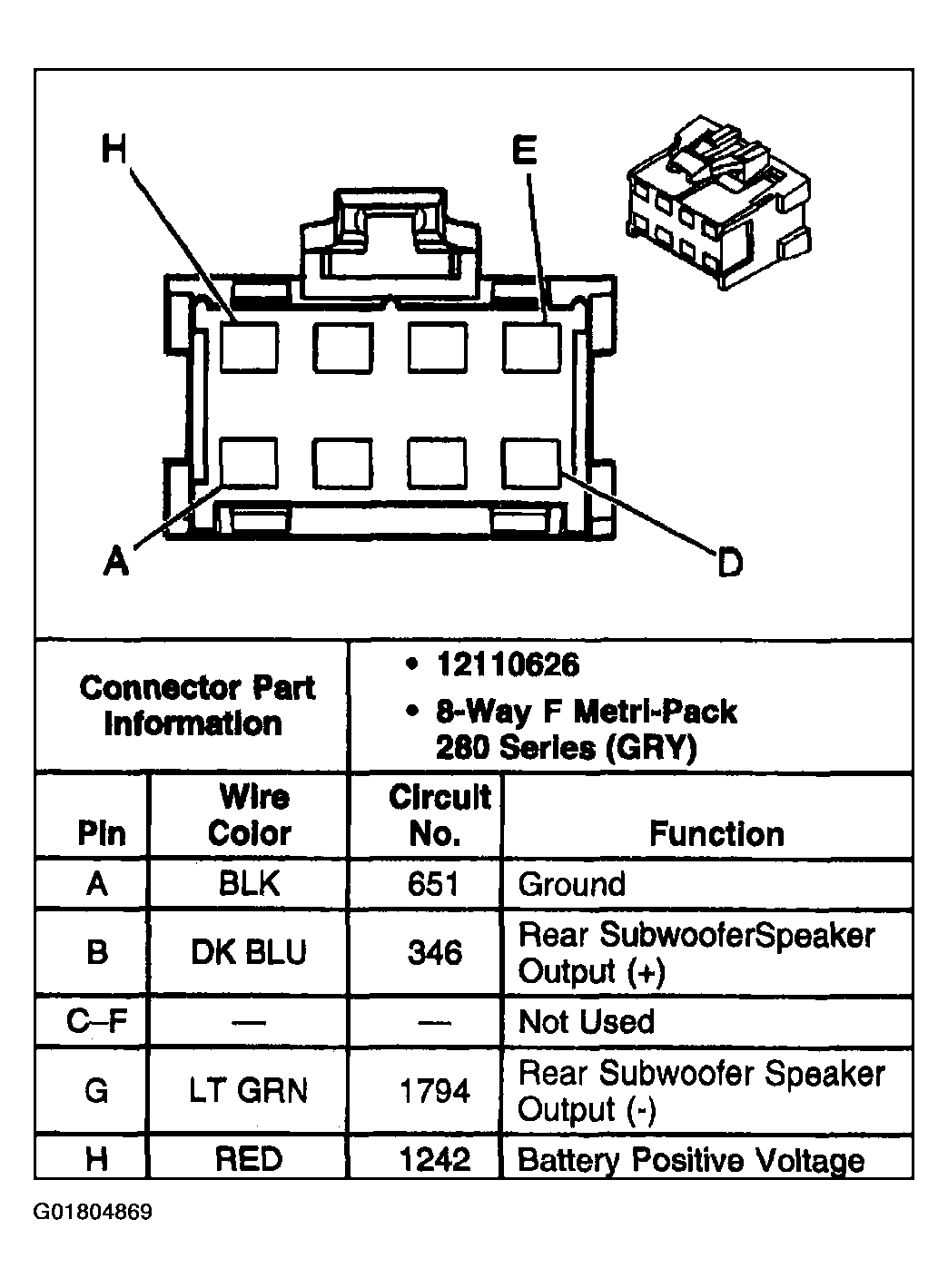

Fig 6: Audio Amplifier (w/U57) C1

G01804869

Courtesy of GENERAL MOTORS CORP.

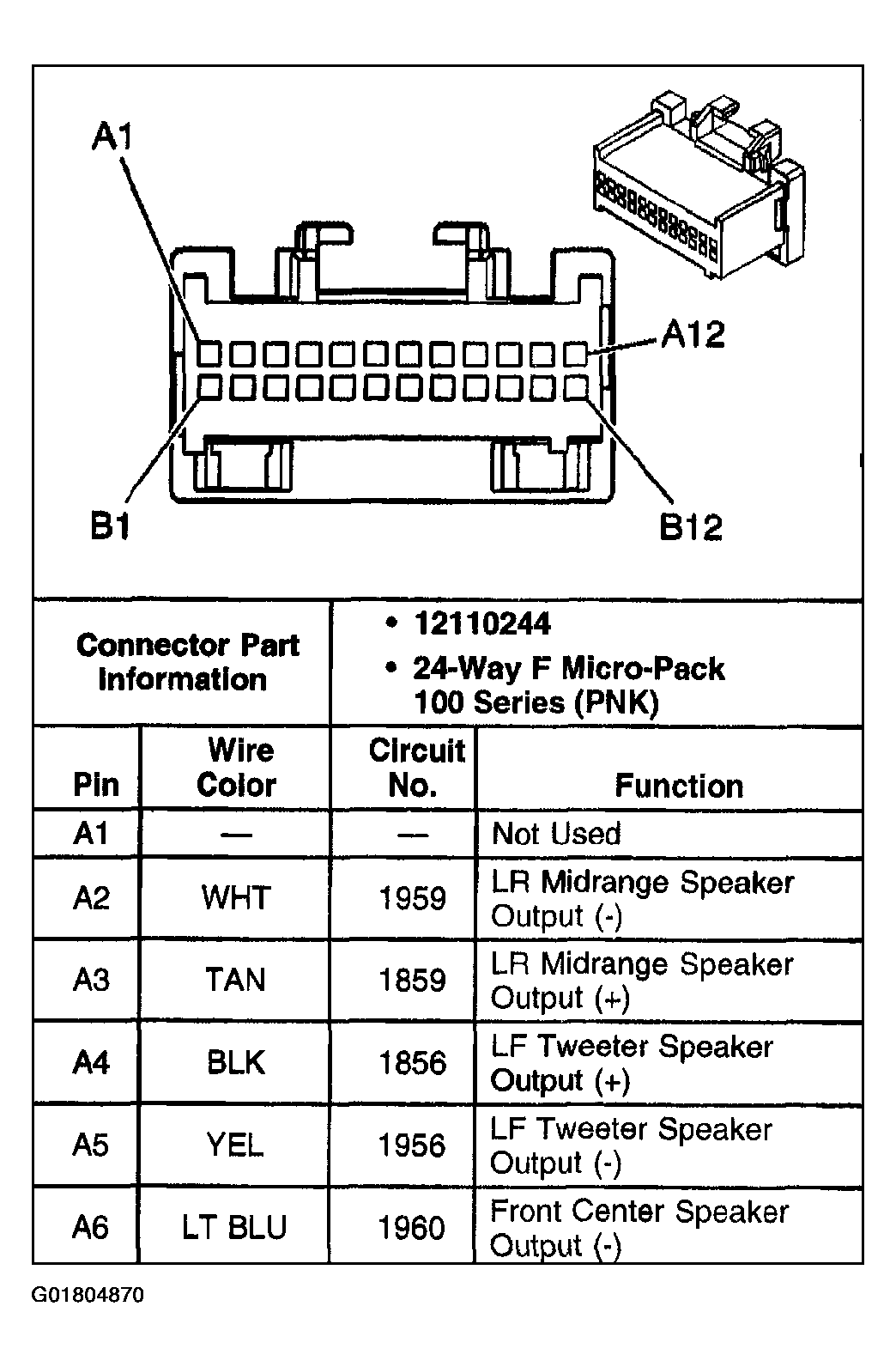

Fig 7: Audio Amplifier (w/U57) C2 (1 Of 2)

G01804870

Courtesy of GENERAL MOTORS CORP.

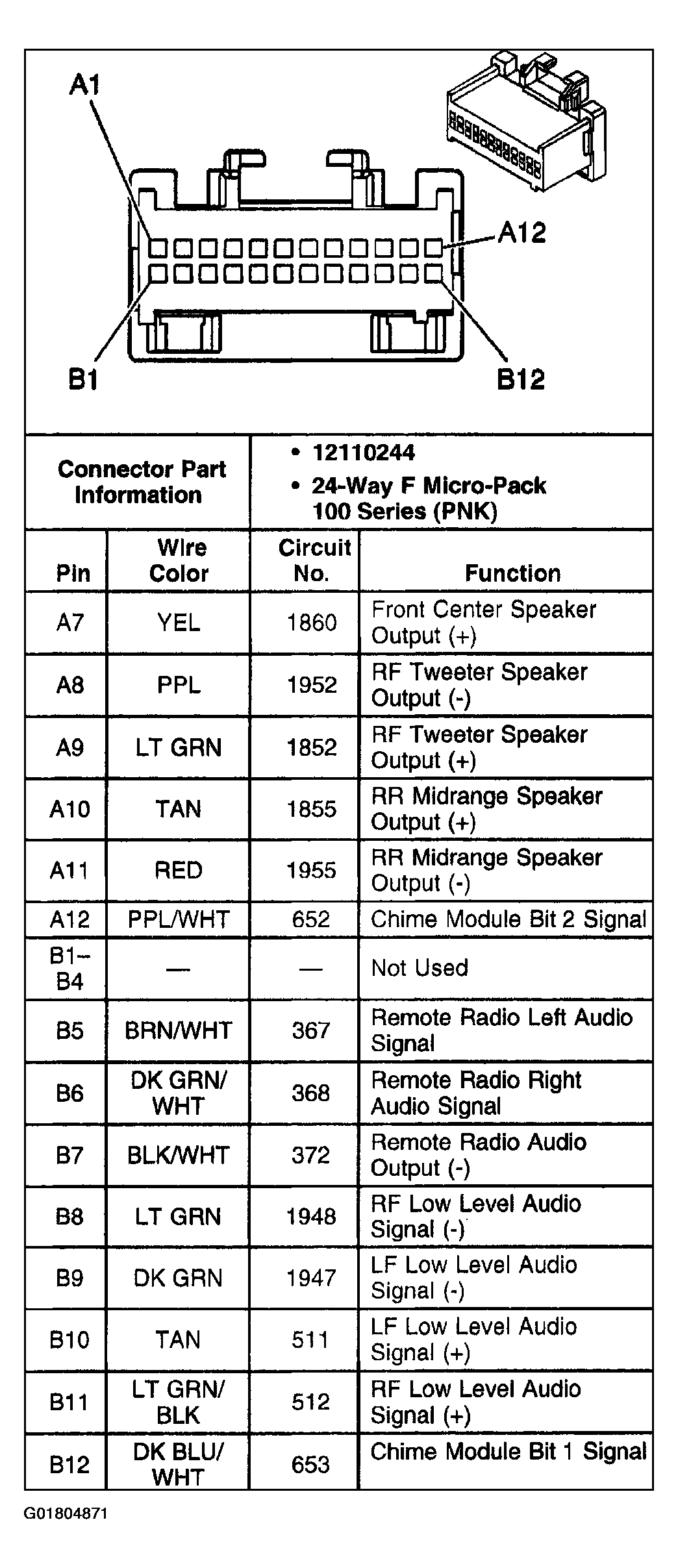

Fig 8: Audio Amplifier (w/U57) C2 (2 Of 2)

G01804871

Courtesy of GENERAL MOTORS CORP.

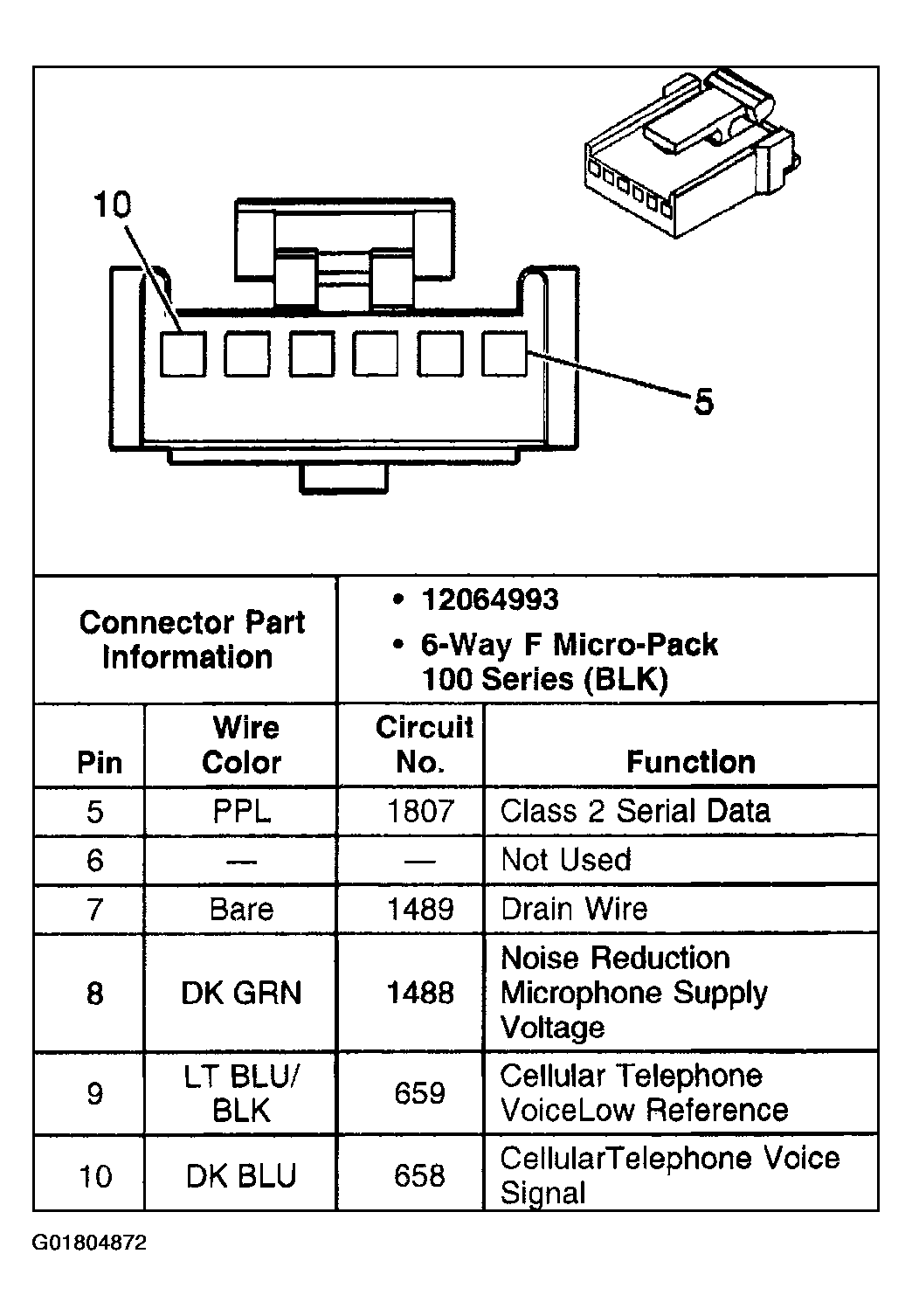

Fig 9: Audio Amplifier (w/U57) C3

G01804872

Courtesy of GENERAL MOTORS CORP.

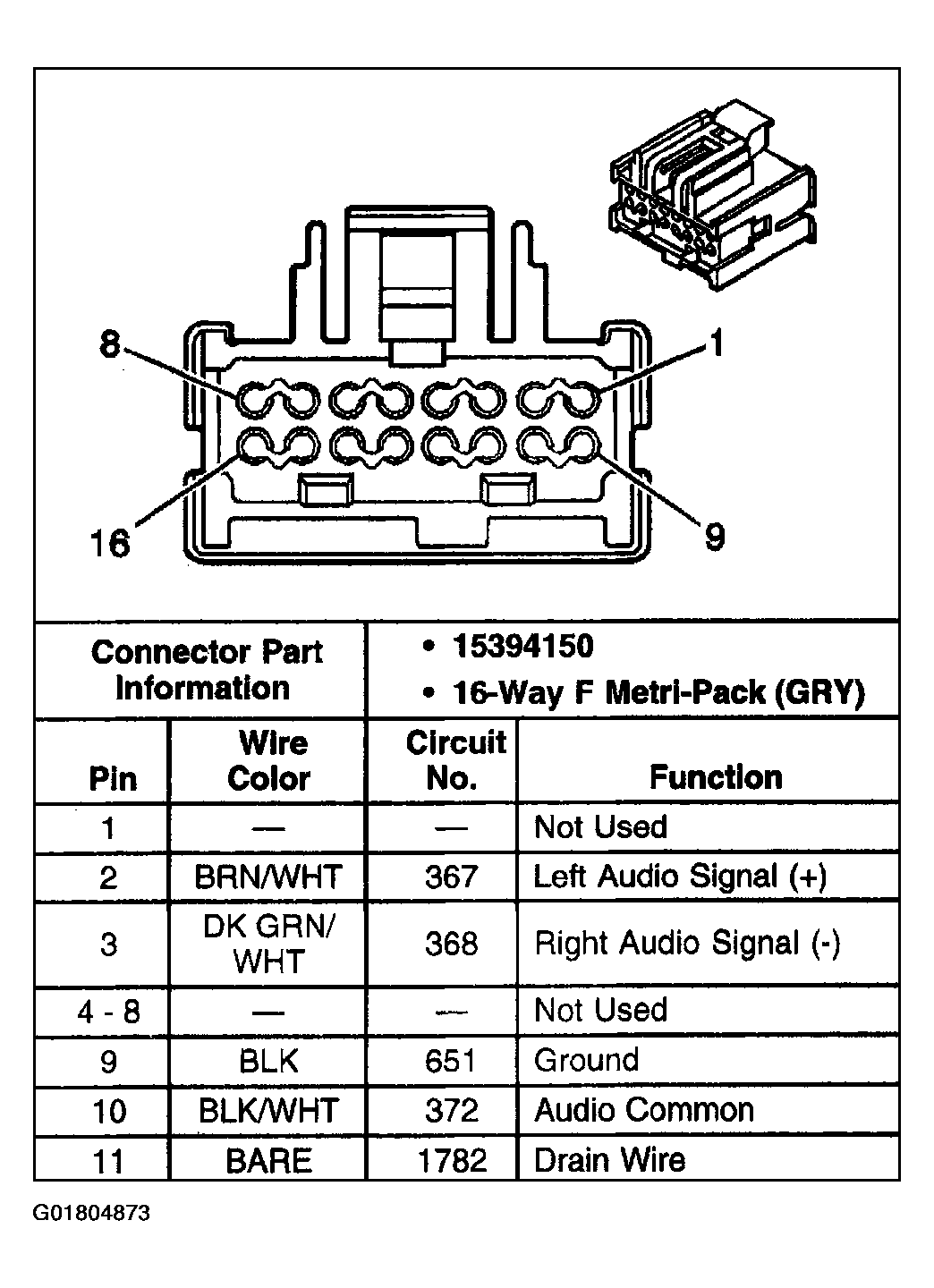

Fig 10: Digital Radio Receiver (U2K) (1 Of 2)

G01804873

Courtesy of GENERAL MOTORS CORP.

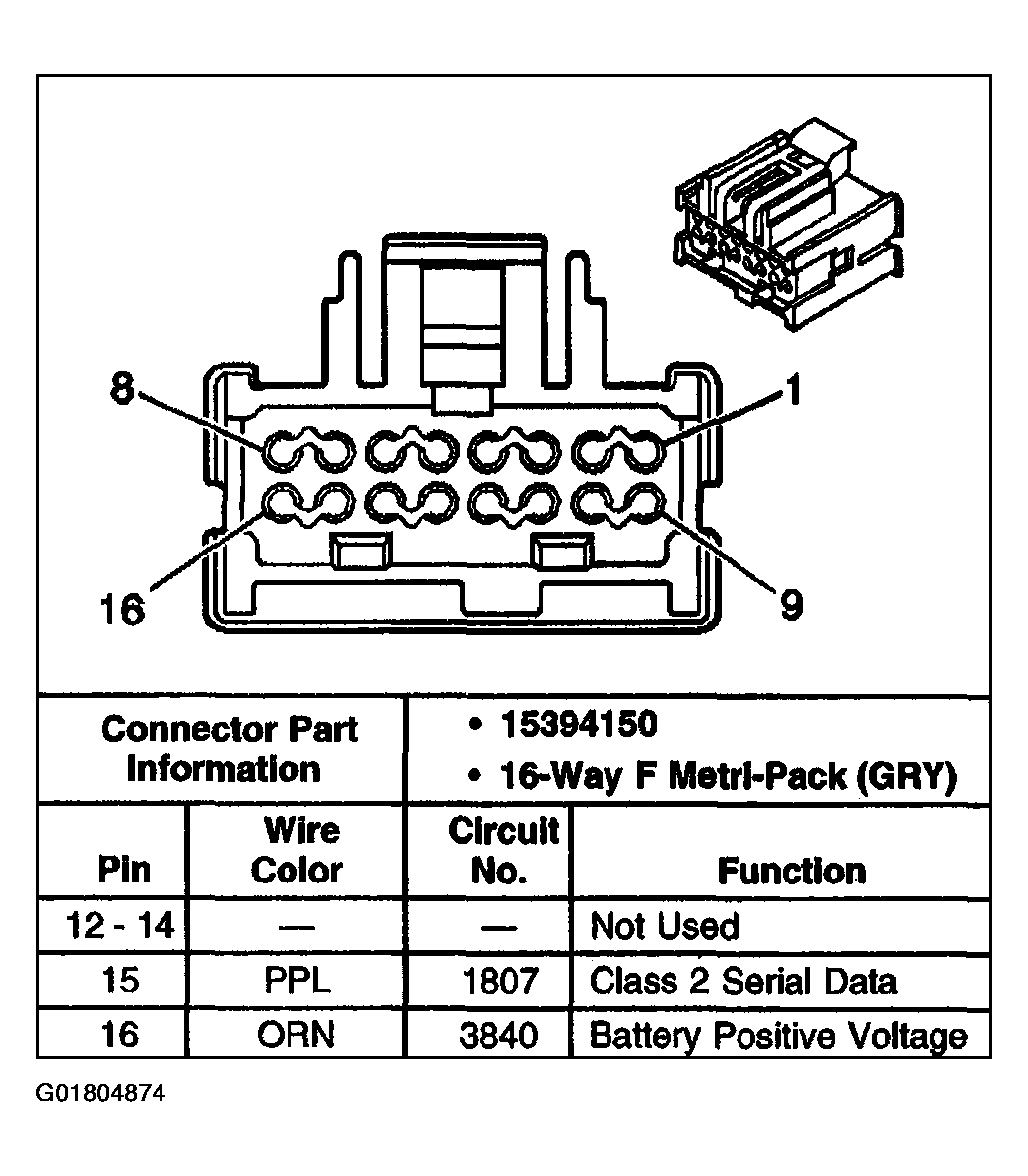

Fig 11: Digital Radio Receiver (U2K) (2 Of 2)

G01804874

Courtesy of GENERAL MOTORS CORP.

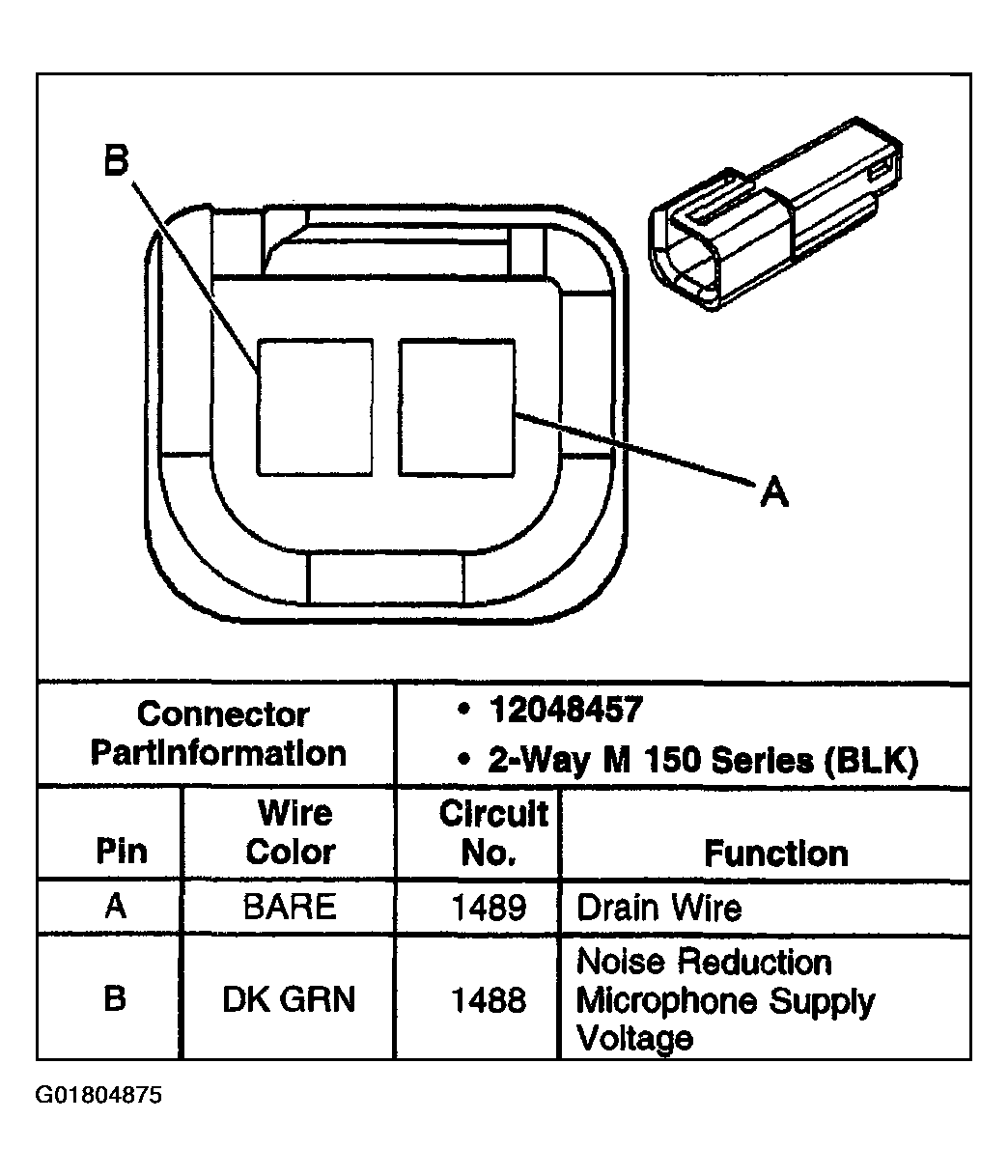

Fig 12: Noise Cancellation Microphone

G01804875

Courtesy of GENERAL MOTORS CORP.

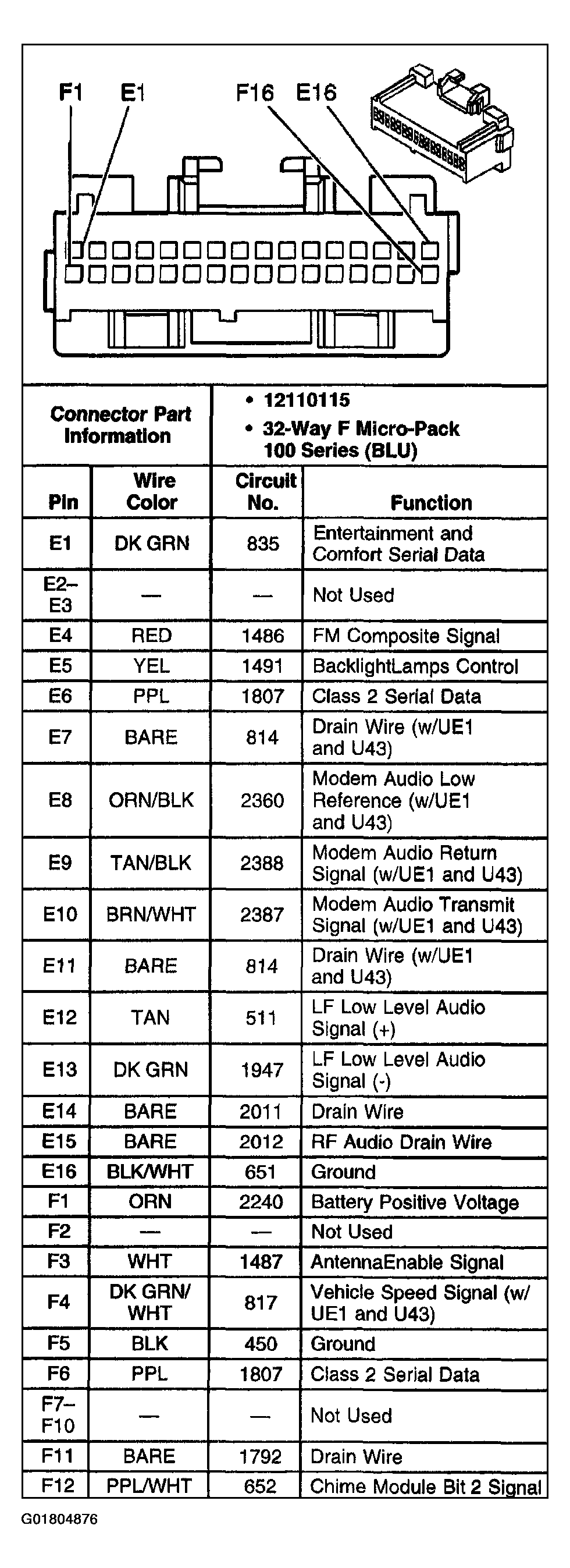

Fig 13: Radio (w/o U3R,U3S,U3Q) (1 Of 2)

G01804876

Courtesy of GENERAL MOTORS CORP.

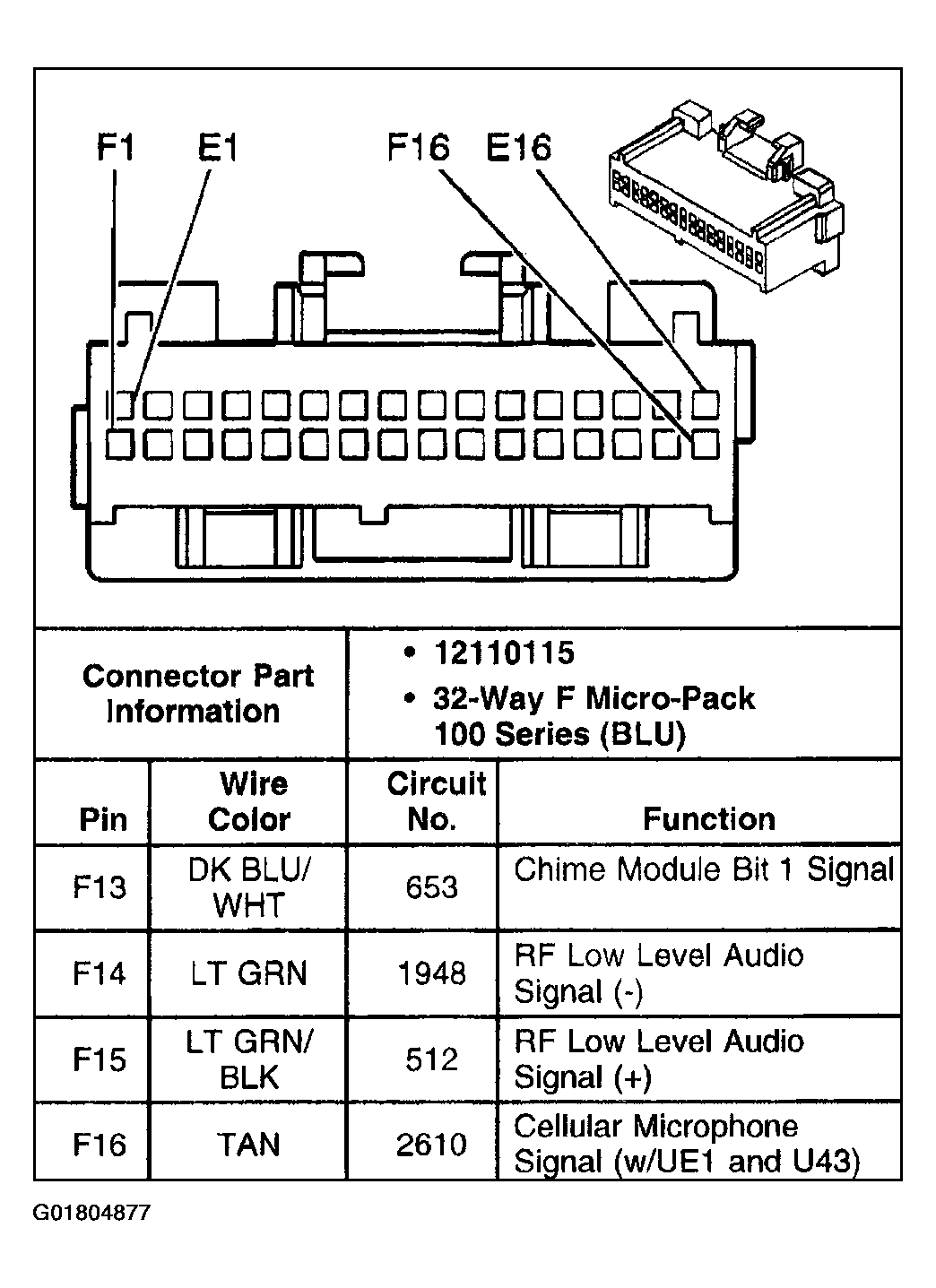

Fig 14: Radio (w/o U3R,U3S,U3Q) (2 Of 2)

G01804877

Courtesy of GENERAL MOTORS CORP.

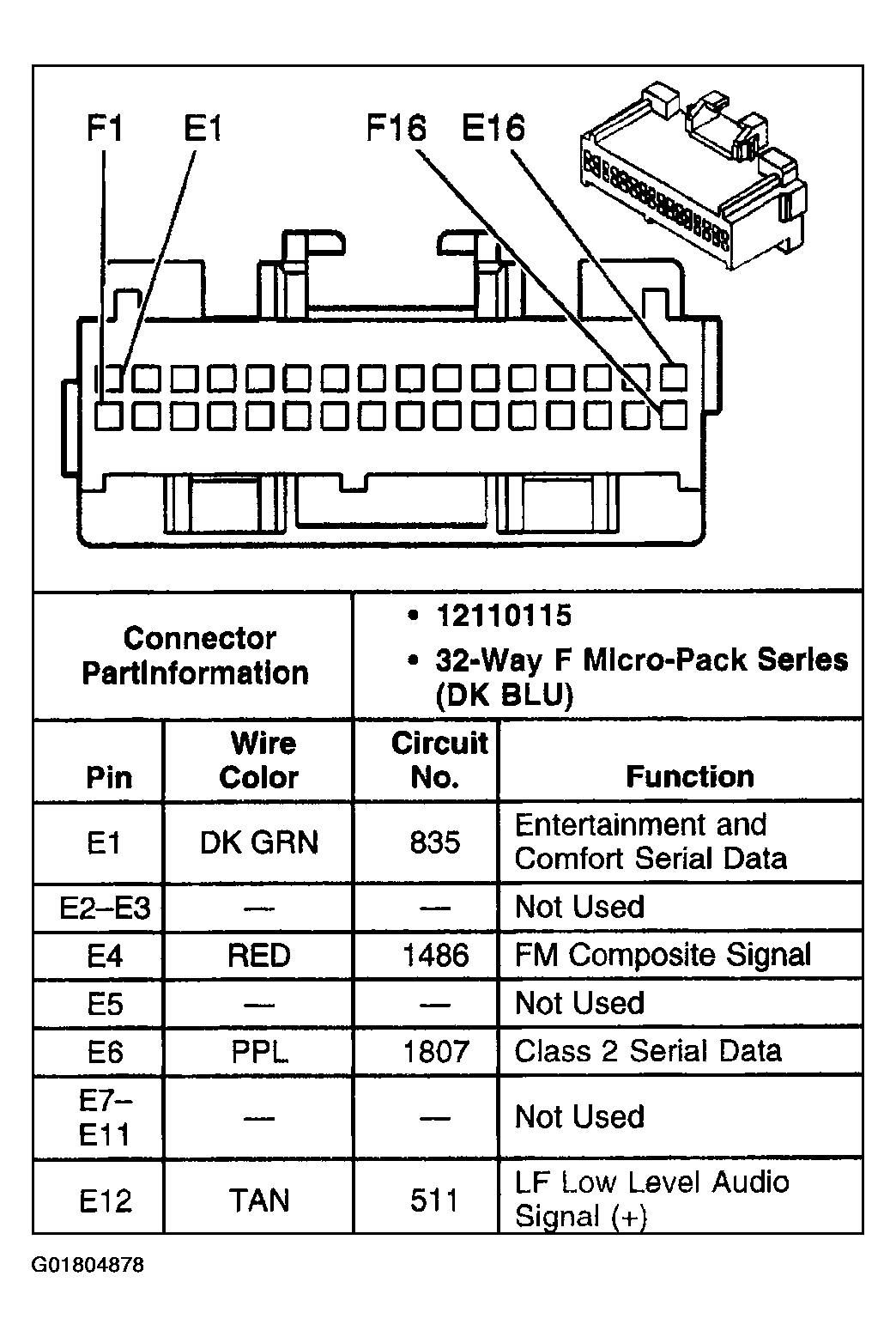

Fig 15: Radio C1 (w/U3R,U3S,U3Q) (1 Of 2)

G01804878

Courtesy of GENERAL MOTORS CORP.

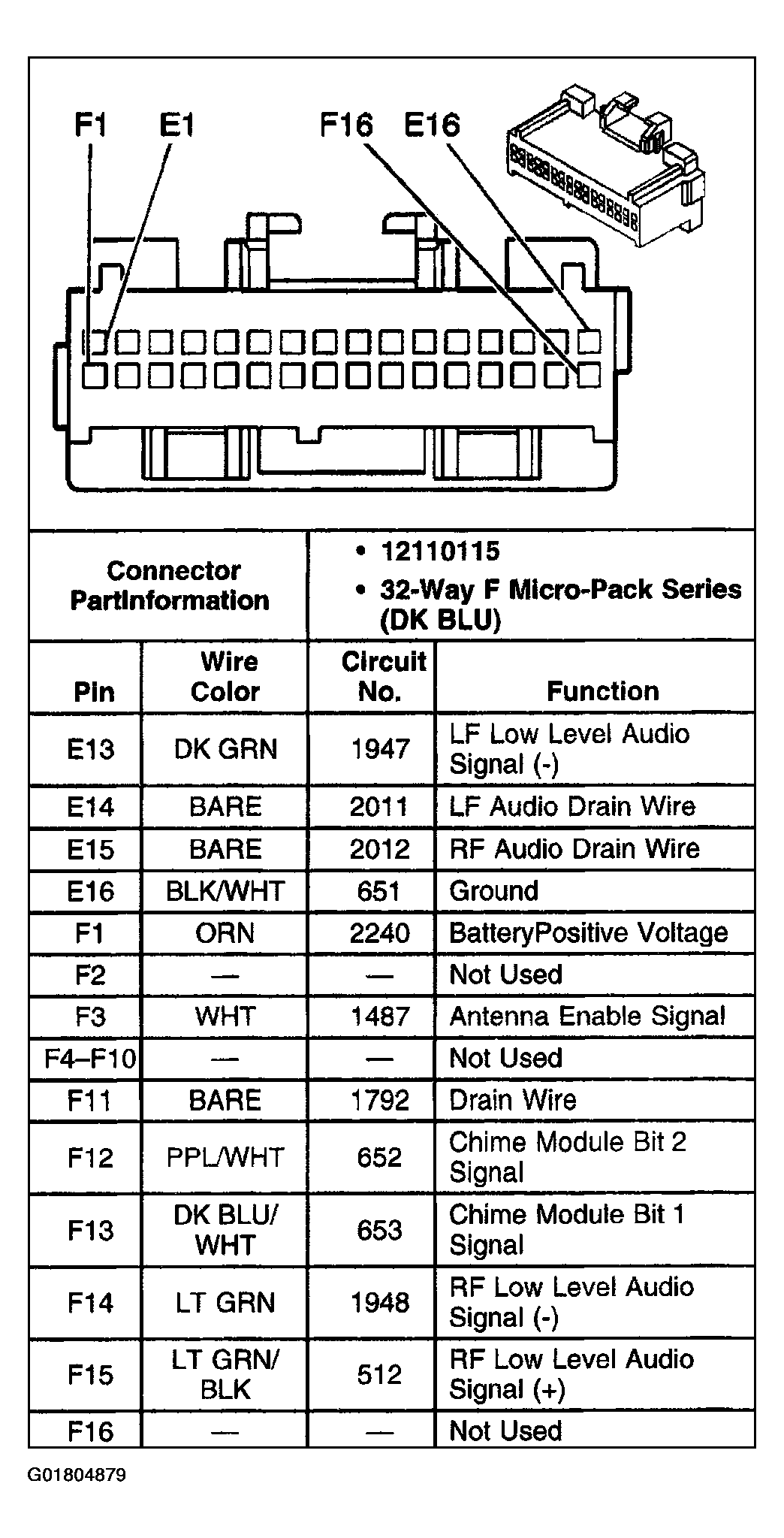

Fig 16: Radio C1 (w/U3R,U3S,U3Q) (2 Of 2)

G01804879

Courtesy of GENERAL MOTORS CORP.

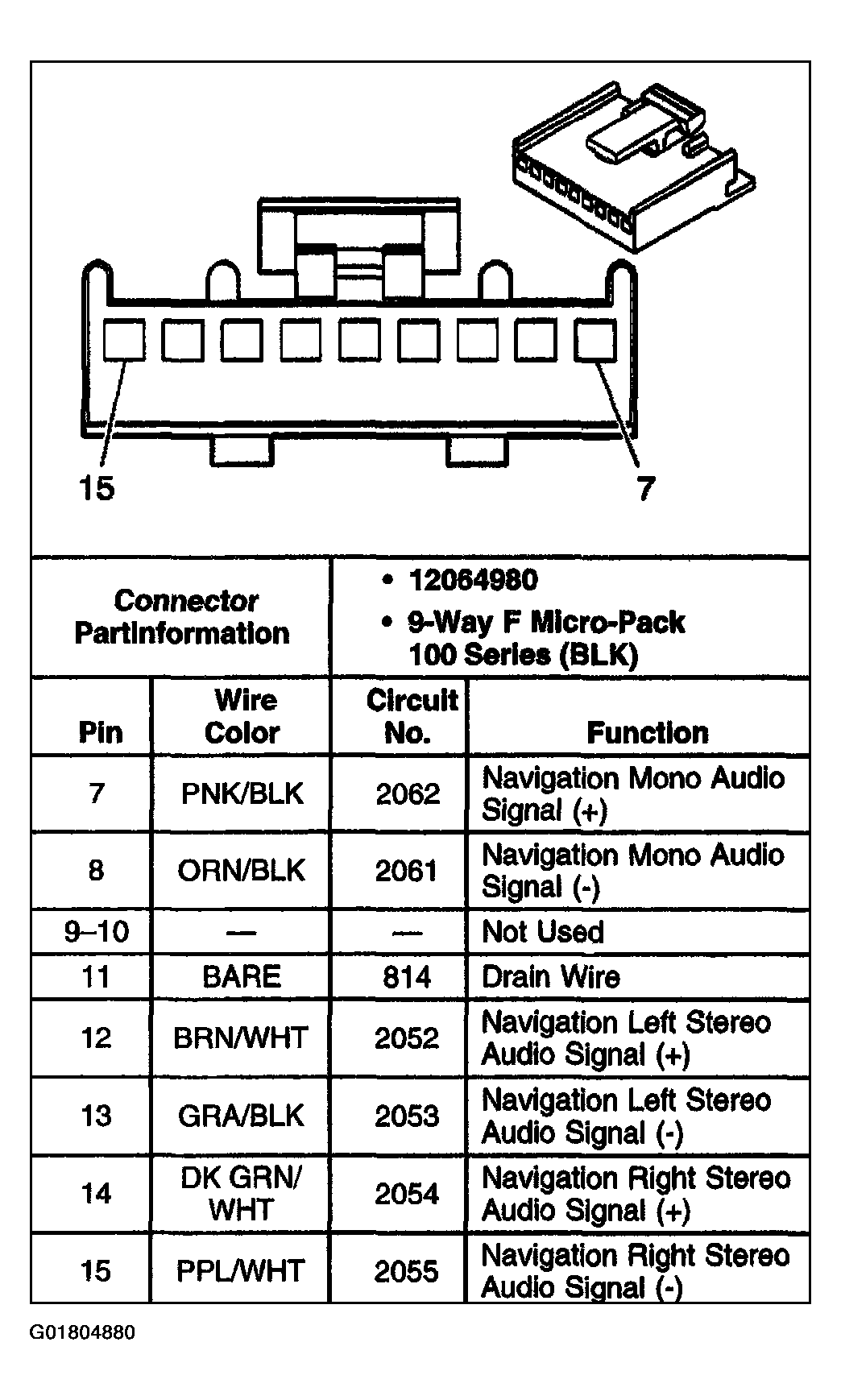

Fig 17: Radio C2 (w/U3R,U3S,U3Q)

G01804880

Courtesy of GENERAL MOTORS CORP.

Fig 18: Radio Antenna Module

G01804881

Courtesy of GENERAL MOTORS CORP.

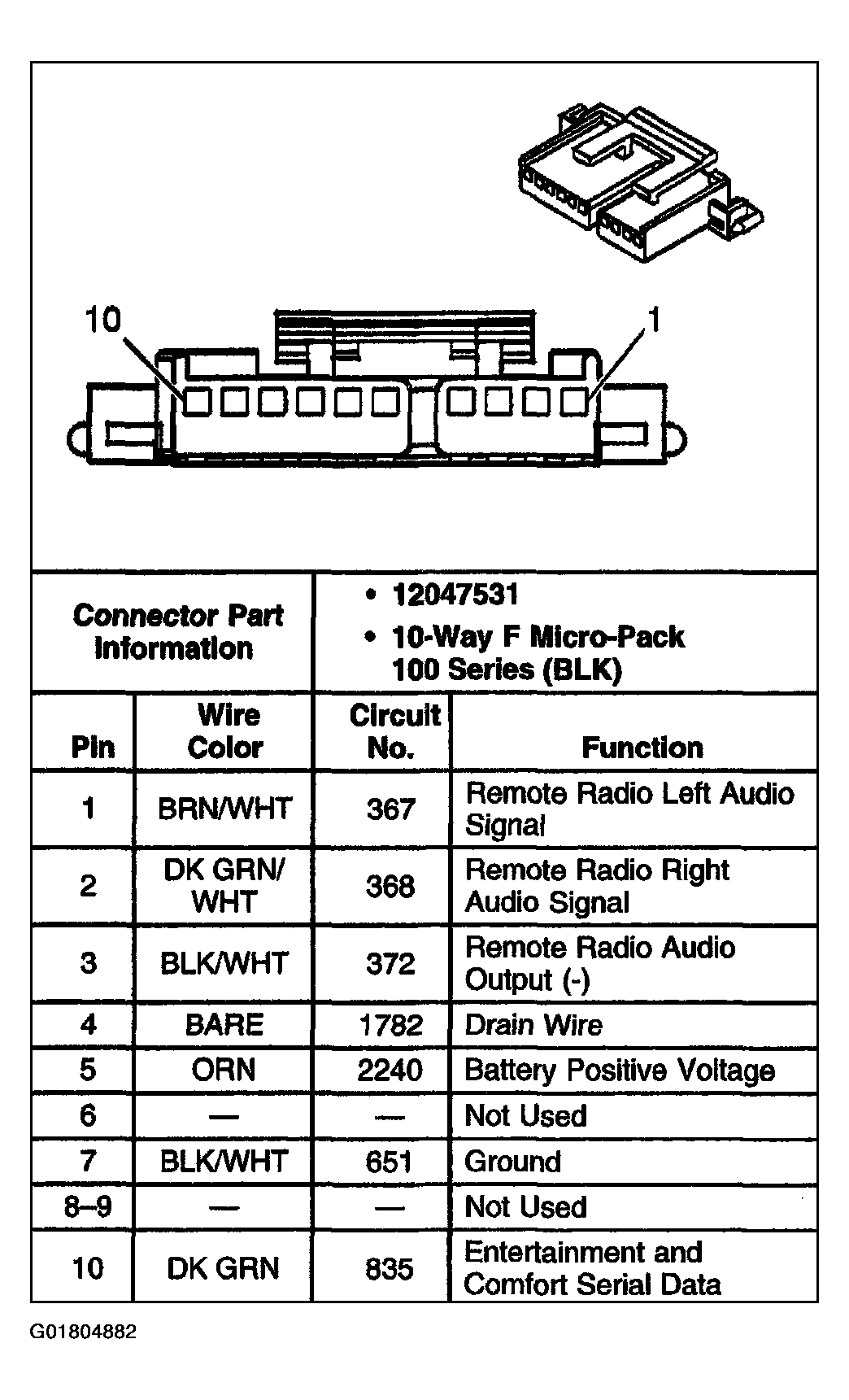

Fig 19: Remote Playback Device - CD Changer

G01804882

Courtesy of GENERAL MOTORS CORP.

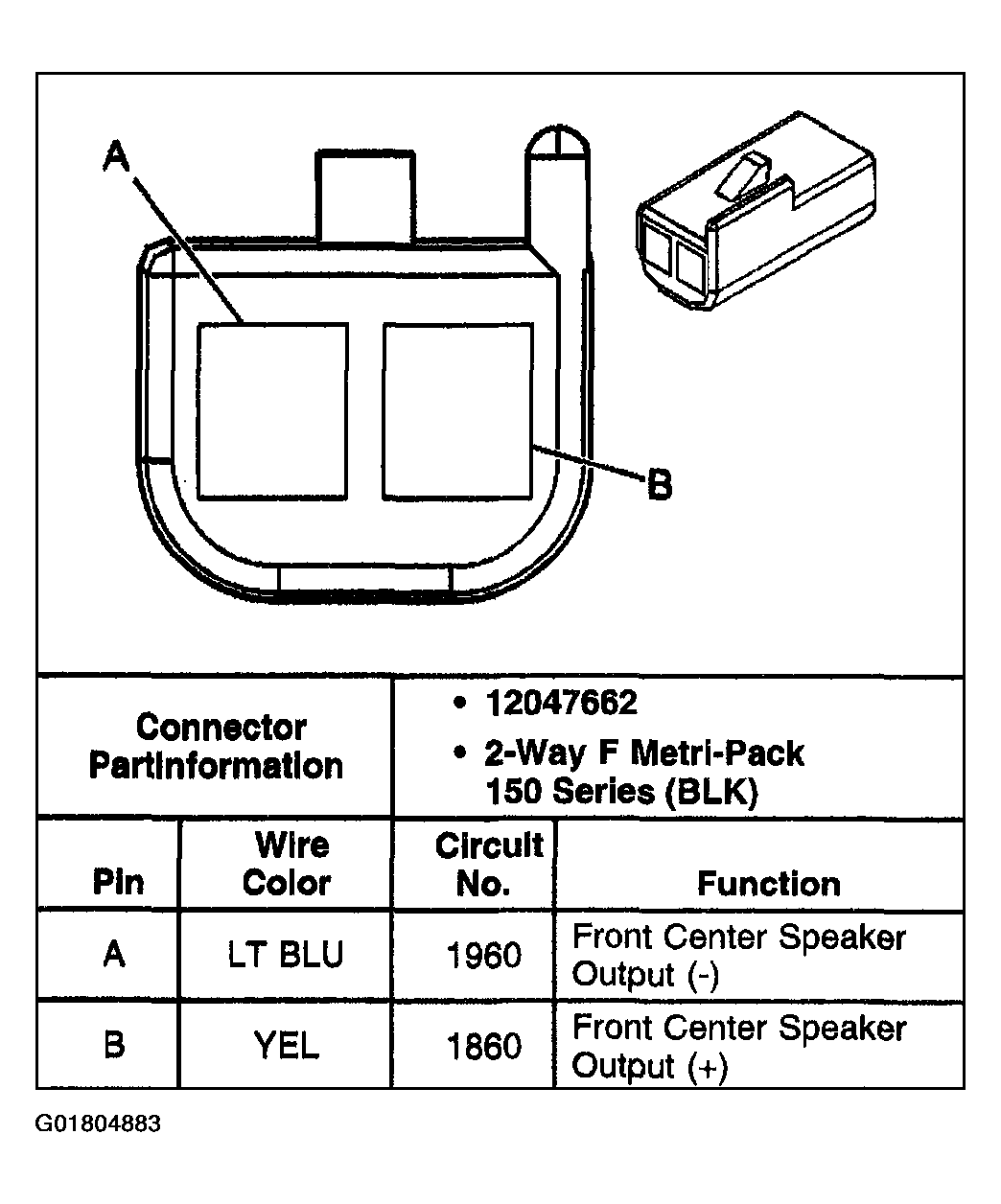

Fig 20: Speaker - Front I/P Midrange

G01804883

Courtesy of GENERAL MOTORS CORP.

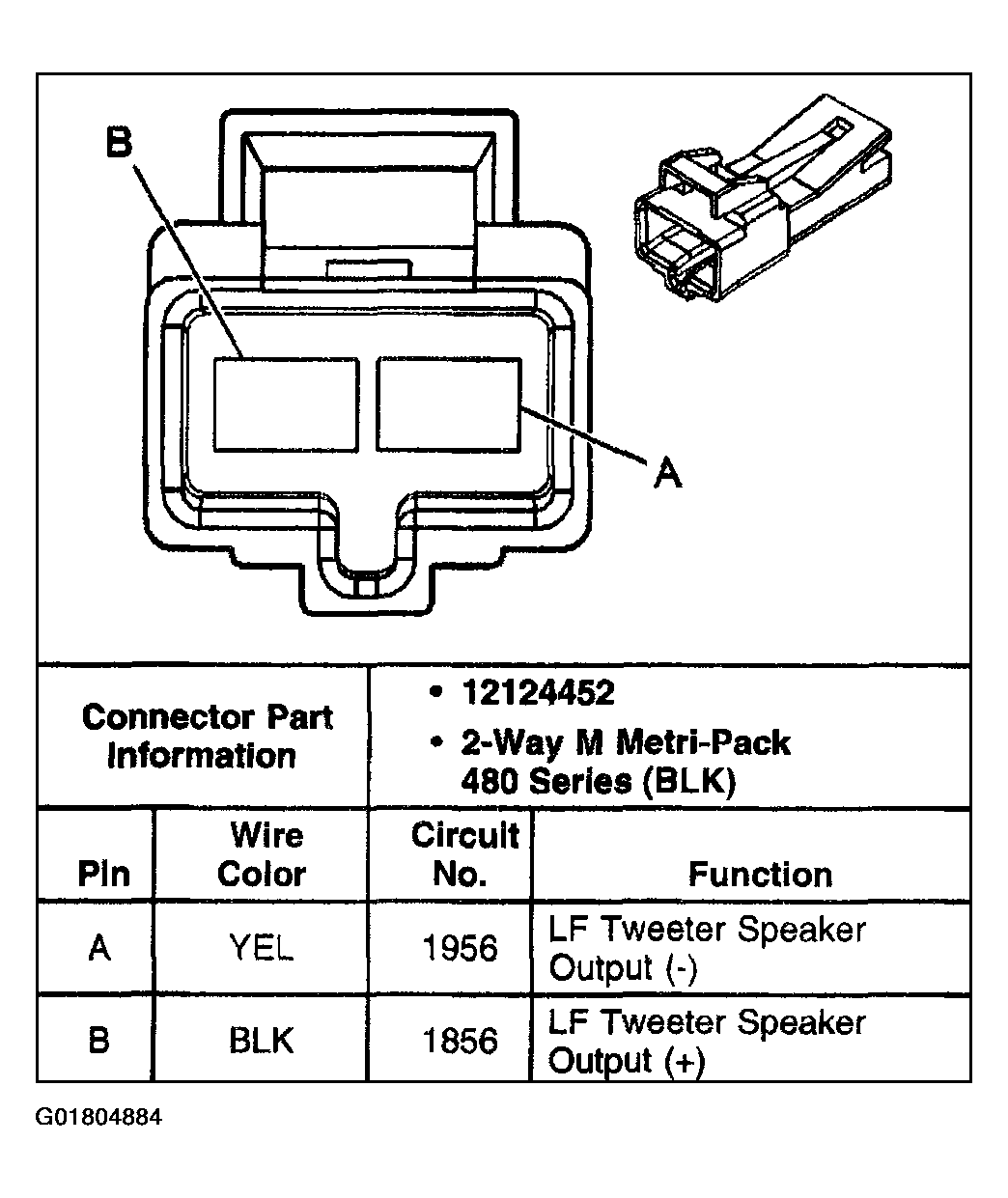

Fig 21: Speaker - LF (w/U57)

G01804884

Courtesy of GENERAL MOTORS CORP.

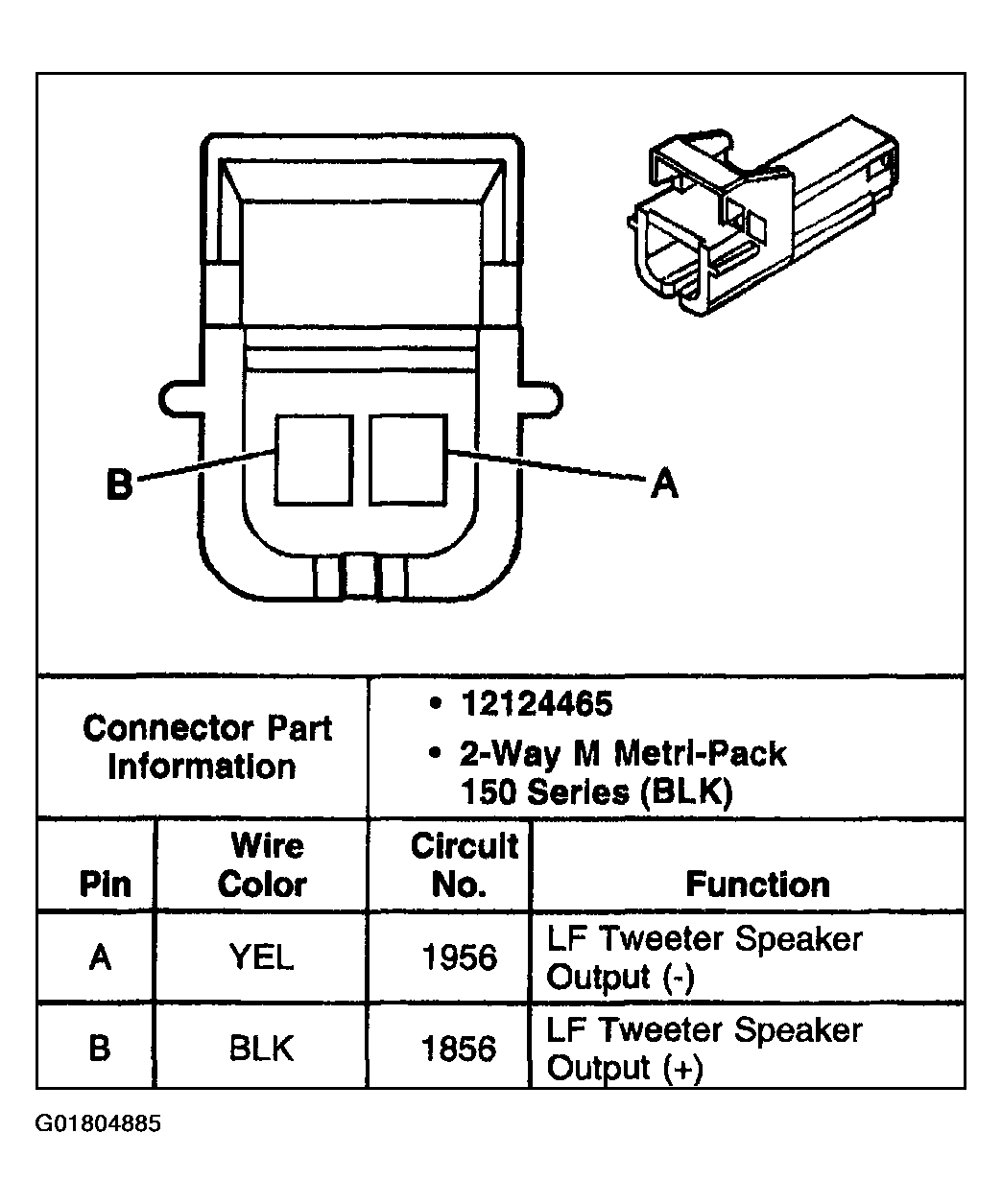

Fig 22: Speaker - LF (w/UX8)

G01804885

Courtesy of GENERAL MOTORS CORP.

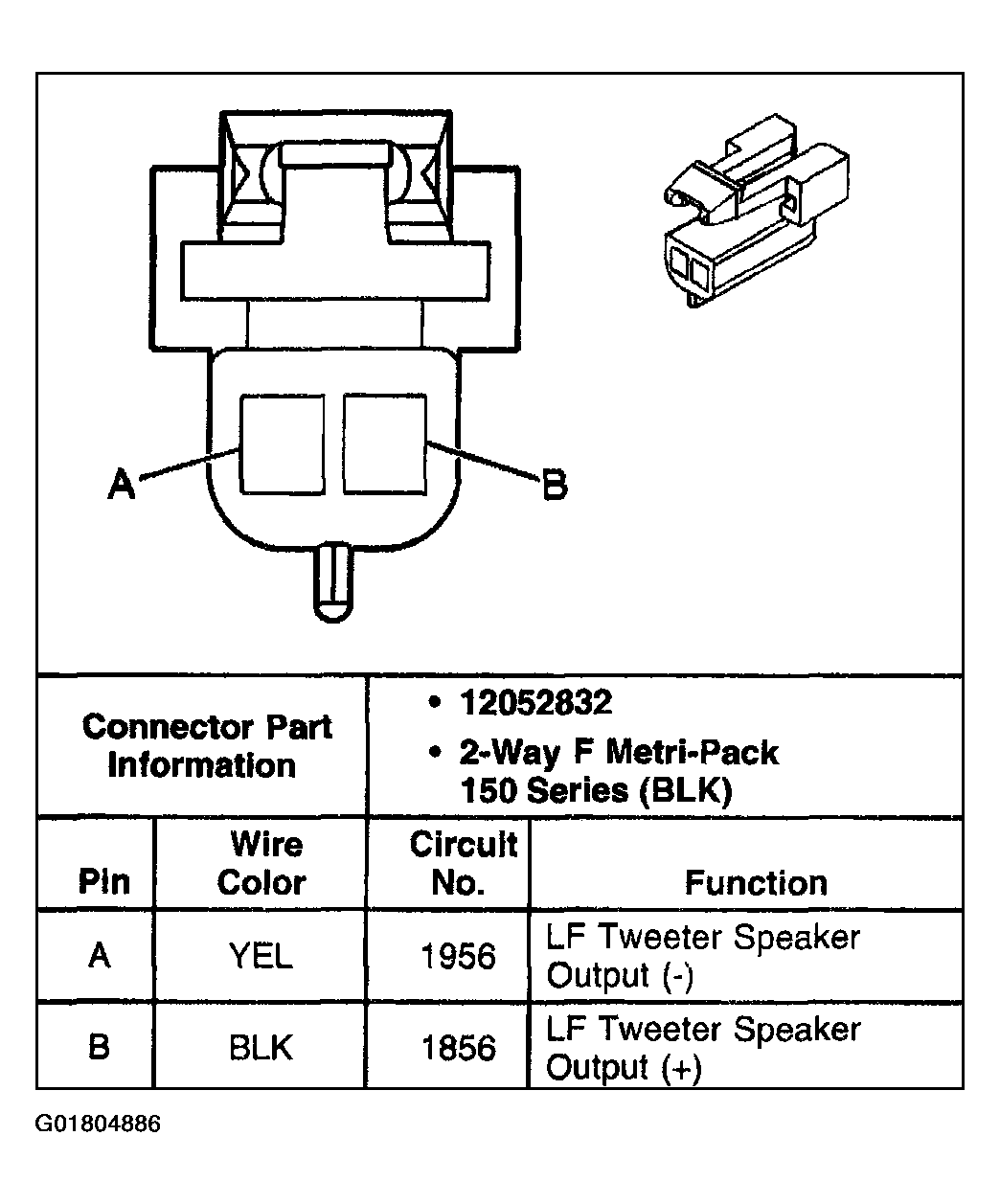

Fig 23: Speaker - LF Door (w/U57)

G01804886

Courtesy of GENERAL MOTORS CORP.

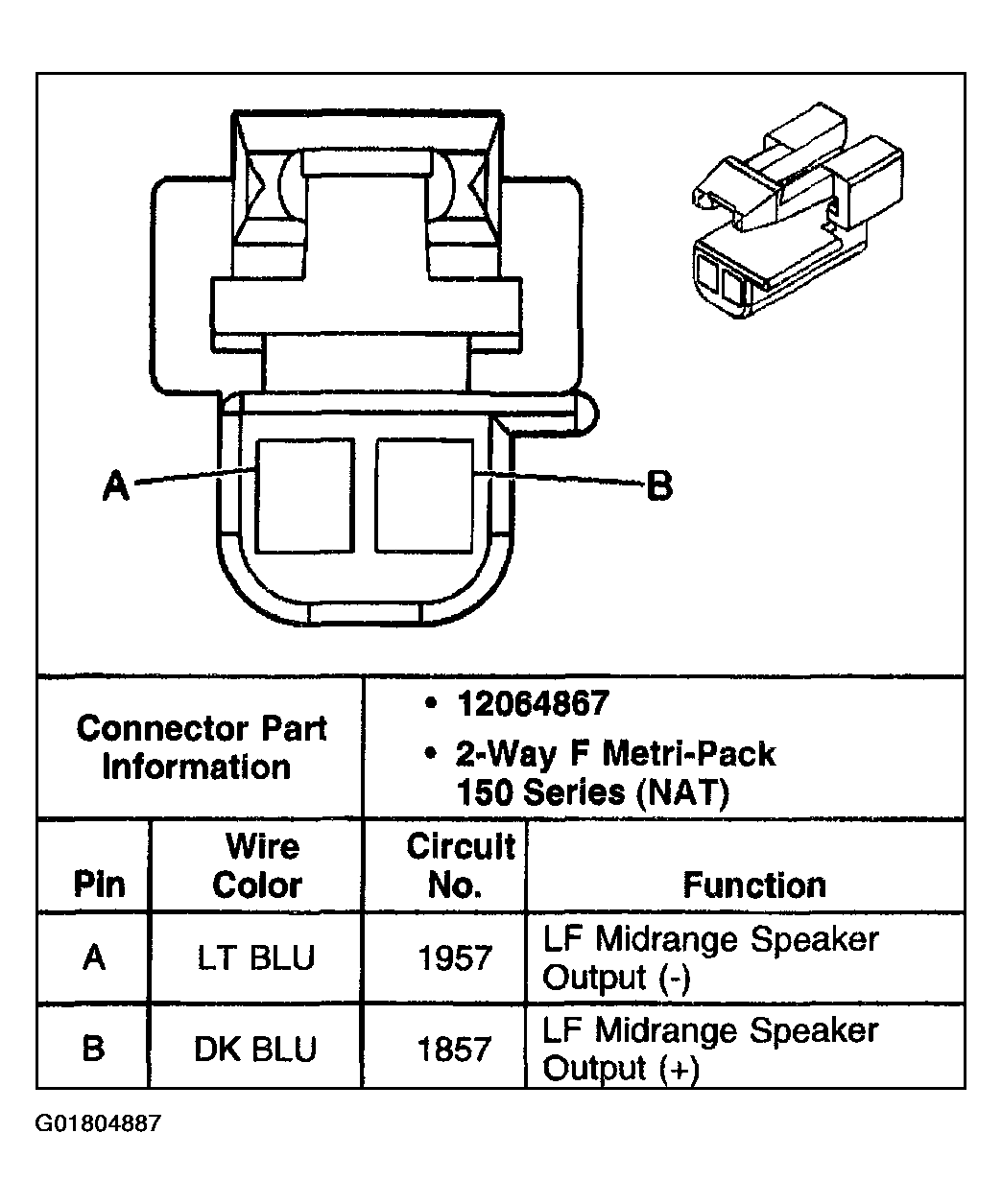

Fig 24: Speaker - LF Door (w/UX8)

G01804887

Courtesy of GENERAL MOTORS CORP.

Fig 25: Speaker - LR Door

G01804888

Courtesy of GENERAL MOTORS CORP.

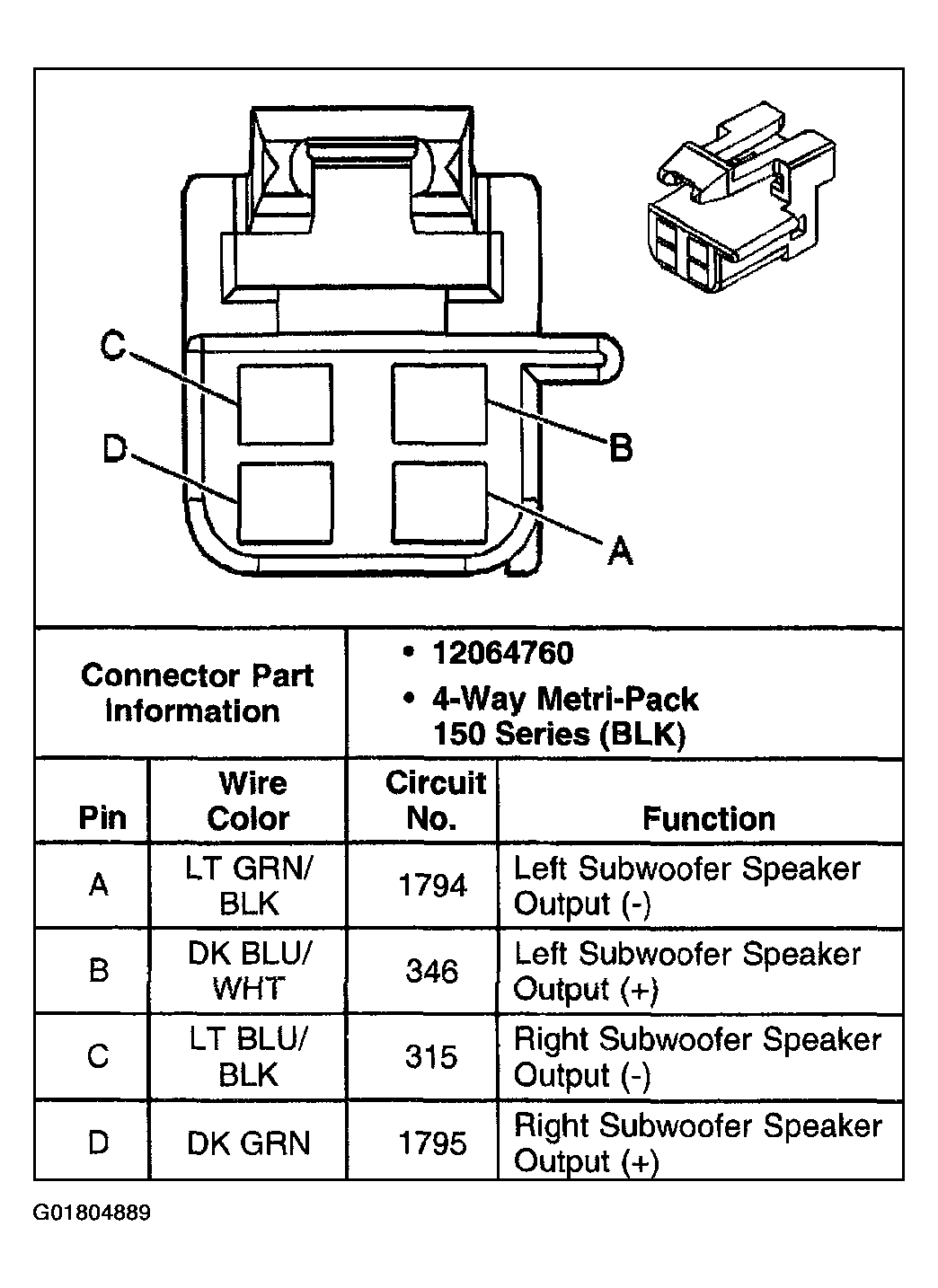

Fig 26: Speaker - Rear Subwoofer (w/UX8)

G01804889

Courtesy of GENERAL MOTORS CORP.

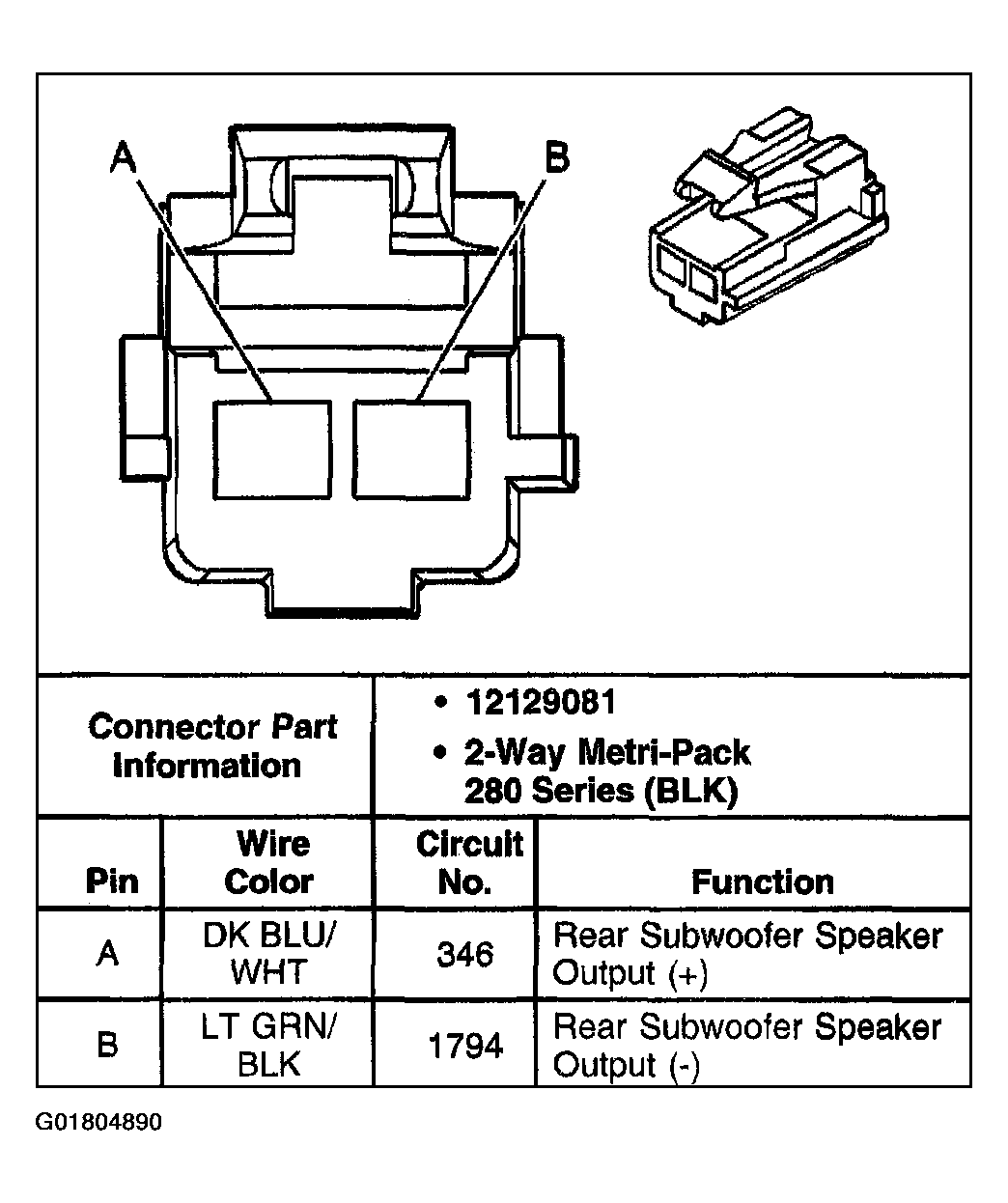

Fig 27: Speaker - Rear Subwoofer (w/U57)

G01804890

Courtesy of GENERAL MOTORS CORP.

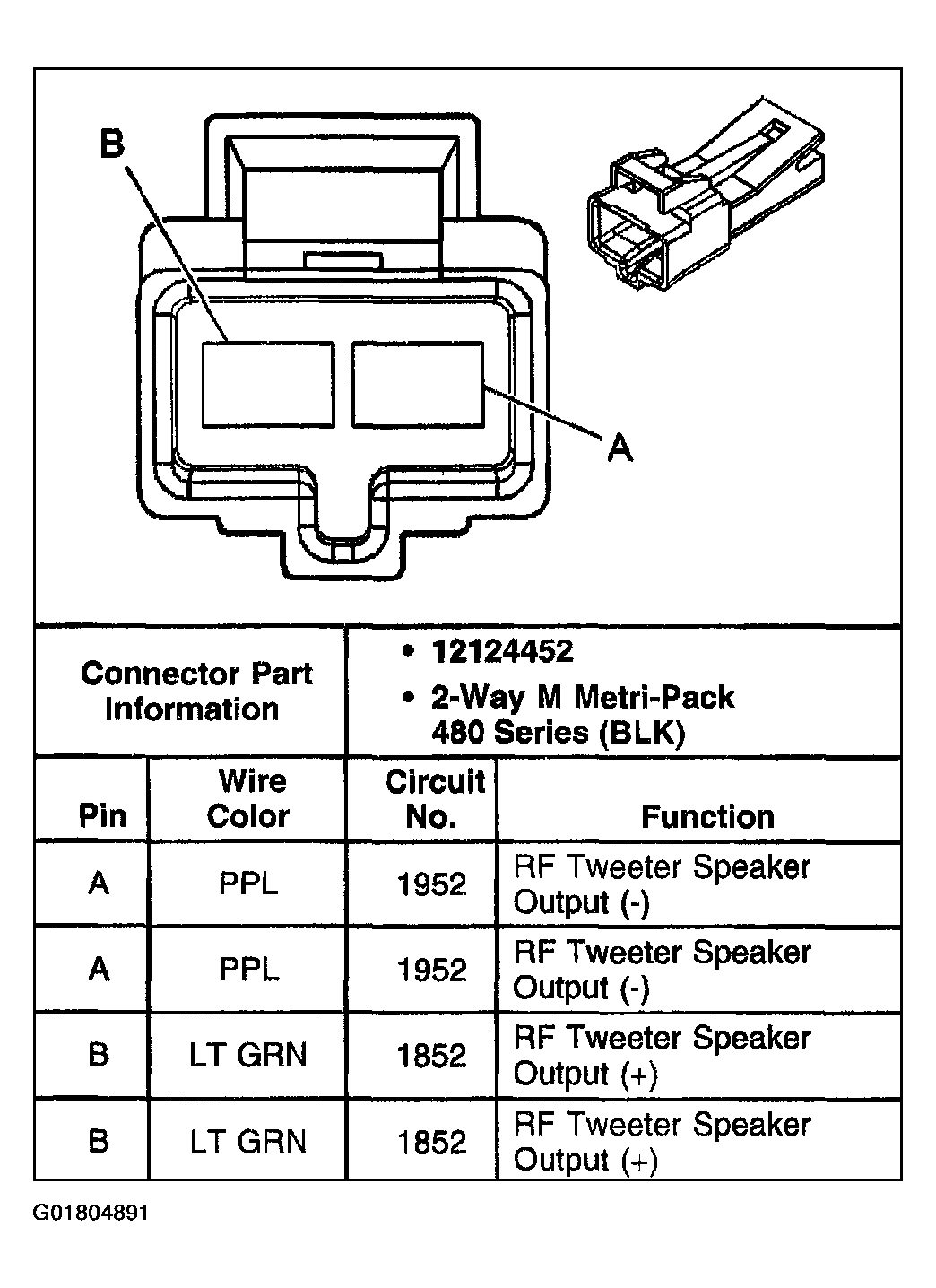

Fig 28: Speaker - RF (w/U57)

G01804891

Courtesy of GENERAL MOTORS CORP.

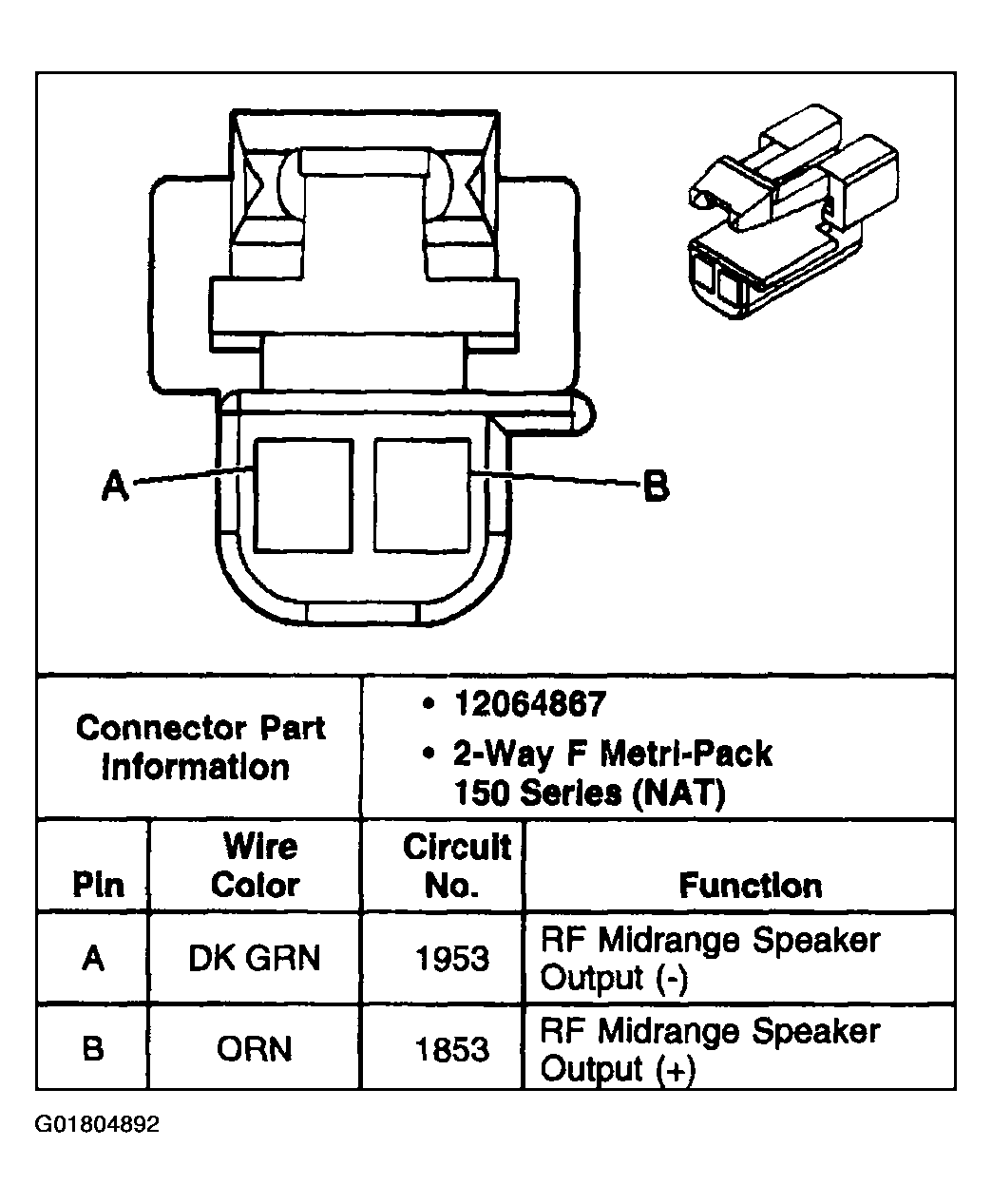

Fig 29: Speaker - RF Door (w/UX8)

G01804892

Courtesy of GENERAL MOTORS CORP.

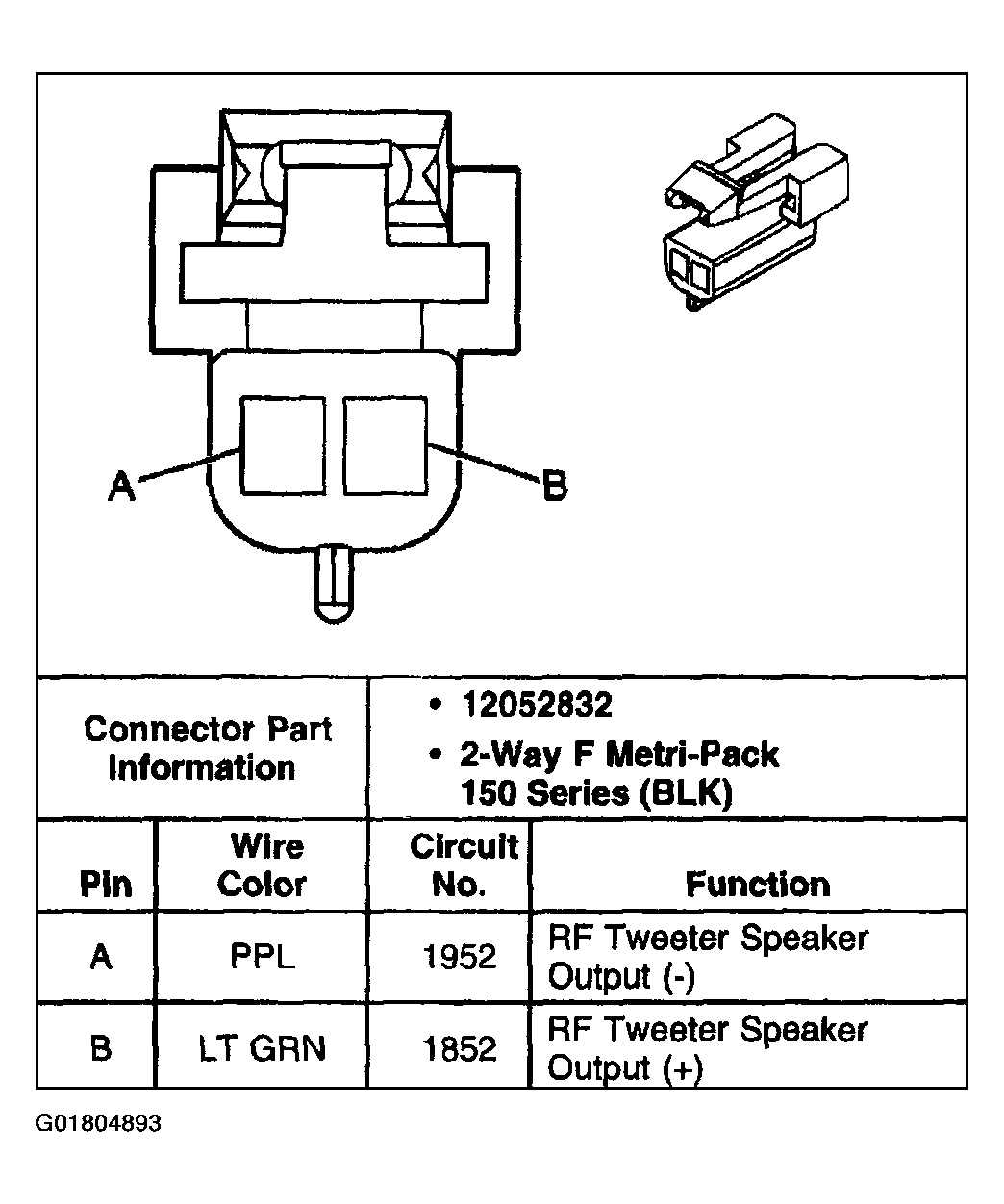

Fig 30: Speaker - RF Door (w/U57)

G01804893

Courtesy of GENERAL MOTORS CORP.

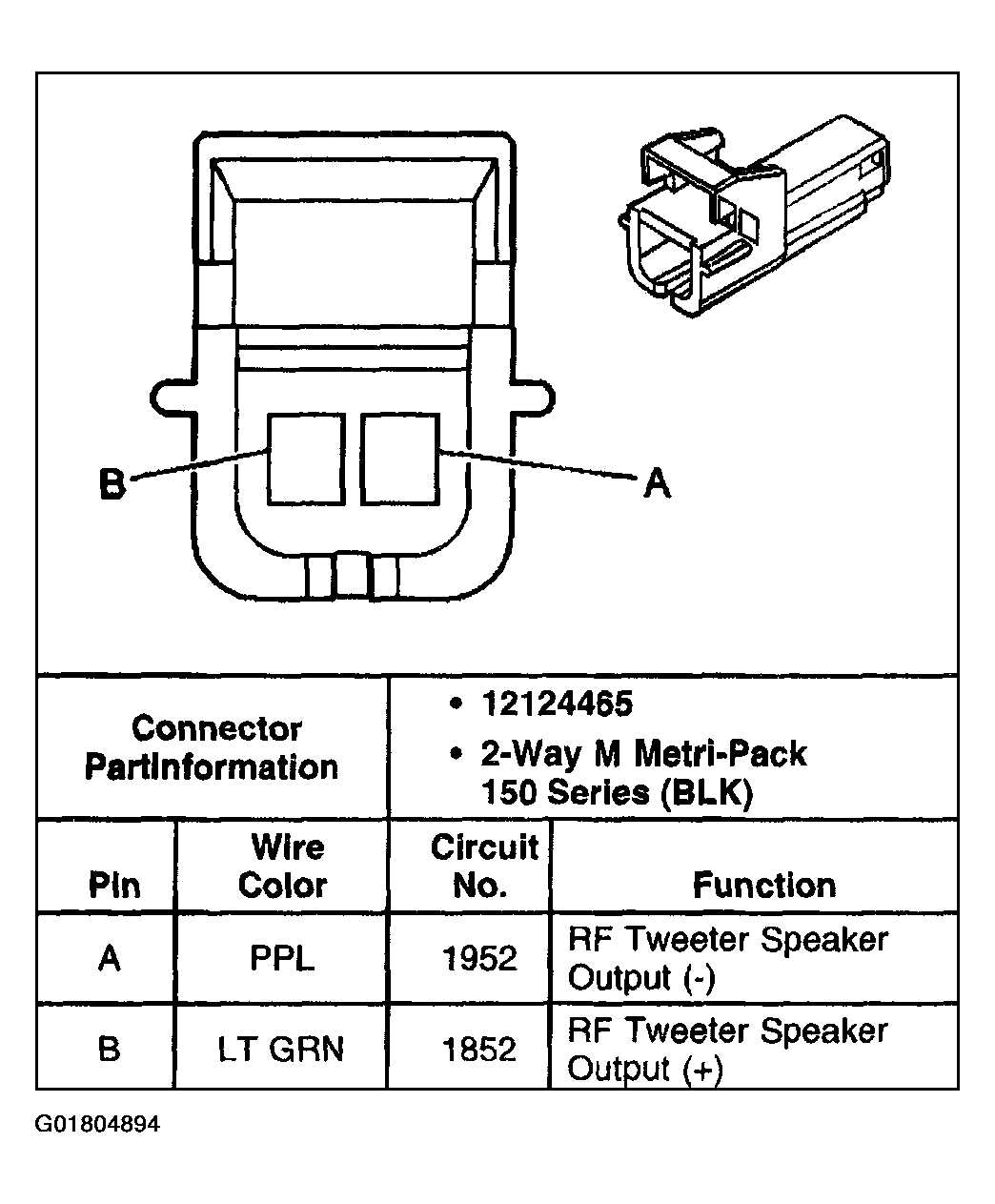

Fig 31: Speaker RF Door (w/UX8)

G01804894

Courtesy of GENERAL MOTORS CORP.

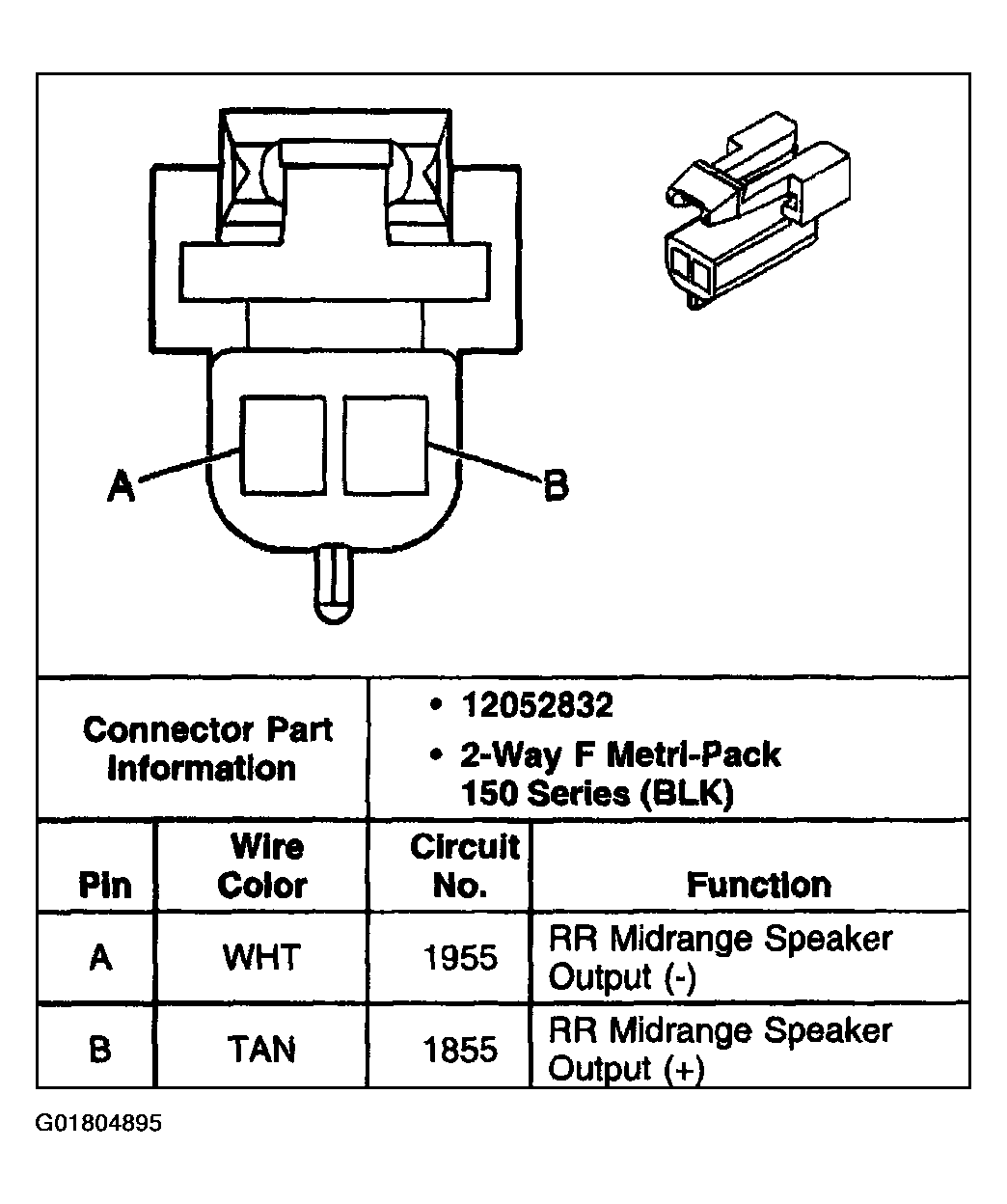

Fig 32: Speaker - RR Door

G01804895

Courtesy of GENERAL MOTORS CORP.

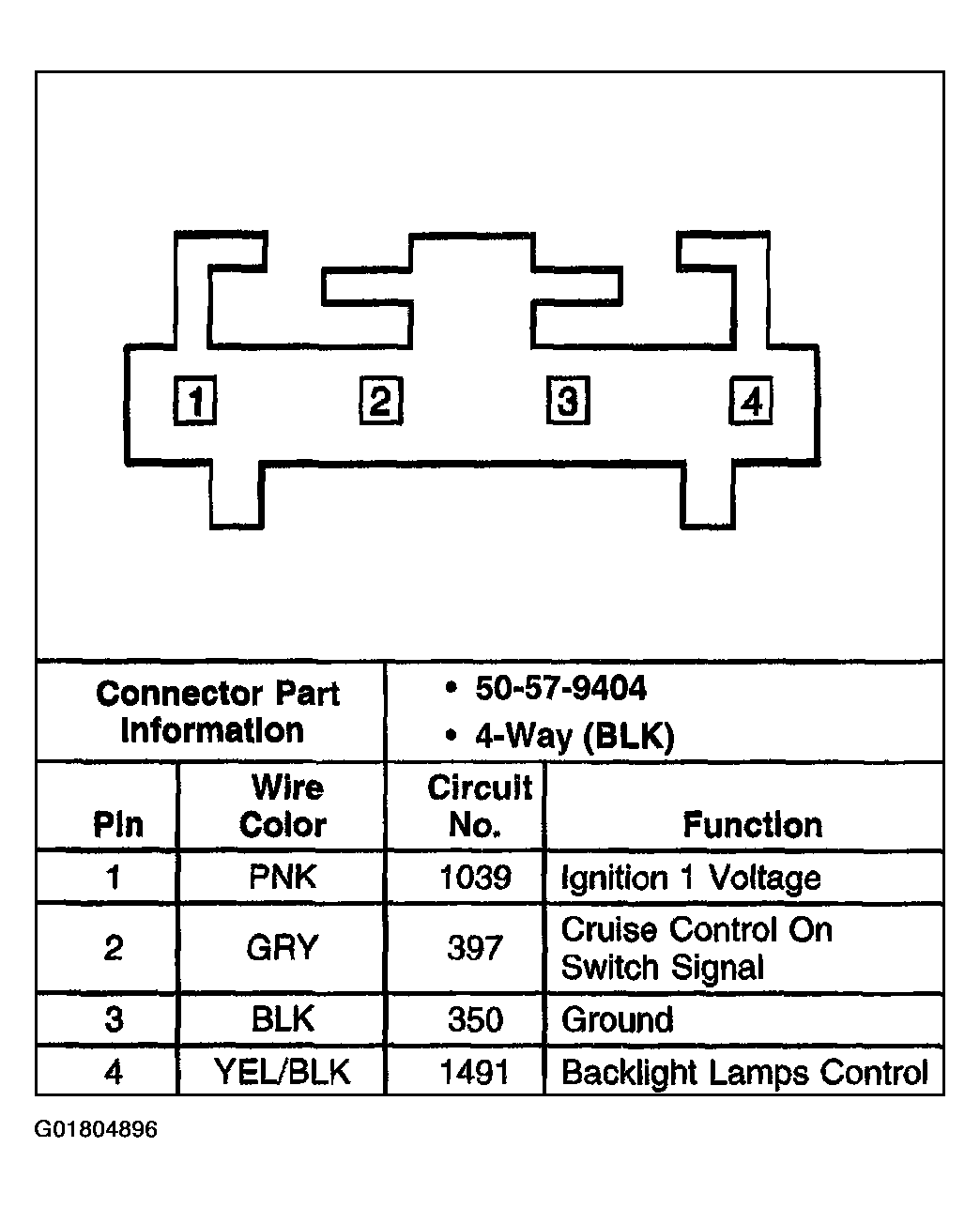

Fig 33: Steering Wheel Controls - Left C1

G01804896

Courtesy of GENERAL MOTORS CORP.

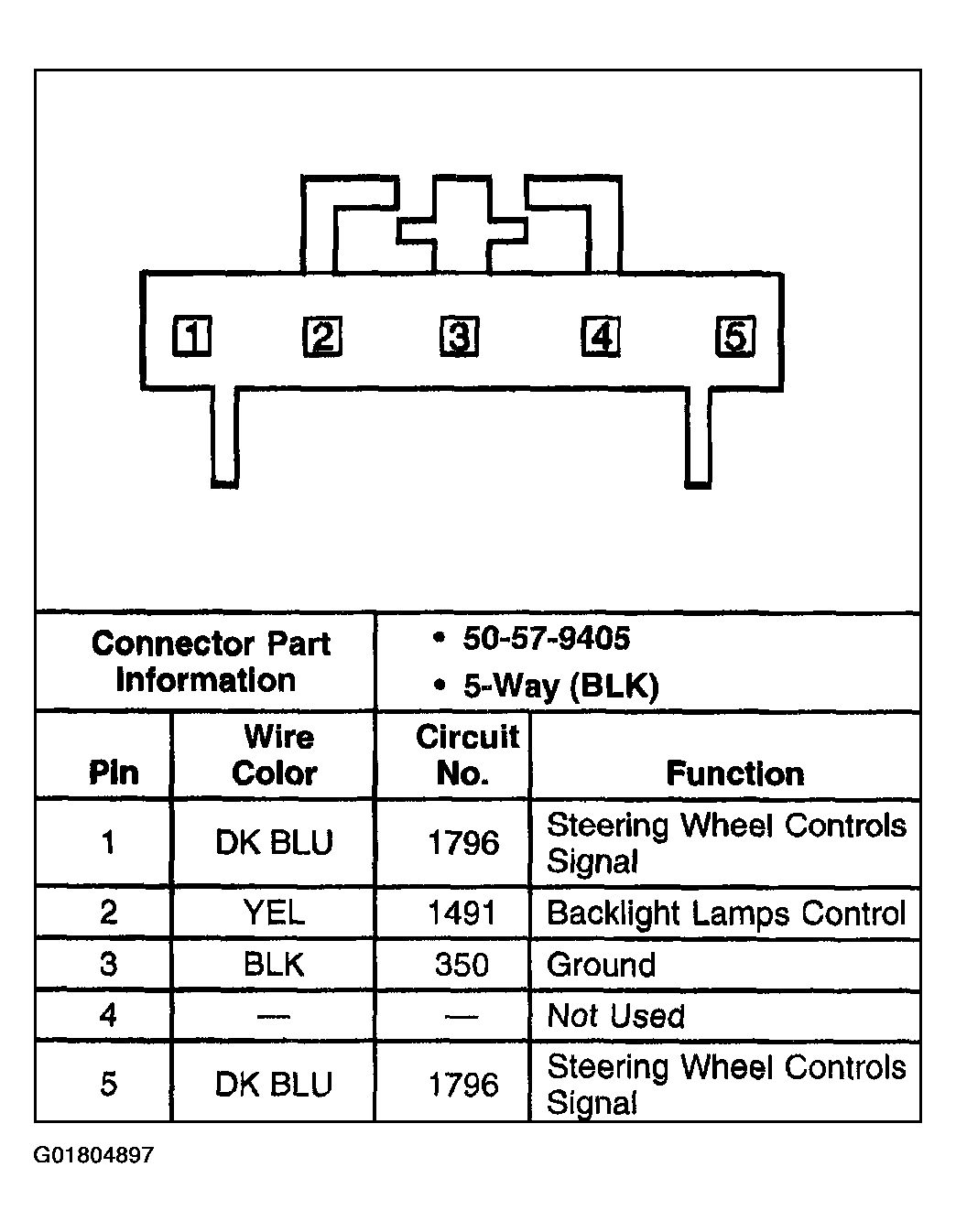

Fig 34: Steering Wheel Controls - Left C2

G01804897

Courtesy of GENERAL MOTORS CORP.

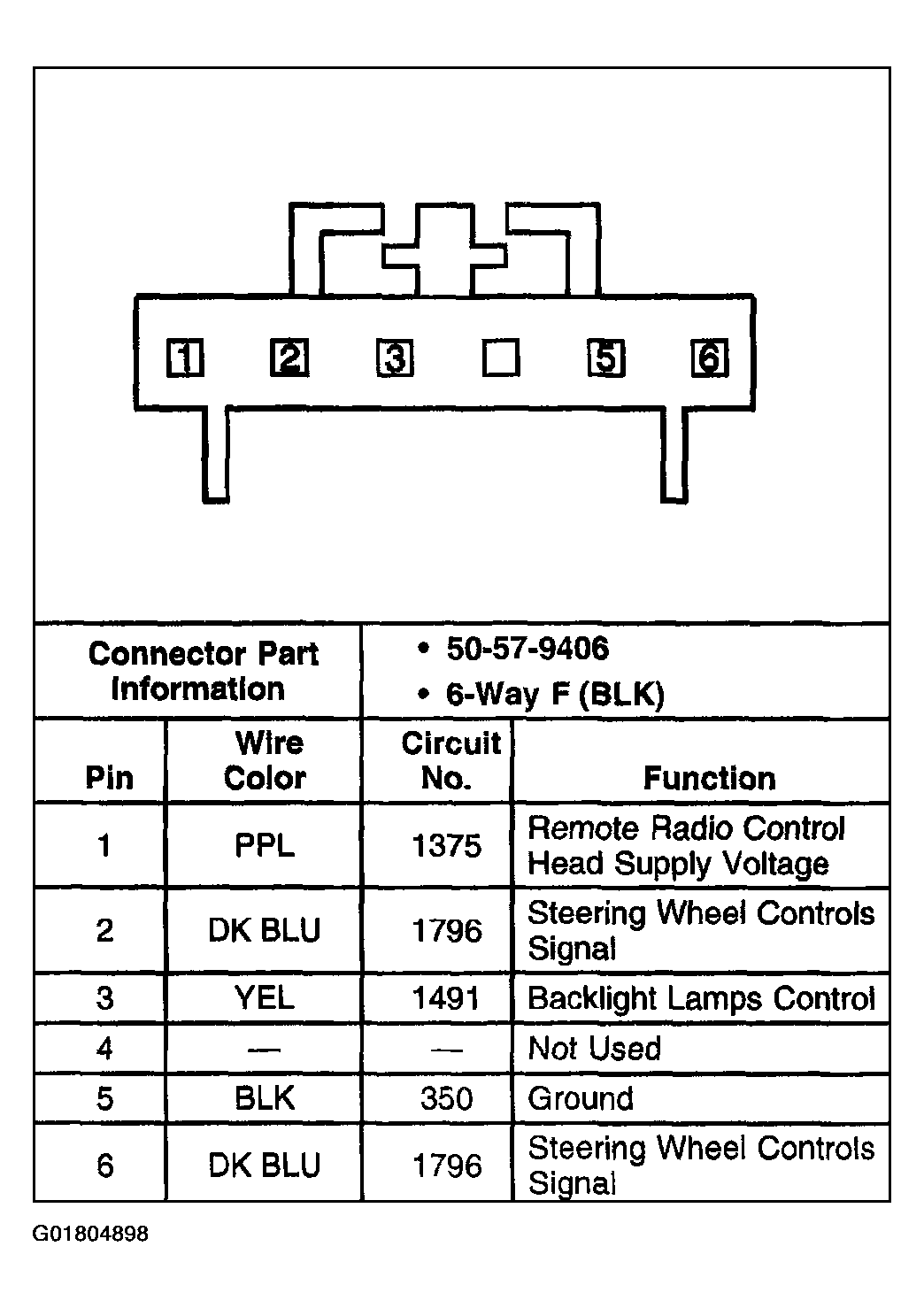

Fig 35: Steering Wheel Controls - Right C1

G01804898

Courtesy of GENERAL MOTORS CORP.

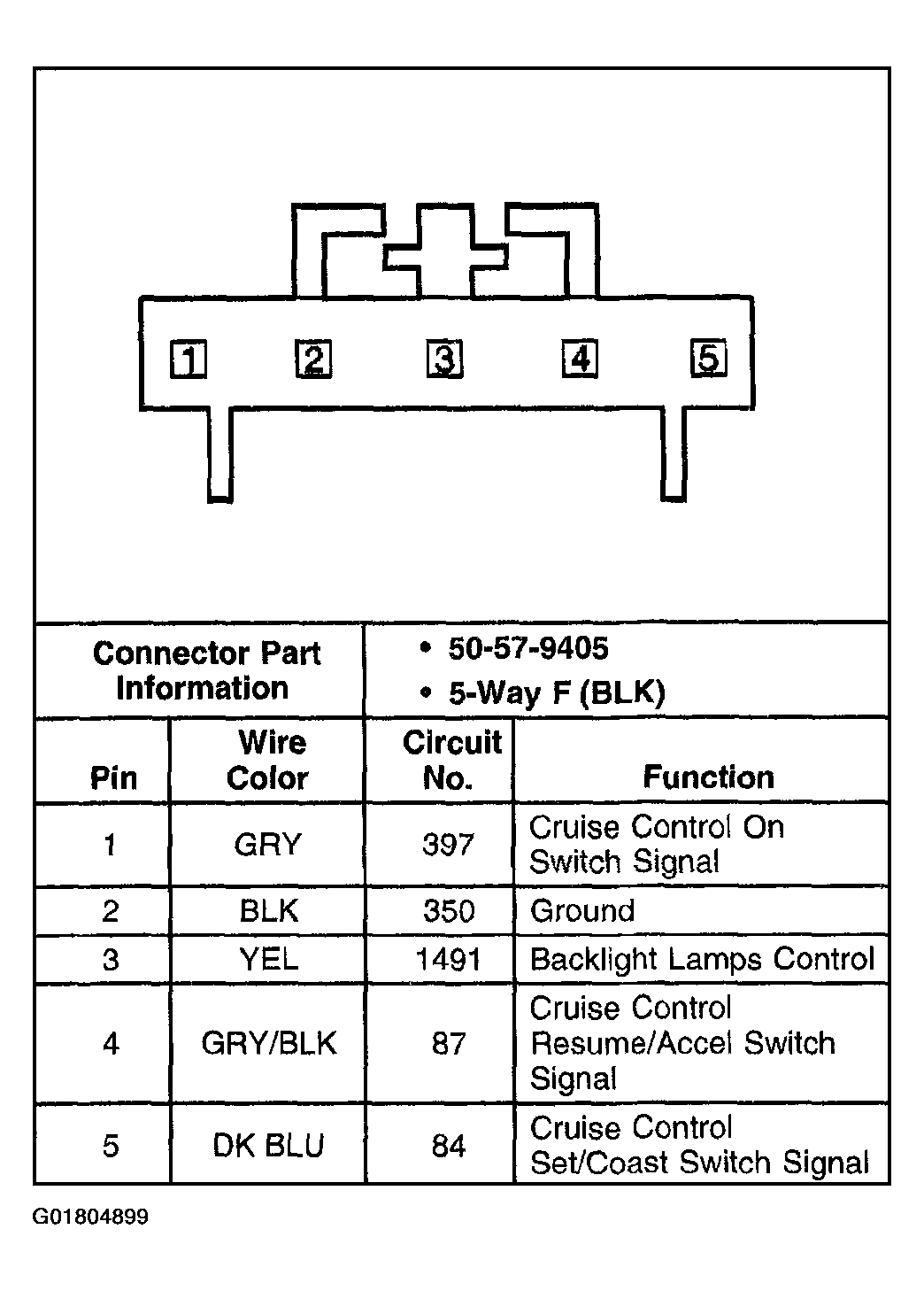

Fig 36: Steering Wheel Controls - Right C2

G01804899

Courtesy of GENERAL MOTORS CORP.
