Removal Procedure

  1. Remove the left rear sail panel. Refer to SAIL PANEL REPLACEMENT .
  2. Remove the rear assist handles. Refer to ASSIST HANDLE REPLACEMENT .
  3. Disconnect the electrical connectors (2) and the coaxial cable (4, 5) from the AM/FM antenna module (1).
  4. Remove the fastener (3) retaining the AM/FM antenna module to the roof beam.
  5. Remove the AM/FM antenna module (1).

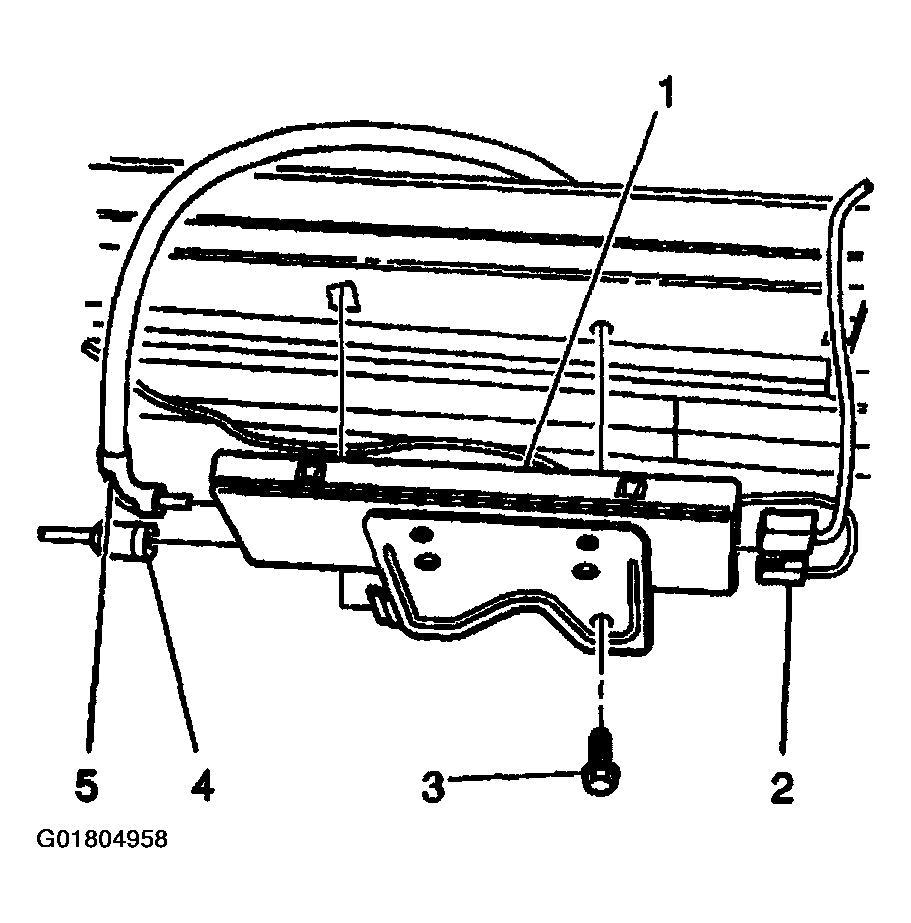

    Fig 1: Removing Antenna Module, Electrical Connectors, Fastener & Coaxial Cable
    G01804958Courtesy of GENERAL MOTORS CORP.
