Installation Procedure

Install the battery (2) with the positive (+) side up.
Align both halves (1, 3) of the transmitter.

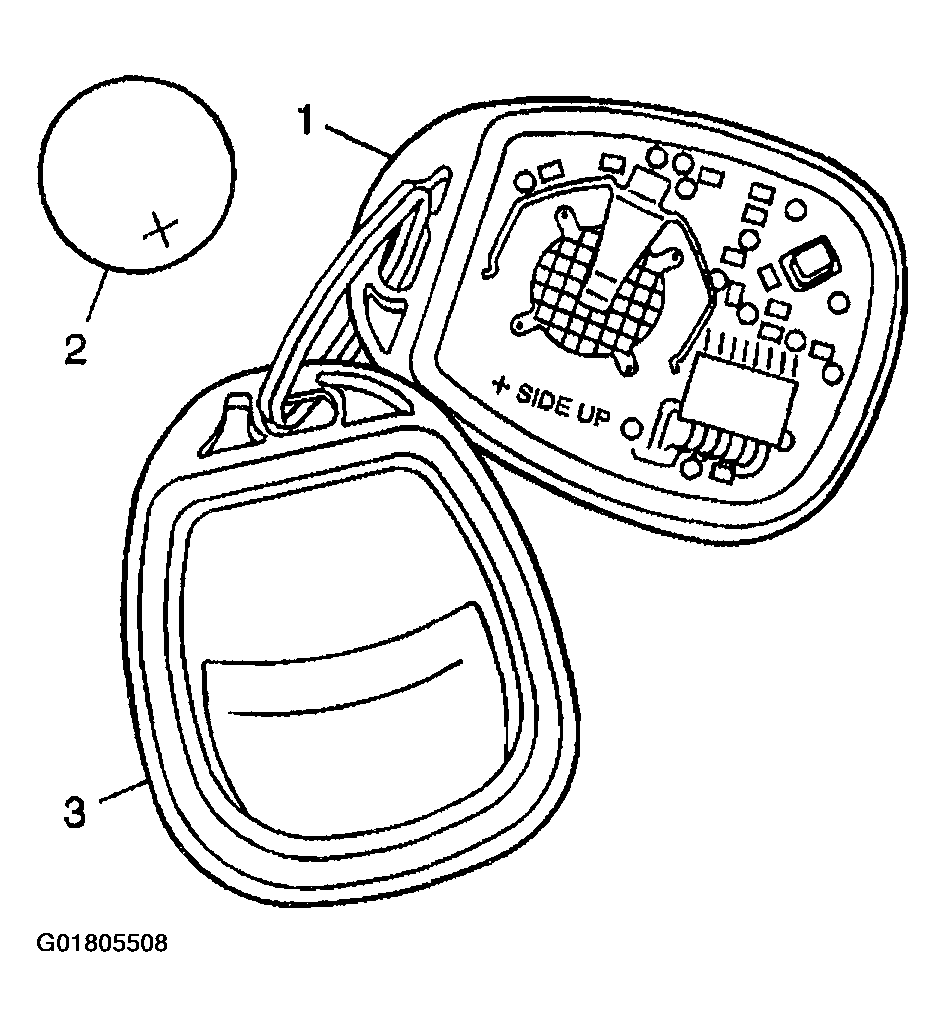

Fig 1: Installing Battery Into Transmitter
Courtesy of GENERAL MOTORS CORP.
Ensure that the seal is positioned correctly.
Close the transmitter case.
Synchronize the transmitter. Refer to Transmitter Programming .

Fig 2: Closing Transmitter Case
Courtesy of GENERAL MOTORS CORP.
