Power Seat Systems Component Views

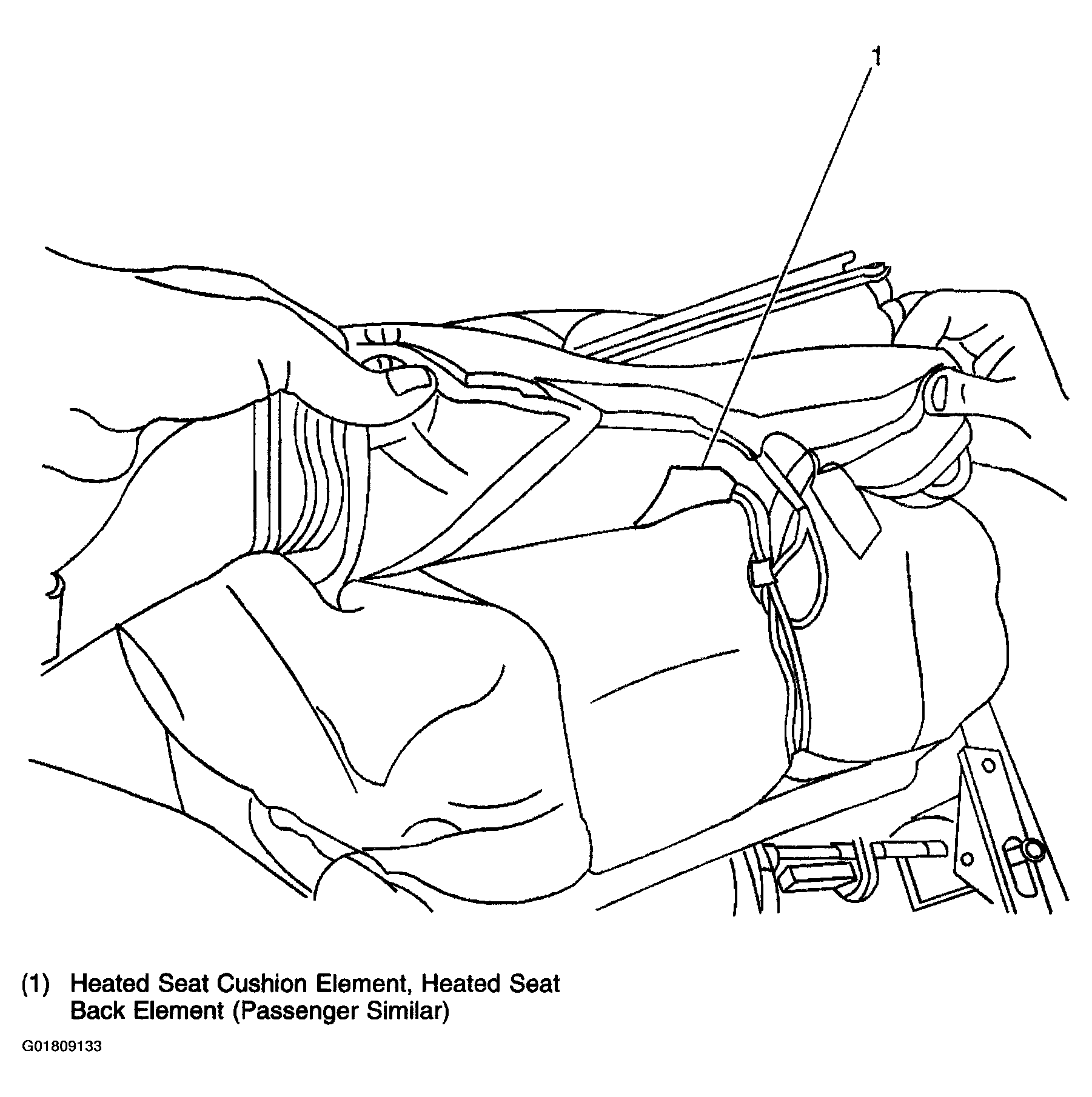

Fig 1: Left Front Seat Cushion

Courtesy of GENERAL MOTORS CORP.

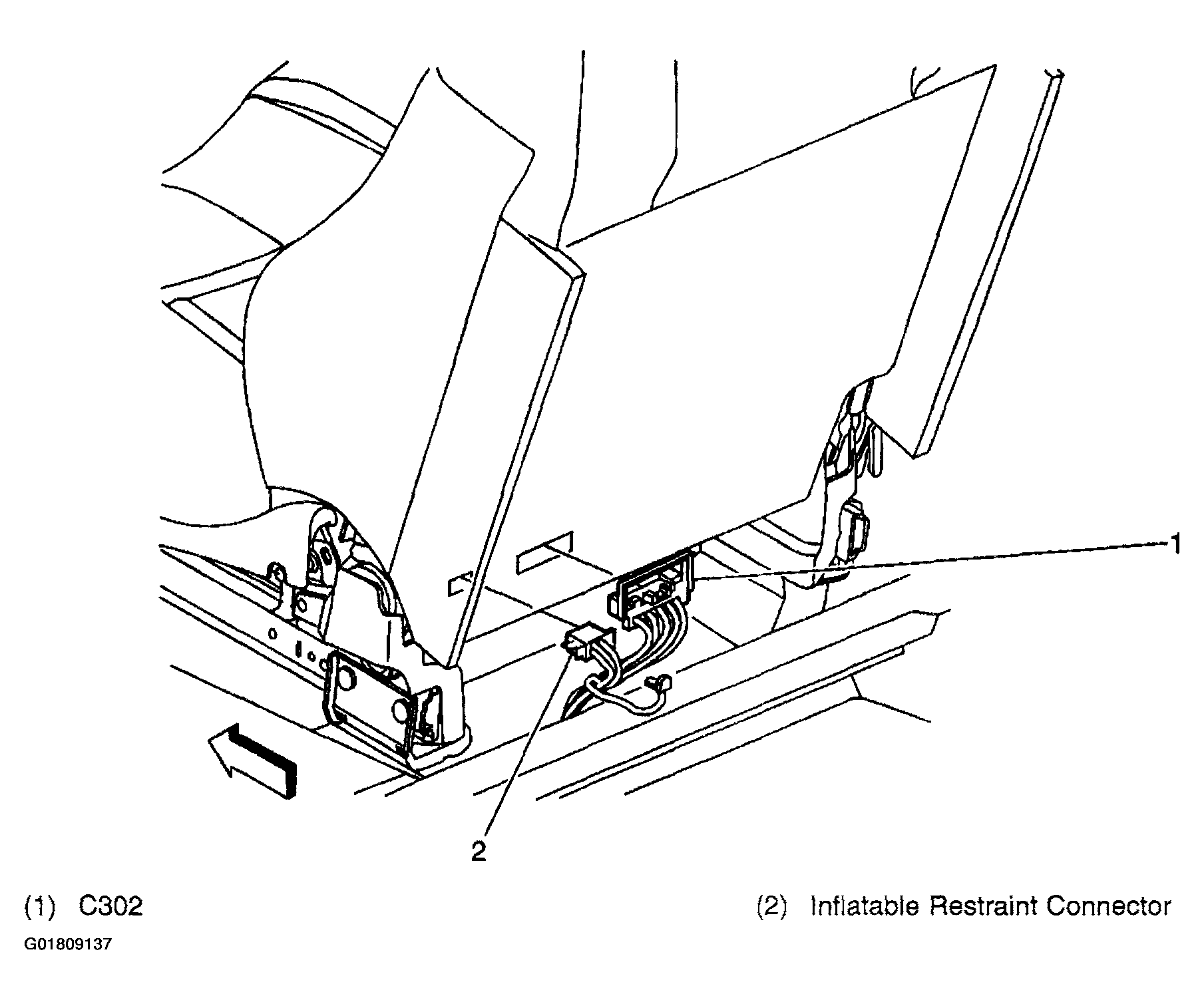

Fig 2: Left Front of the Passenger Compartment, Under the Left Front Seat

Courtesy of GENERAL MOTORS CORP.

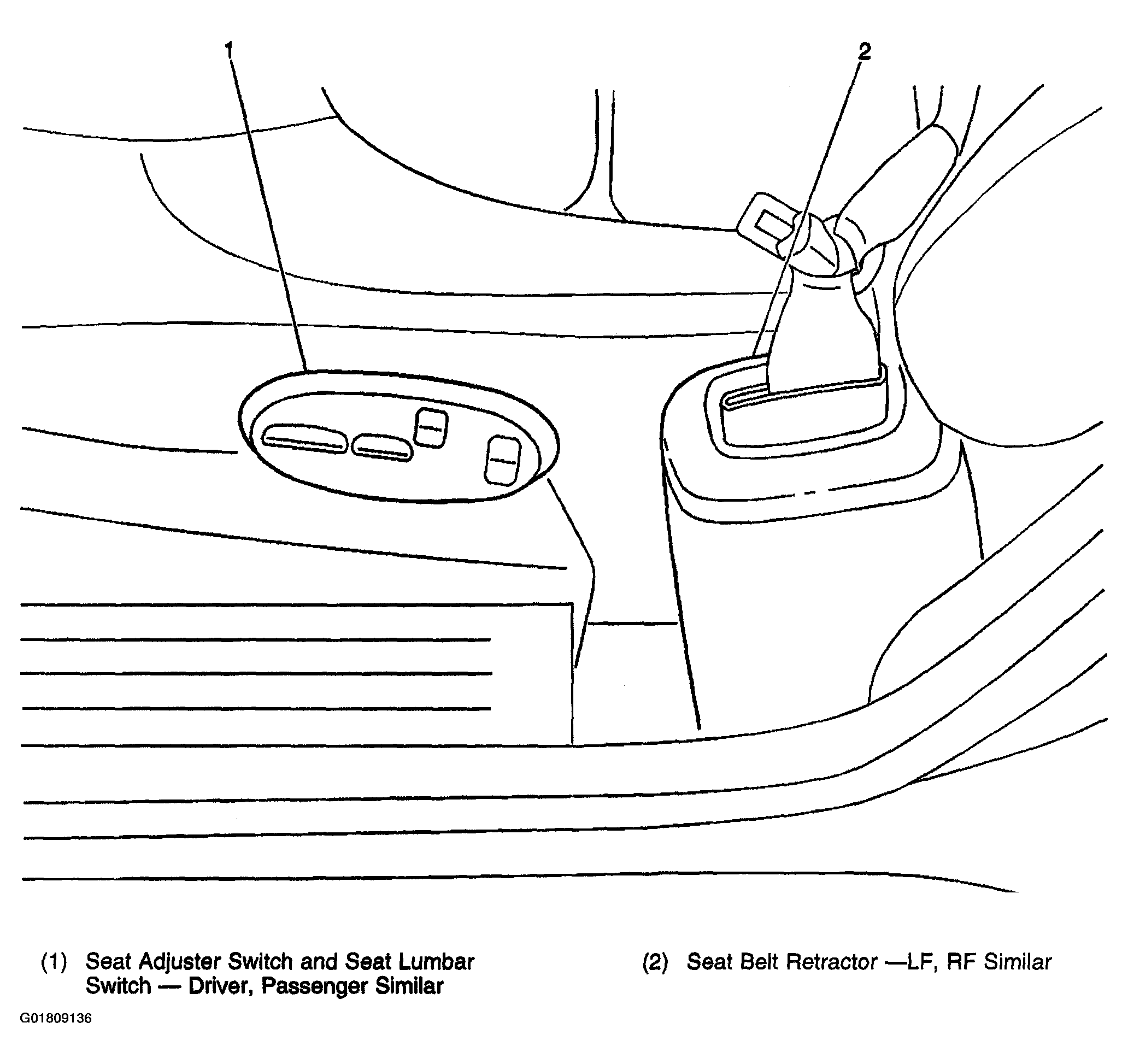

Fig 3: Passenger Compartment, in the Left Front Seat

Courtesy of GENERAL MOTORS CORP.

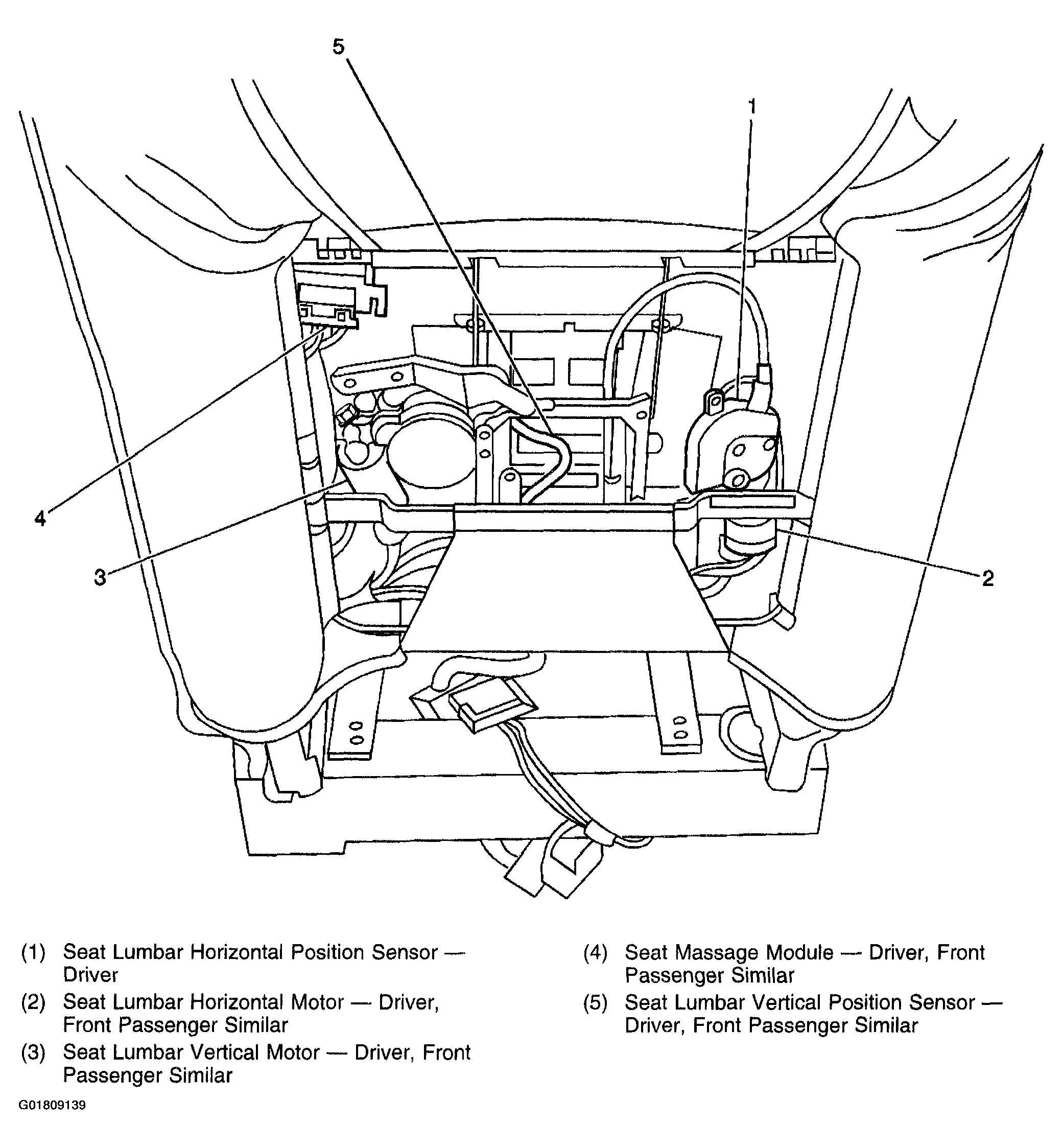

Fig 4: Left Front Seat, on the Left Side of the Seat Cushion

Courtesy of GENERAL MOTORS CORP.

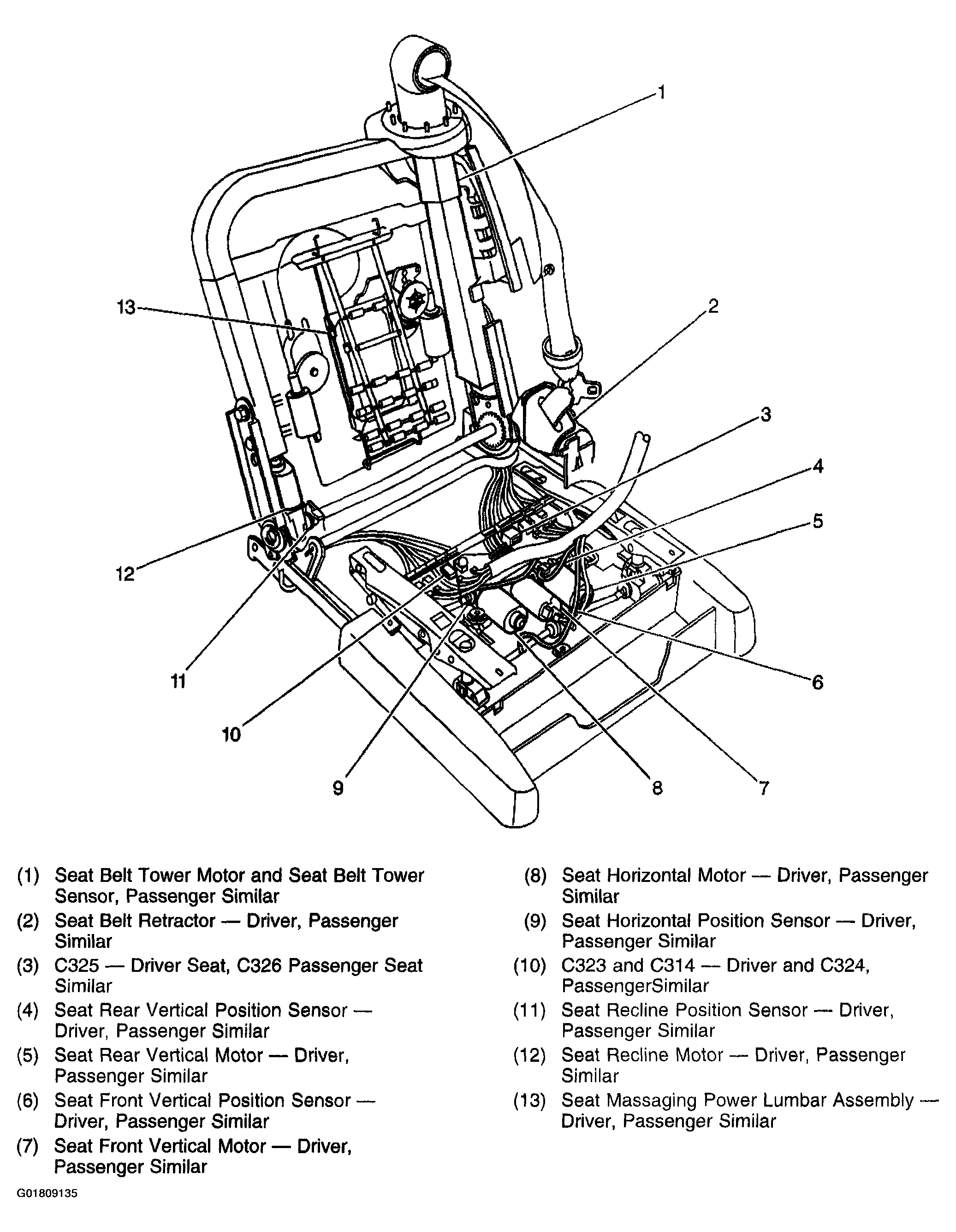

Fig 5: LH Seat Connectors

Courtesy of GENERAL MOTORS CORP.

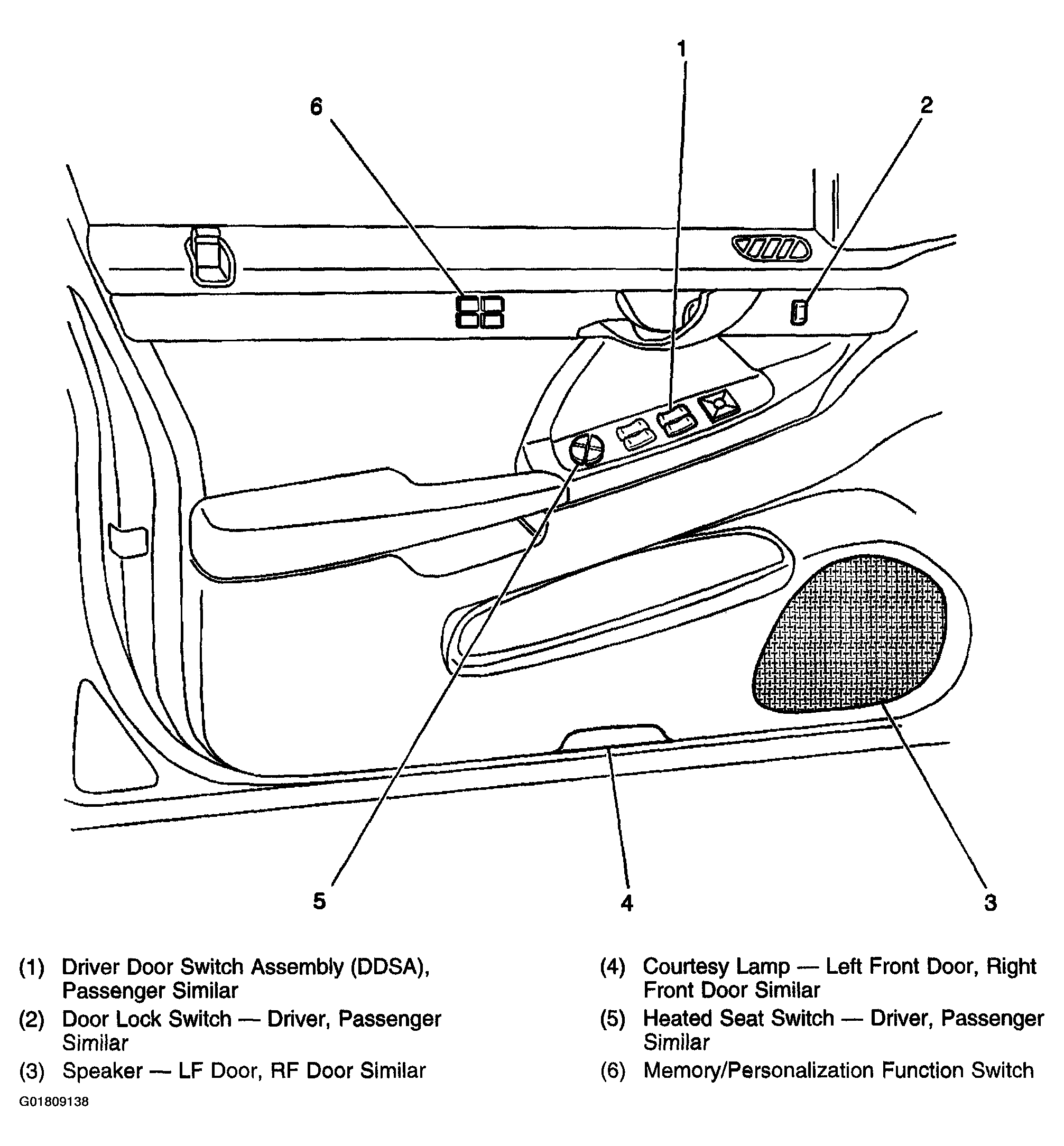

Fig 6: Left Front Door, on the Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

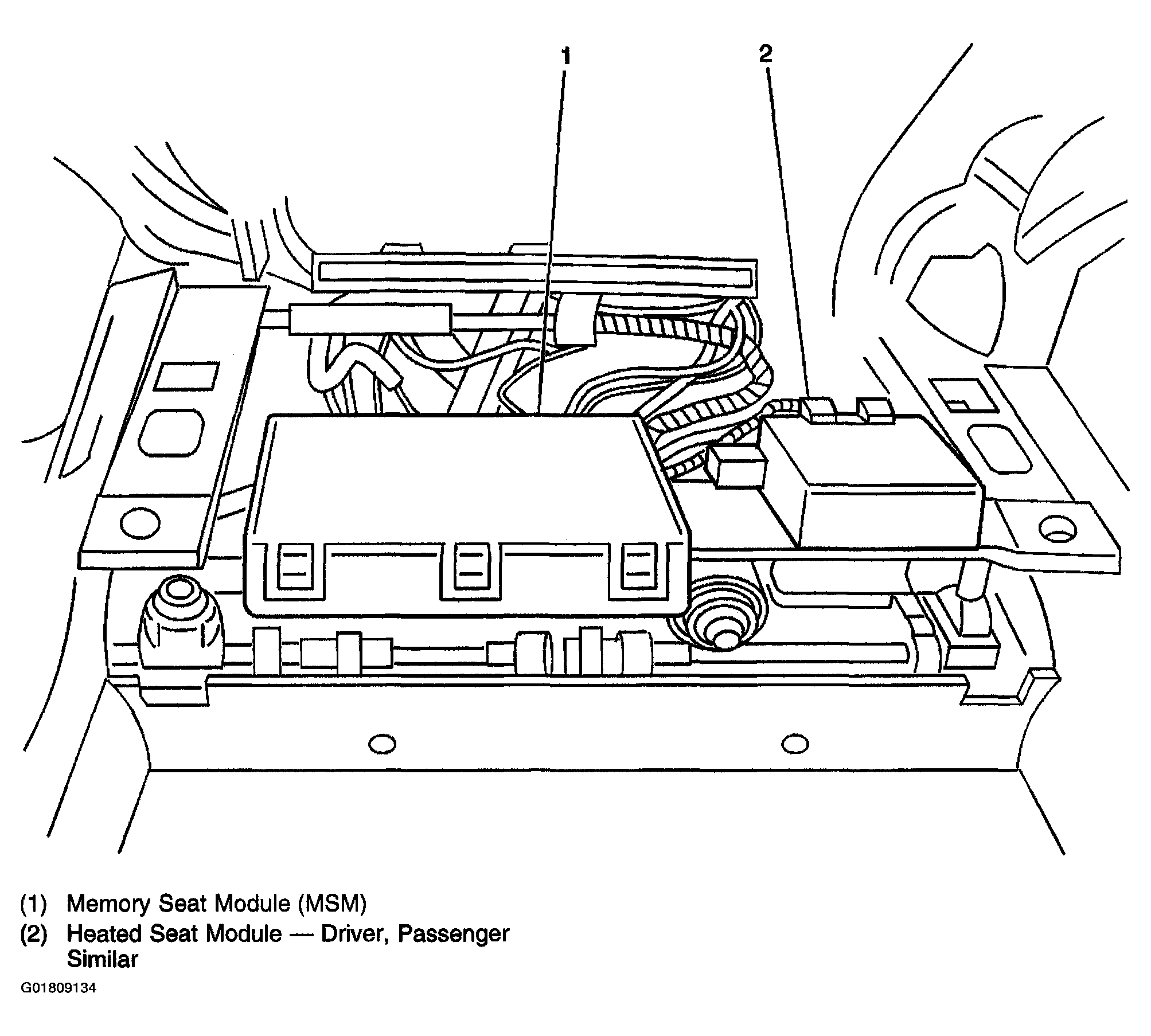

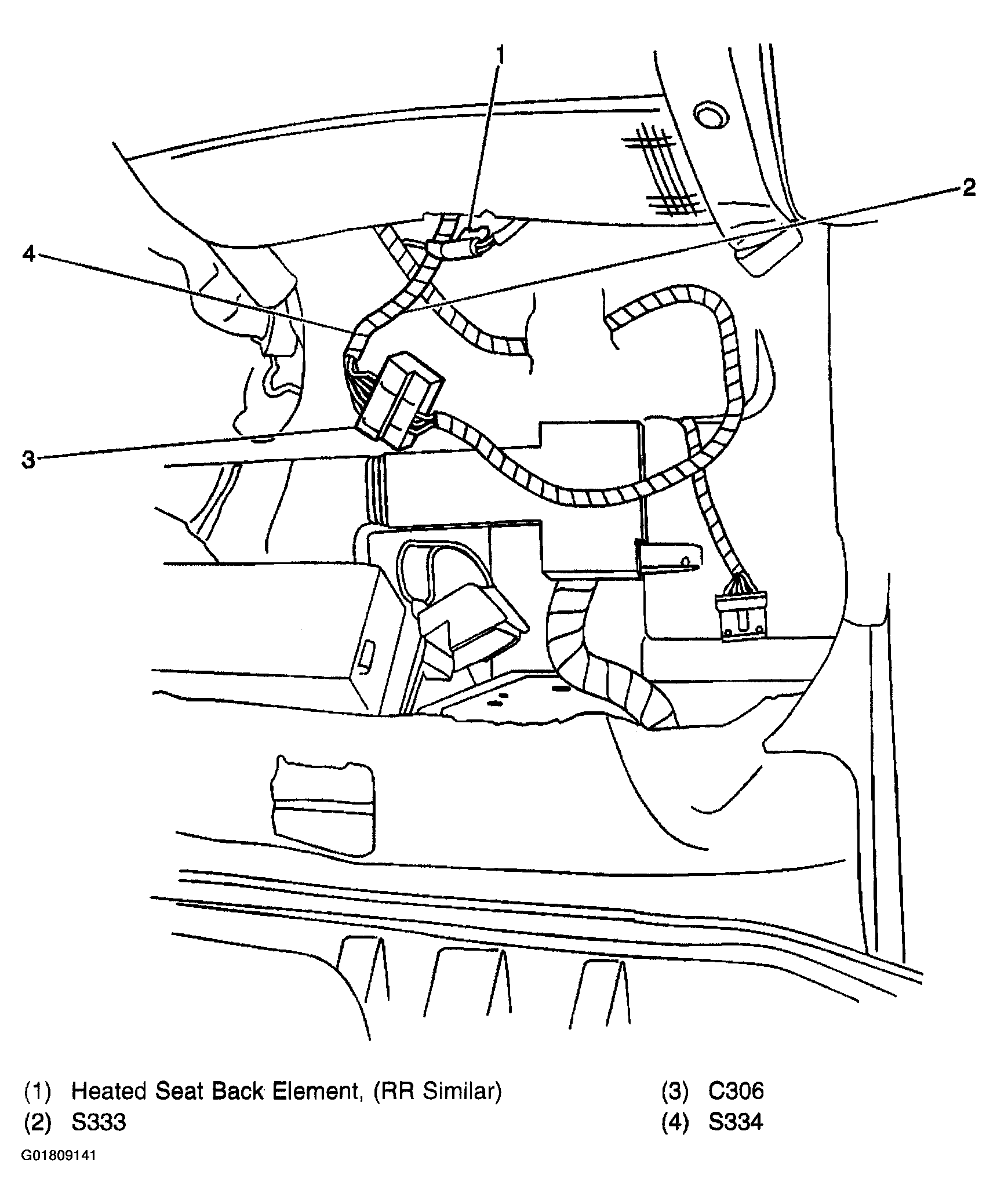

Fig 7: Left Front of the Passenger Compartment, Under the Left Front Seat

Courtesy of GENERAL MOTORS CORP.

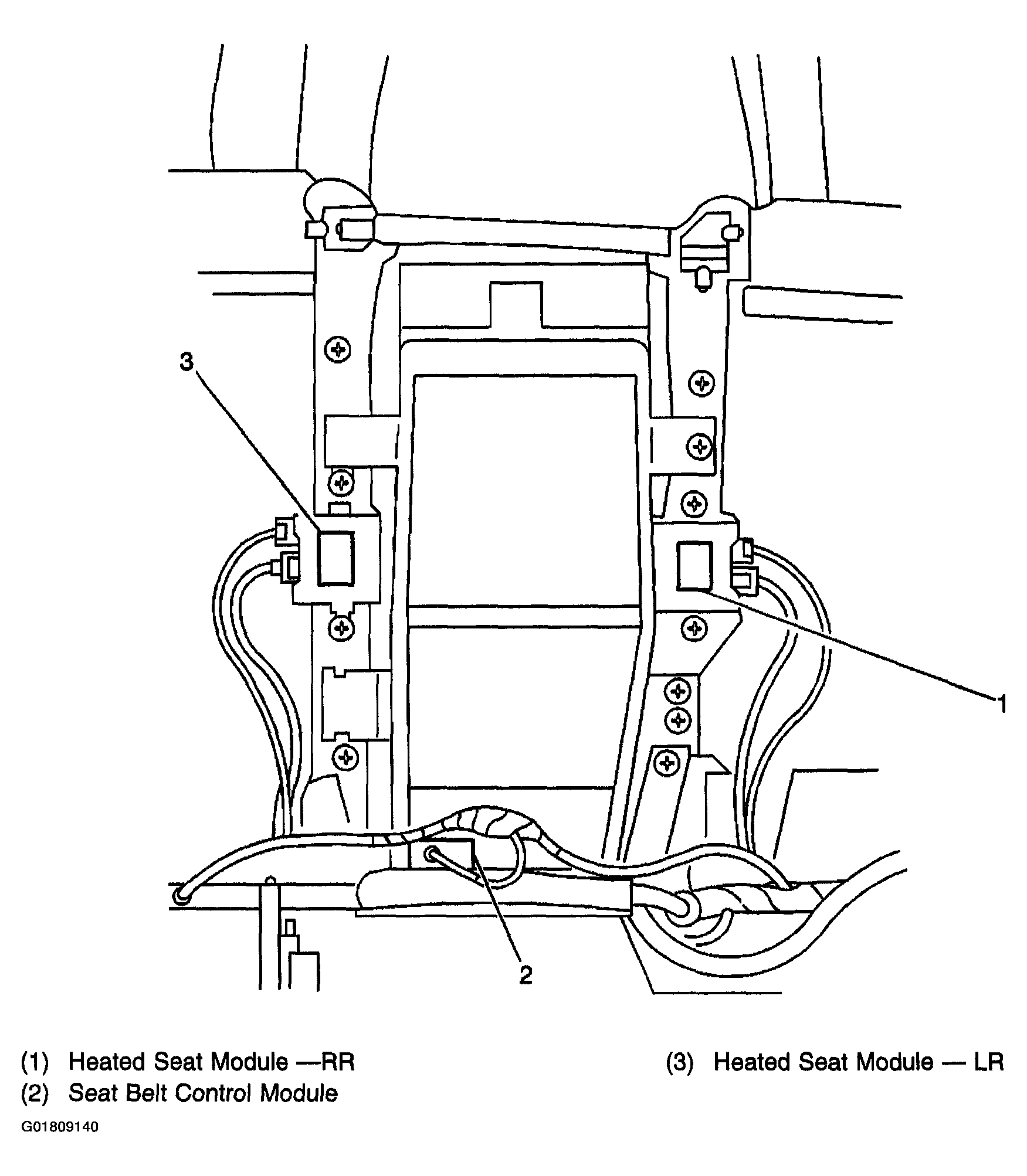

Fig 8: Center Rear of the Passenger Compartment, In the Rear Seat Back

Courtesy of GENERAL MOTORS CORP.

Fig 9: Left Side of the Rear Seat Back

Courtesy of GENERAL MOTORS CORP.

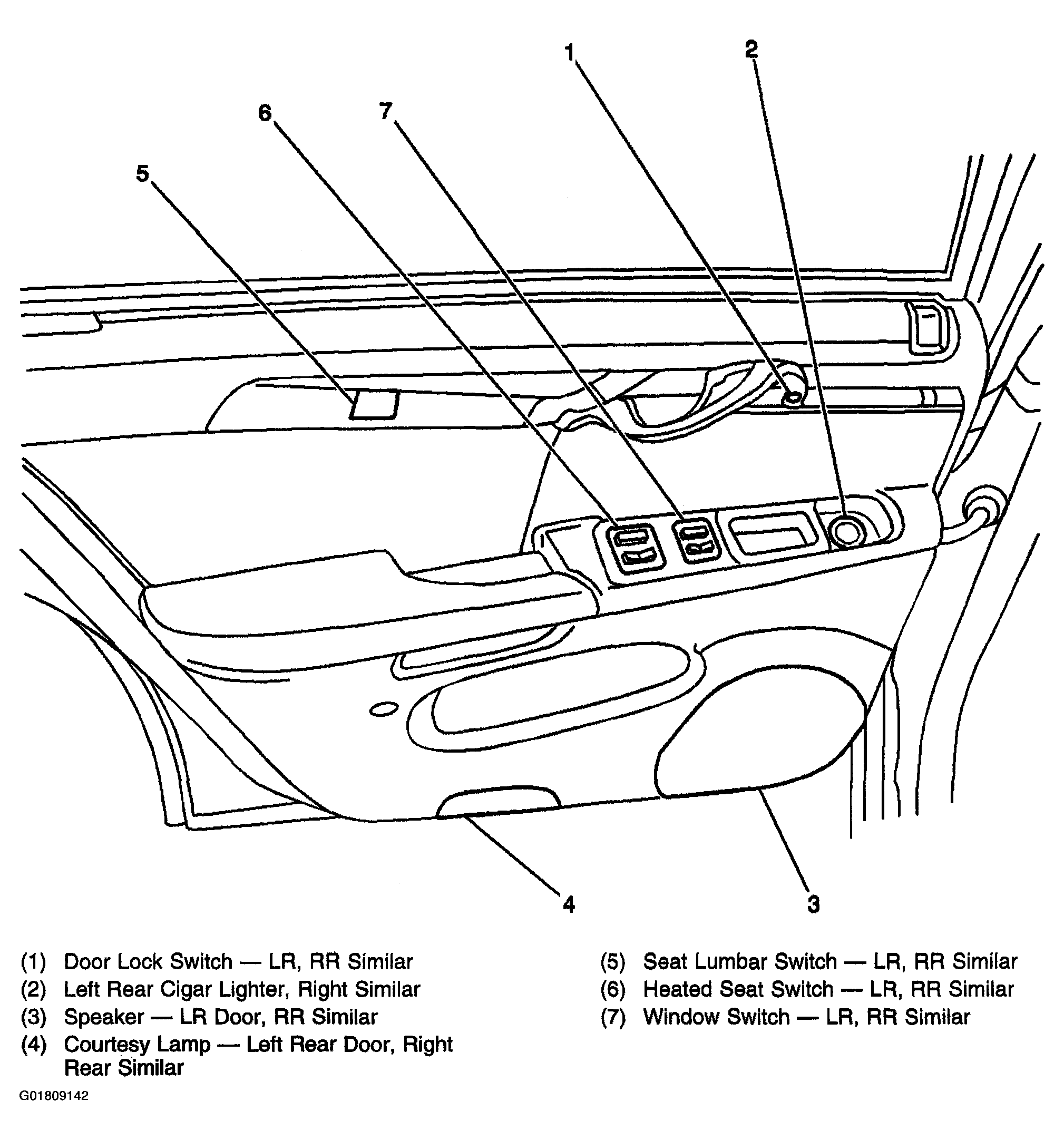

Fig 10: Front of the Left Rear Door

Courtesy of GENERAL MOTORS CORP.
