Installation Procedure

  1. Install the heated seat control module (2) to the seat back.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the heated seat control module fasteners (1).

    Tighten

    Tighten the rear heated seat control module to 1.5 N.m (13 lb in).

  3. Connect the heated seat control module electrical connections.
  4. Install the rear seat back. Refer to Seat Back Replacement - Rear .

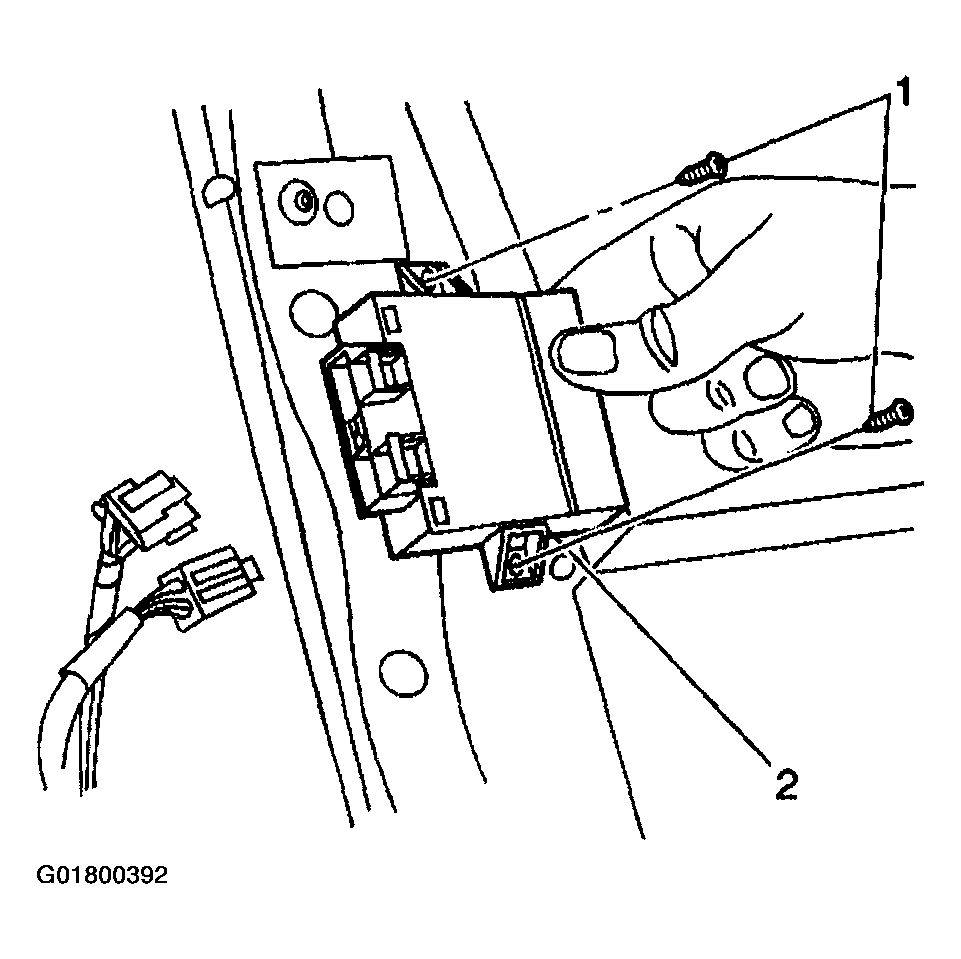

    Fig 1: Connecting Heated Seat Control Module Electrical Connectors & Installing Fasteners
    G01800392Courtesy of GENERAL MOTORS CORP.
