Installation Procedure

  1. Snap the memory seat switch (1) to the door trim panel.
  2. Connect the memory seat switch electrical connector (3).
  3. Reinstall the door panel sound deadener material (2).
  4. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .

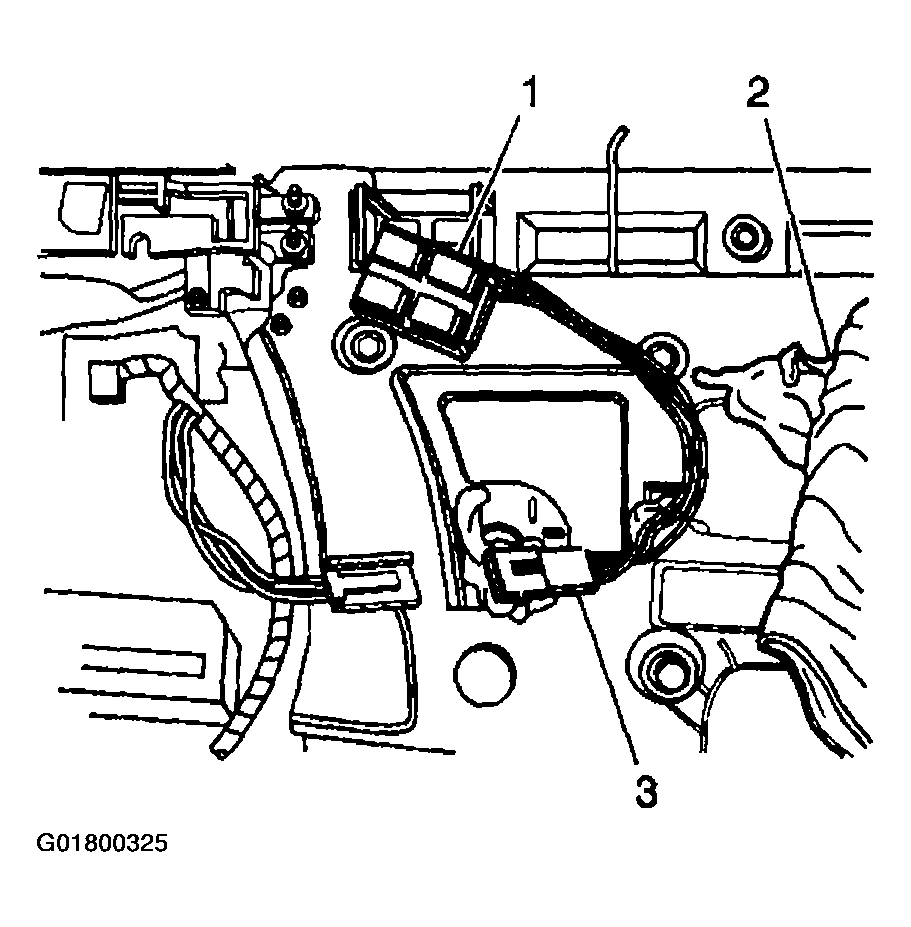

    Fig 1: Installing Sound Deadener Material, Connecting Electrical Connector & Snapping Memory Seat Switch To Door
    G01800325Courtesy of GENERAL MOTORS CORP.
