Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
  2. Using a flat bladed tool, release the tabs retaining the memory seat switch to the door panel.

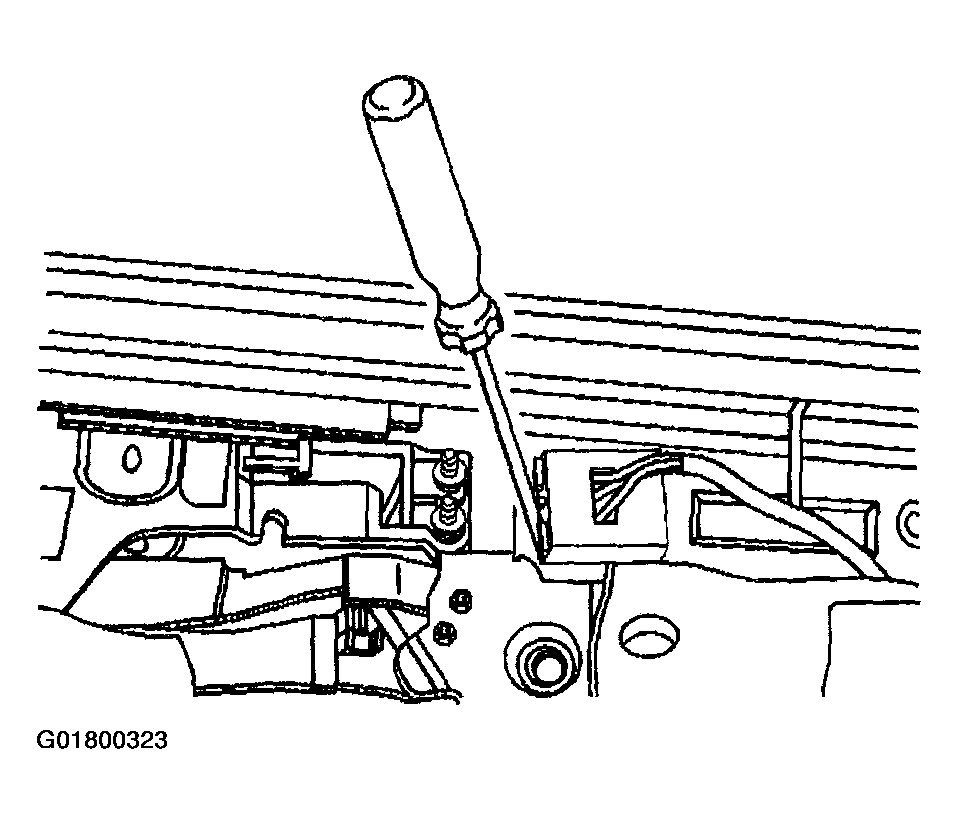

    Fig 1: Using Flat Bladed Tool To Release Tabs Retaining Memory Seat Switch To Door Panel
    G01800323Courtesy of GENERAL MOTORS CORP.
  3. Carefully peel the sound deadener material (2) from the door panel, in order to access the memory seat switch electrical connector (3).
  4. Disconnect the electrical connector (3) for the memory seat switch (1).
  5. Remove the memory seat switch (1) from the door panel.

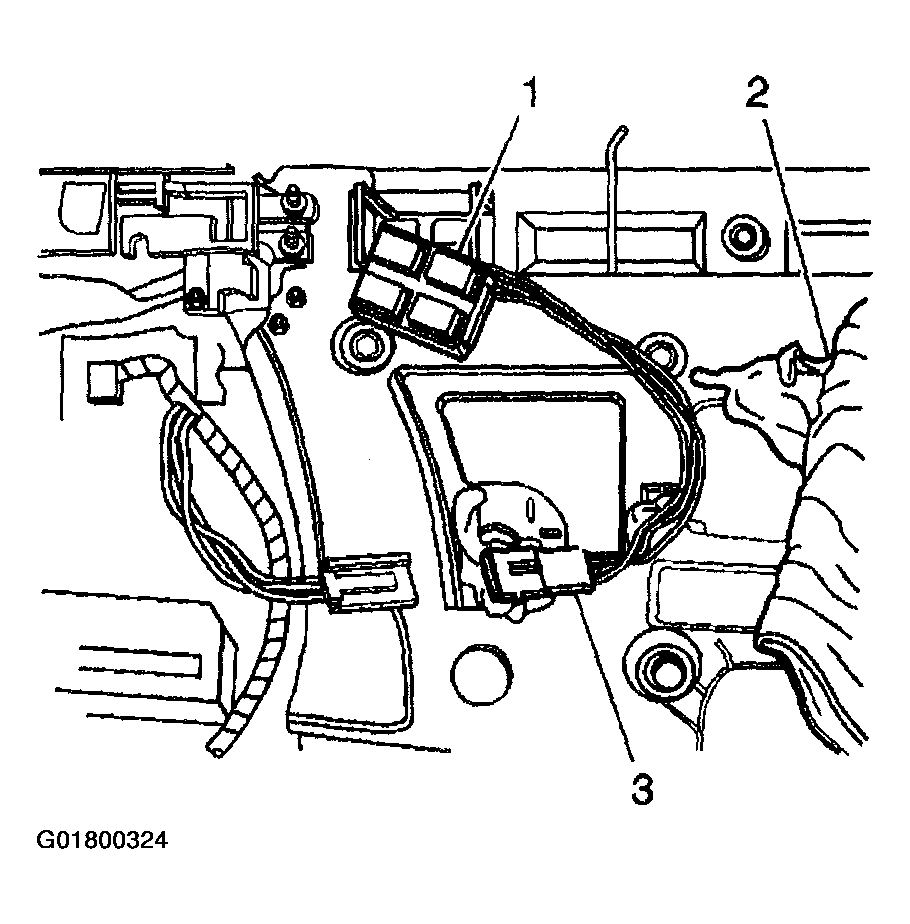

    Fig 2: Peeling Off Sound Deadener Material, Disconnecting Electrical Connector & Removing Memory Seat Switch
    G01800324Courtesy of GENERAL MOTORS CORP.
