Power Windows Inoperative - Express Up Function

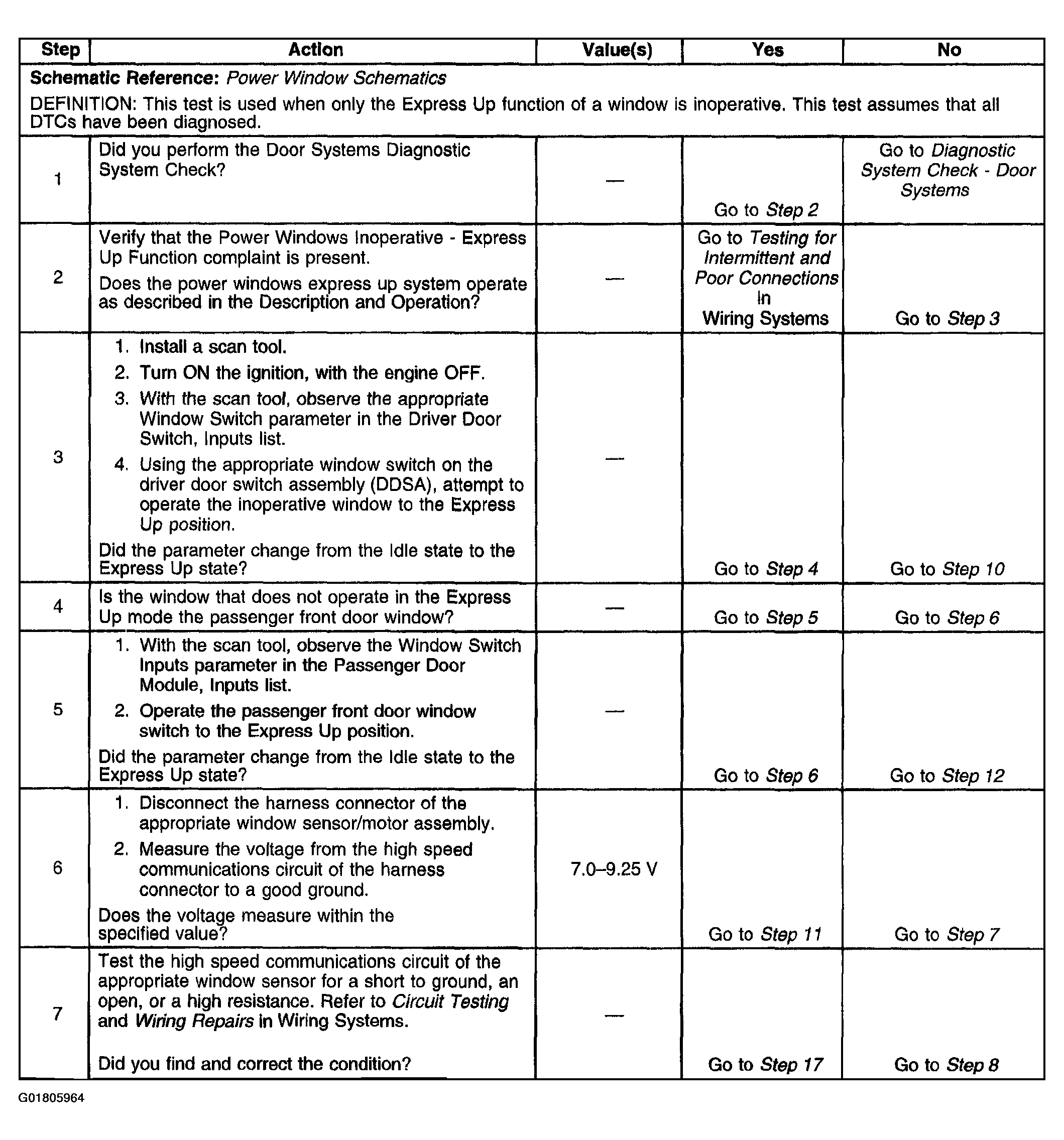

Fig 1: Power Windows Inoperative - Express Up Function (1 Of 2)
G01805964Courtesy of GENERAL MOTORS CORP.

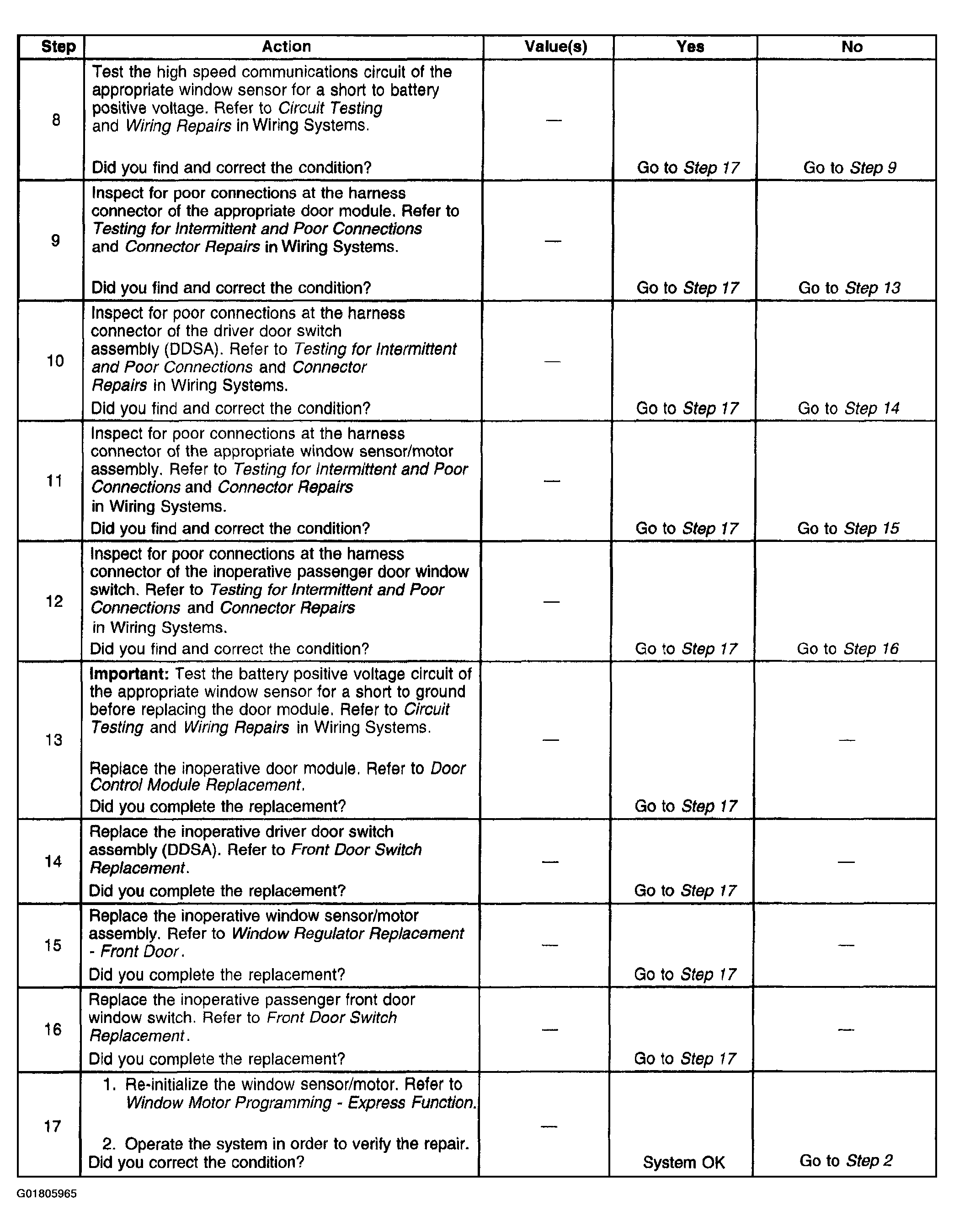

Fig 2: Power Windows Inoperative - Express Up Function (2 Of 2)
G01805965Courtesy of GENERAL MOTORS CORP.
