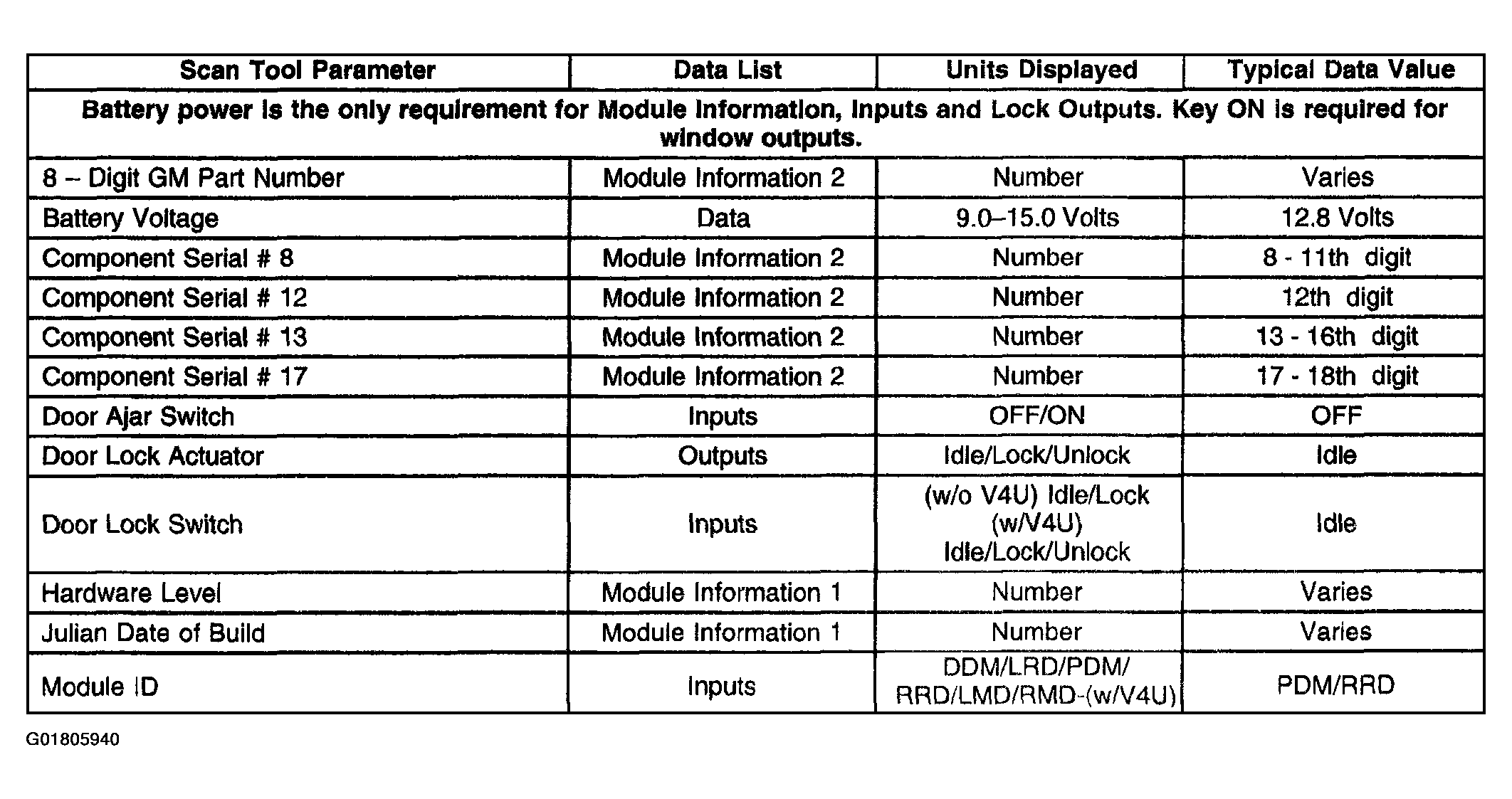

Scan Tool Data List

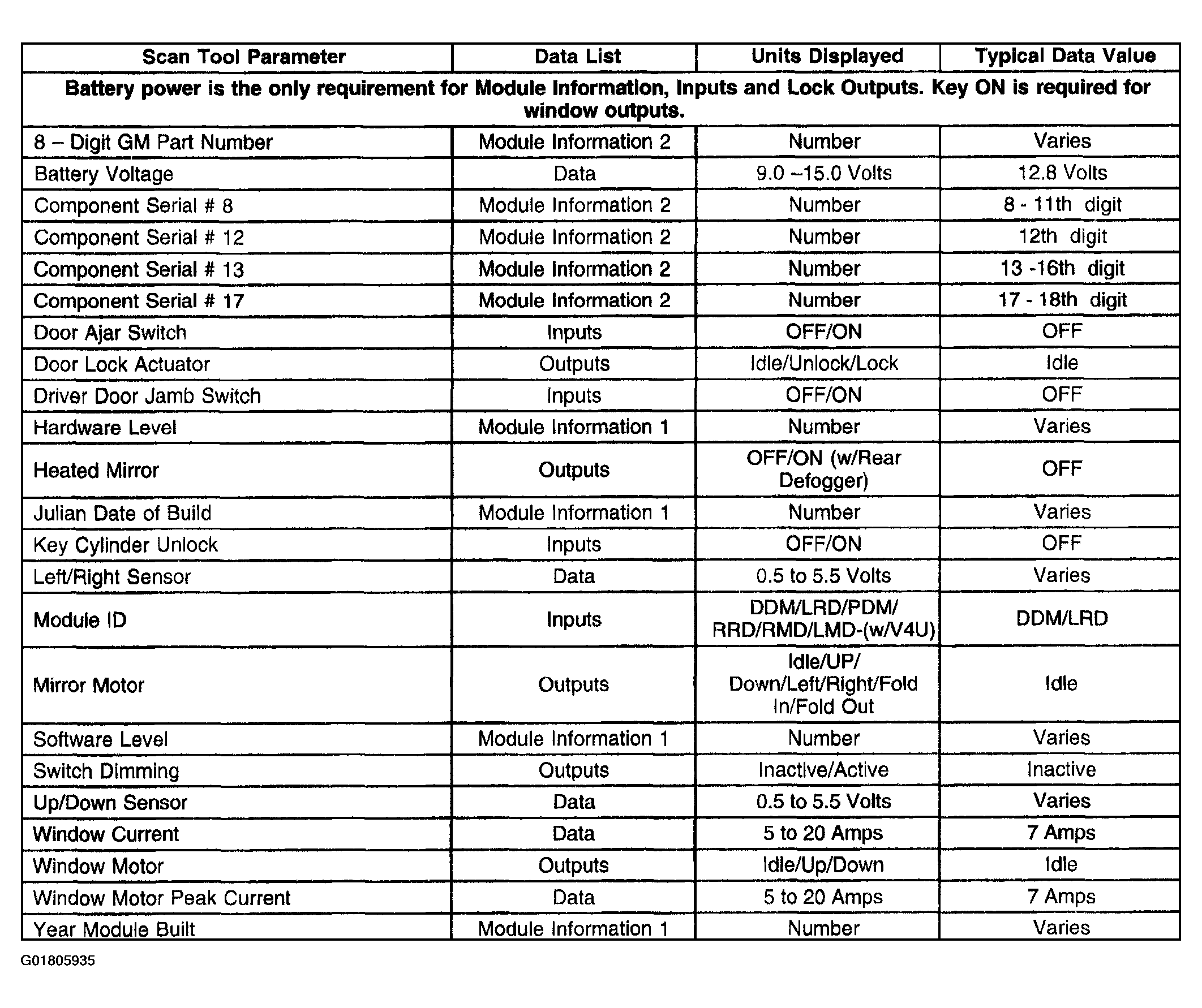

Fig 1: Driver Door Module (DDM)

Courtesy of GENERAL MOTORS CORP.

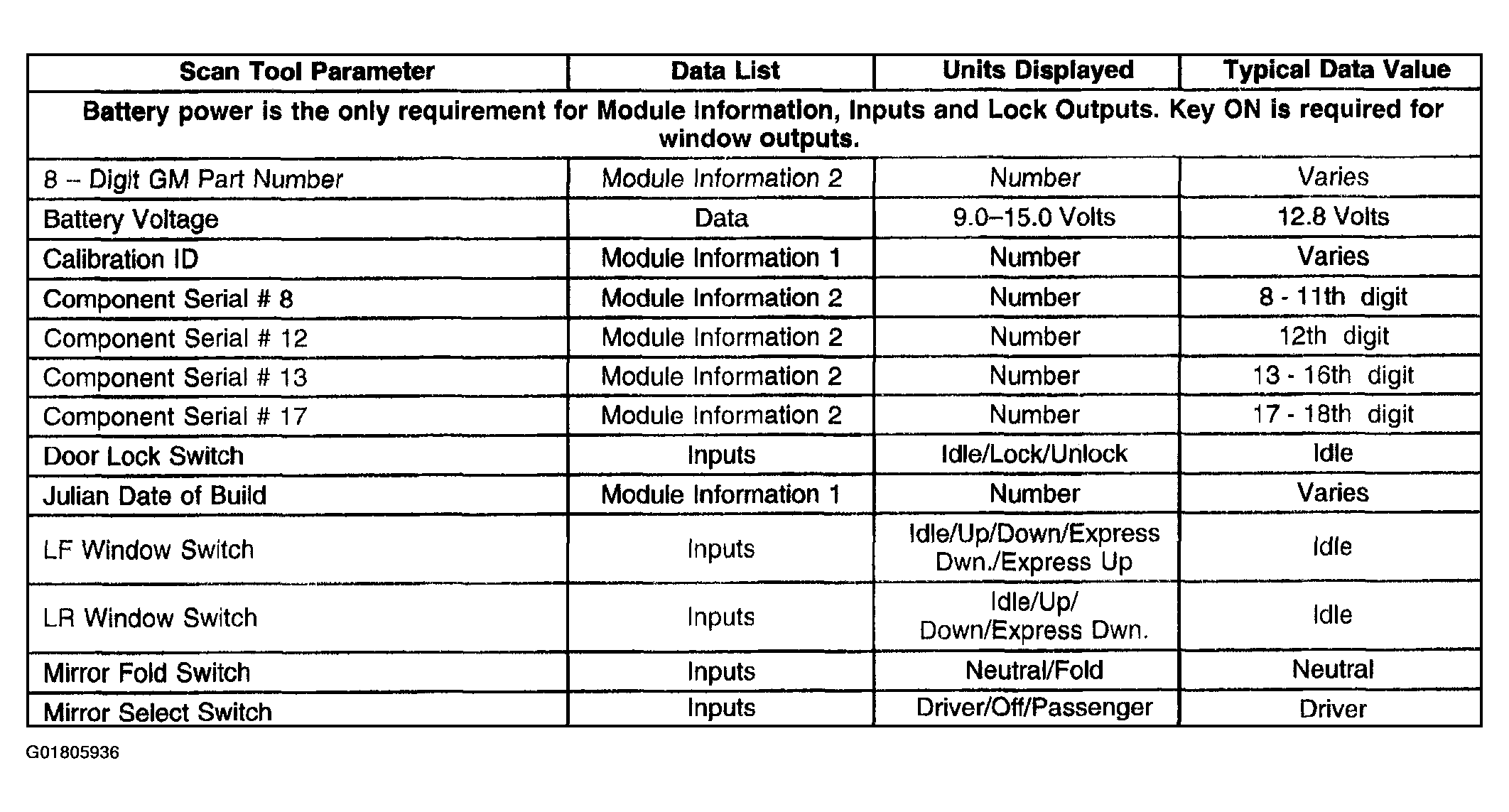

Fig 2: Driver Door Switch Assembly (DDSA) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

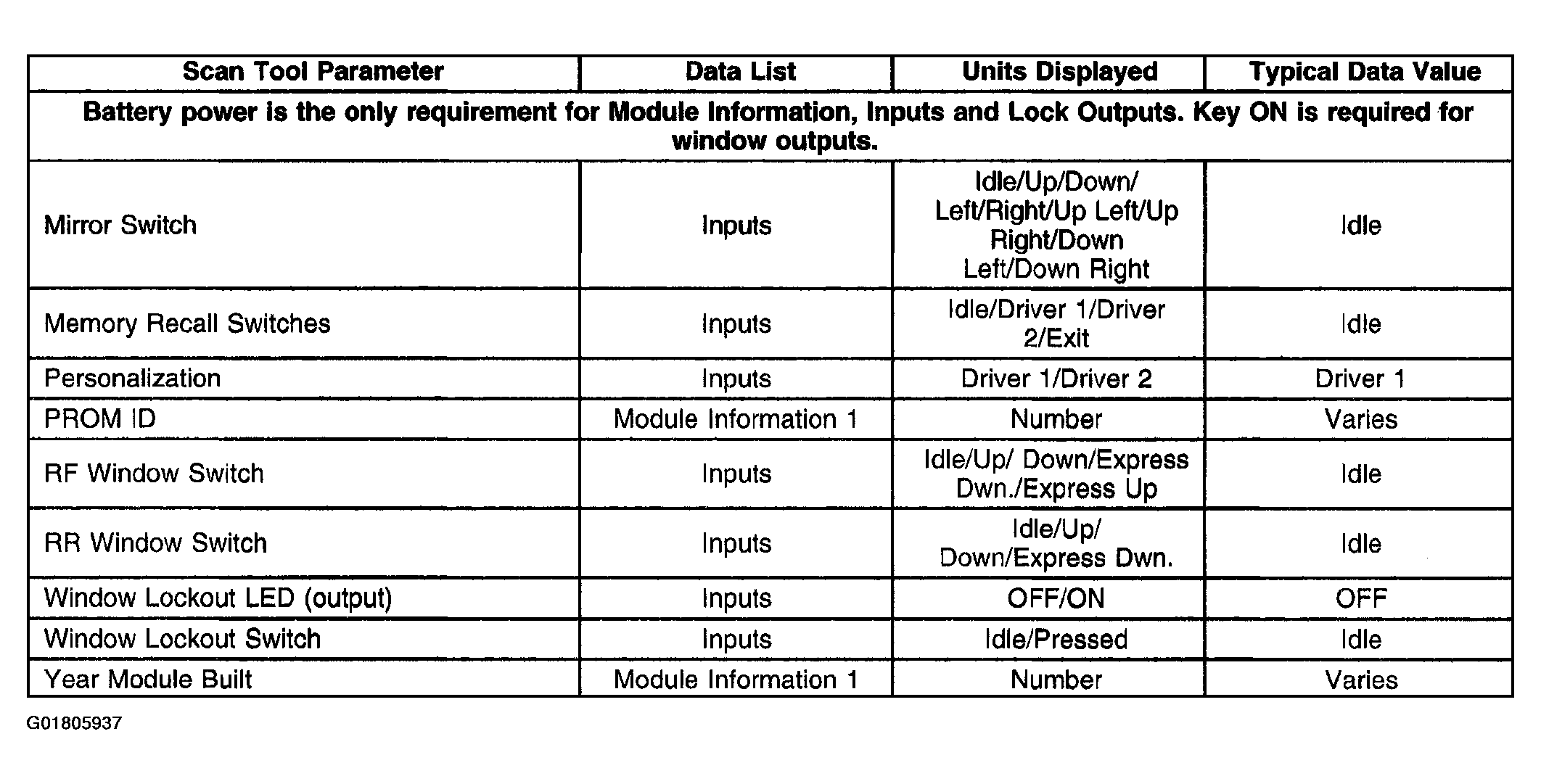

Fig 3: Driver Door Switch Assembly (DDSA) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

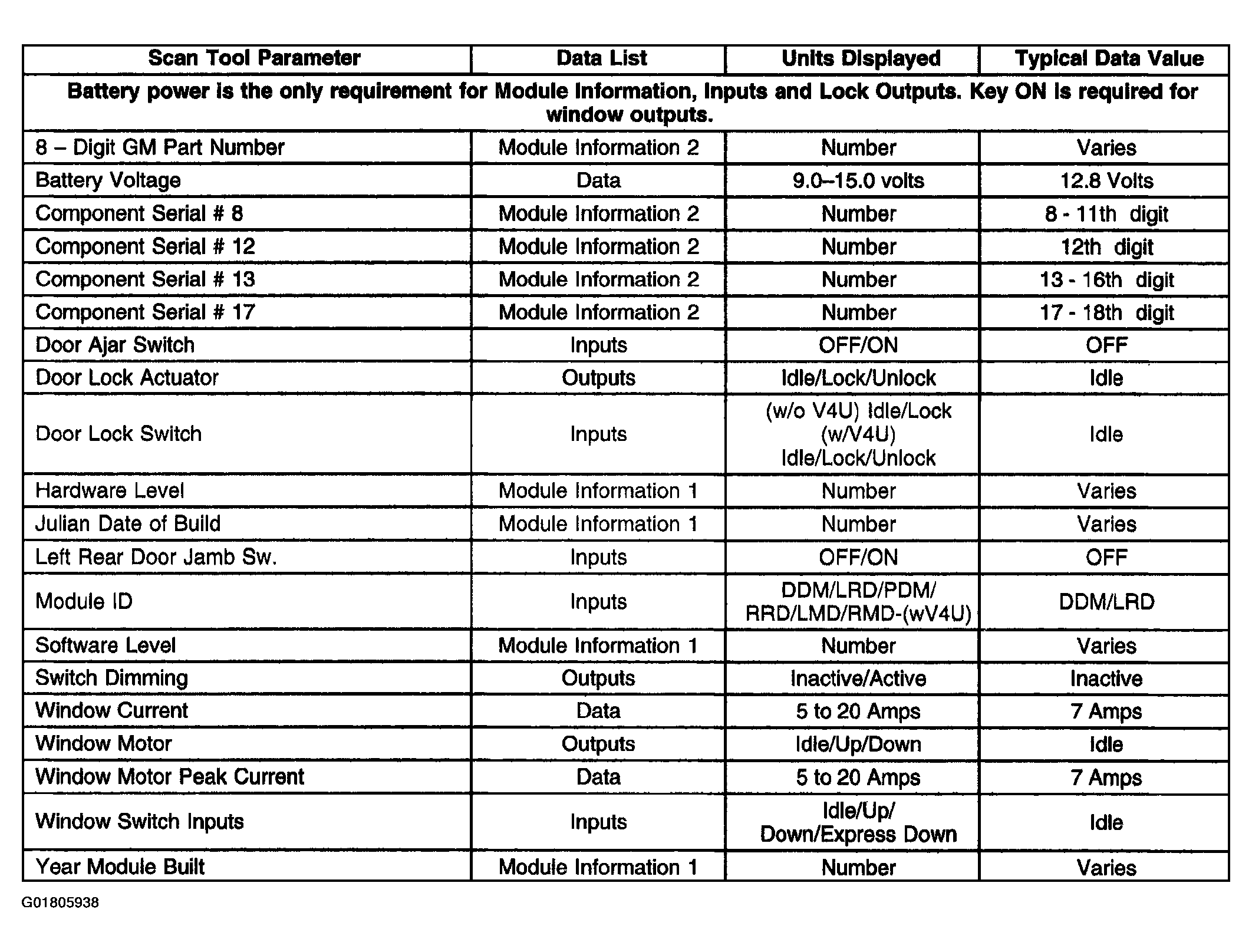

Fig 4: Left Rear Door Module (LRDM)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Passenger Front Door Module (PFDM)

Courtesy of GENERAL MOTORS CORP.

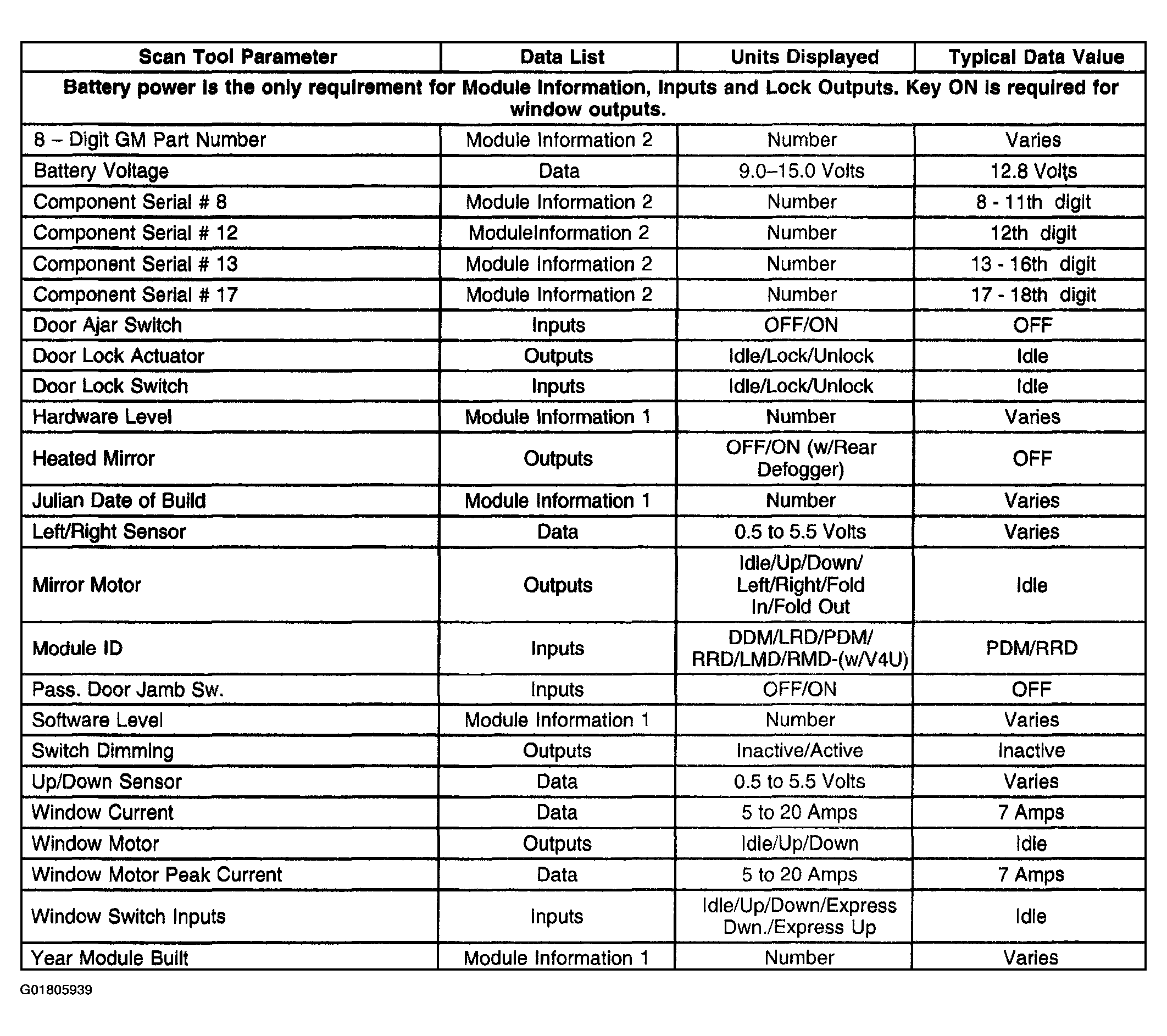

Fig 6: Right Rear Door Module (RRDM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

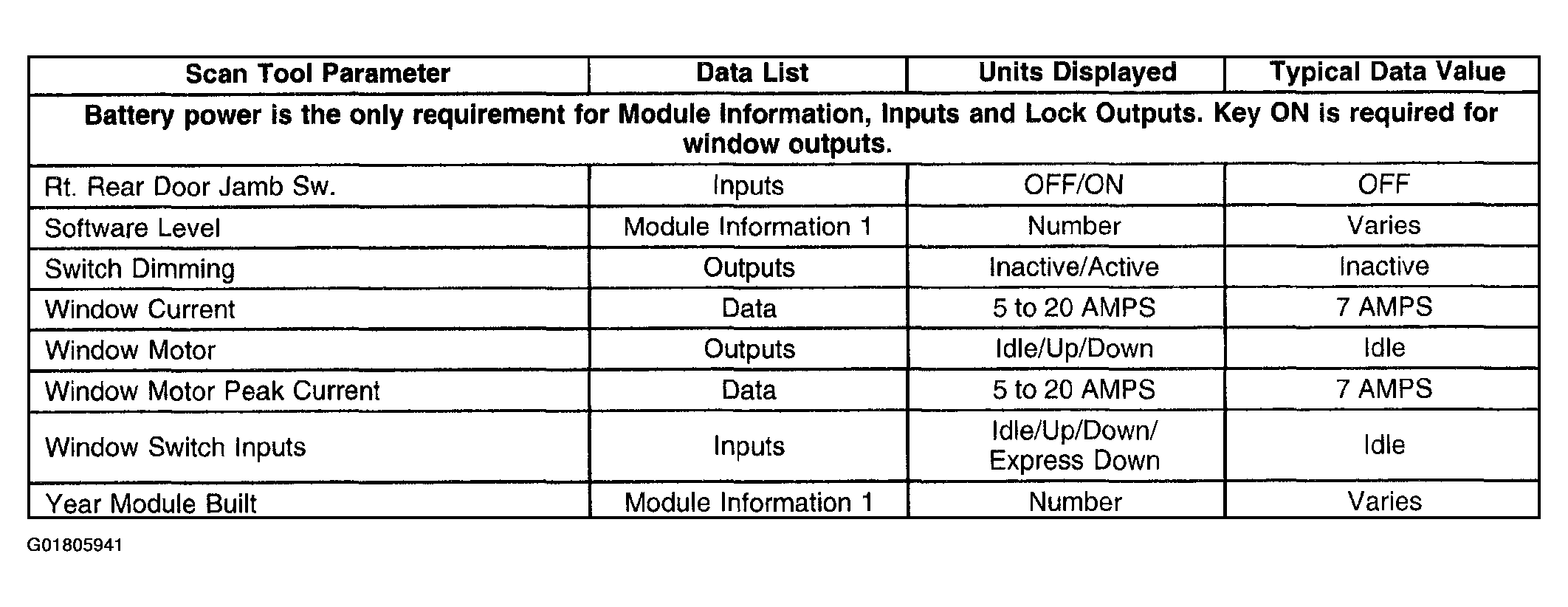

Fig 7: Right Rear Door Module (RRDM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

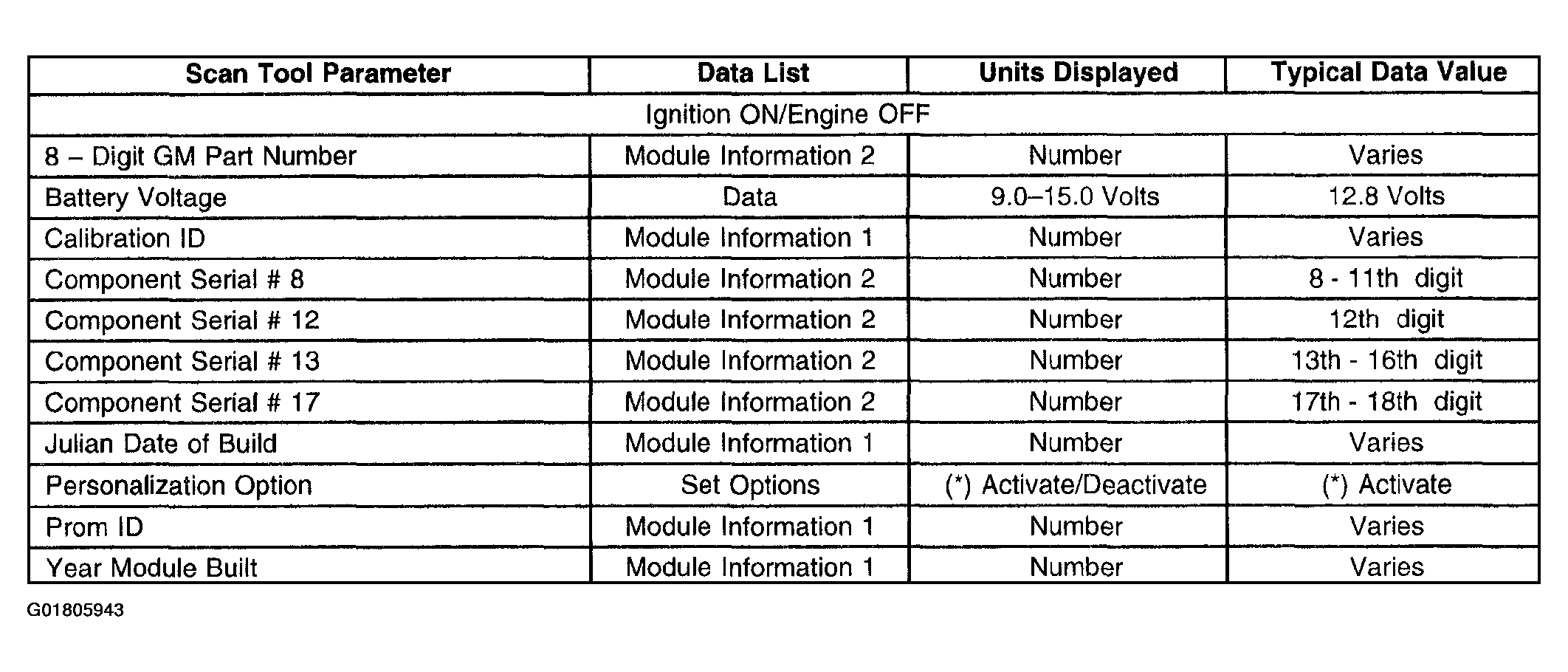

Fig 8: Rear Integration Module (RIM)

Courtesy of GENERAL MOTORS CORP.

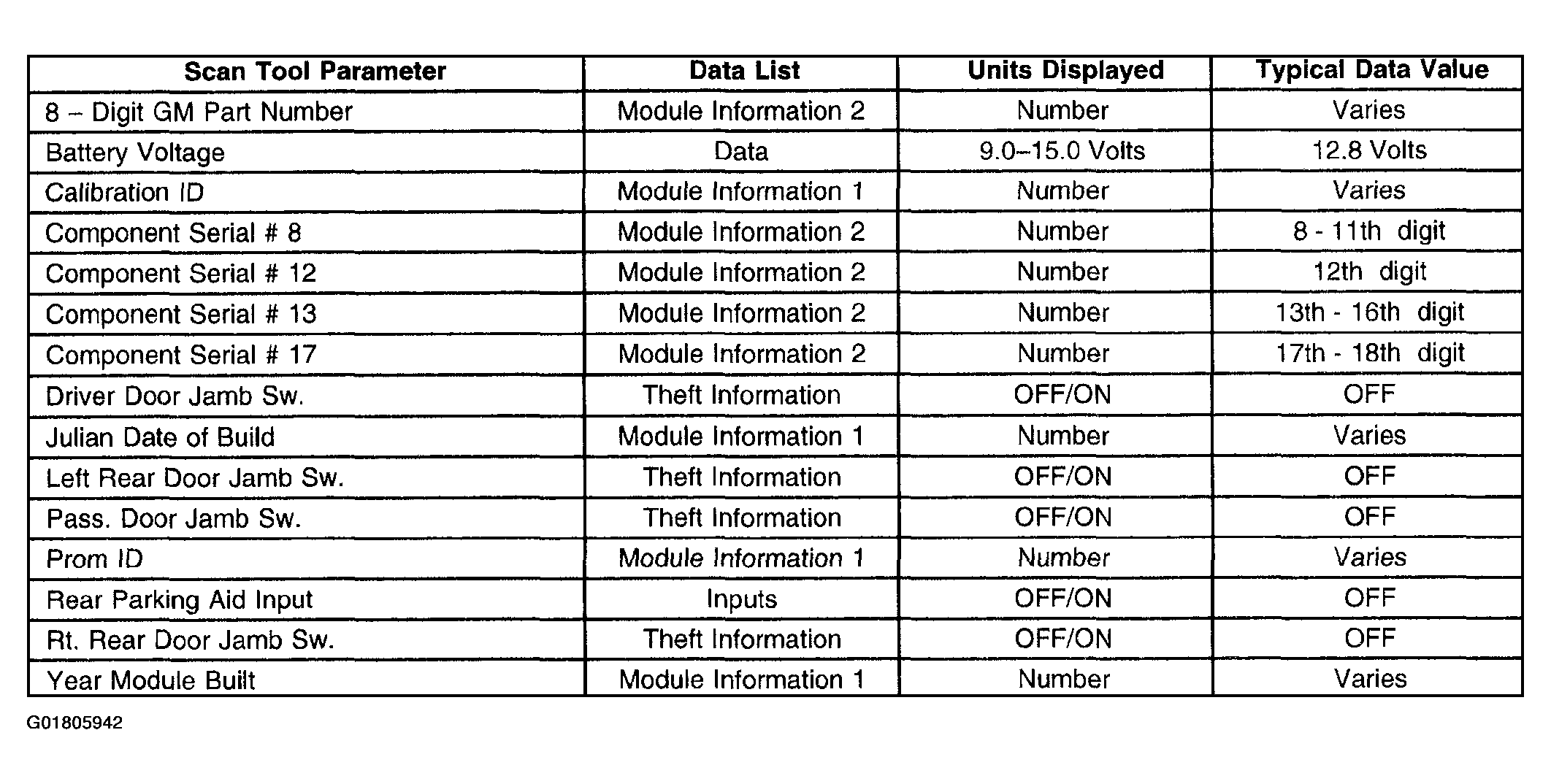

Fig 9: Dash Integration Module (DIM)

Courtesy of GENERAL MOTORS CORP.
