Scan Tool Output Controls

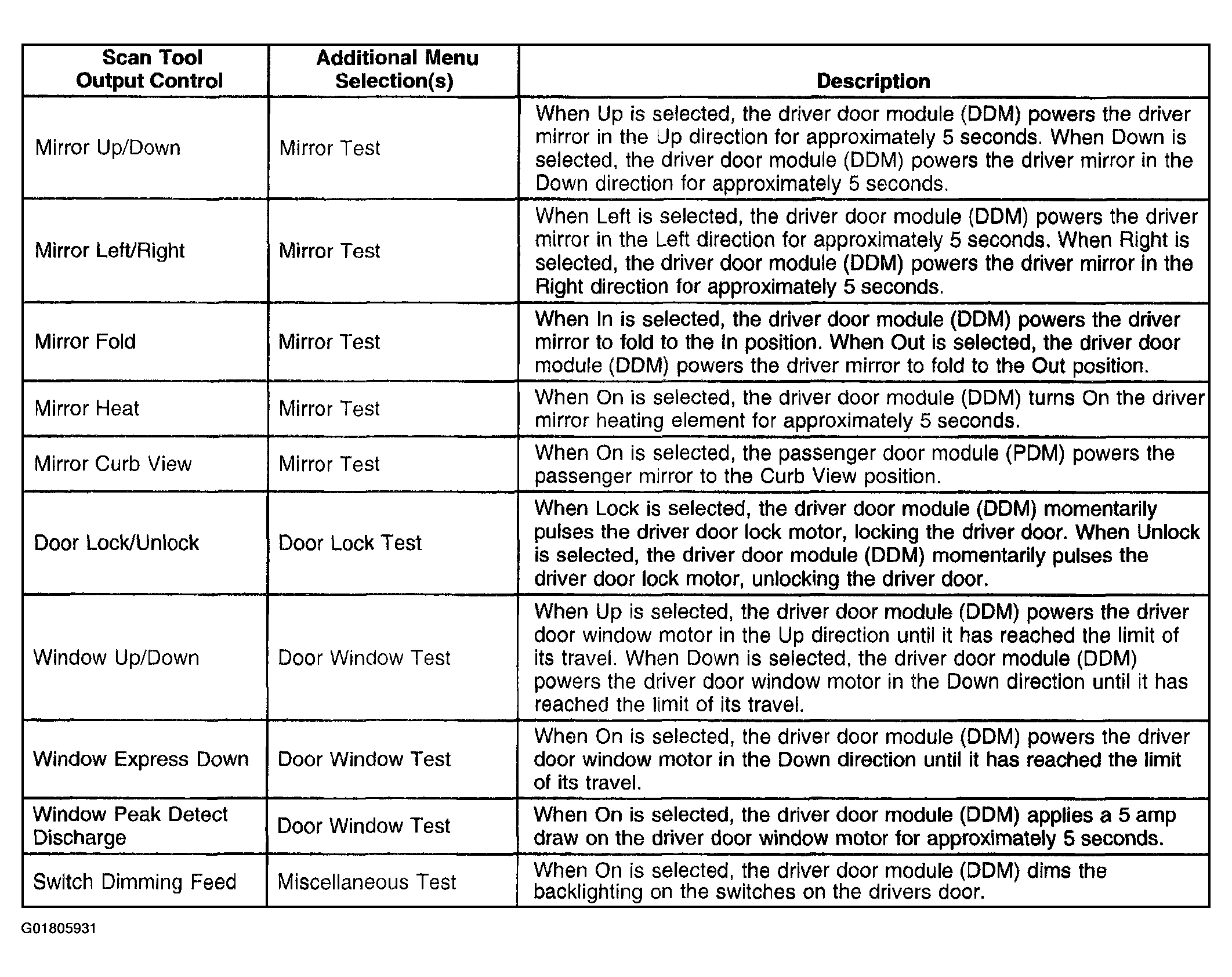

Fig 1: DDM Scan Tool Output Control
G01805931Courtesy of GENERAL MOTORS CORP.

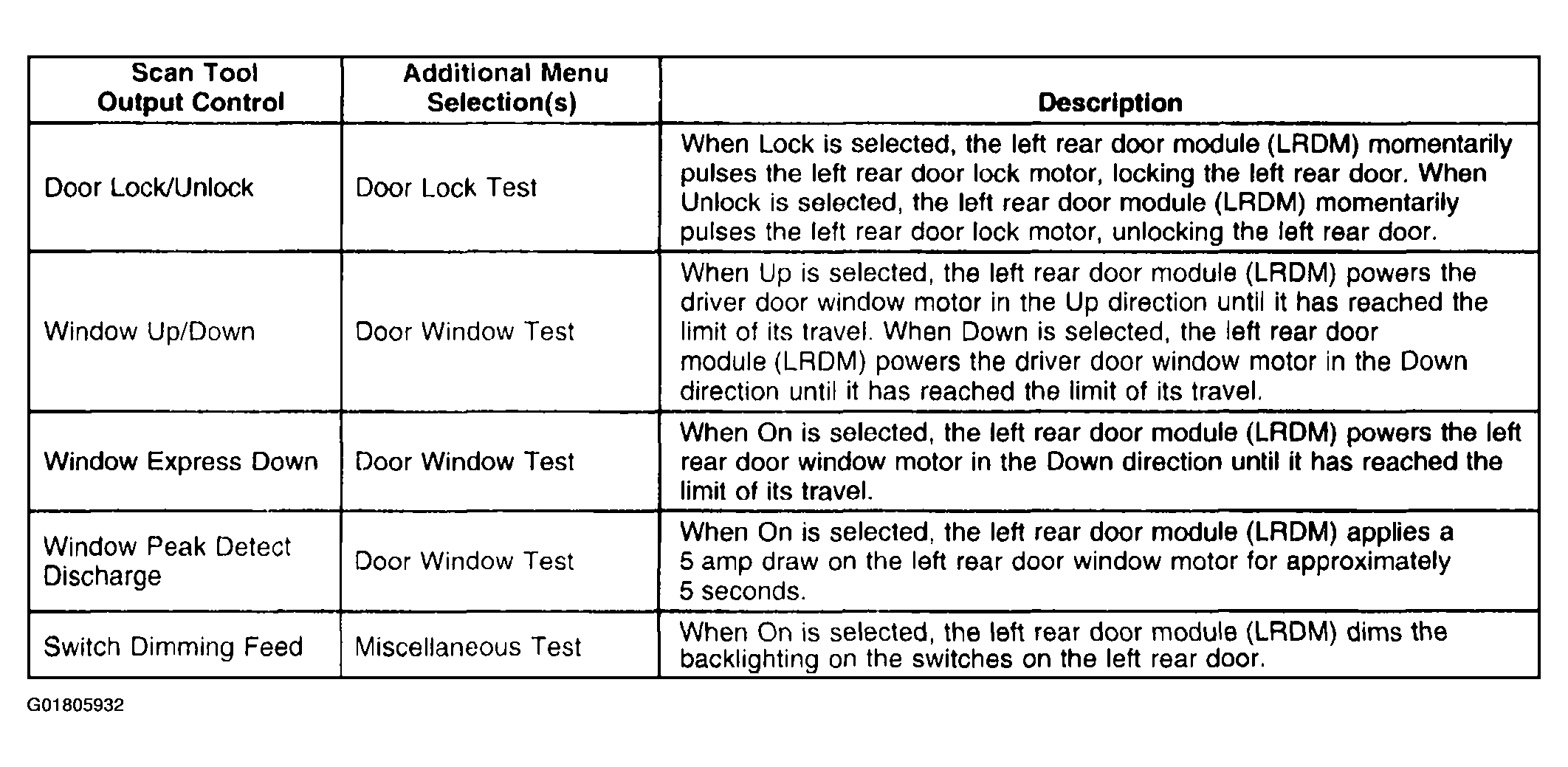

Fig 2: LRDM Scan Tool Output Control
G01805932Courtesy of GENERAL MOTORS CORP.

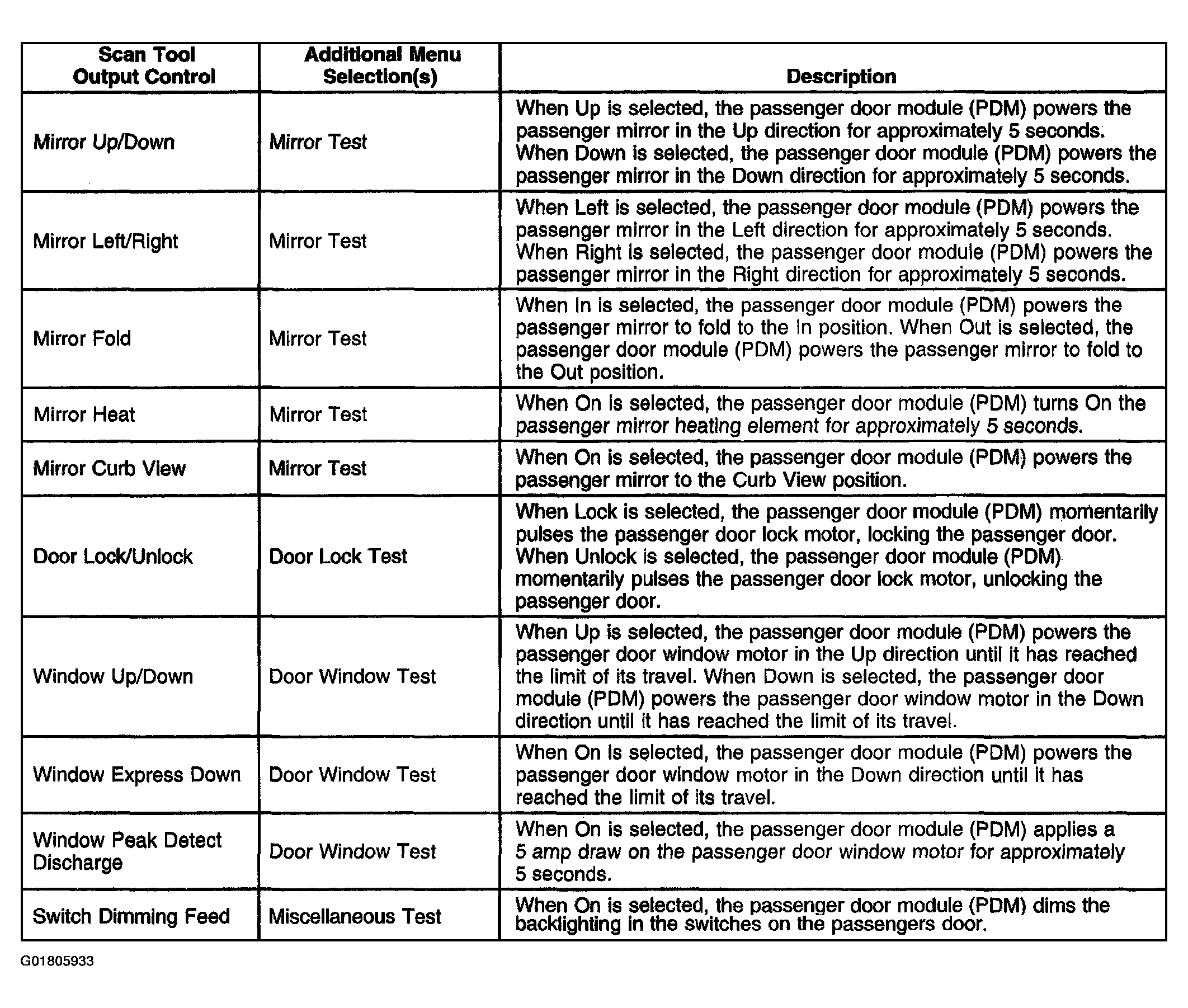

Fig 3: PDM Scan Tool Output Control
G01805933Courtesy of GENERAL MOTORS CORP.

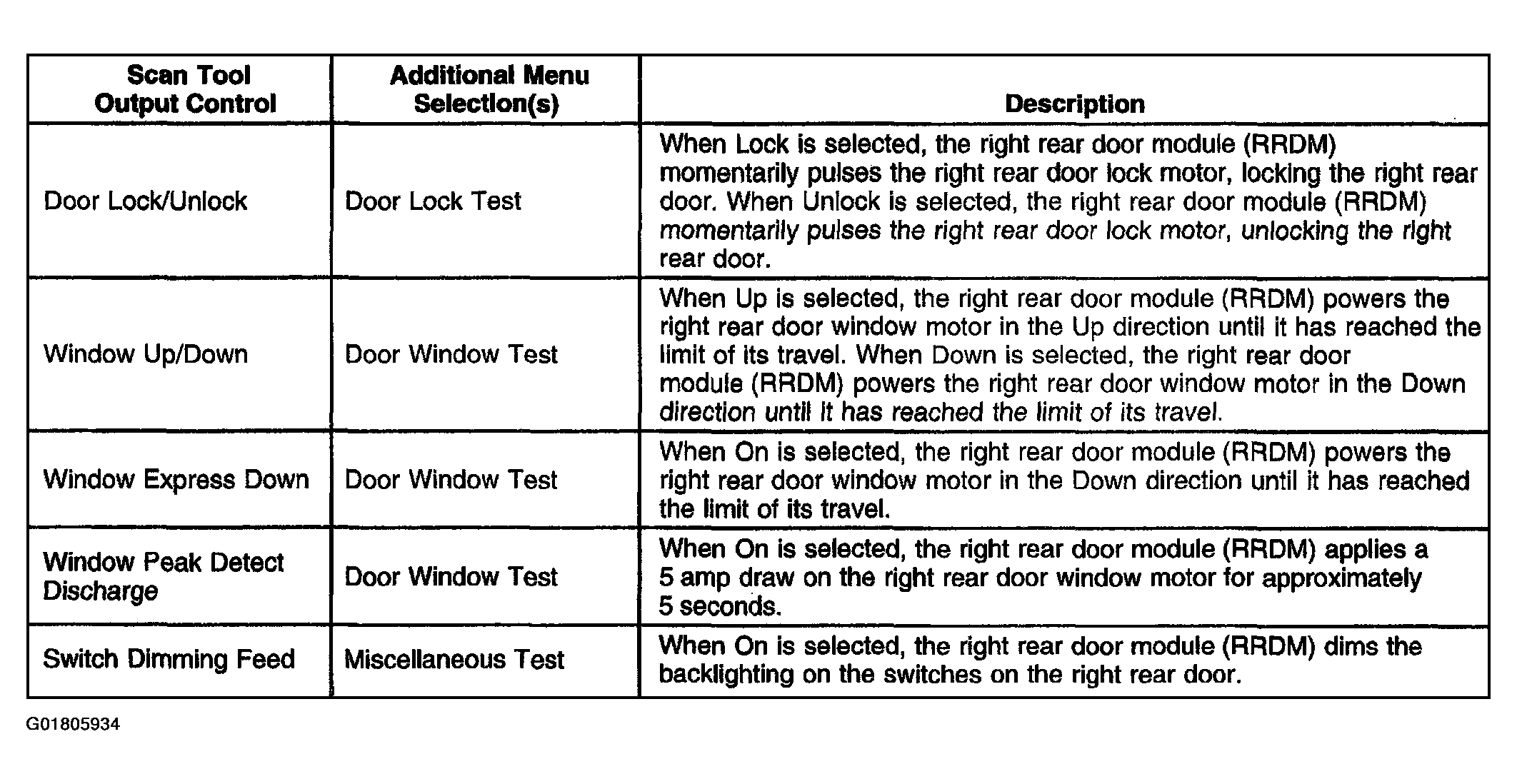

Fig 4: RRDM Scan Tool Output Control
G01805934Courtesy of GENERAL MOTORS CORP.
