Removal Procedure
- Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
- Remove the door module. Refer to Door Control Module Replacement .
- Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
- Remove the garnish molding. Refer to Garnish Molding Replacement - Front Door Frame .
- Remove the window inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .

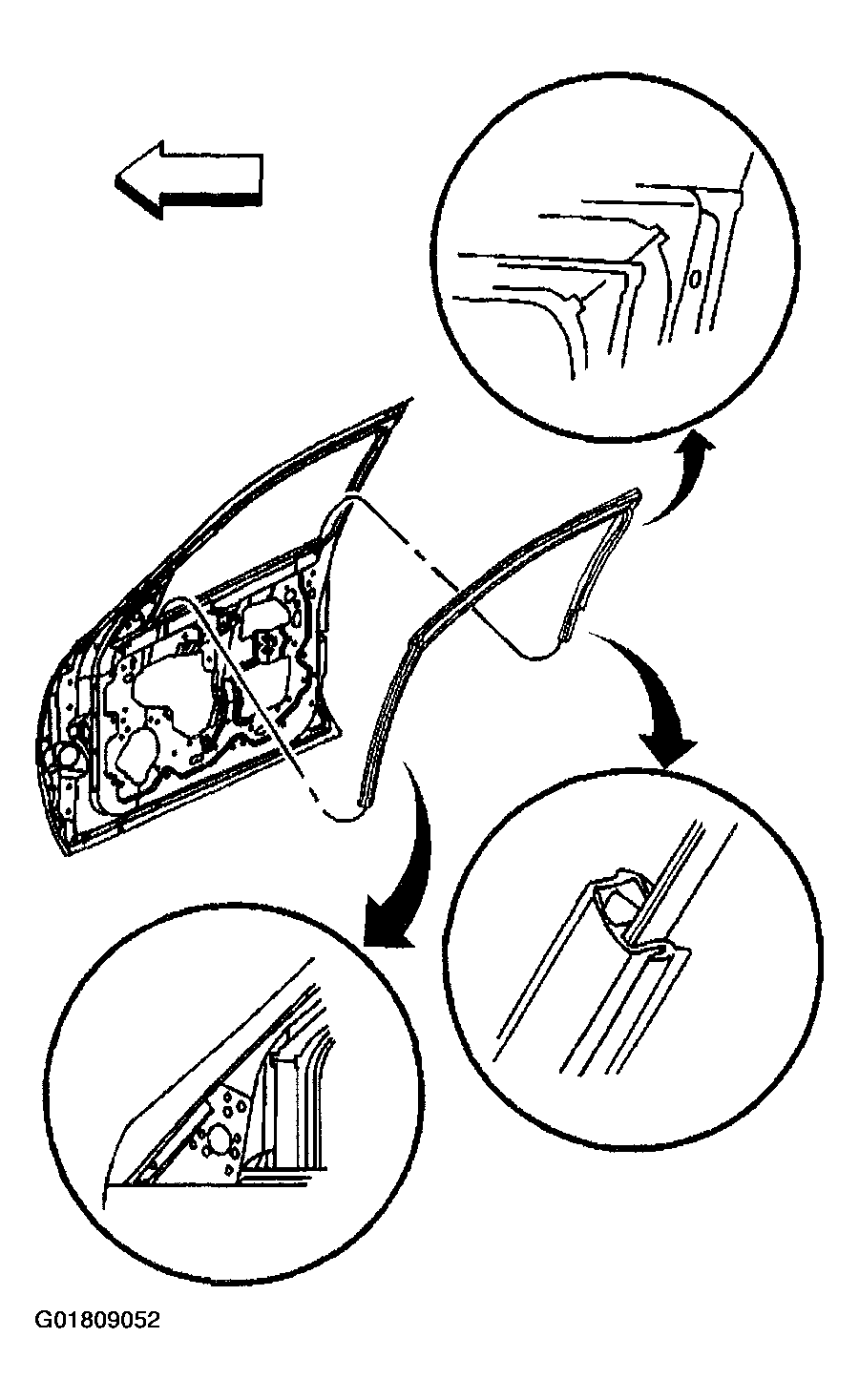

- Grasp the window run channel at the lower rear corner.
- Pull up and forward to release the run channel from the door flange.
