Door Lock/Indicator Schematics

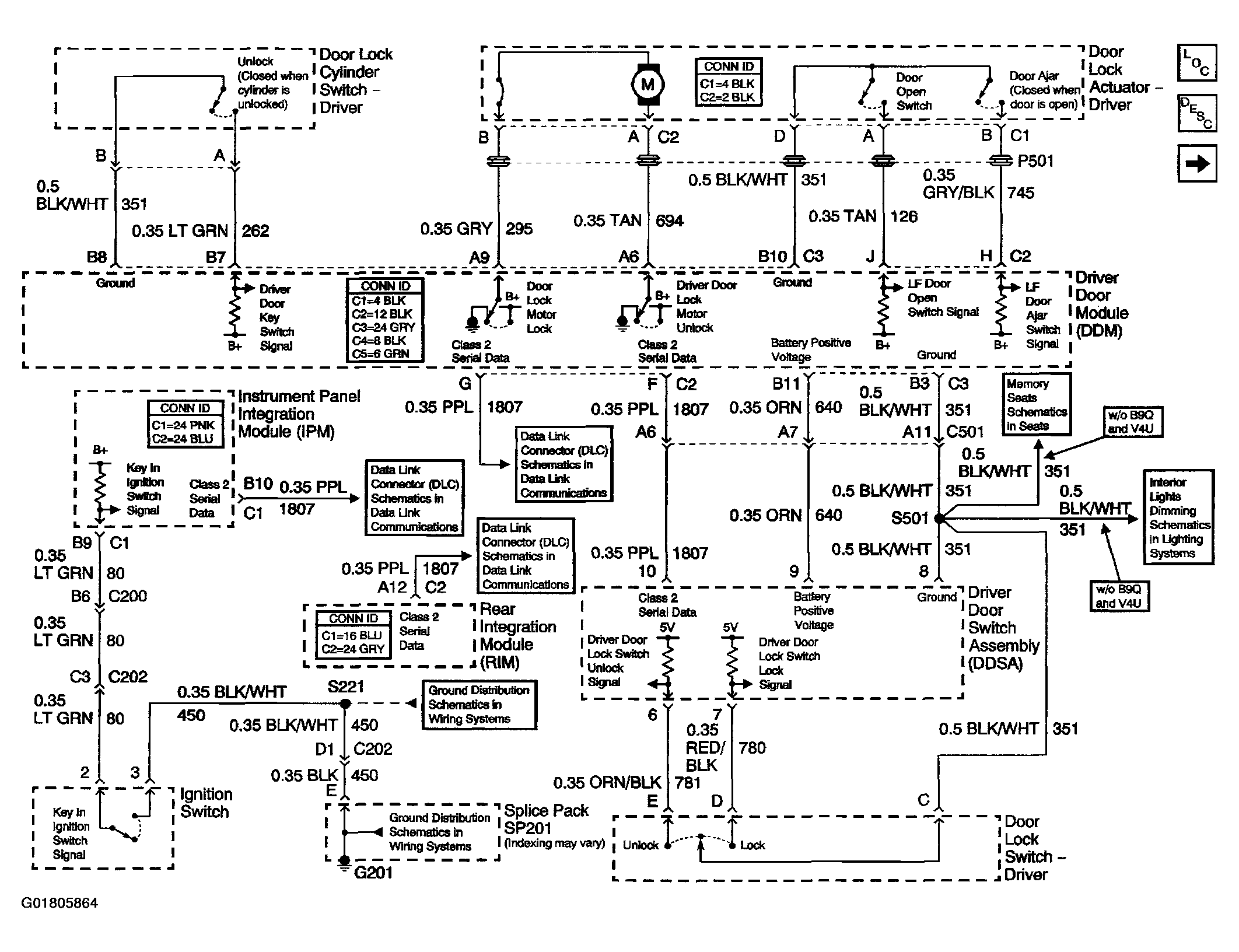

Fig 1: Door Lock/Indicator Schematics (Driver Door Power Door Lock)

Courtesy of GENERAL MOTORS CORP.

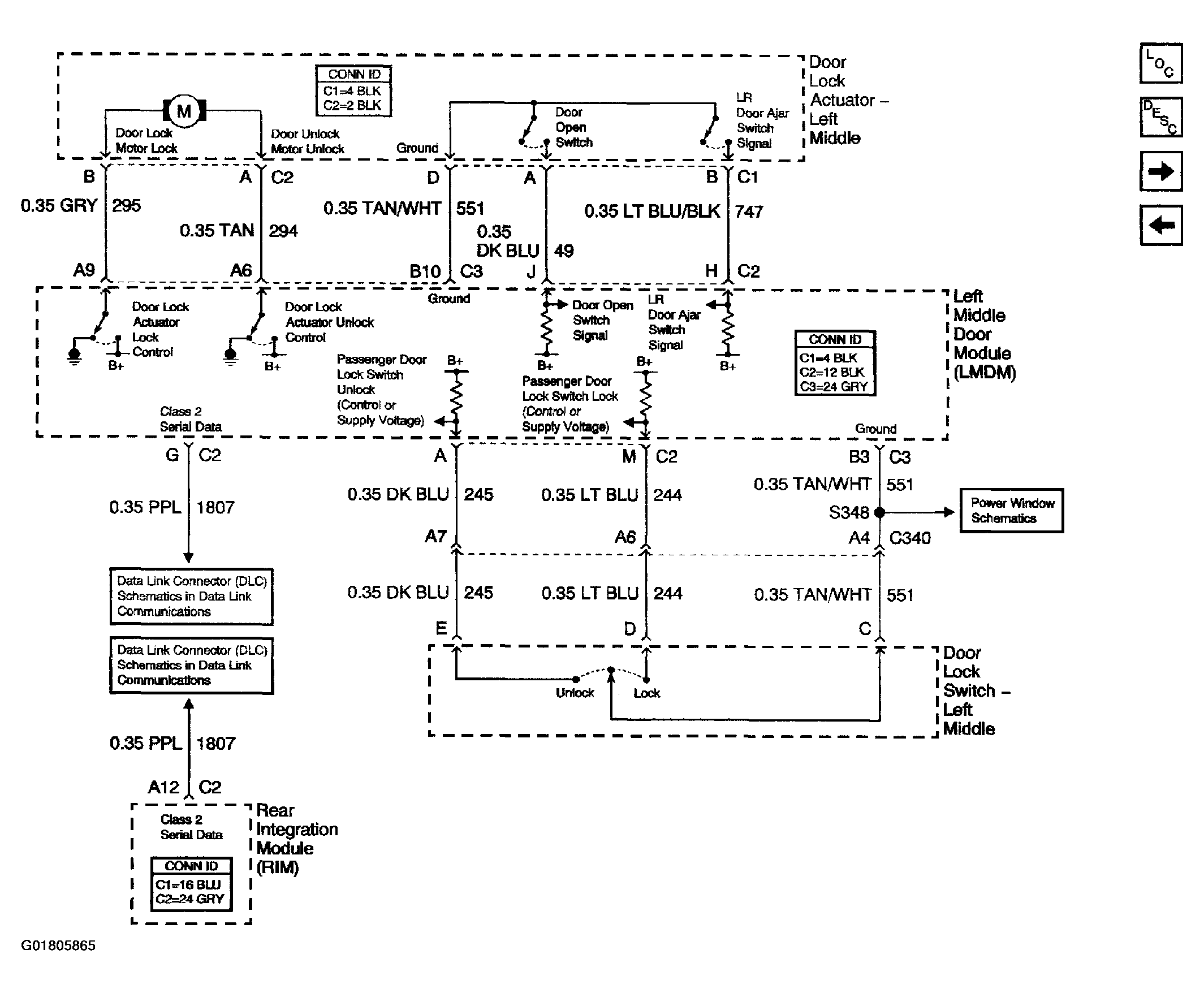

Fig 2: Door Lock/Indicator Schematics (Left Middle Door Power Door Lock (w/V4U))

Courtesy of GENERAL MOTORS CORP.

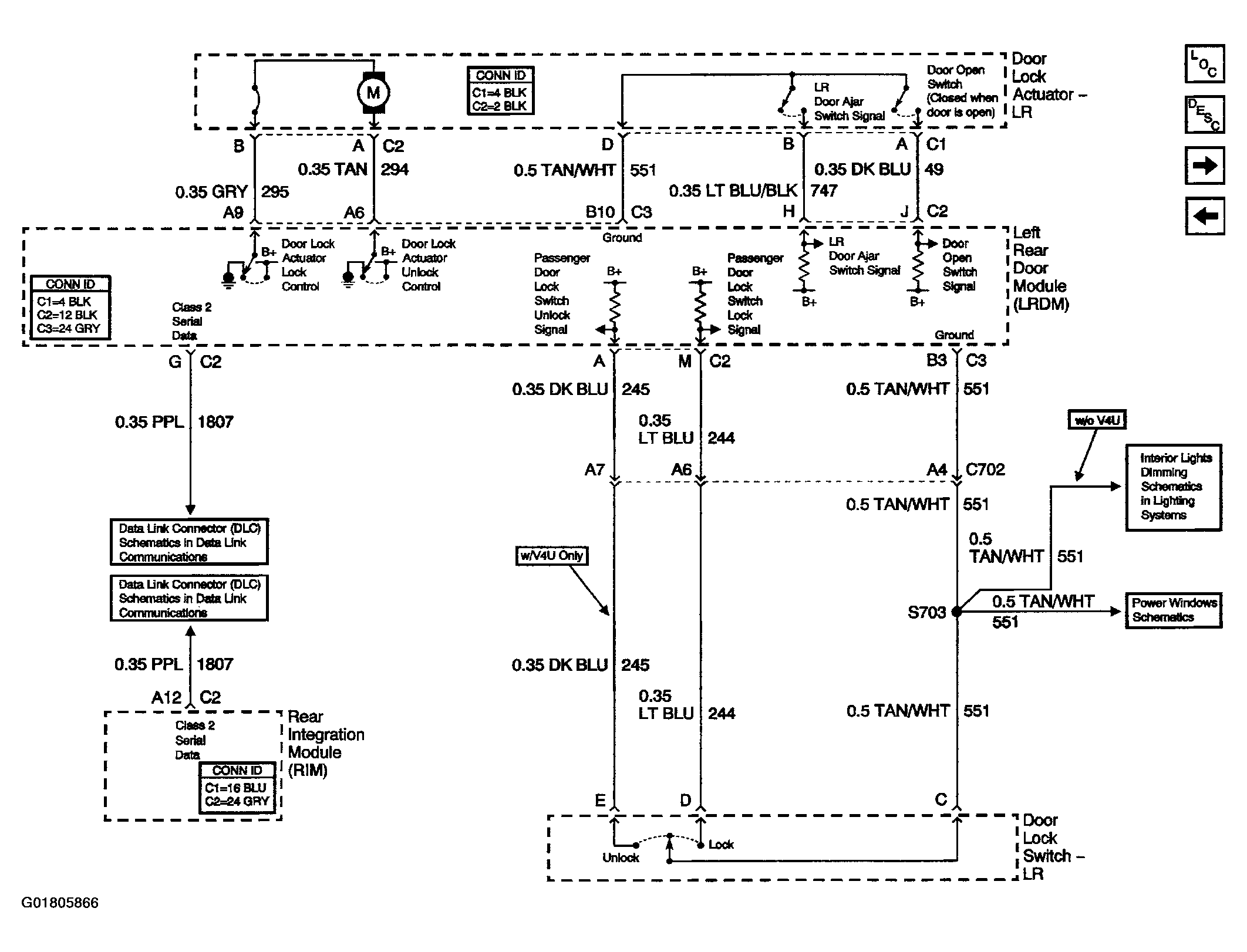

Fig 3: Door Lock/Indicator Schematics (Left Rear Door Power Door Lock)

Courtesy of GENERAL MOTORS CORP.

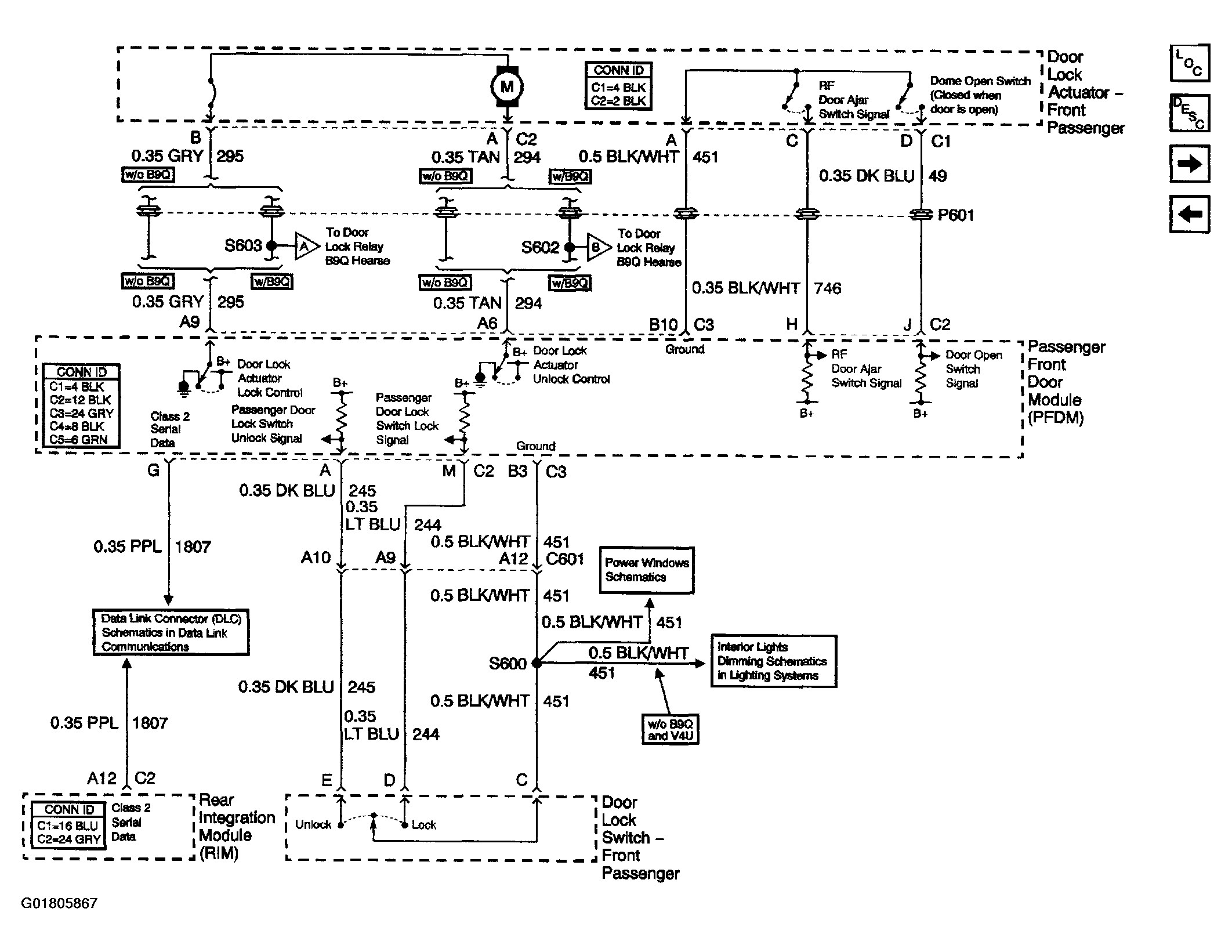

Fig 4: Door Lock/Indicator Schematics (Right Front Door Power Door Lock)

Courtesy of GENERAL MOTORS CORP.

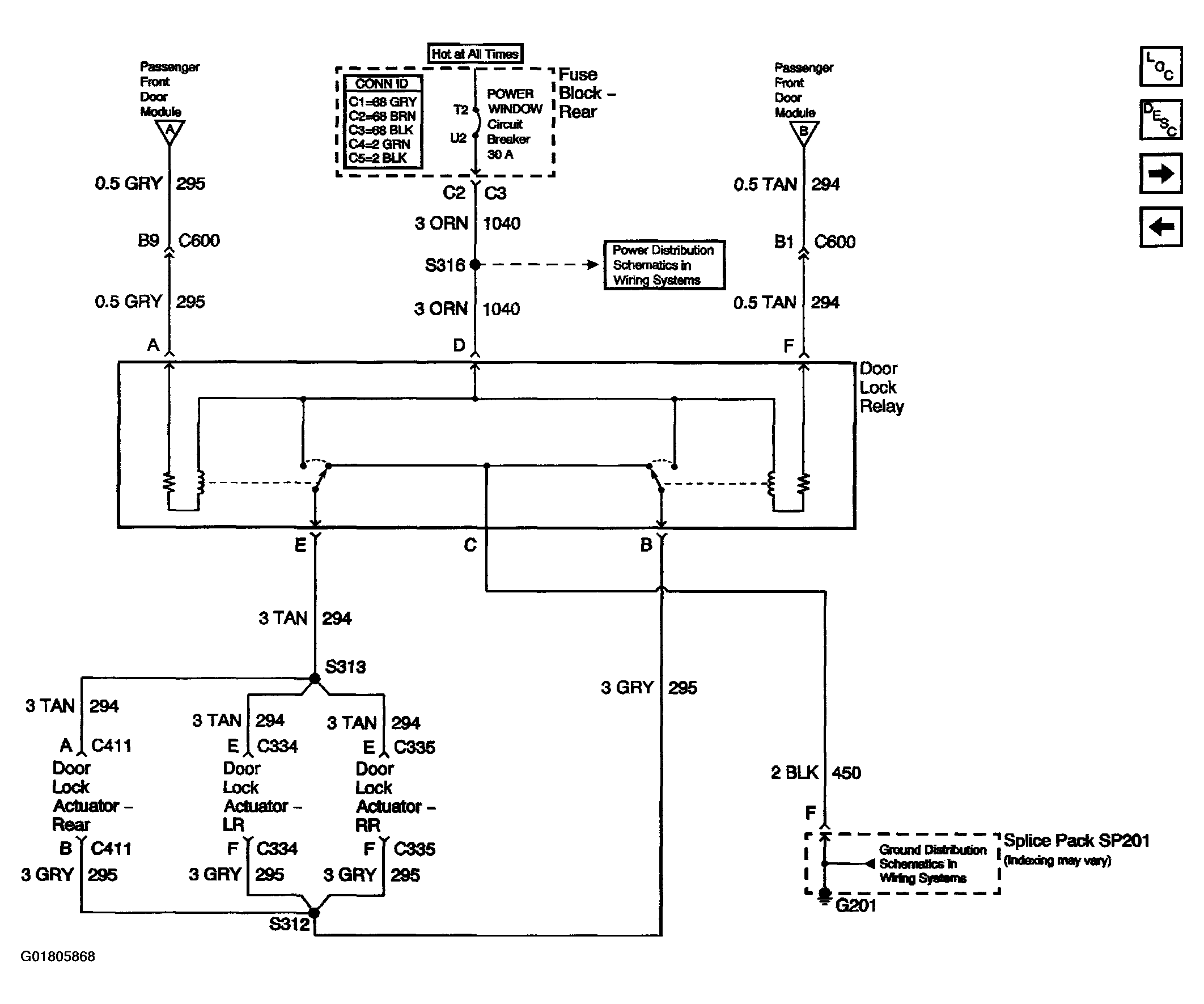

Fig 5: Door Lock/Indicator Schematics (Right Front Door Power Door Lock (w/B9Q))

Courtesy of GENERAL MOTORS CORP.

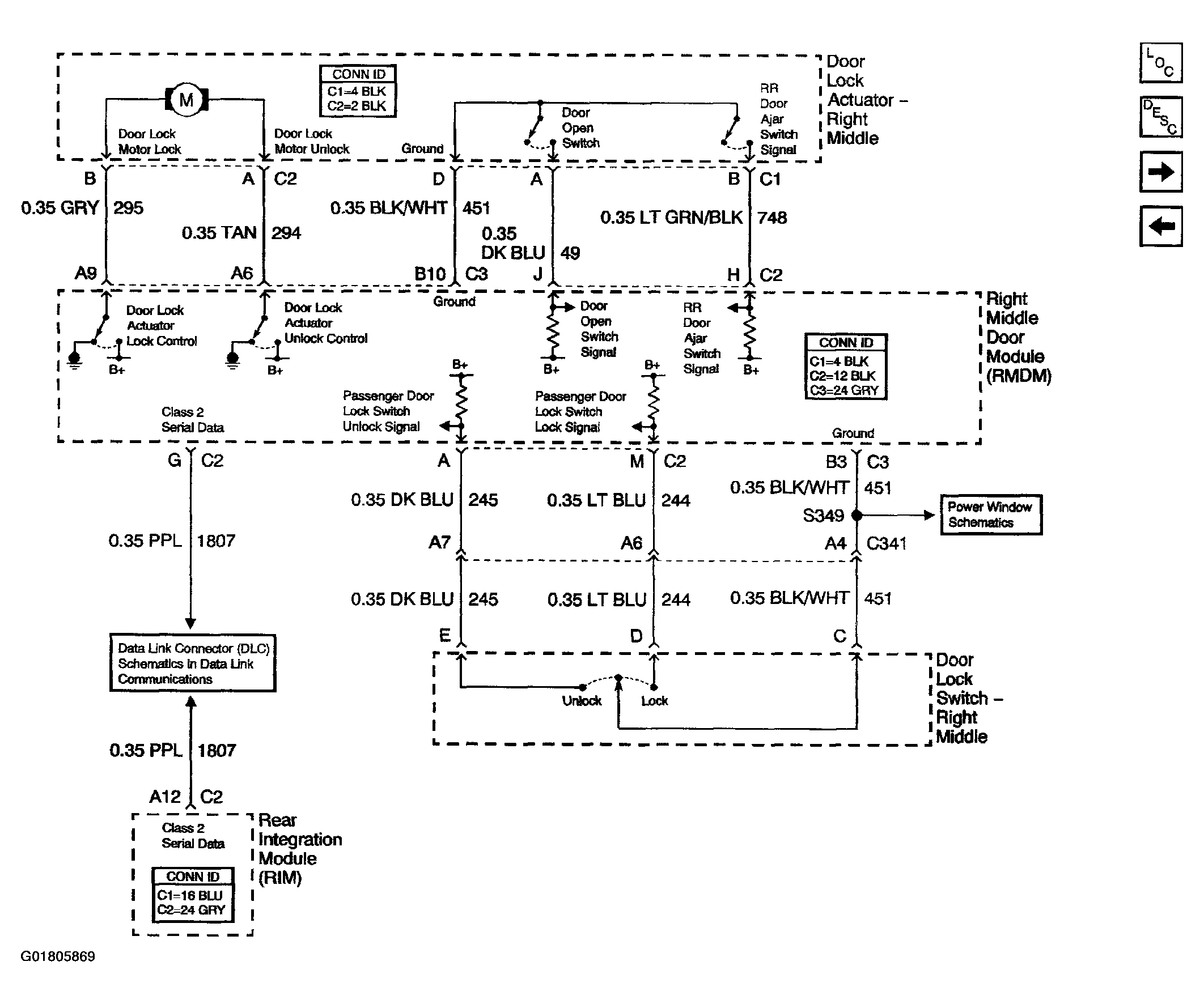

Fig 6: Door Lock/Indicator Schematics (Right Middle Door Power Door Lock (w/V4U))

Courtesy of GENERAL MOTORS CORP.

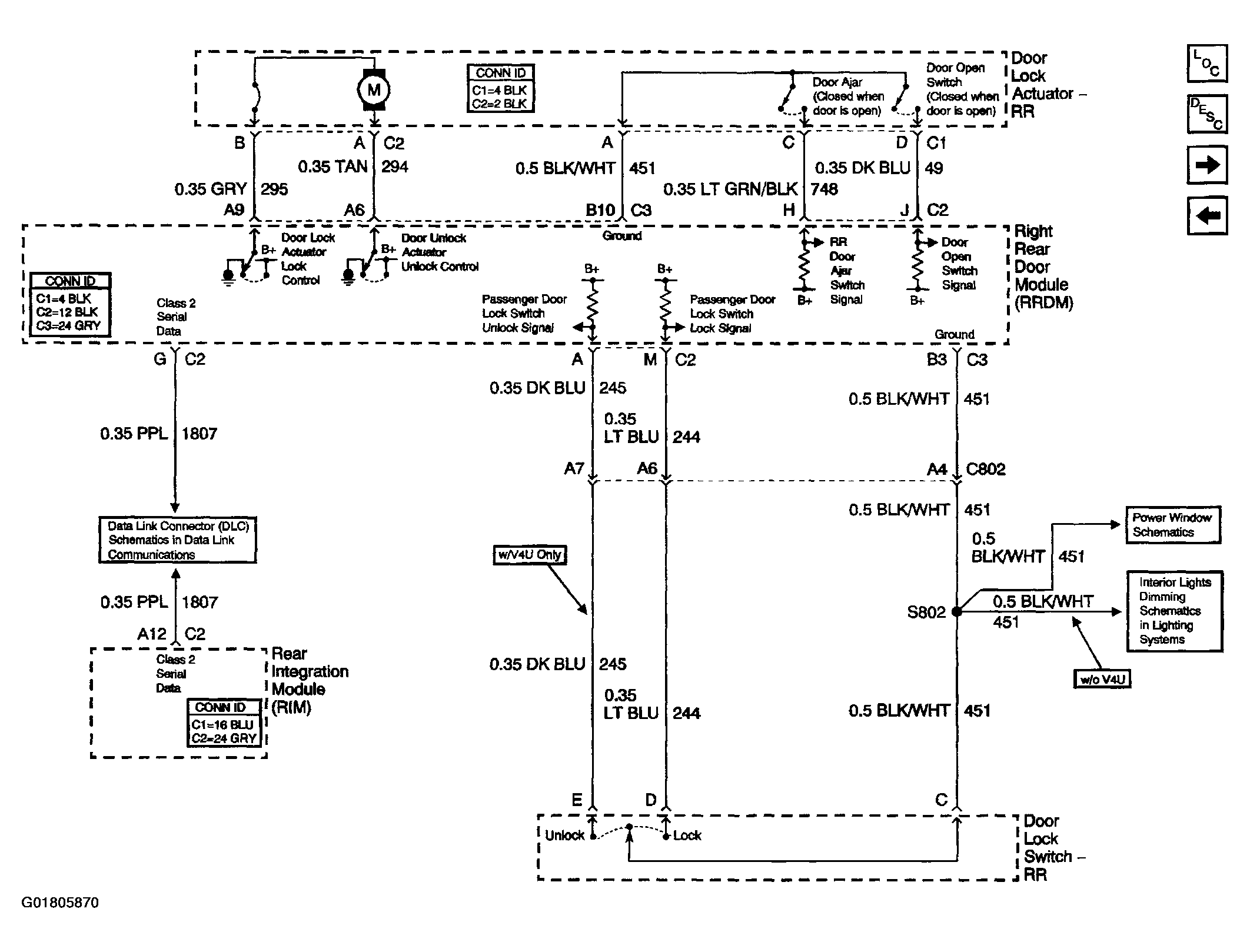

Fig 7: Door Lock/Indicator Schematics (Right Rear Door Power Door Lock (w/o B9Q))

Courtesy of GENERAL MOTORS CORP.

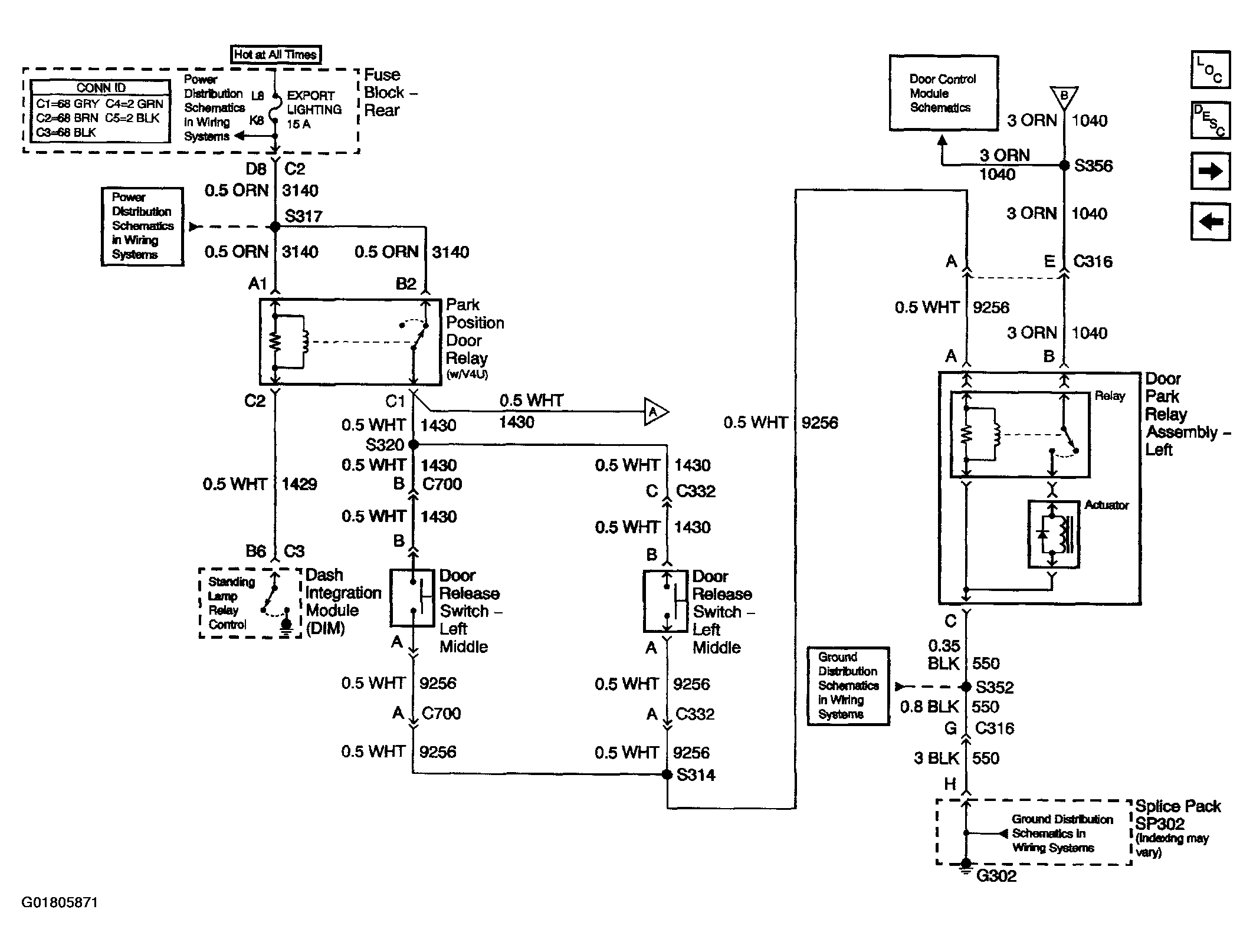

Fig 8: Door Lock/Indicator Schematics (Power Door Locks Middle Door Release (w/V4U) 1 of 2)

Courtesy of GENERAL MOTORS CORP.

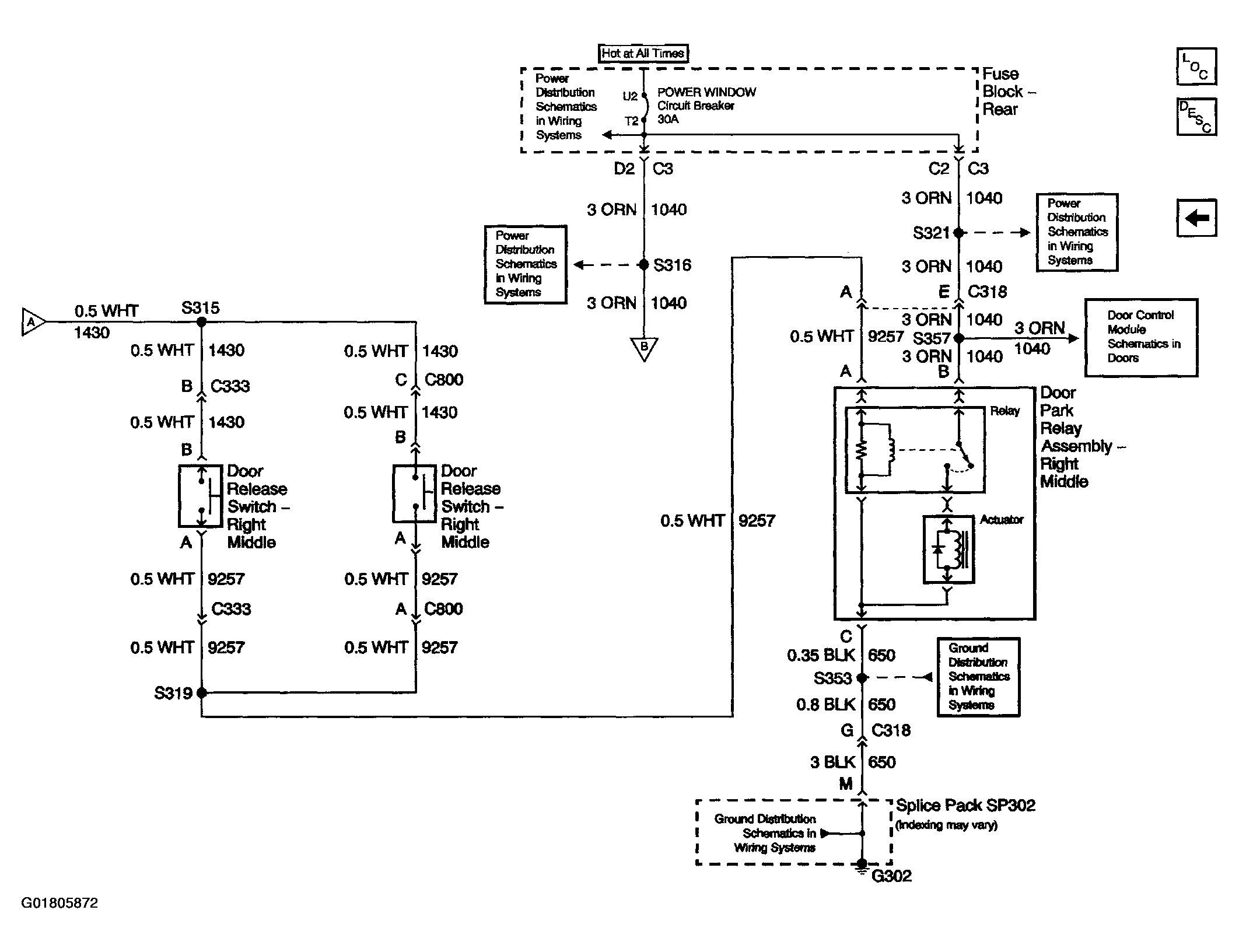

Fig 9: Door Lock/Indicator Schematics (Power Door Locks Middle Door Release (w/V4U) 2 of 2)

Courtesy of GENERAL MOTORS CORP.
