Power Window Schematics

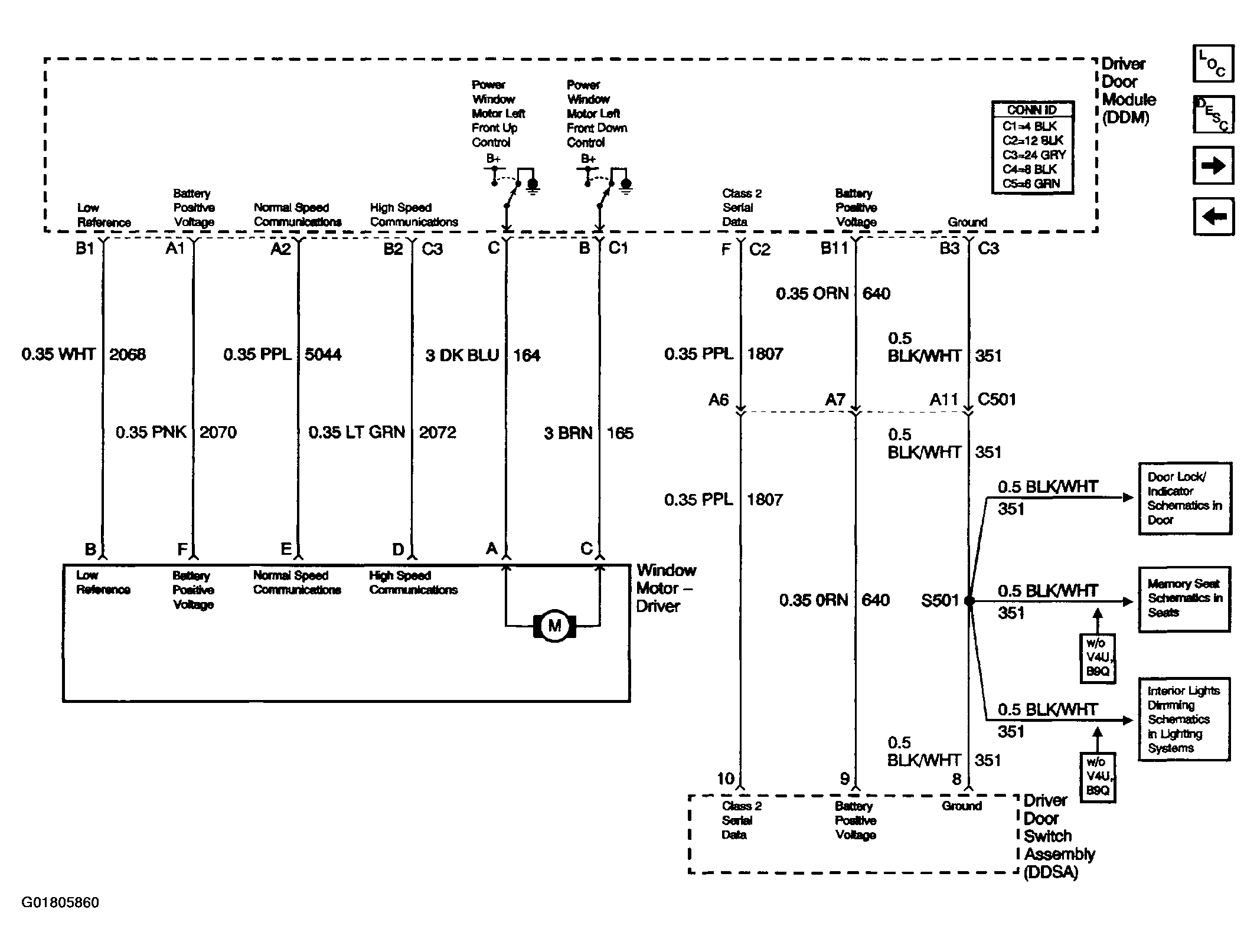

Fig 1: Power Window Schematics (Left Power Window)

Courtesy of GENERAL MOTORS CORP.

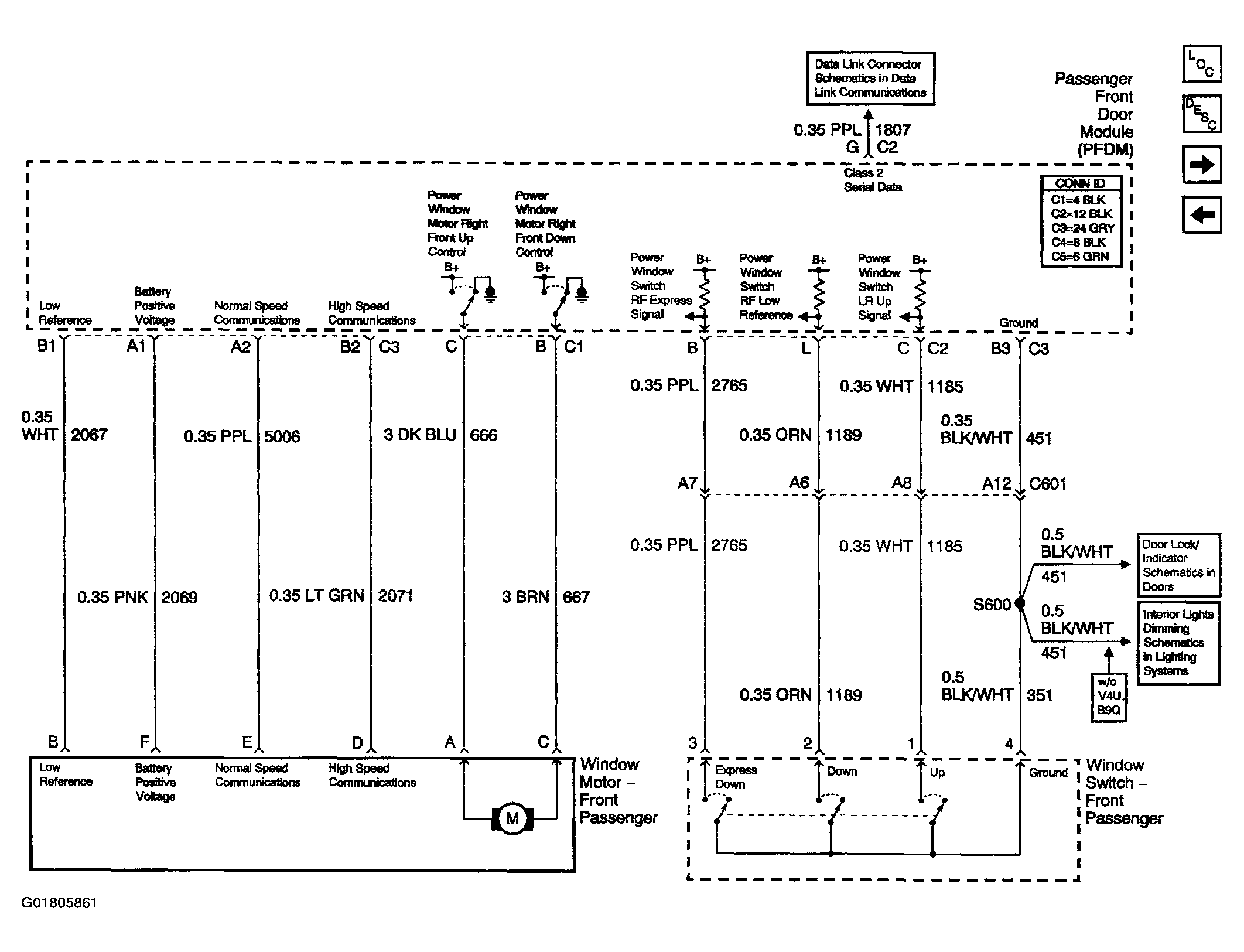

Fig 2: Power Window Schematics (Right Power Window)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Power Window Schematics (Driver Power Window w/Express)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Power Window Schematics (Passenger Power Window w/Express)

Courtesy of GENERAL MOTORS CORP.

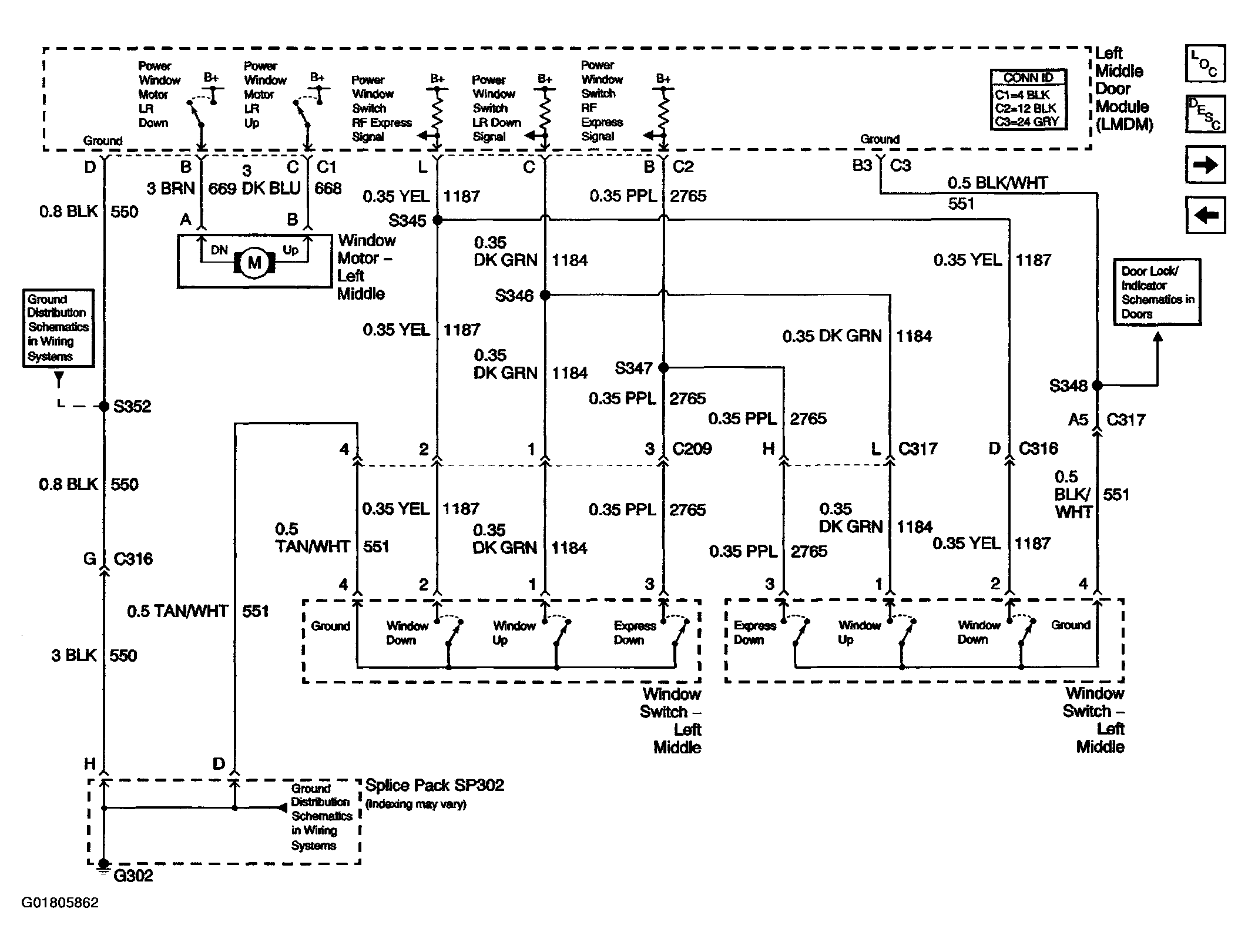

Fig 5: Power Window Schematics (Left Middle Door Power Window)

Courtesy of GENERAL MOTORS CORP.

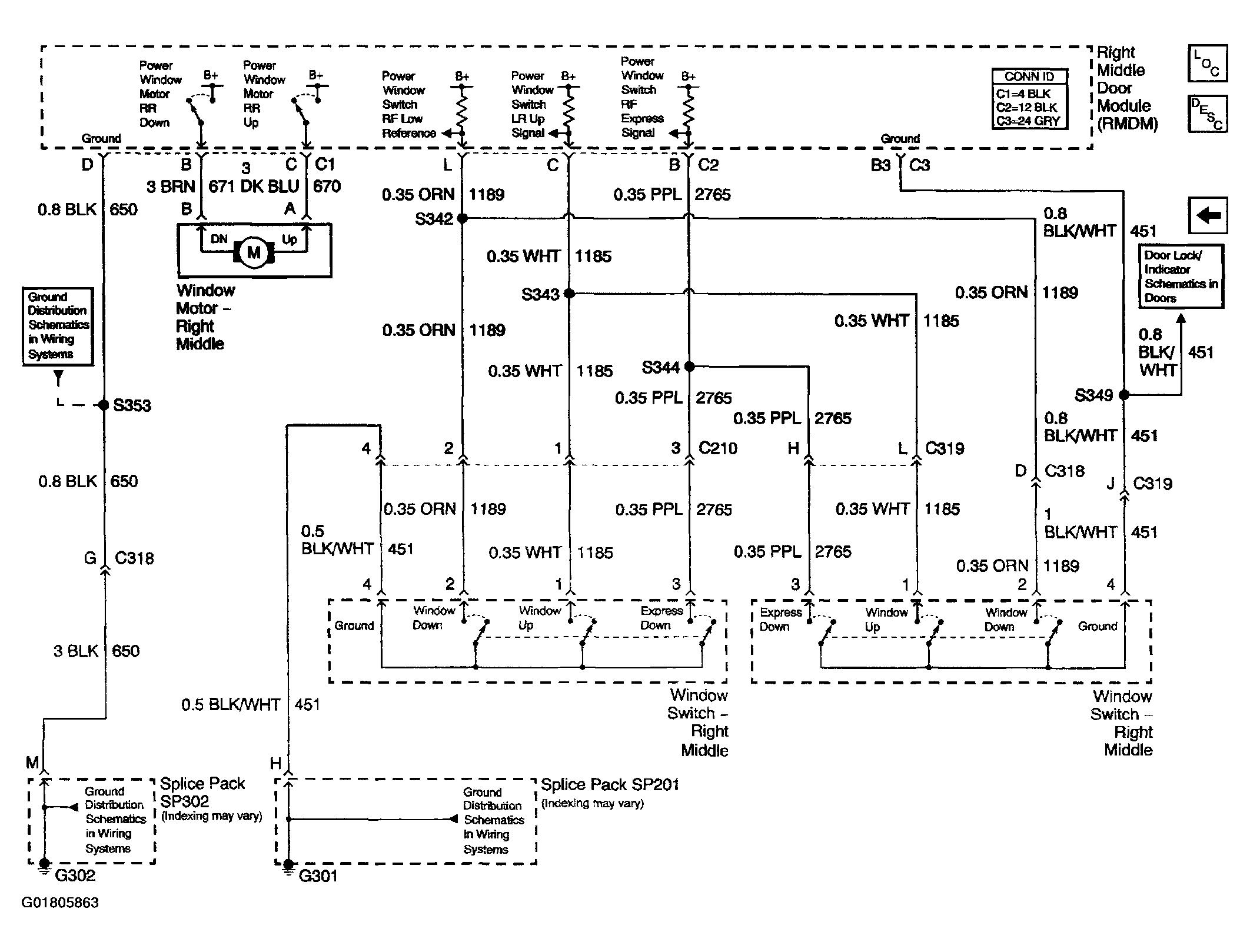

Fig 6: Power Window Schematics (Right Middle Door Power Window)

Courtesy of GENERAL MOTORS CORP.
