Stationary Windows Connector End Views

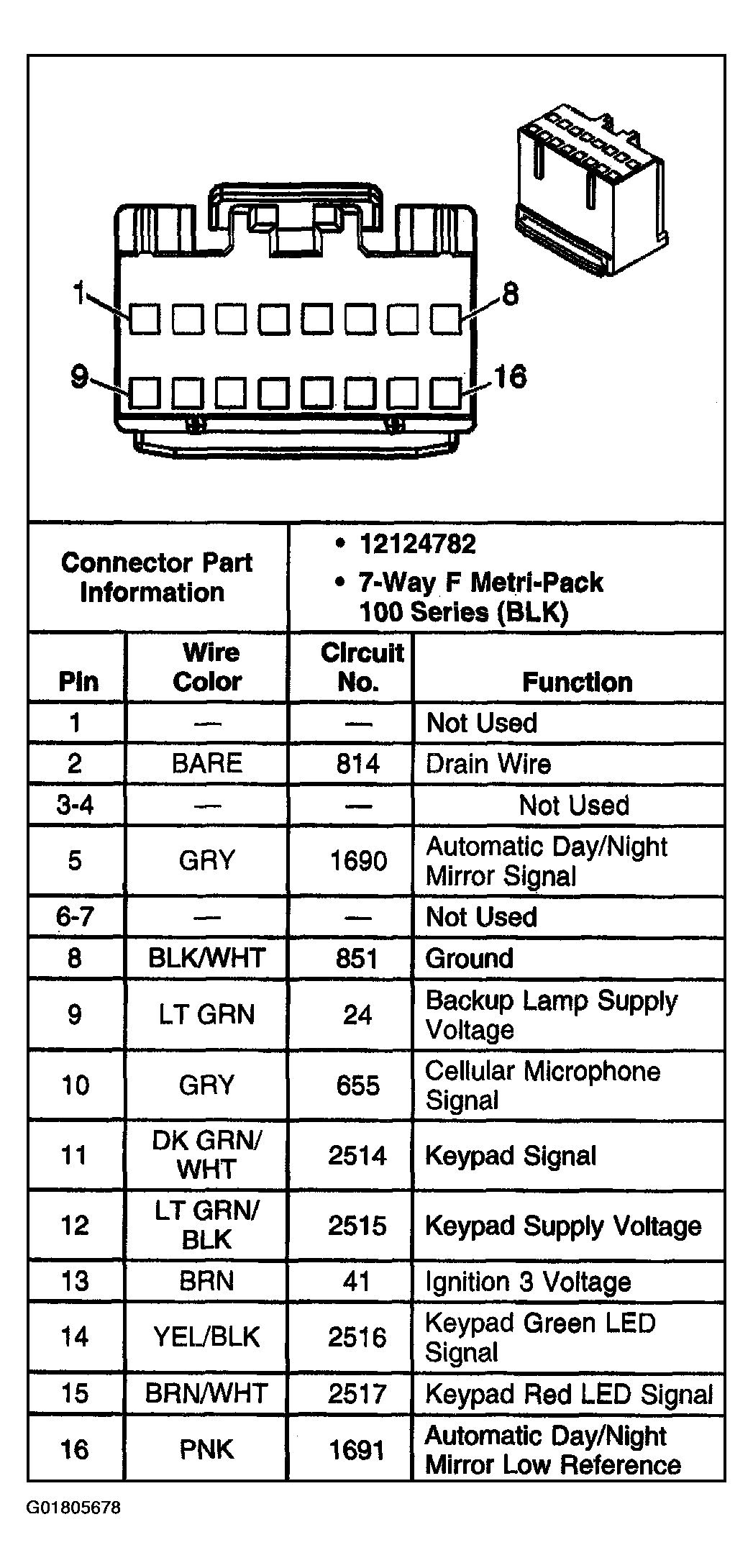

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Fig 2: Radio TV Antenna Signal Module

Courtesy of GENERAL MOTORS CORP.

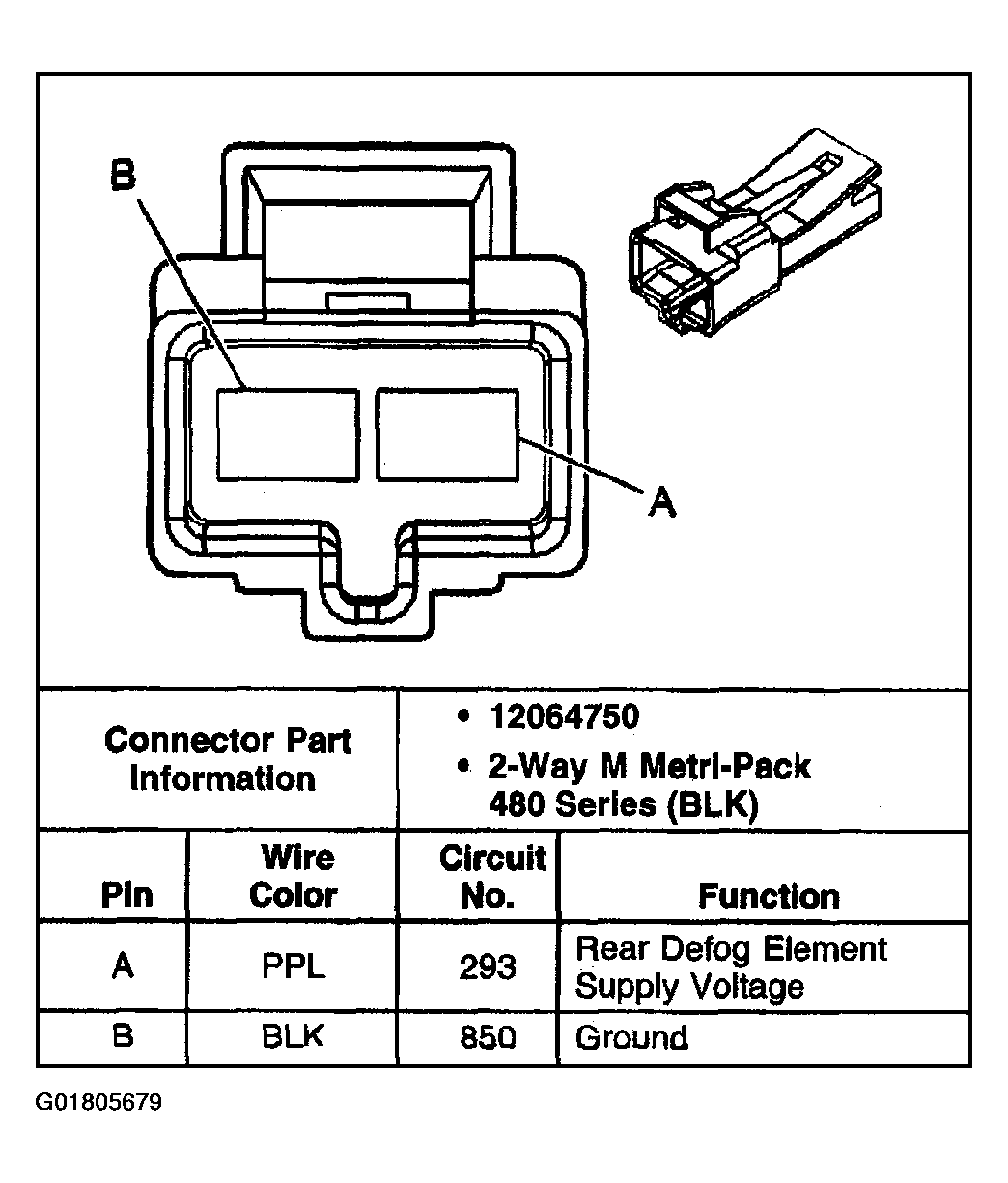

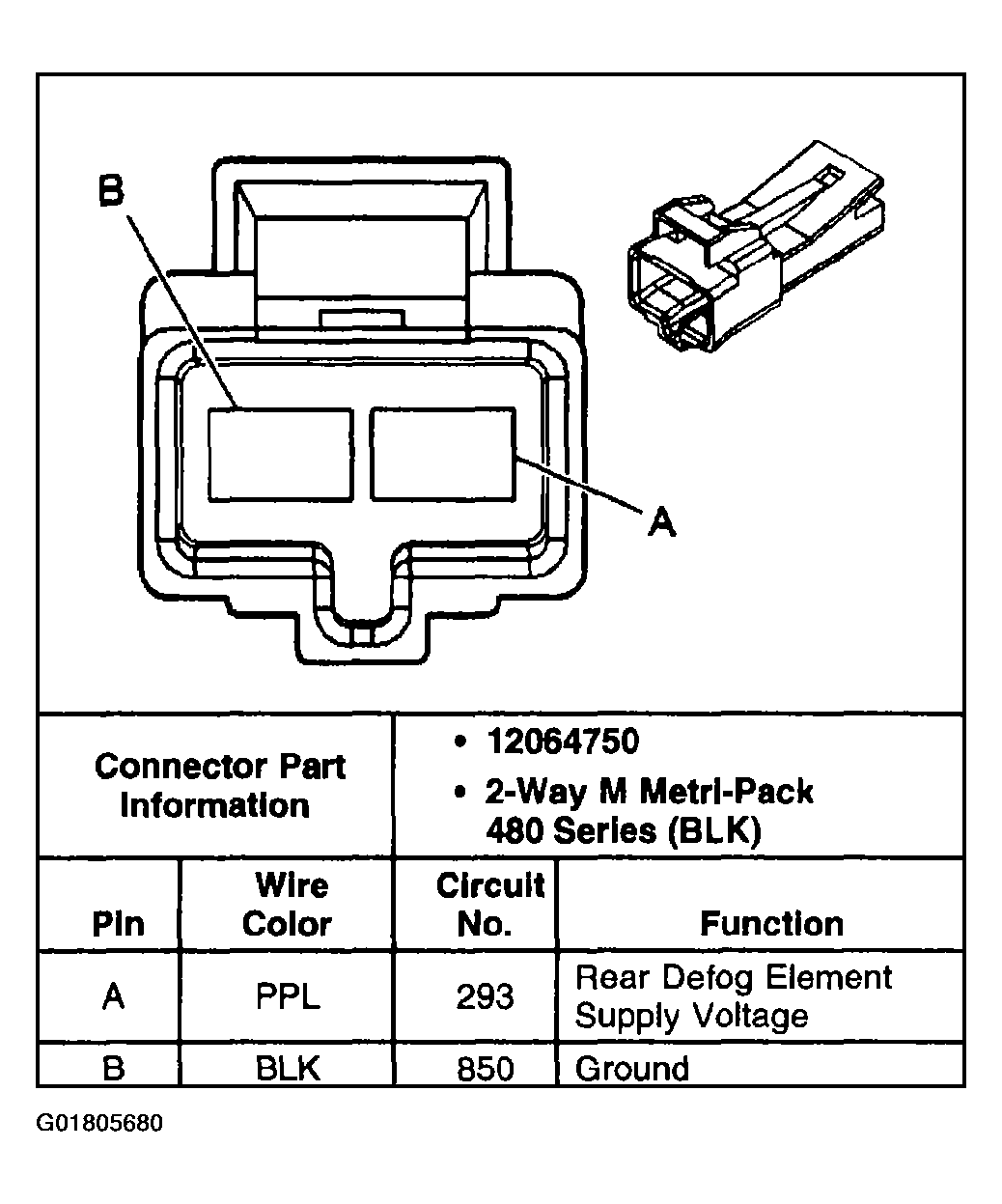

Fig 3: Rear Window Defogger

Courtesy of GENERAL MOTORS CORP.
