Steering Wheel and Inflator Module

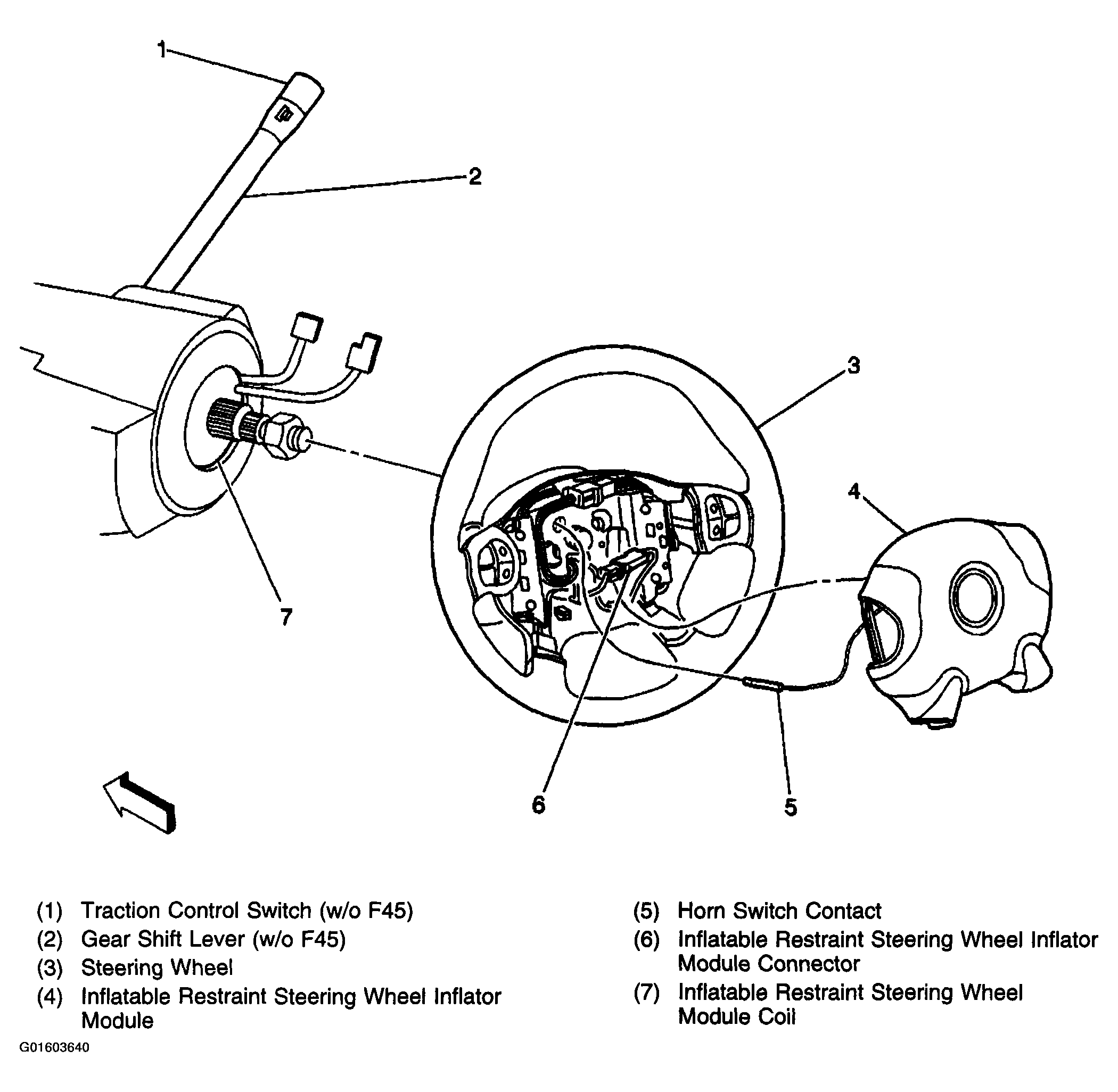

Fig 1: Steering Wheel & Inflator Module Component View
G01603640Courtesy of GENERAL MOTORS CORP.
