Steering Wheel Position Sensor (SWPS)

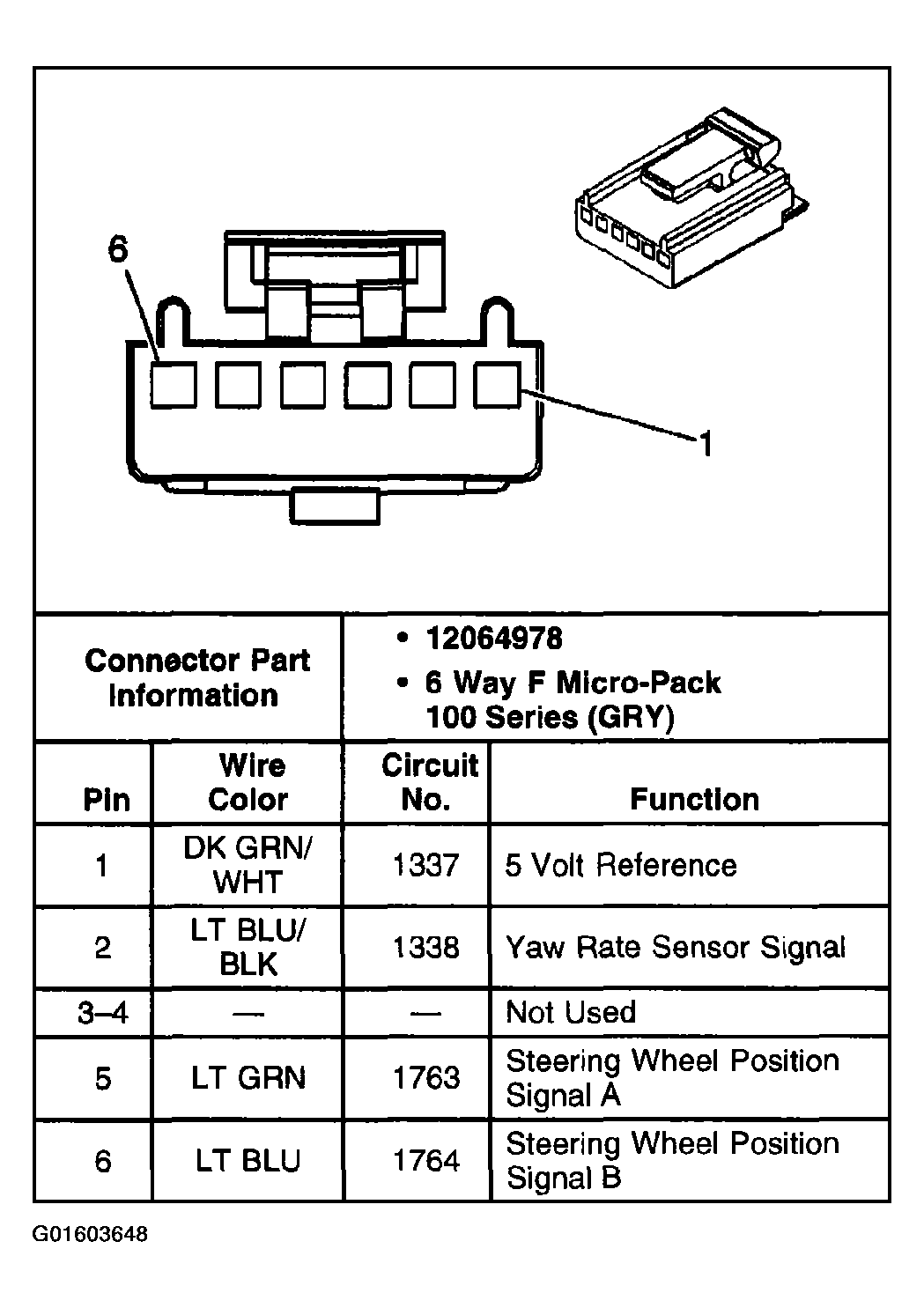

Fig 1: Steering Wheel Position Sensor (SWPS) Connector End View
G01603648Courtesy of GENERAL MOTORS CORP.
