Home › Cadillac › 2002 › DeVille Base › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock Brake System › Component Locator › Abs Connector End Views › Traction Control Switch (w/o F45)

Traction Control Switch (w/o F45)

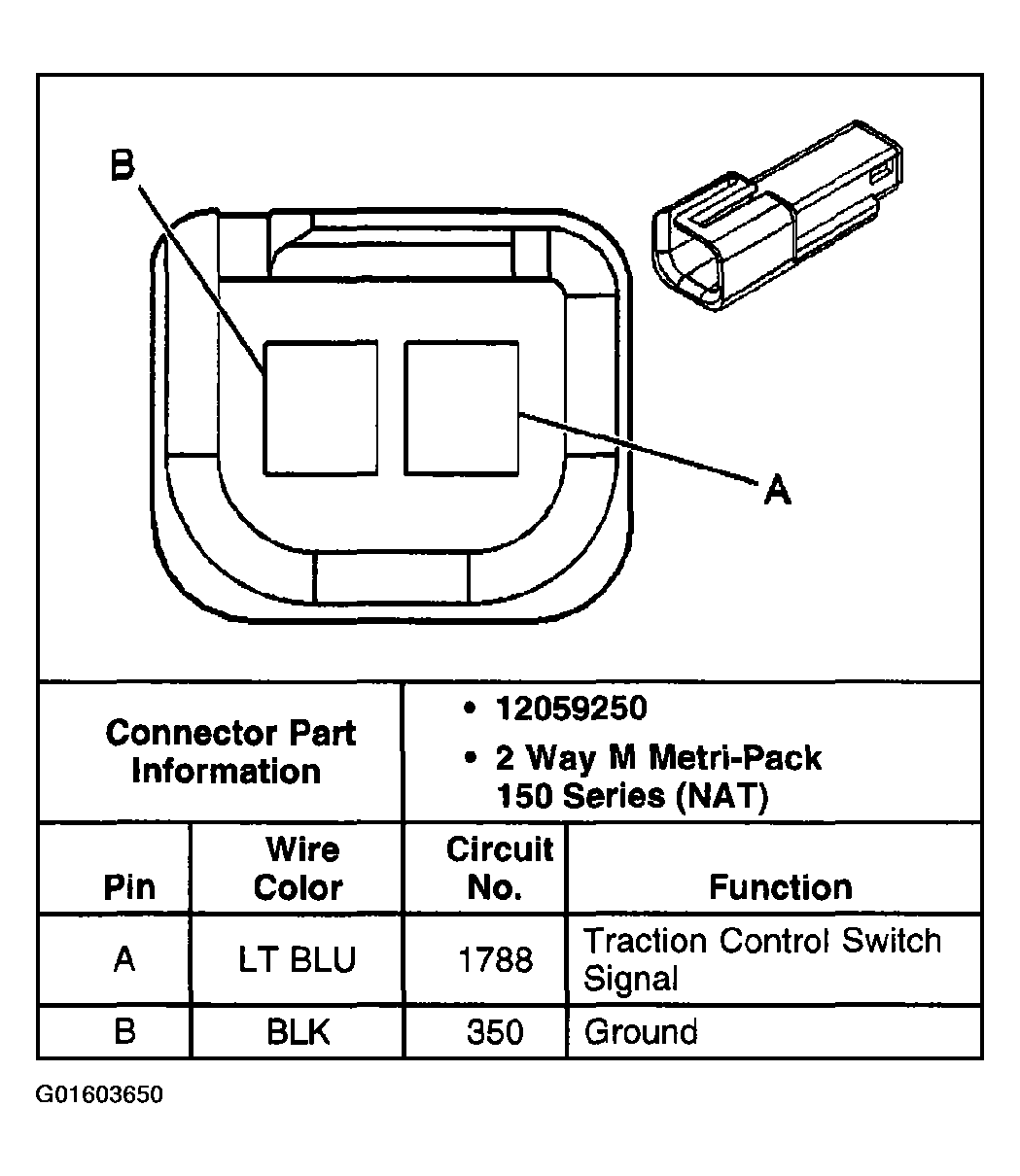

Fig 1: Traction Control Switch (w/o F45) Connector End View
G01603650Courtesy of GENERAL MOTORS CORP.
