Wheel Speed Sensor (WSS) - LR
Wheel Speed Sensor (WSS) - LR

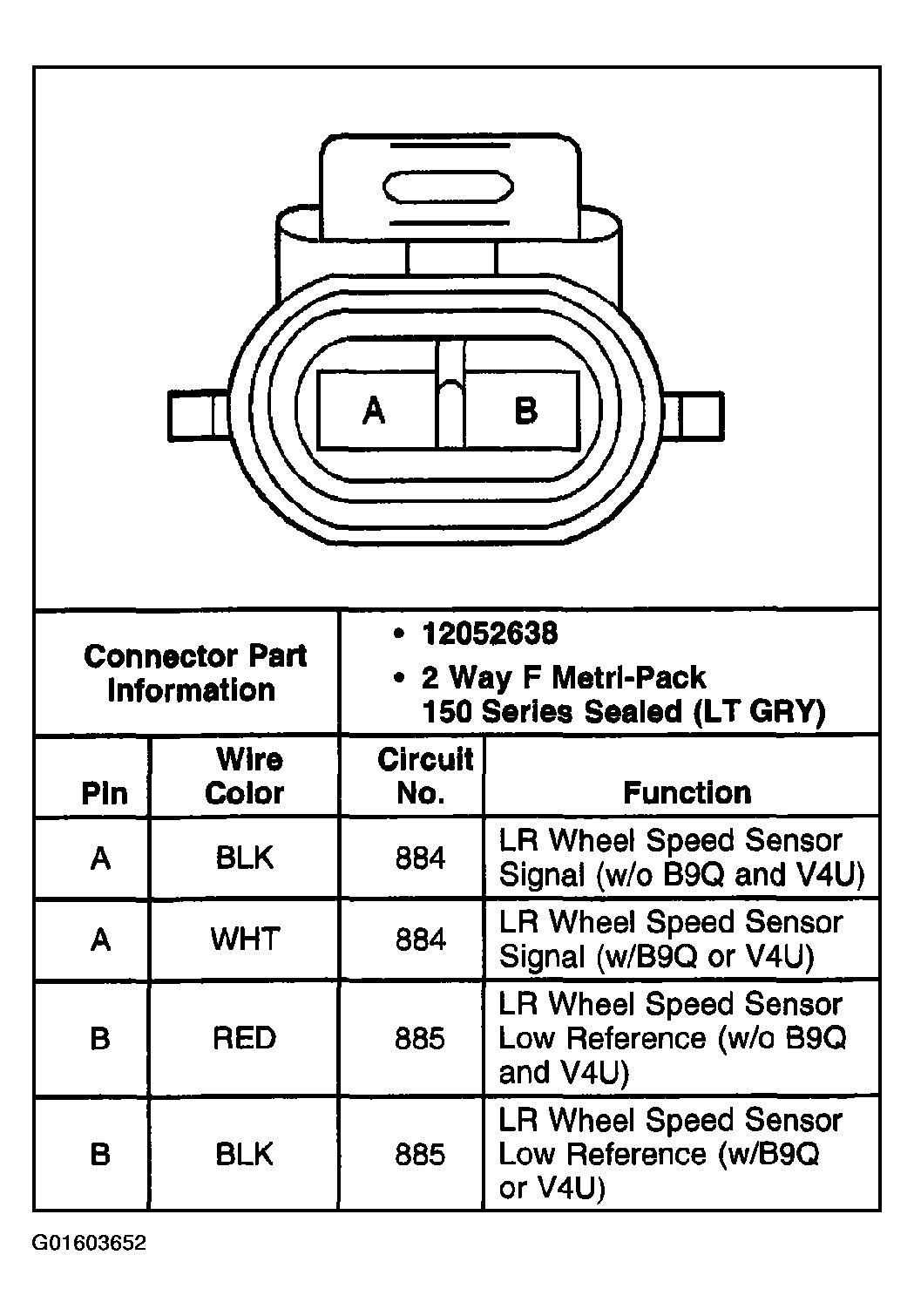

Fig 1: Wheel Speed Sensor (WSS) - LR Connector End View
Courtesy of GENERAL MOTORS CORP.
