Wheel Speed Sensor (WSS) - RF

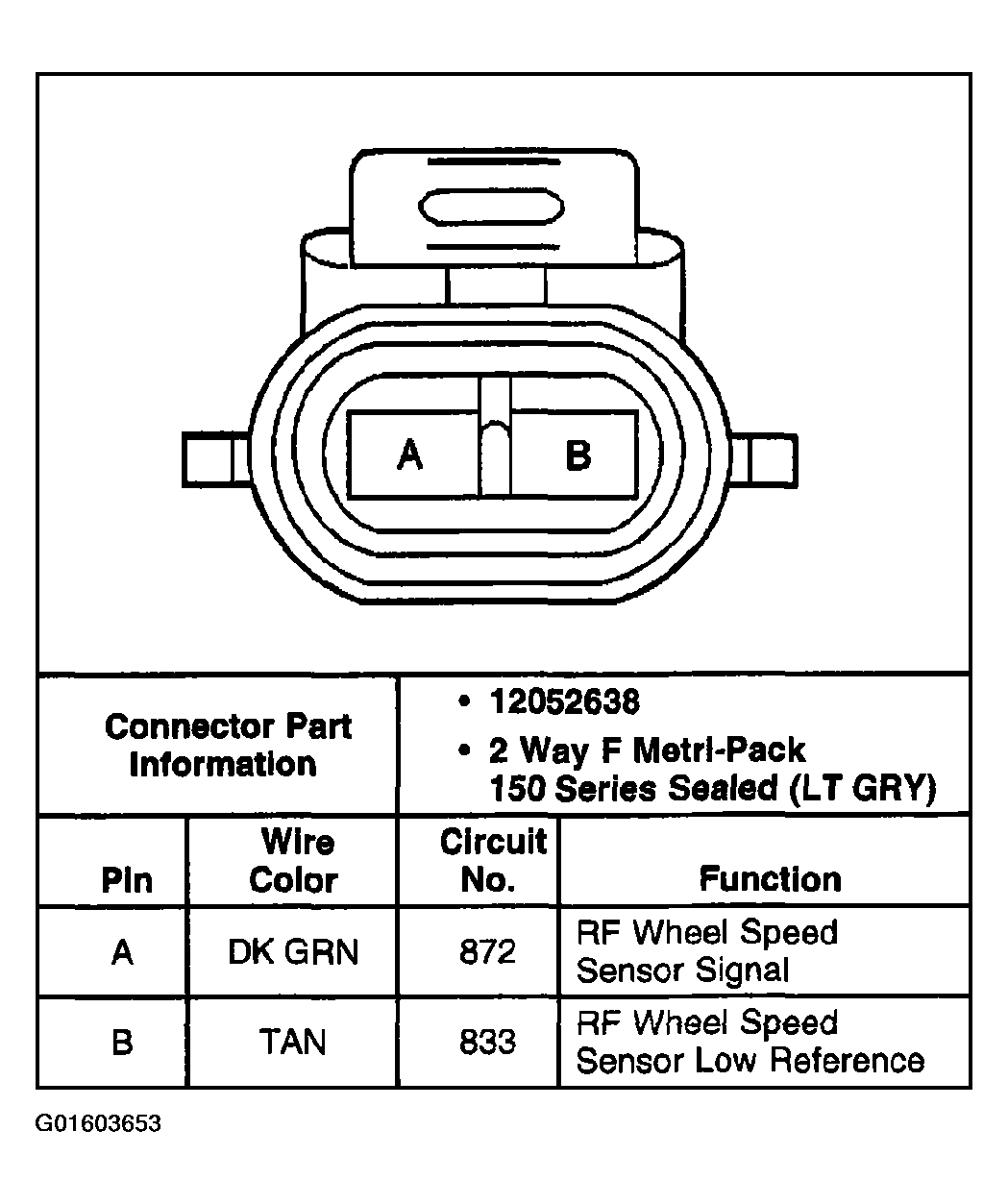

Fig 1: Wheel Speed Sensor (WSS) - RF Connector End View
G01603653Courtesy of GENERAL MOTORS CORP.
