Abs Connector End Views
›
Wheel Speed Sensor (WSS) - RR
Wheel Speed Sensor (WSS) - RR

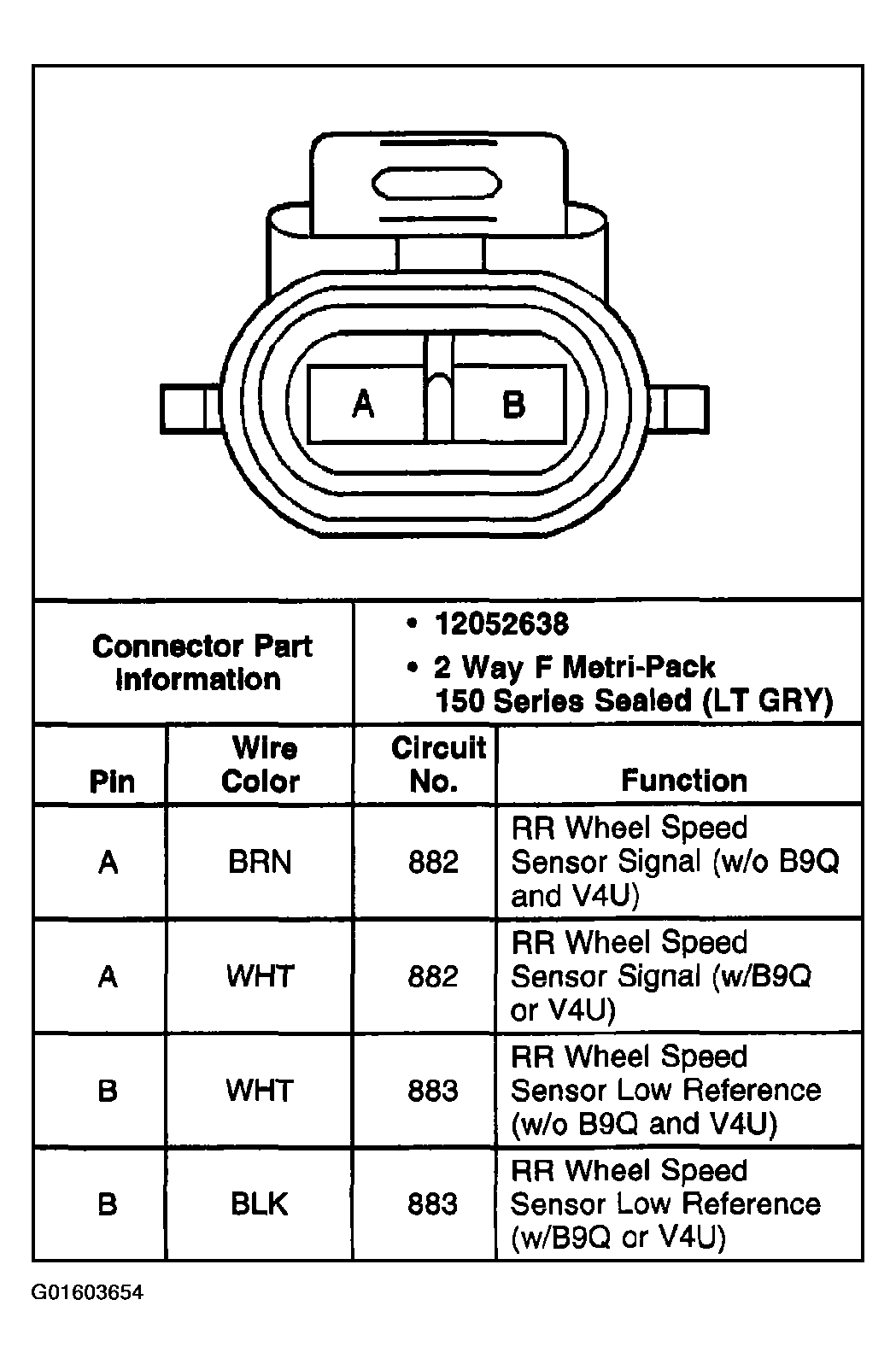

Fig 1: Wheel Speed Sensor (WSS) - RR Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
