Electronic Brake Control Module (EBCM)

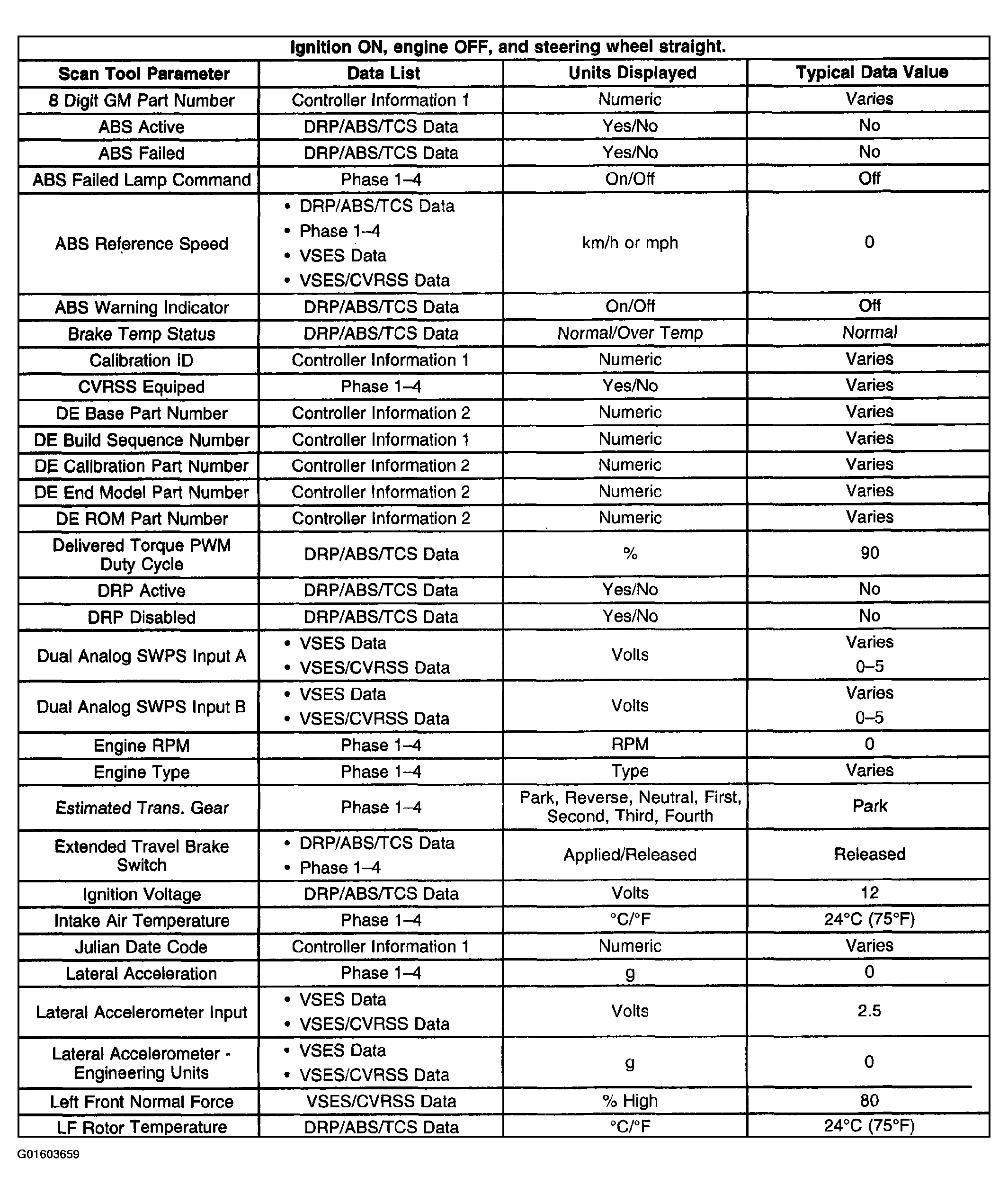

Fig 1: Electronic Brake Control Module (EBCM) Scan Tool Data List (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

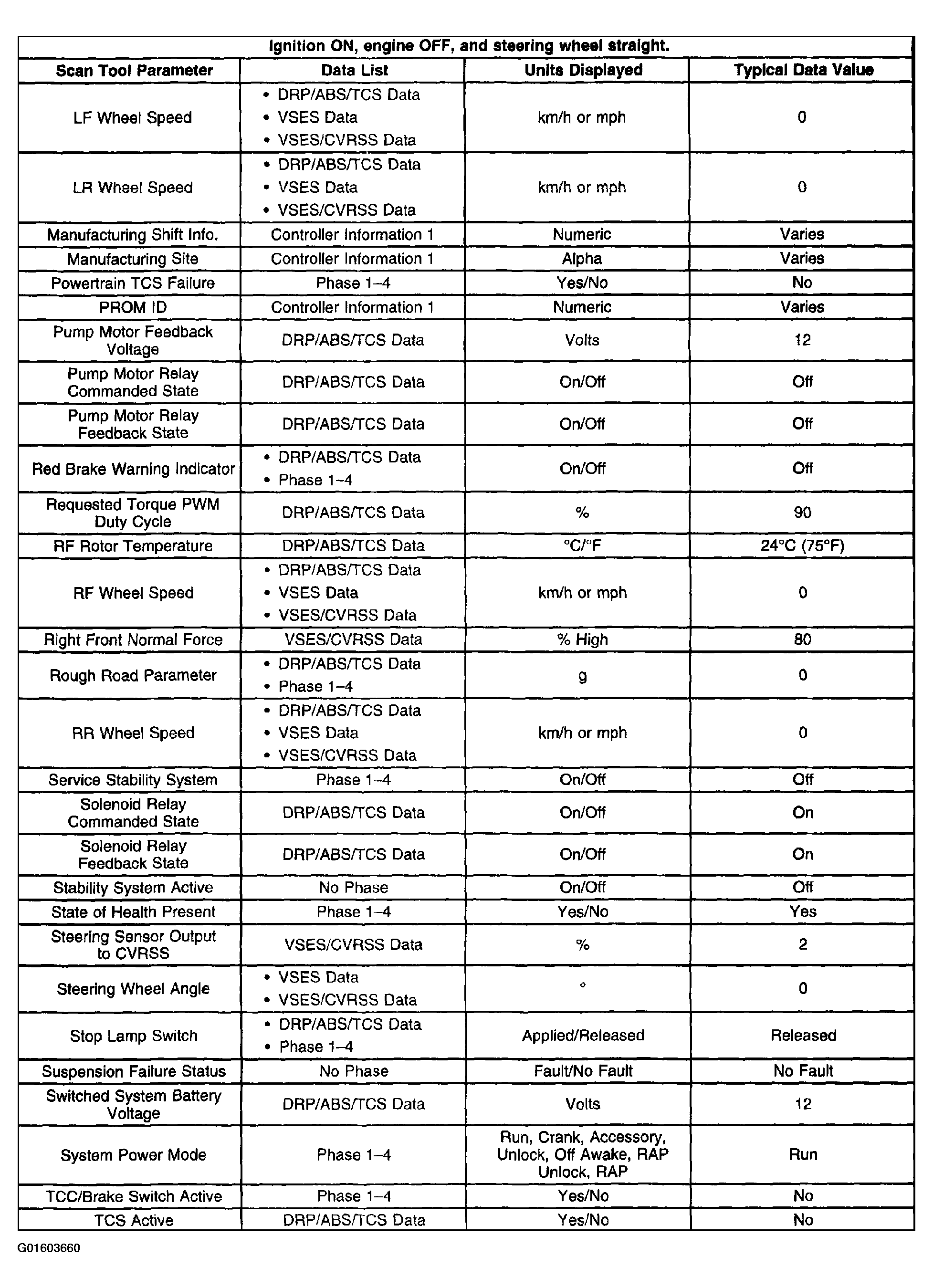

Fig 2: Electronic Brake Control Module (EBCM) Scan Tool Data List (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

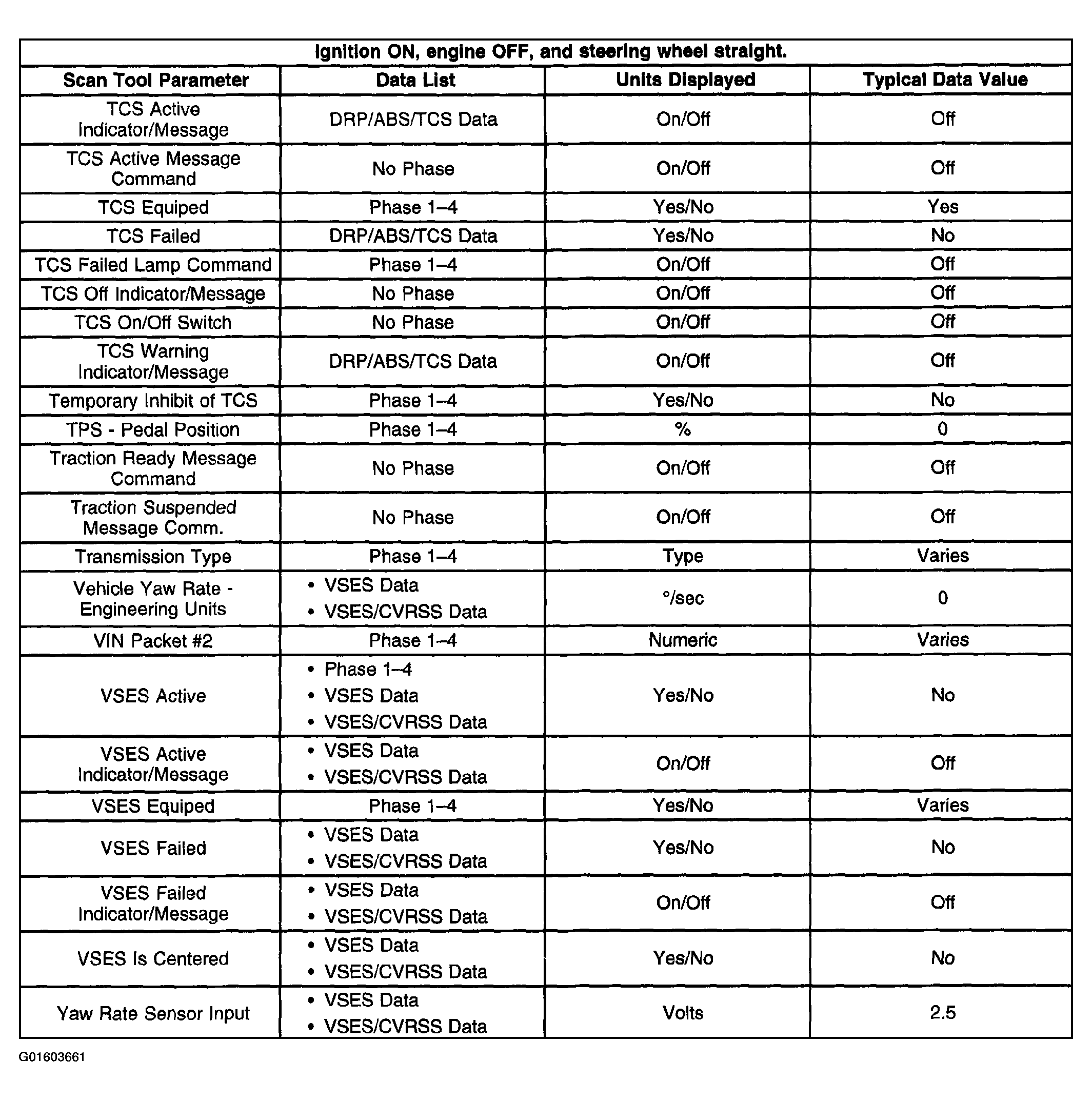

Fig 3: Electronic Brake Control Module (EBCM) Scan Tool Data List (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
