Removal Procedure

If the vehicle is equipped with a column shift lever the traction control switch is part of the lever and is replaced with the lever. Refer to SHIFT LEVER REPLACEMENT - ON VEHICLE .

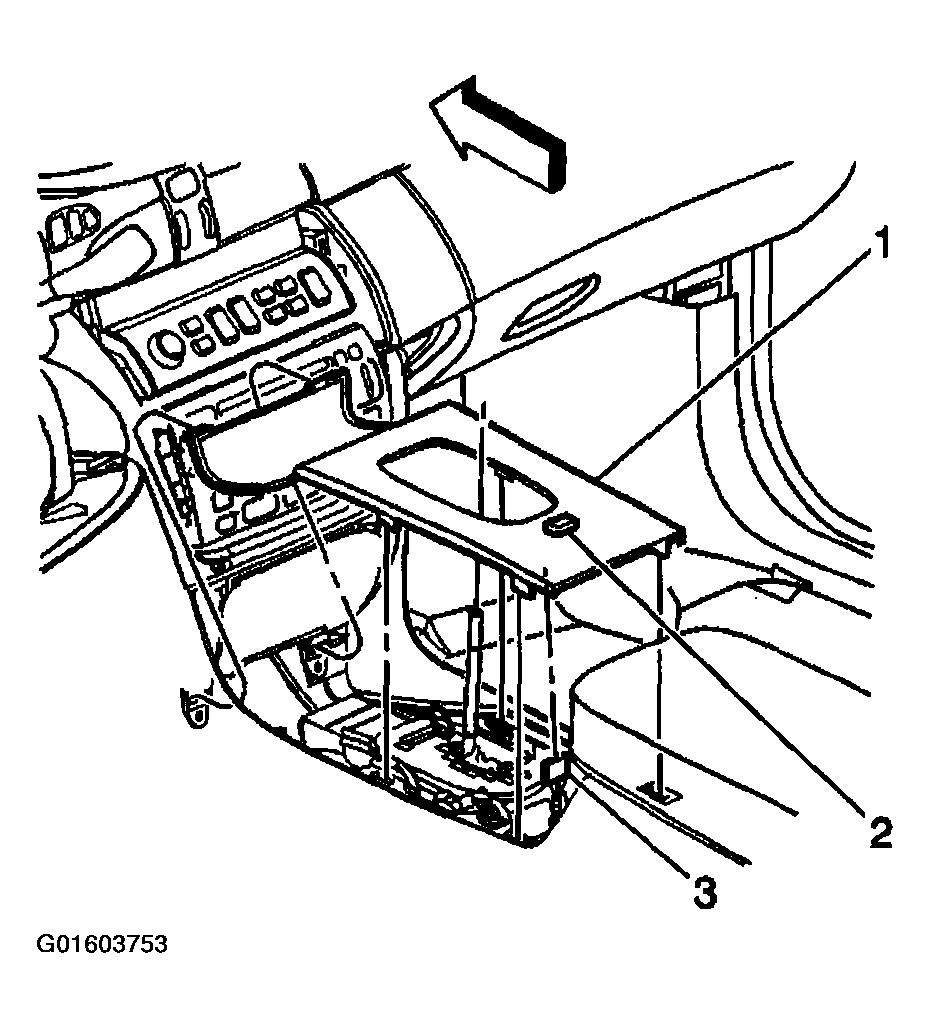

Fig 1: Removing Center Console Trim Plate

Courtesy of GENERAL MOTORS CORP.

If equipped with a console shift remove the center console trim plate (1). Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE .
Remove the traction control switch electrical connector (3).
Remove the traction control switch (2).
