Ambient Light Sensor Connector End View
Ambient Light Sensor Connector End View

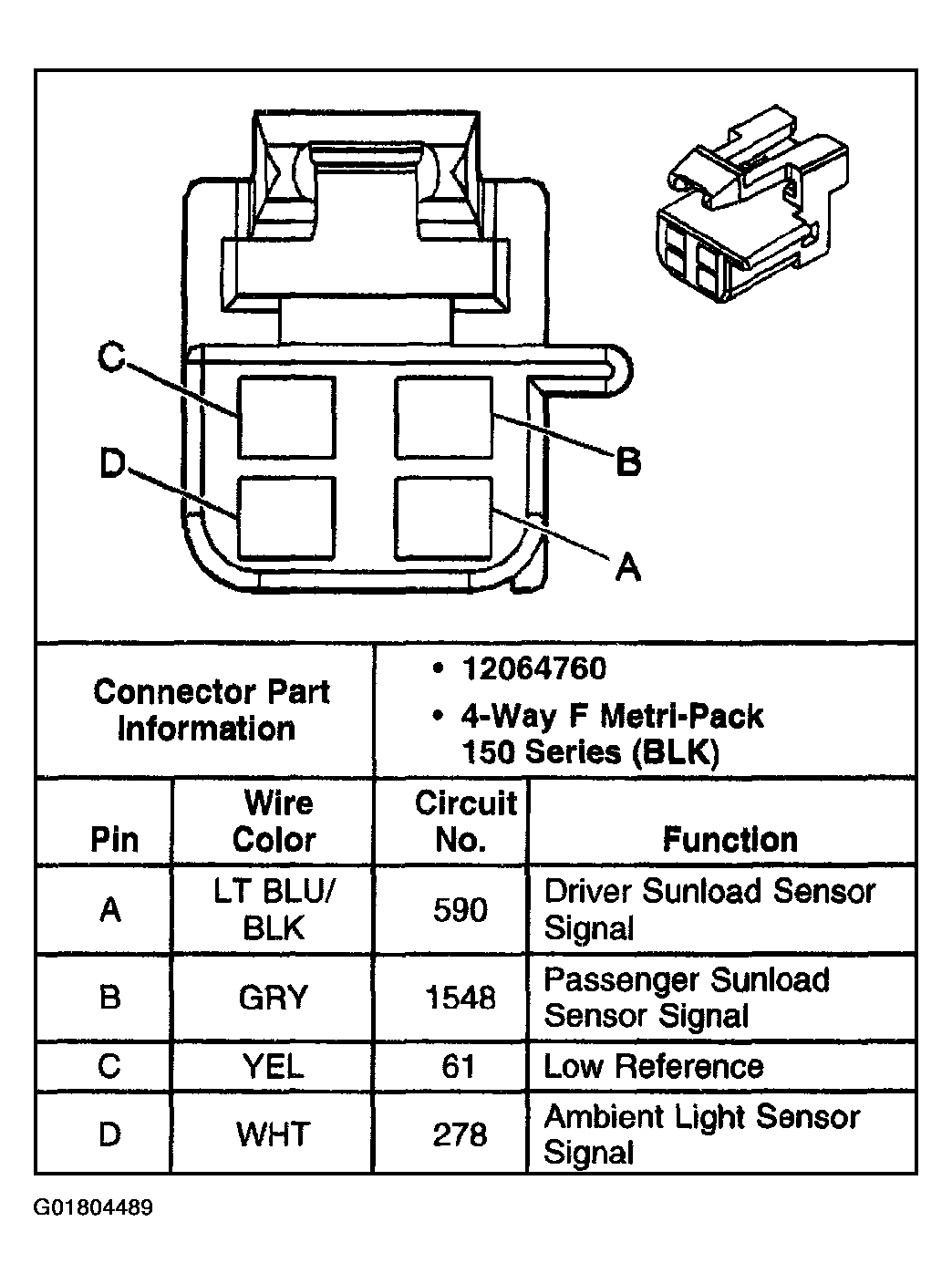

Fig 1: Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
