Automatic Level Control (ALC) Compressor Connector End View

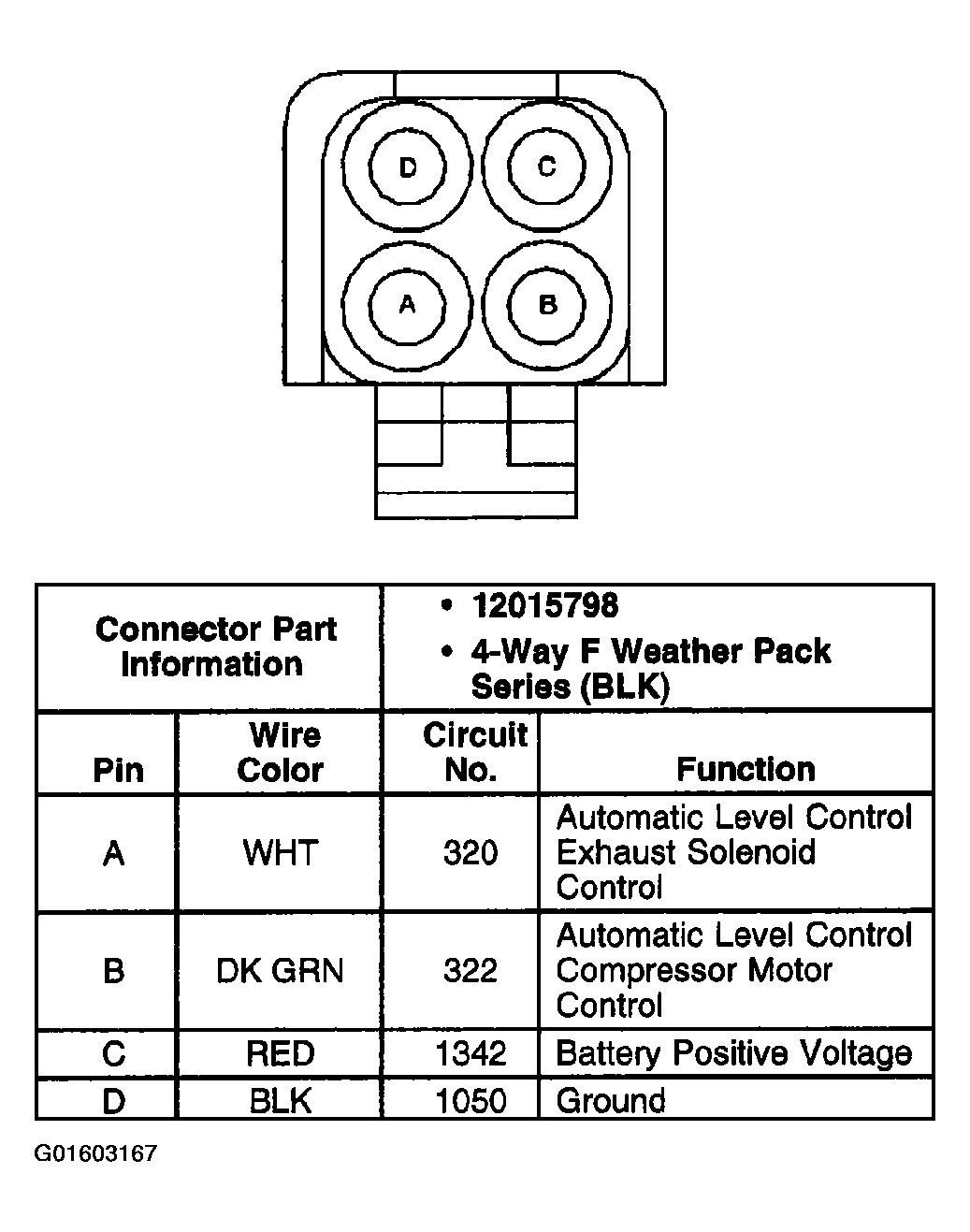

Fig 1: Automatic Level Control (ALC) Compressor
G01603167Courtesy of GENERAL MOTORS CORP.
