Driver Door Module (DDM) Connector End View C2

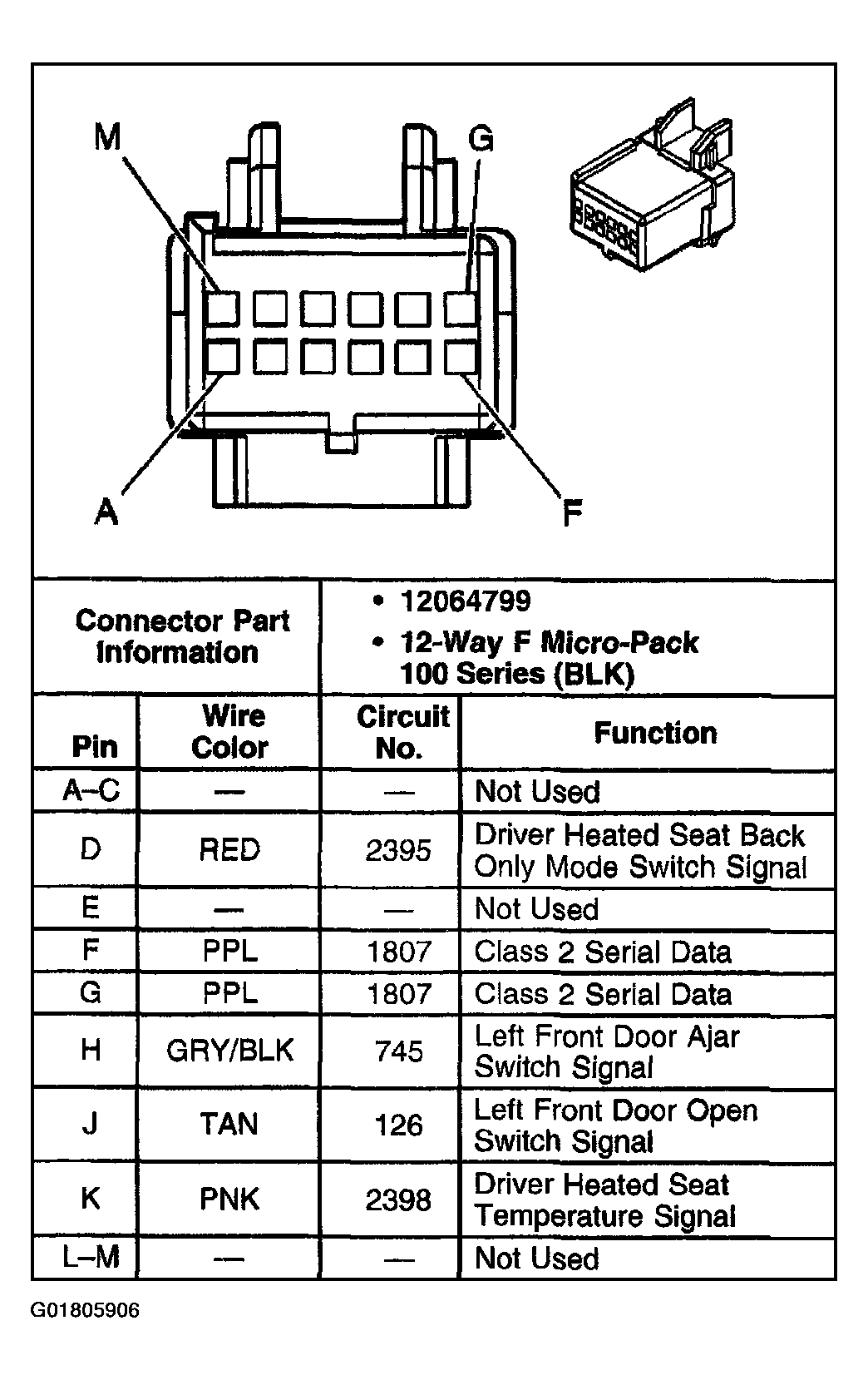

Fig 1: Driver Door Module (DDM) C2
G01805906Courtesy of GENERAL MOTORS CORP.
