Heated Seat Module Connector End View - Front Passenger C2

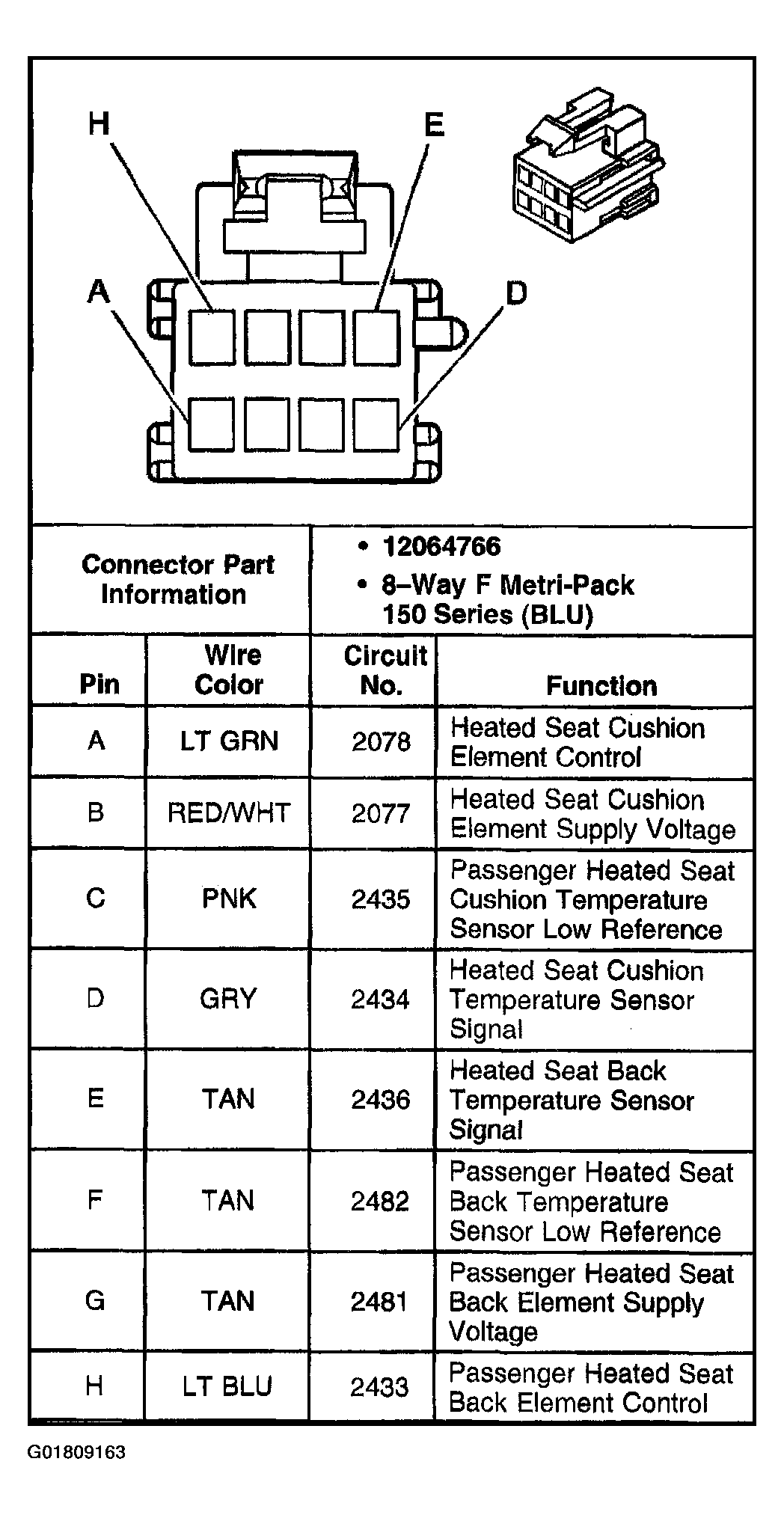

Fig 1: Heated Seat Module - Front Passenger C2
G01809163Courtesy of GENERAL MOTORS CORP.
