IP Compartment Lamp Switch Connector End View
IP Compartment Lamp Switch Connector End View

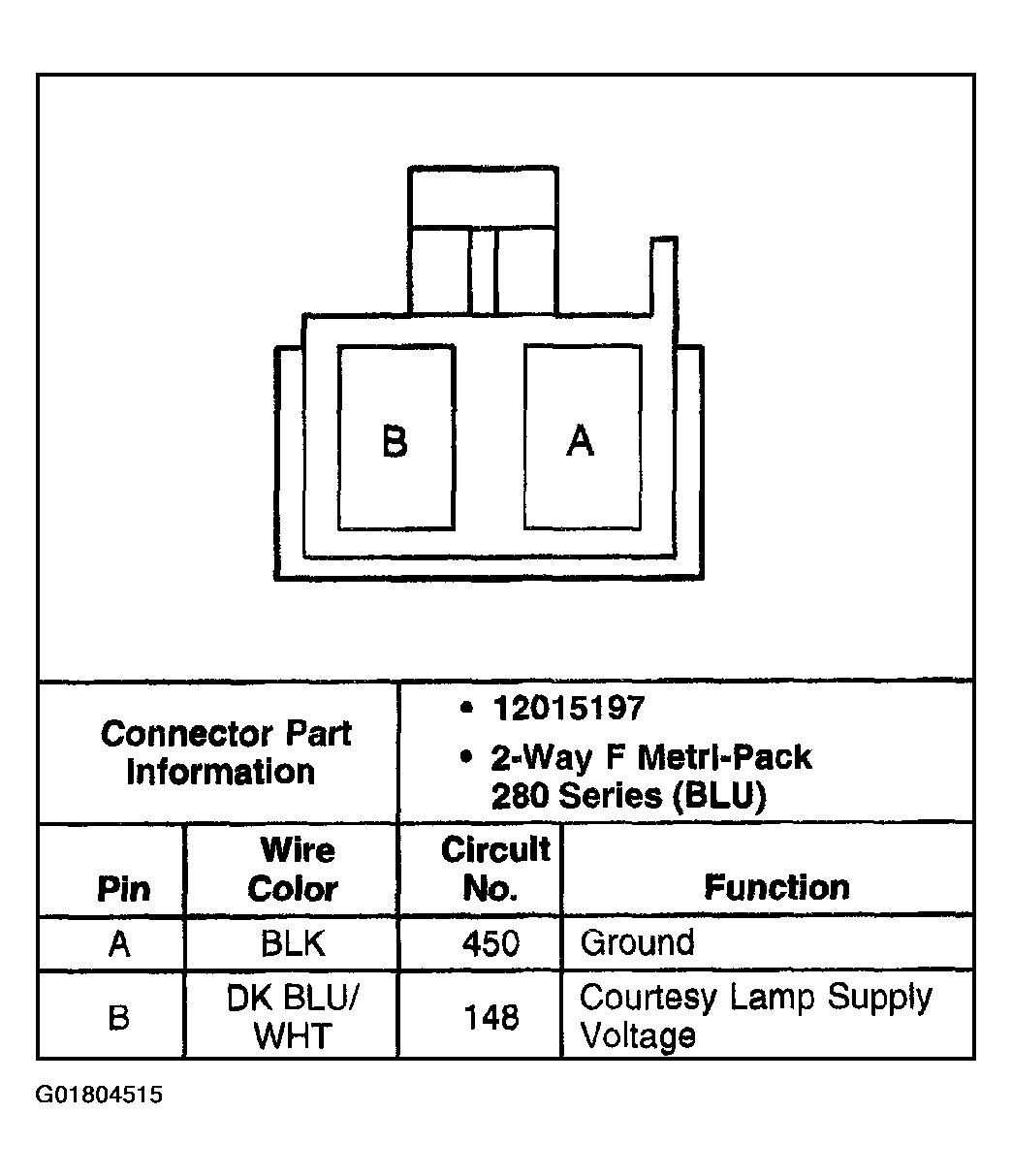

Fig 1: IP Compartment Lamp Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
