Information Center Telltale Assembly Connector End View
Information Center Telltale Assembly Connector End View

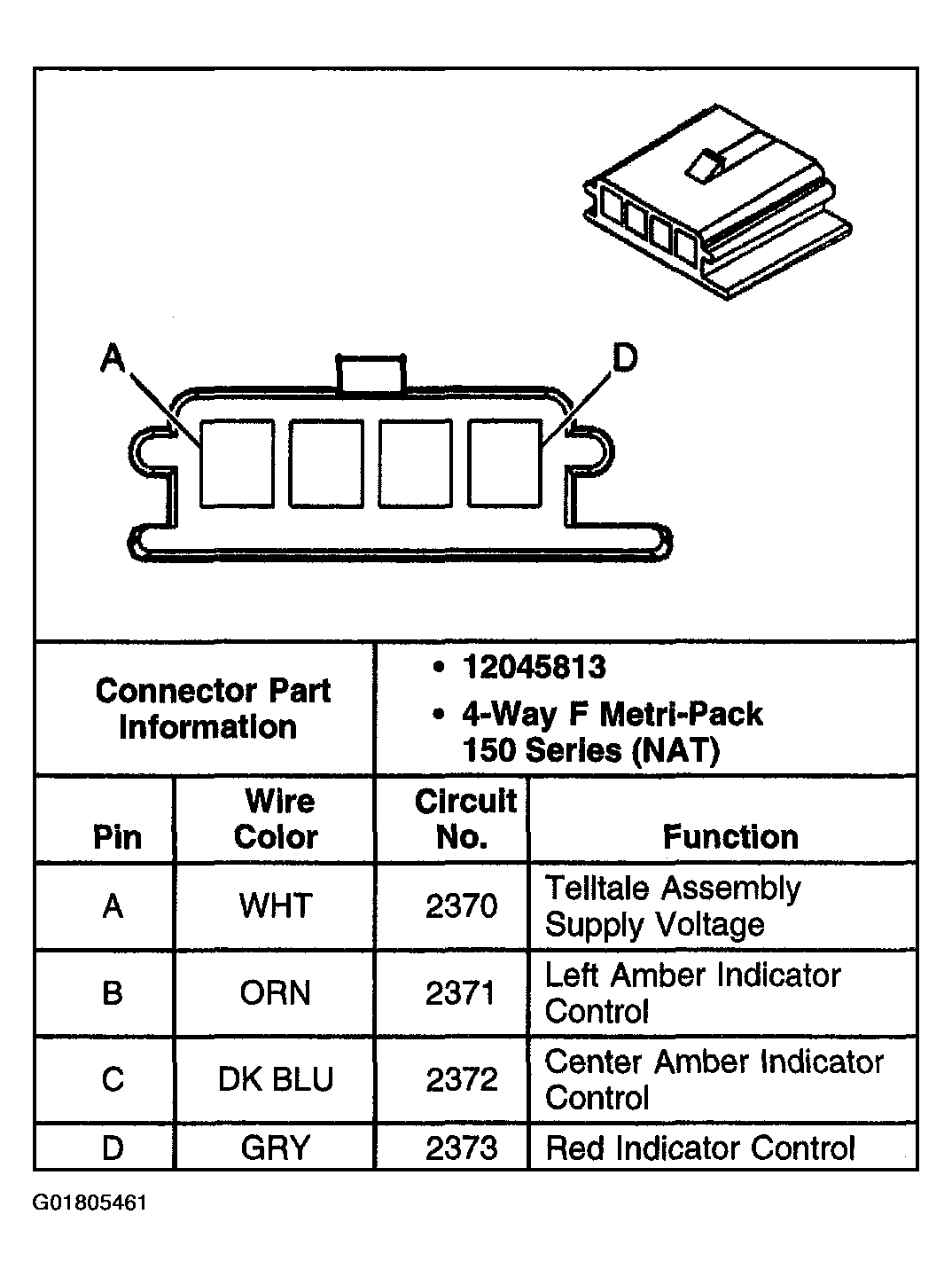

Fig 1: Information Center Telltale Assembly
Courtesy of GENERAL MOTORS CORP.
