Left Rear Door Module (LRDM) Connector End View C3

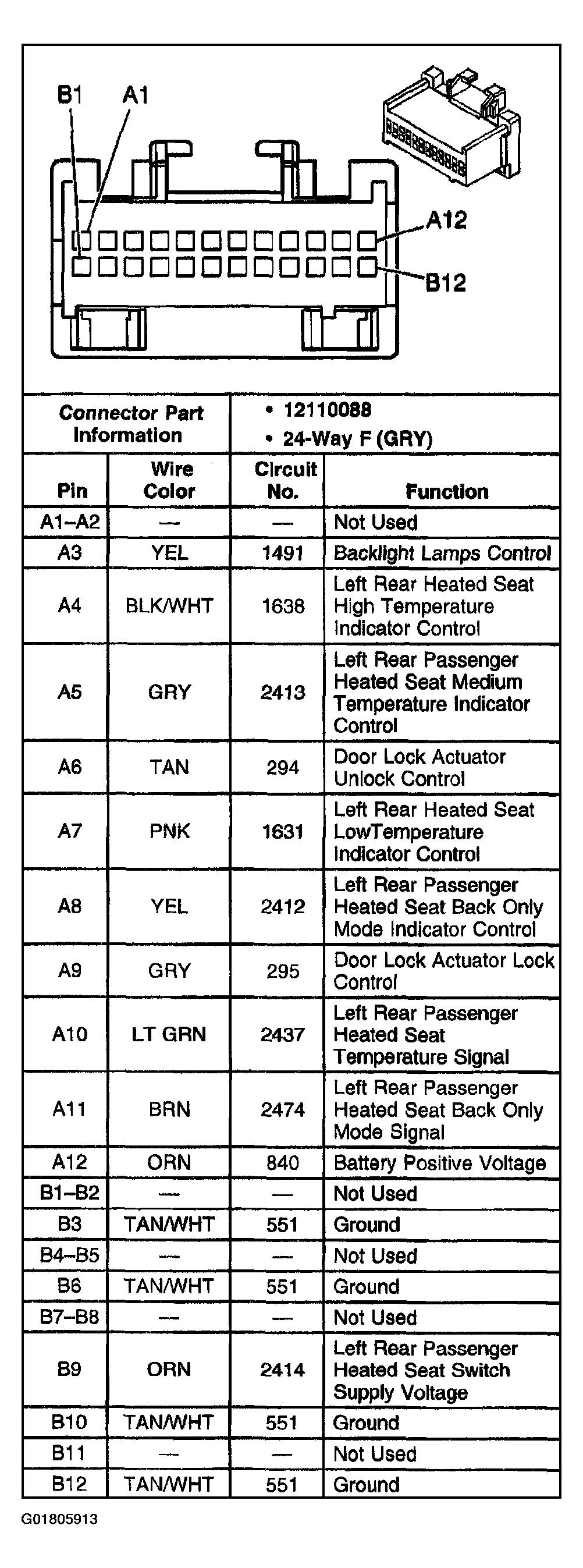

Fig 1: Left Rear Door Module (LRDM) C3
G01805913Courtesy of GENERAL MOTORS CORP.
