Overhead Console Courtesy Lamp Connector End View
Overhead Console Courtesy Lamp Connector End View

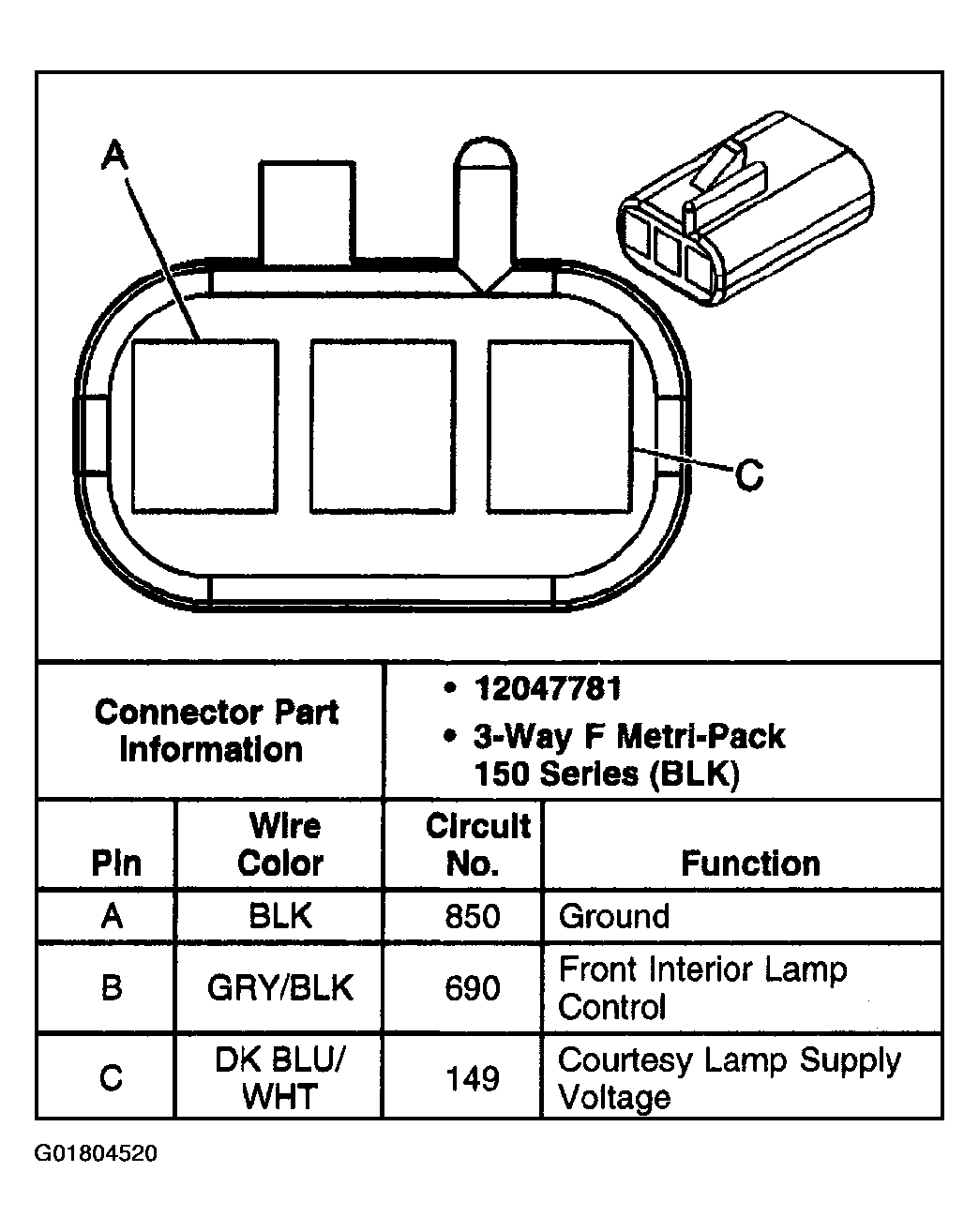

Fig 1: Overhead Console Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
