Passenger Front Door Module (PFDM) Connector End View C2

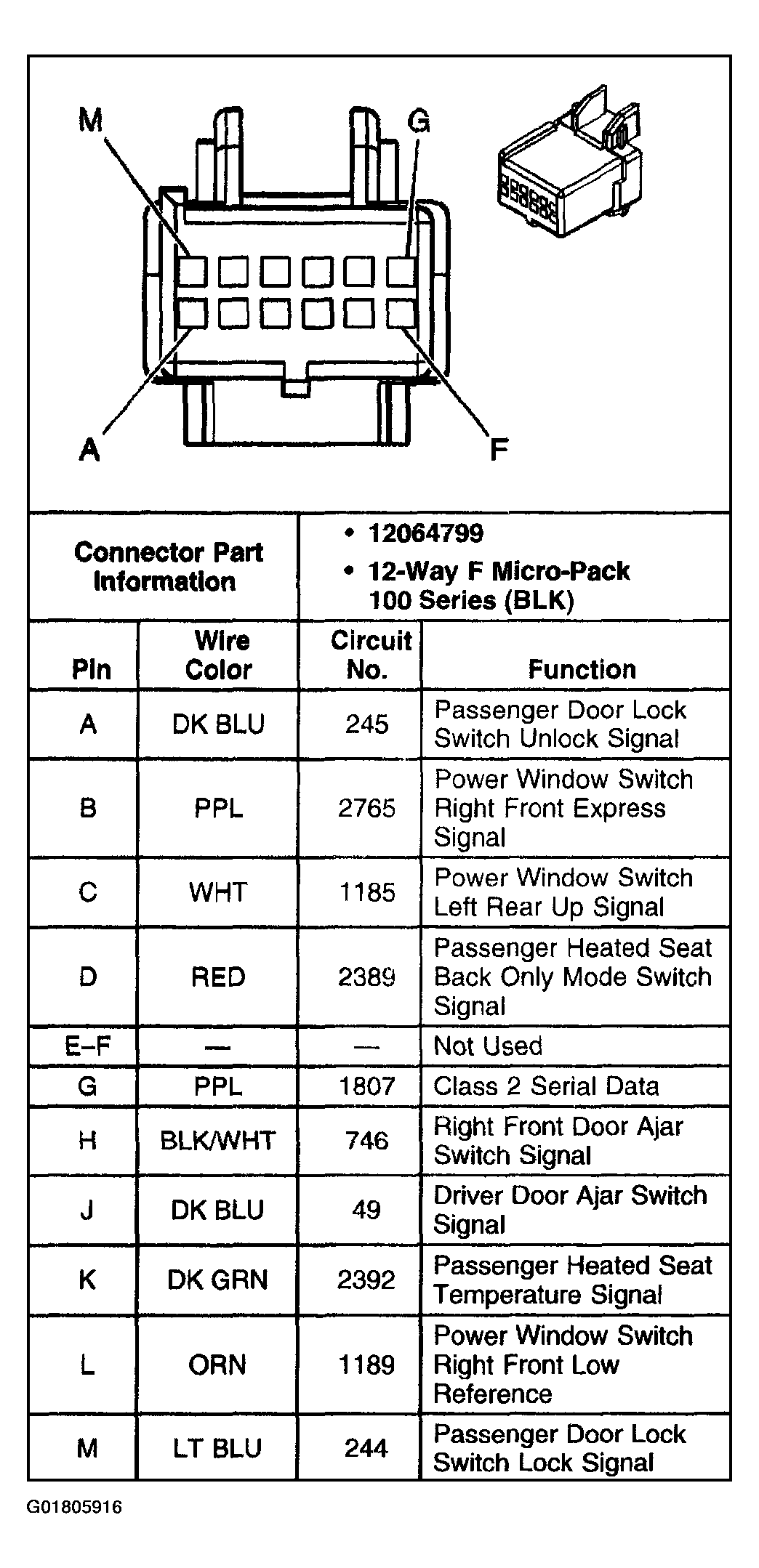

Fig 1: Passenger Front Door Module (PFDM) C2
G01805916Courtesy of GENERAL MOTORS CORP.
