Rear Integration Module (RIM) Connector End View C2

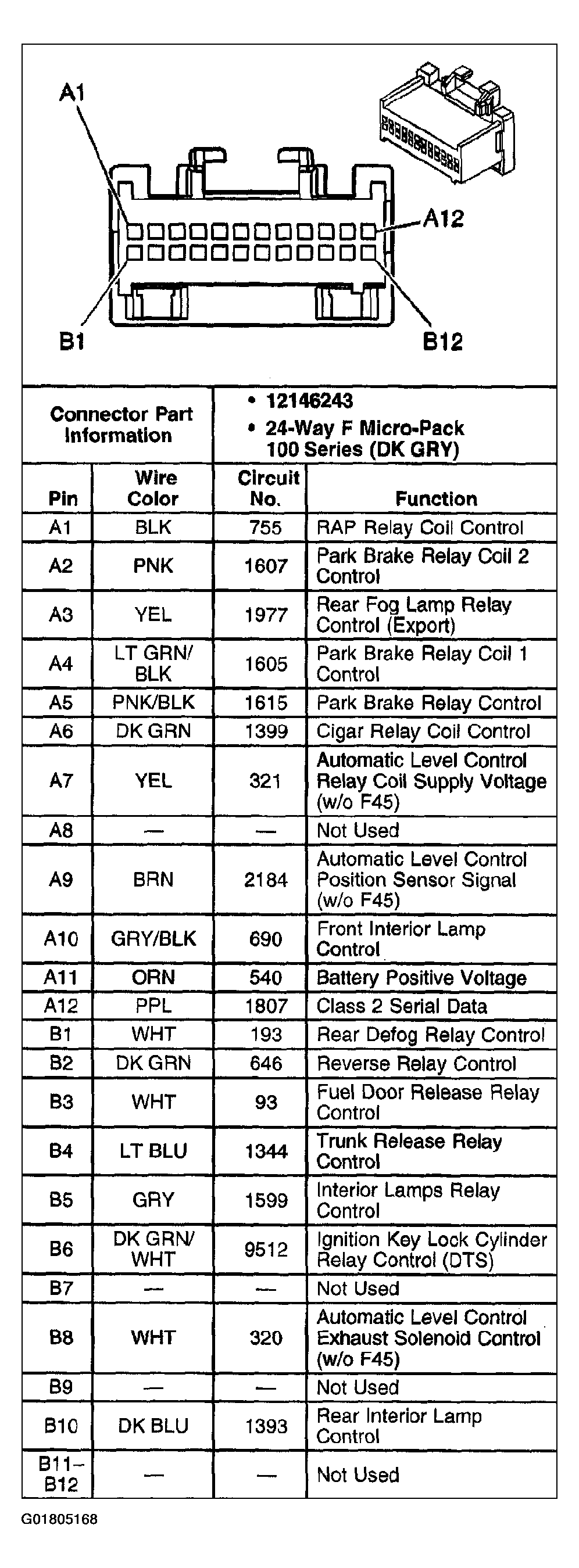

Fig 1: Rear Integration Module (RIM) C2
G01805168Courtesy of GENERAL MOTORS CORP.
